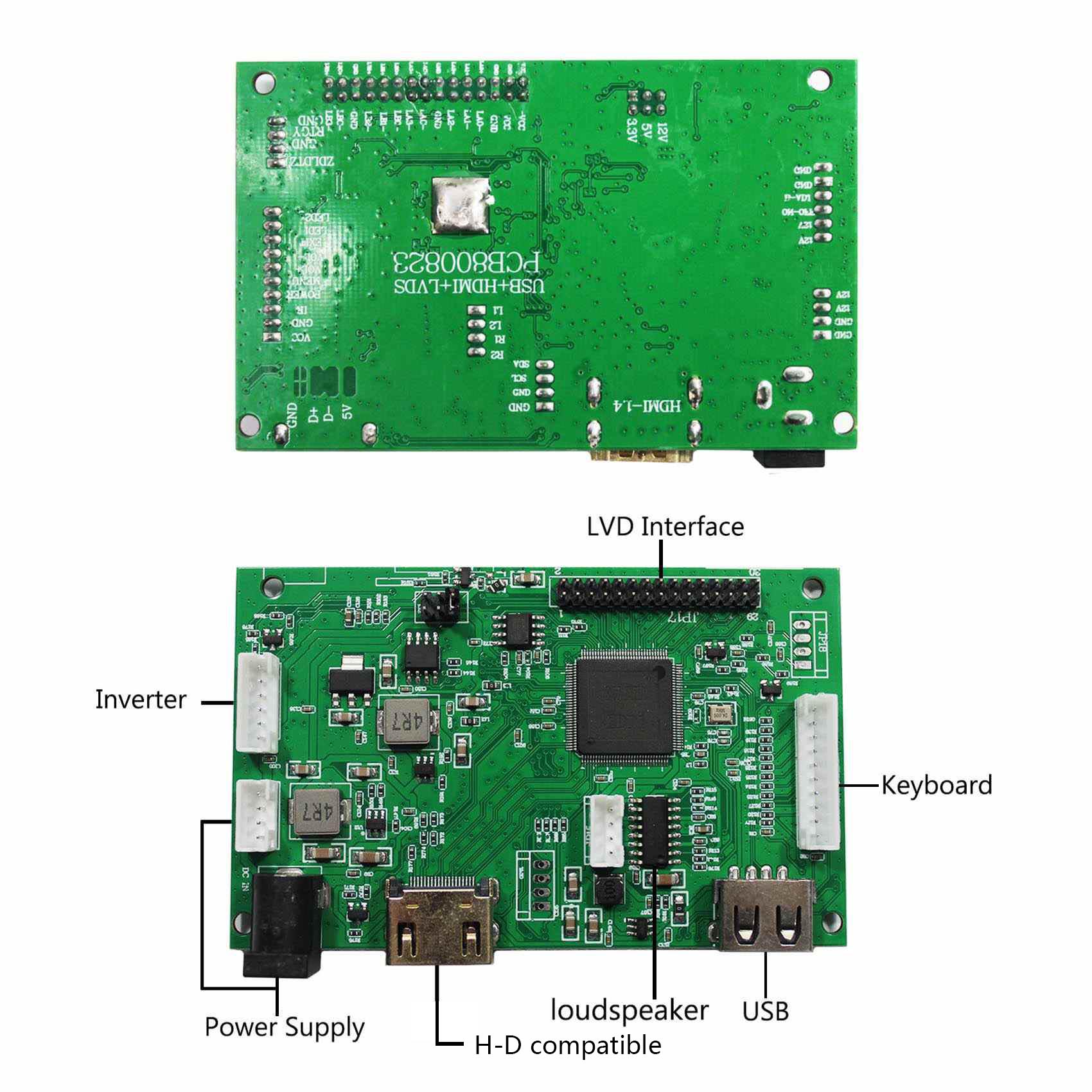

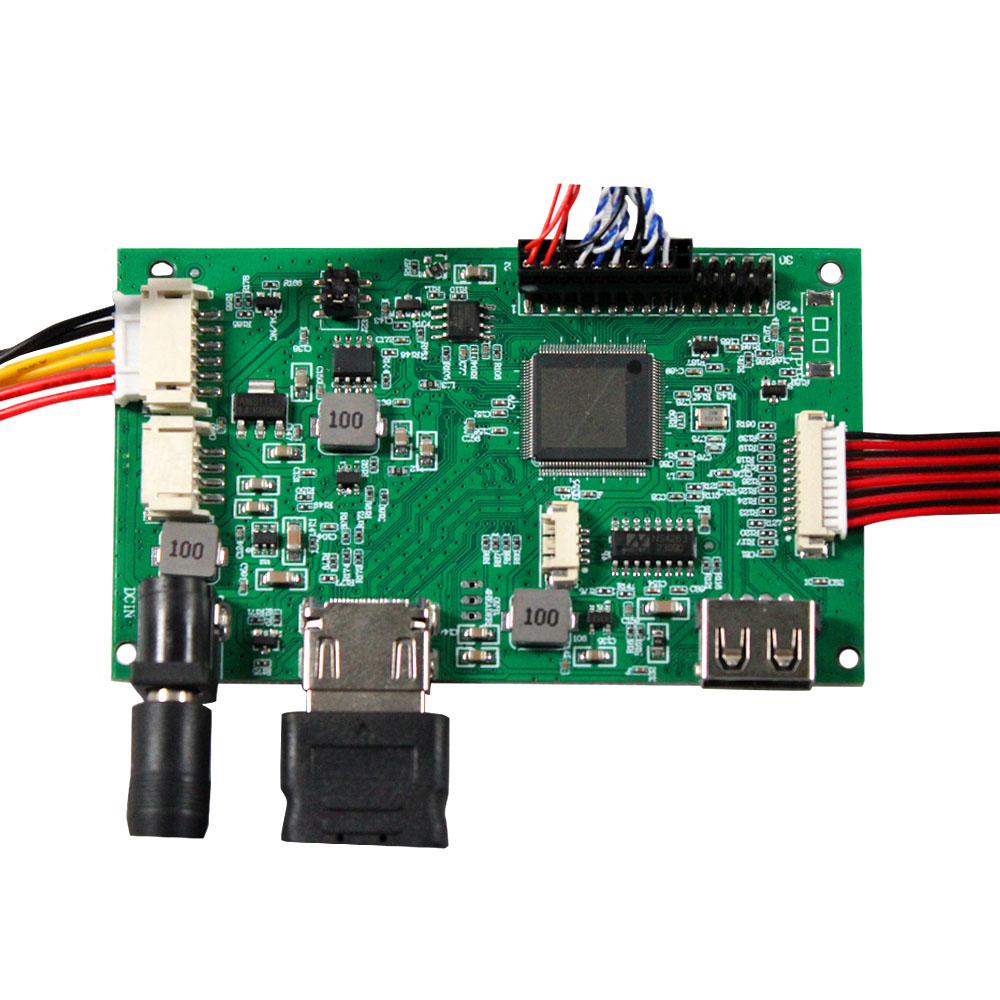

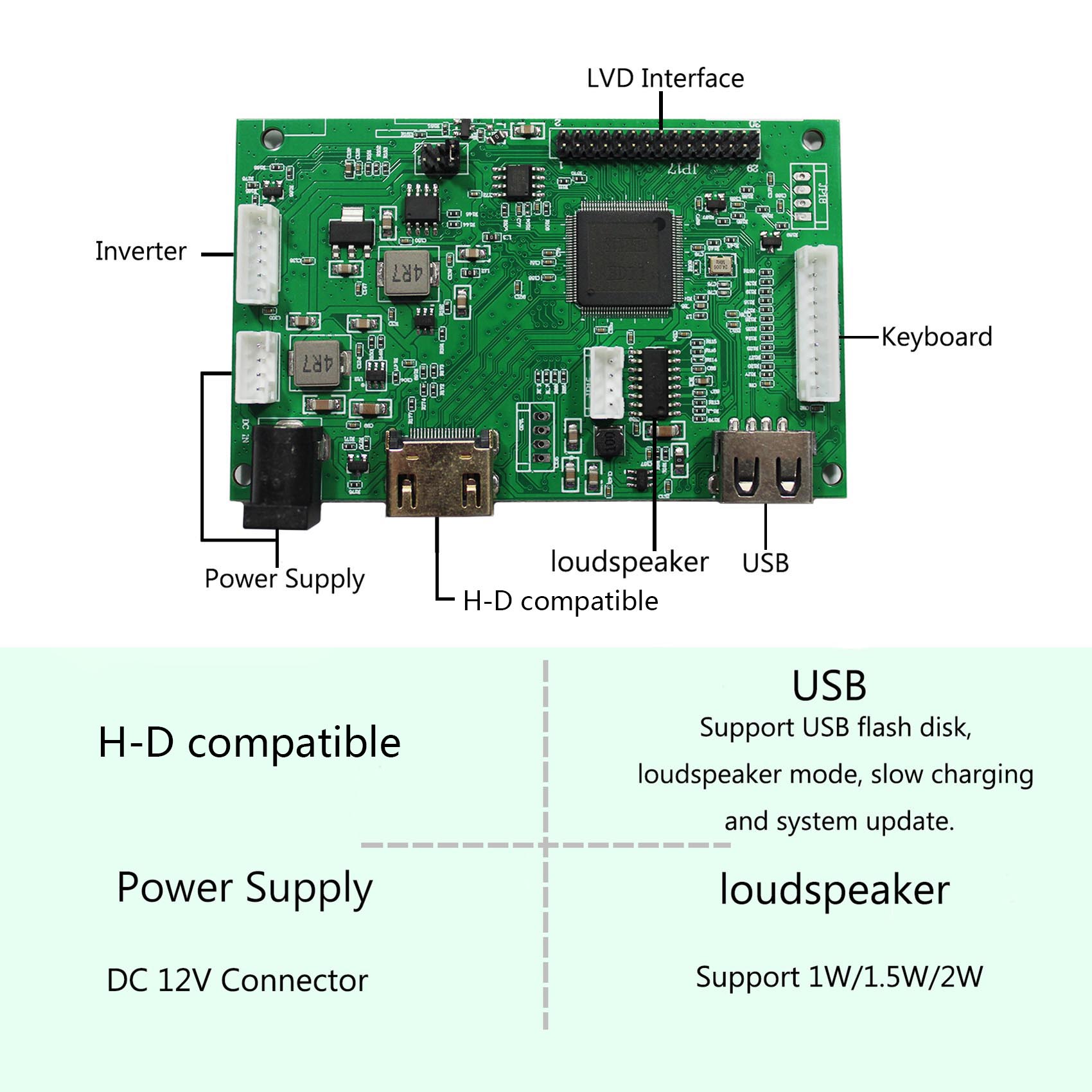

LCD Controller Board:

HD.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS

Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Voltage To LCD Panel： 3.3V 5V 12V(Jumper optional)

Video Input: HD USB

HD: Support HD 1.4

USB: Support Video Playback, Picture Playback, Text Playback

Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and

plugged into the USB of the driver board, the power can be upgraded, and it will automatically

restart after completed)

Audio: Speaker Support 8ohm 2W/ 4ohm 2W

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 90mm x 51mm x 14mm

10.1" VS101T-001A 1280X8001000nit LCD Screen:

Display Mode IPS Pro, Normally Black, Transmissive

Resolution 1280×800

Outline Size 230×149×5 (H×V×D)

Display Area 216.96 × 135.6 (H×V)

Brightness 1000 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 8-bit) , Connector , 40 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

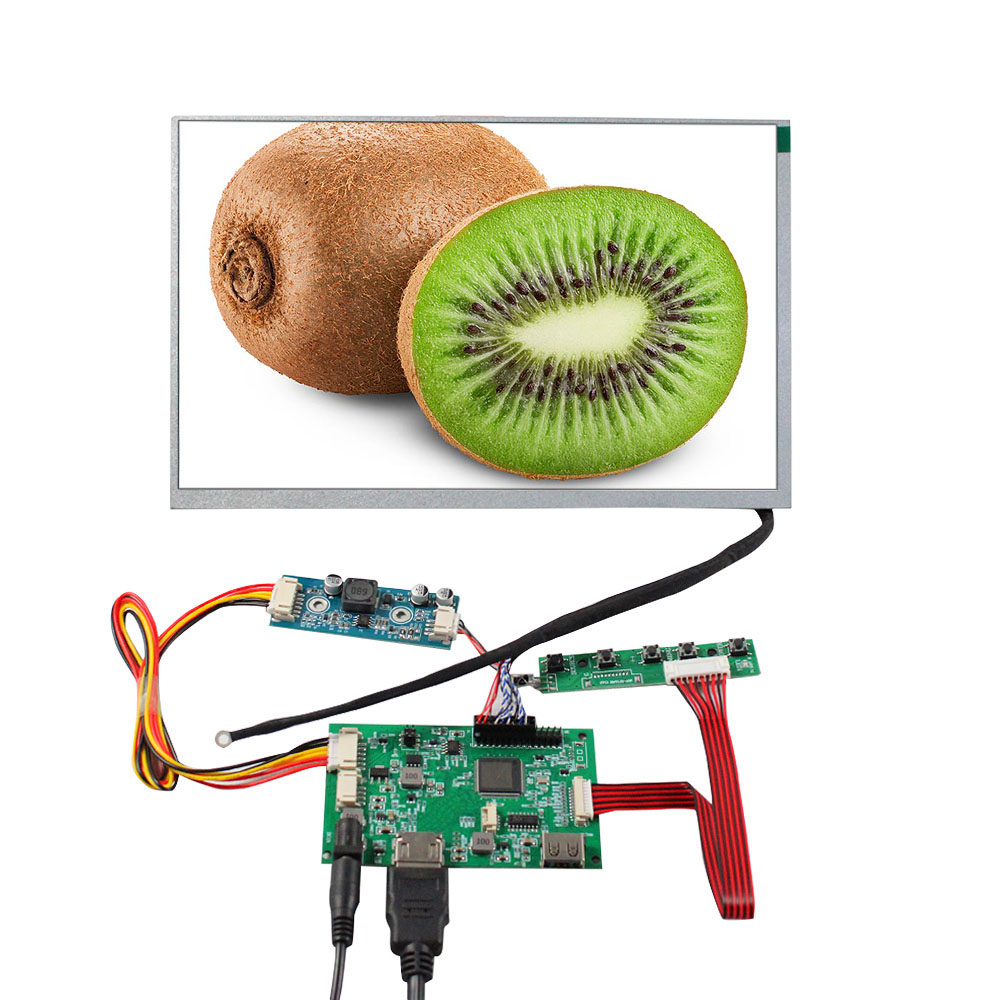

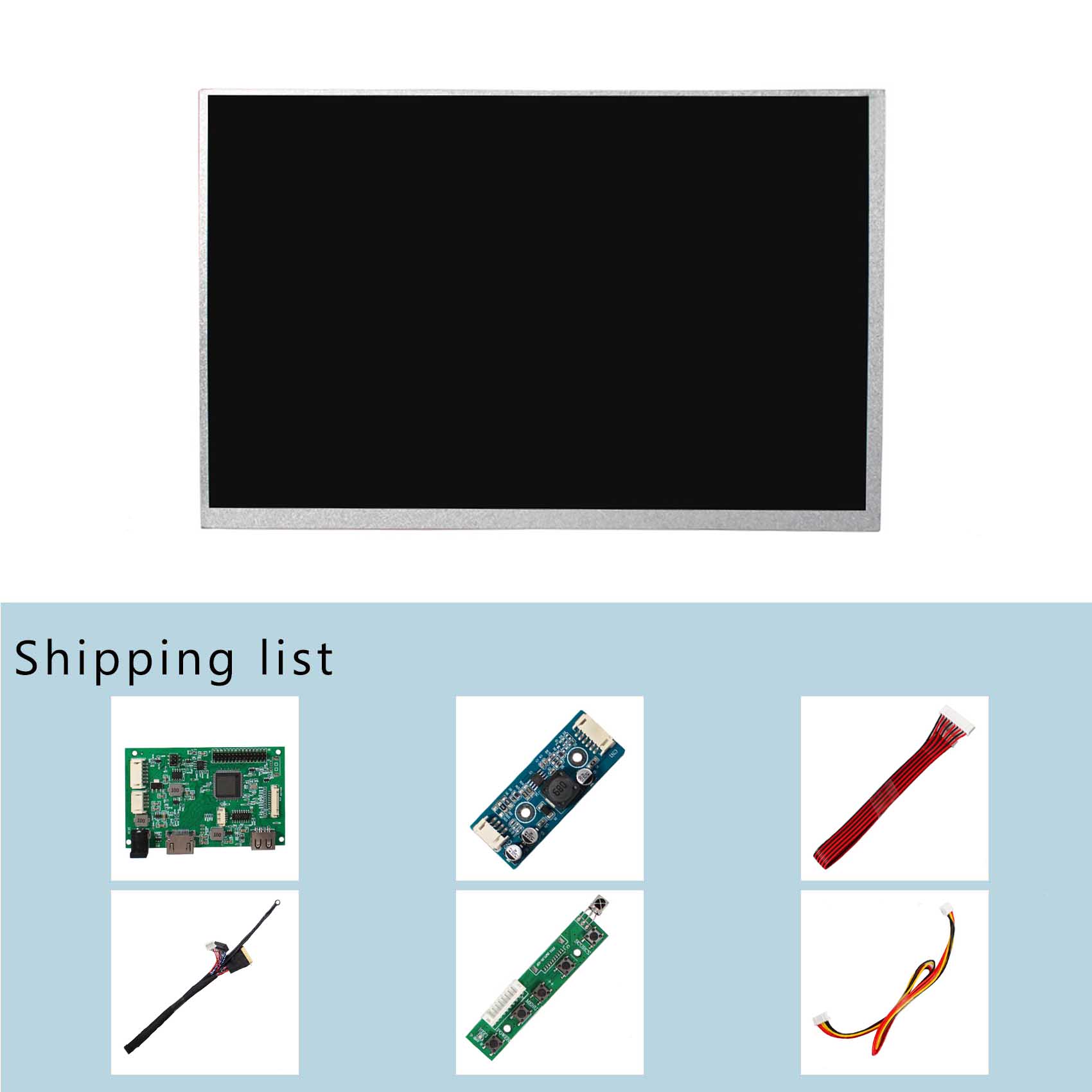

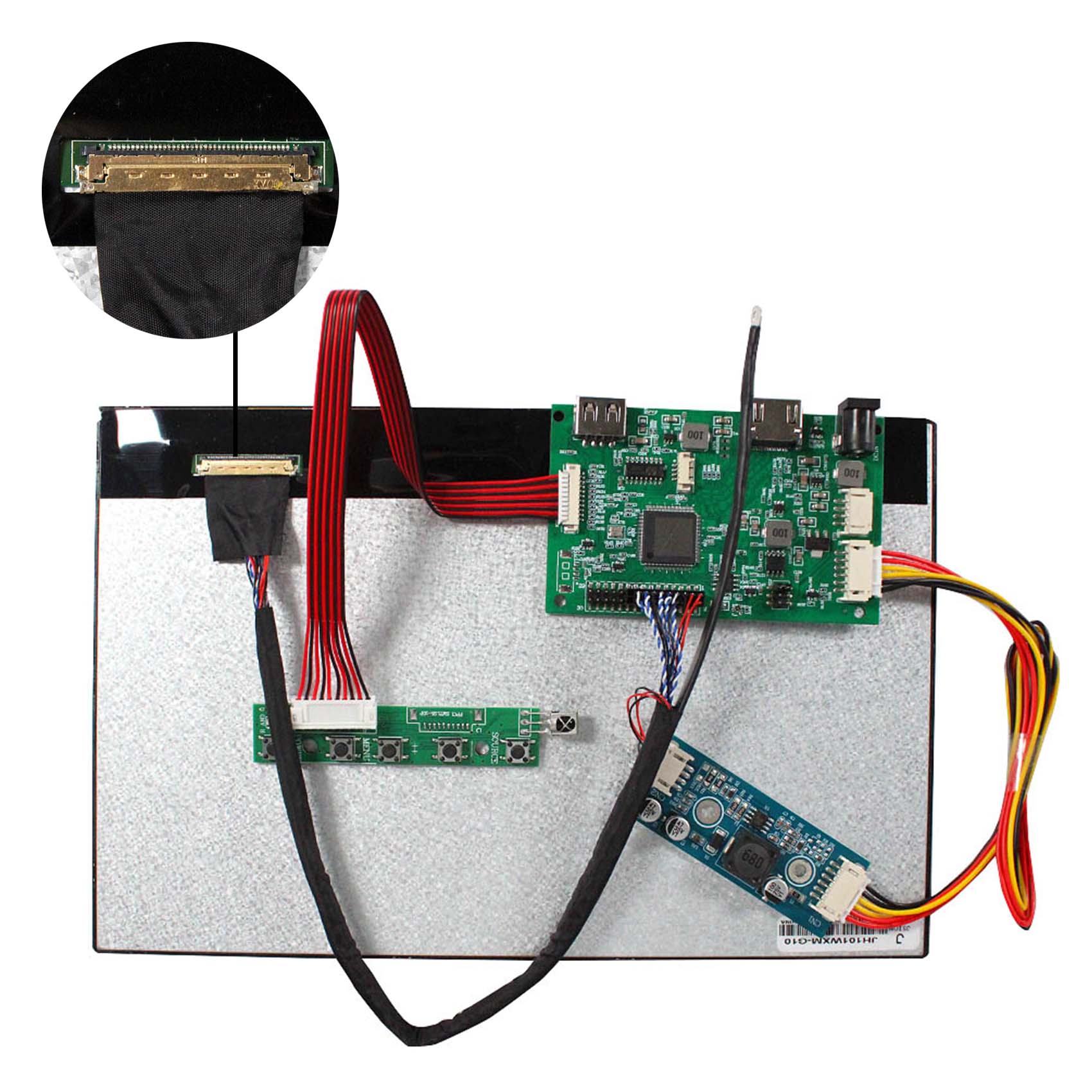

Packing list:

1× HD LCD Board for 30Pin VS-TY2660H-V823

1× 10.1inch VS101T-001A 1280X800 1000nit LCD Screen

1× LVDS Cable

1× Inverter Board

1× Keyboard With Cable

VSDISPLAY focuses on the LCD module, LCD display, liquid crystal display and corresponding control panel for over 10 years. Currently available in a variety of HD VGA DVI USB Control Board and related LCD screen. To provide customers with LCD screen to the controller and the surrounding period of the solution.
