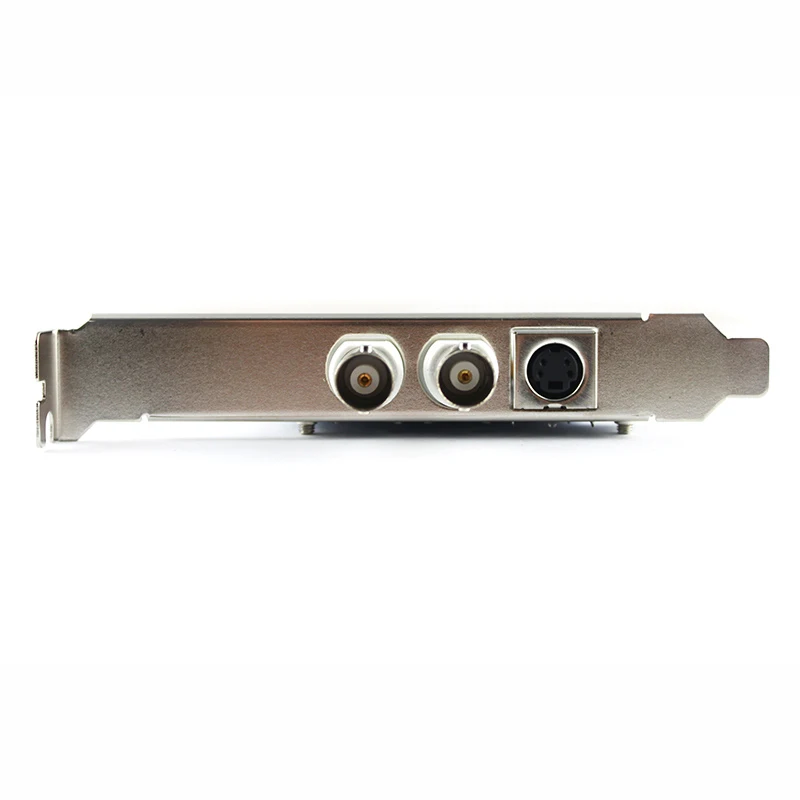

It support three channel signal input(2ch BNC input and 1ch S-video input), But  it cannot display three screens at the same time, you need to switch signals to display one screen.

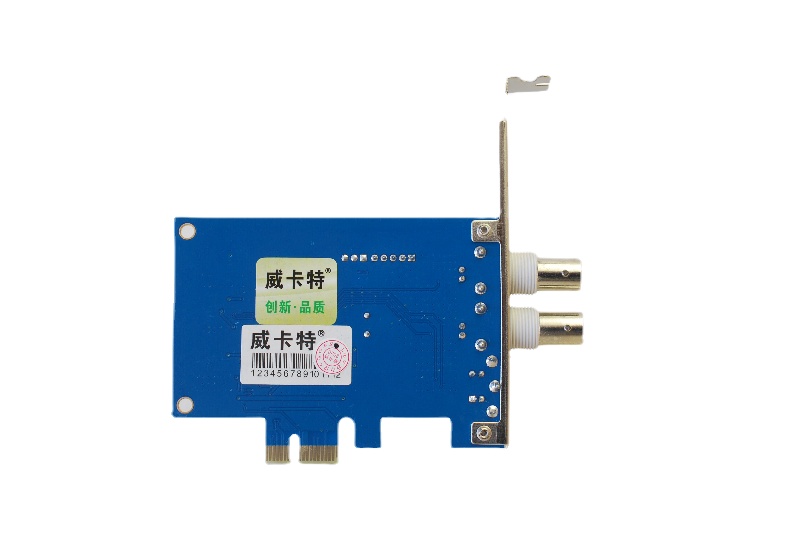

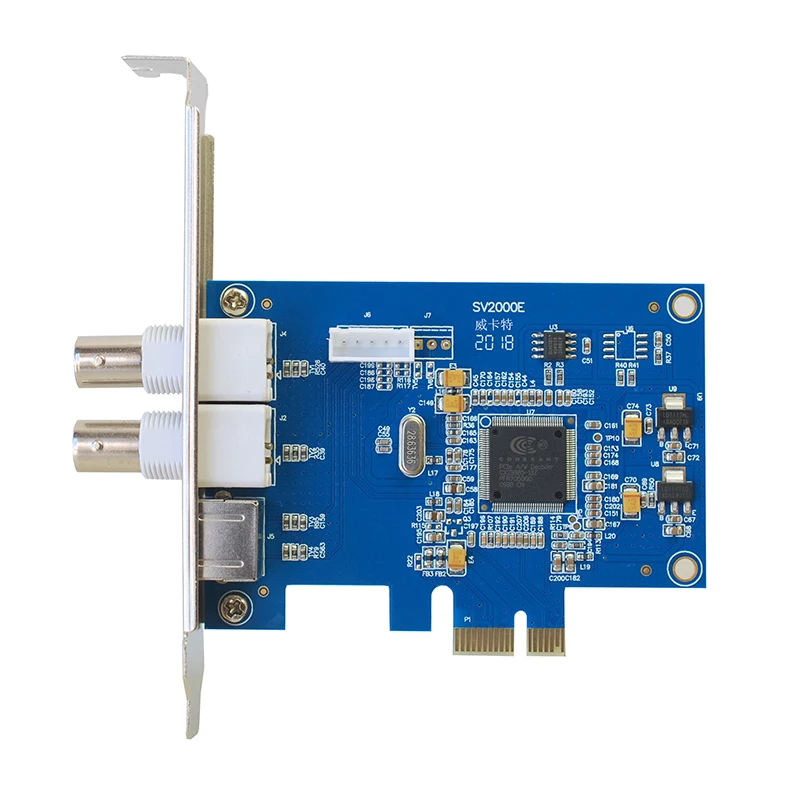

SV2000E is the PCI-E video capture card. .We provides the Software Development Kit (SDK).you can use the VC++ /Delphi /C# programming languages. We provides full sdk demo and the demo source code. It can help you to snap picture .recording the video . adjust color, or de-interlace.

Specification

1.  PCI –E bus, compatibility Windows PNP function, easy to install.

2.  Support two composite video or one S-video input

3.  Resolution up to 720*576, 30fps(NTSC),25fps(PAL).

4.  Support NTSC, PAL, SECAM video standard.

5.  Brightness, Contrast, Saturation and Chromo are adjustable.

6.  Support frame rate setting, user can manual control the frame rate.

7.  Support uncompressed image capture and you can select the record quality.

8.  Still image capture

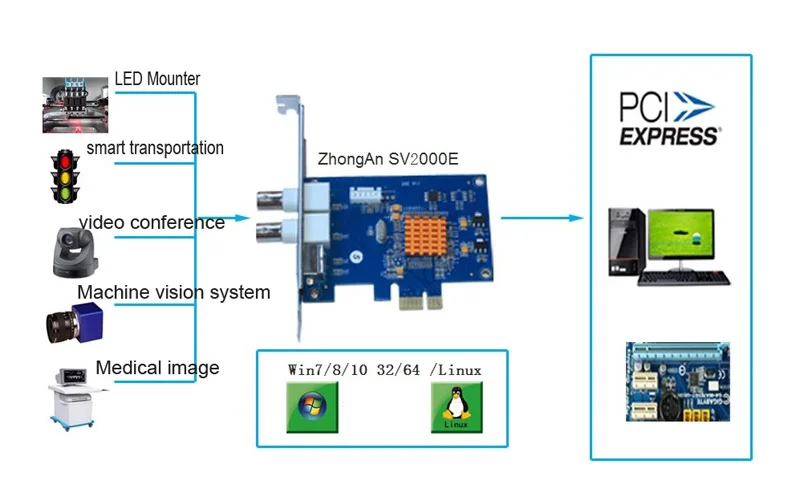

9.  Offers SDK demo application source code, can be used to develop software for the system of guard and monitor, medical treatment, traffic,and bank

10.   support the WDM driver, fully DirectShow Compatible support, support the MS directxsdk

11.   support linux V4L2

Device Interface	PCI-E 1.0A
Video ADC	10Bit  ADC
Video Input	AV1 input   BNC  75R
	AV2 input  BNC  75R
	SVIDEO input  75R
Video resource	PAL	Max 720*576@25FPS
	NTSC	Max  640*480@30FPS
Operation system	WIN2000/WIN20003/WINXP/WINXPE/WIN7 32 64bit/ubuntu-12.04 WIN8 32/64/WIN2008
Size	89.6*62.3mm

System requirement

PentiumR M 1.6 GHz
PCI-E X1 and above  Port

Directx 9.0 or above

Graphic Card with 64MB of Memory
Package List:

1 * Capture Card

 \
