Model |
Size （mm） |
|||||
|
ISO |
JIS |
DIN |
||||
|
Shank diameter |
Foursquare |
Shank diameter |
Foursquare |
Shank diameter |
Foursquare |
|
|
M2 |
2.8 |
2.25 |
3 |
2.5 |
2.5 |
2 |
|
M3 |
2.15 |
2.5 |
4 |
3.2 |
3.5 |
2.7 |
|
M4 |
4 |
3.15 |
5 |
4 |
4.5 |
3.4 |
|
M5 |
5 |
4 |
5.5 |
4.5 |
6 |
4.9 |
|
M6 |
6.3 |
5 |
6 |
4.5 |
6 |
4.9 |
|
M8 |
6.3 |
5 |
6.2 |
5 |
8 |
6.2 |
|
M10 |
8 |
6.3 |
7 |
5.5 |
10 |
8 |
|
M12 |
9 |
7.1 |
8.5 |
6.5 |
9 |
7 |
|
M14 |
11.2 |
9 |
10.5 |
8 |
11 |
9 |
|
M16 |
12.5 |
10 |
12.5 |
10 |
12 |
9 |
|
M18 |
14 |
11.2 |
14 |
11 |
14 |
11 |
|
M20 |
14 |
11.2 |
15 |
12 |
16 |
12 |
|
M22 |
16 |
12.5 |
17 |
13 |
18 |
14.5 |
|
M24 |
18 |
14 |
19 |
15 |
18 |
14.5 |
|
M27 |
20 |
16 |
20 |
15 |
20 |
16 |
|
M30 |
20 |
16 |
23 |
17 |
22 |
18 |
|
M33 |
22.4 |
16 |
25 |
19 |
25 |
20 |
|
M36 |
25 |
20 |
28 |
21 |
28 |
22 |
|
M39 |
28 |
22.4 |
30 |
23 |
32 |
24 |
|
M42 |
28 |
22.4 |
32 |
26 |
32 |
24 |
|

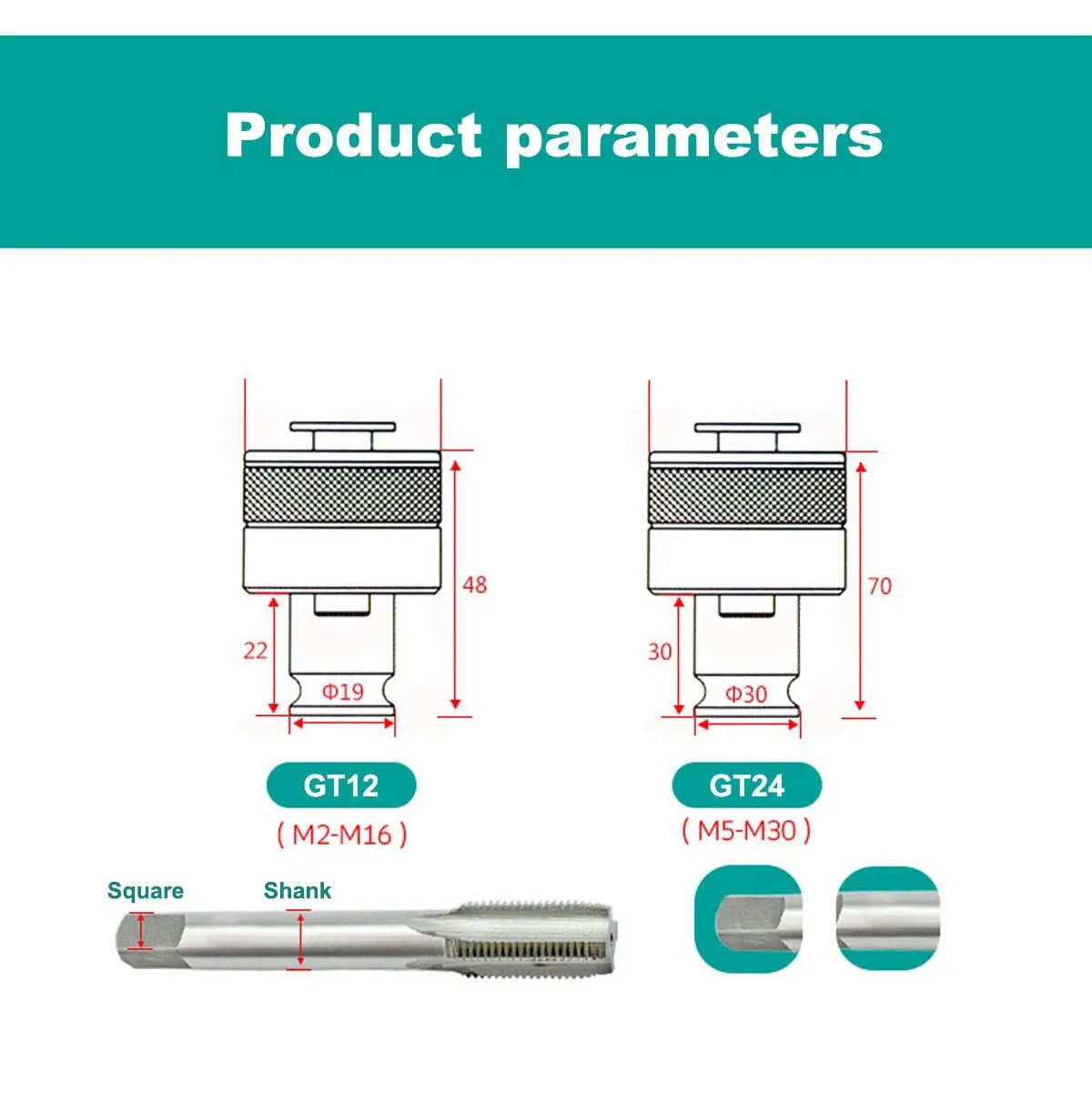

ISO |
JIS |
||||
|
GT12 GT24 |
Specification |
Handle/Square |
GT12 GT24 |
Specification |
Handle/Square |
|
M2 |
2.5x2 |
M2 |
3x2.5 |
||
|
M3 |
3.15x2.5 |
M3 |
4x3.2 |
||
|
M4 |
4x3.15 |
M4 |
5x4 |
||
|
M5 |
5x4 |
M5 |
5.5x4.5 |
||
|
M6-M8 |
6.3x5 |
M6 |
6x4.5 |
||
|
M10 |
8x6.3 |
M7 M8 |
6.2x5 |
||
|
M12 |
9x7.1 |
M9M10 |
7x5.5 |
||
|
M14 |
11.2x9 |
M11 |
8x6 |
||
|
M16 |
12.5x10 |
M12 |
8.5x6.5 |
||
|
M18 |
14x11.2 |
M14M15 |
10.5x8 |
||
|
M20 |
14x11.2 |
M16 |
12.5x10 |
||
|
M22 |
16x12.5 |
M17 |
13x10 |
||
|
M24 |
18x14 |
M18 |
14x11 |
||
|
M27-M30 |
20x16 |
M20 |
15x12 |
||
|
Note: GT12(M2-M16)ISO JIS DIN GT12(M2-M16)ISO JIS DIN |
M22 |
17x13 |
|||
|
M24 M25 |
19x15 |
||||
|
M26M27 |
20x15 |
||||
|
M30 |
23x17 |
||||
1.High precision, torque overload protection, durable.
2.The change of torque is sensitive, the corresponding torque can be set according to different materials (the factory has set the standard torque, please pay attention to adjust) is suitable for all kinds of tapping machine, electric tapping machine, pneumatic tapping machine.
Steps of adjust the torque:
1.Remove the Steel ring.
2.The wrench is inserted into two holes.
3.Turn the wrench to adjust the torque.（It is recommended to adjust one grid each time)
4.When the torque adjustment is complete, reinstall the steel ring on the tap clamp.
The package includes:
1 x Tapping collet

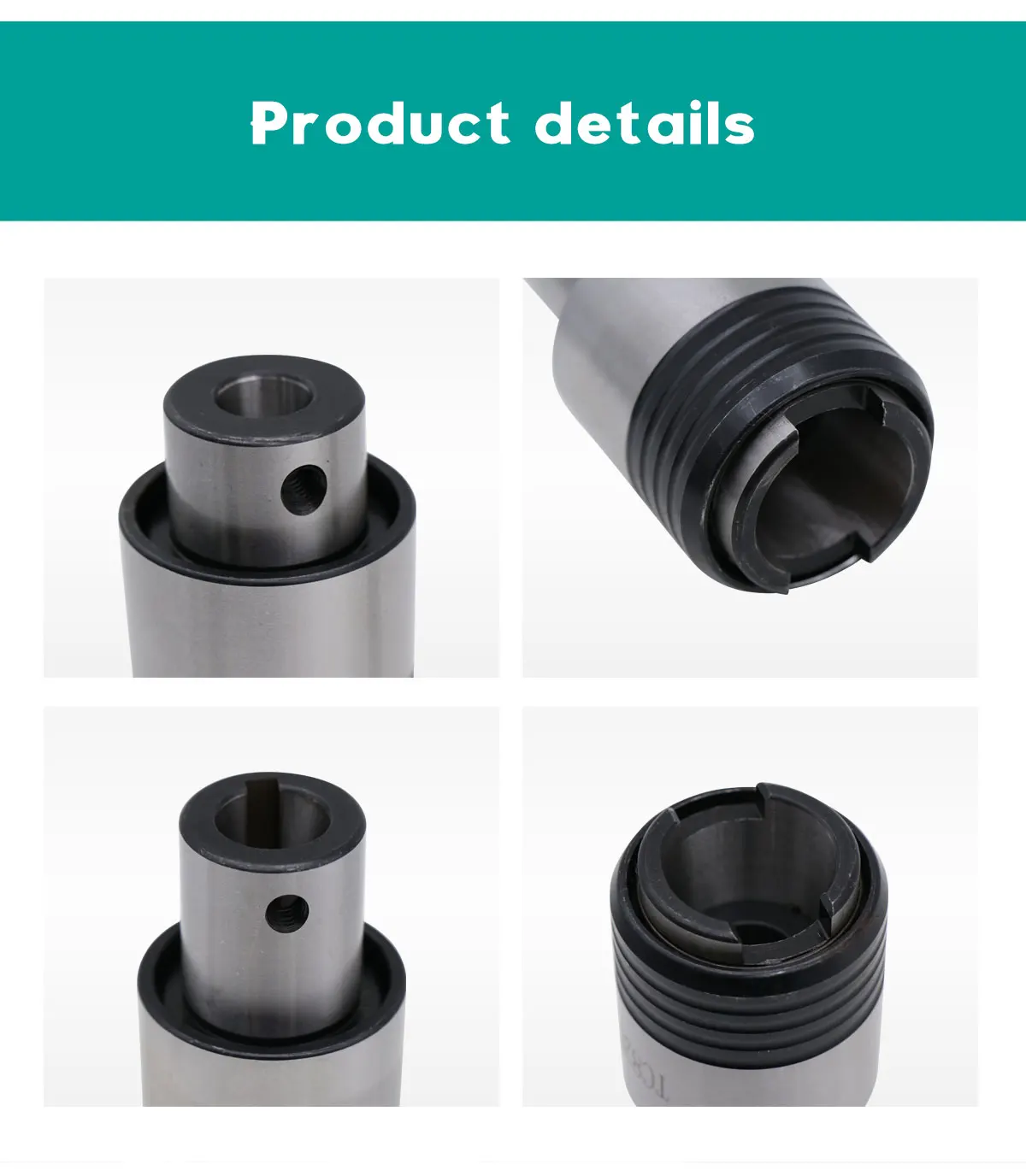

Hardening has strong shock resistance
Vacuum quenching carbon nitrogen oozing treatment, higher hardness. The interface is fatigue resistant and durable.
Overall finishing. Inner hole finishing
20CrMnTi steel
Torque adjustment: avoid overload sensitive change
Overall finishing: high brightness, wear resistance, good clamping

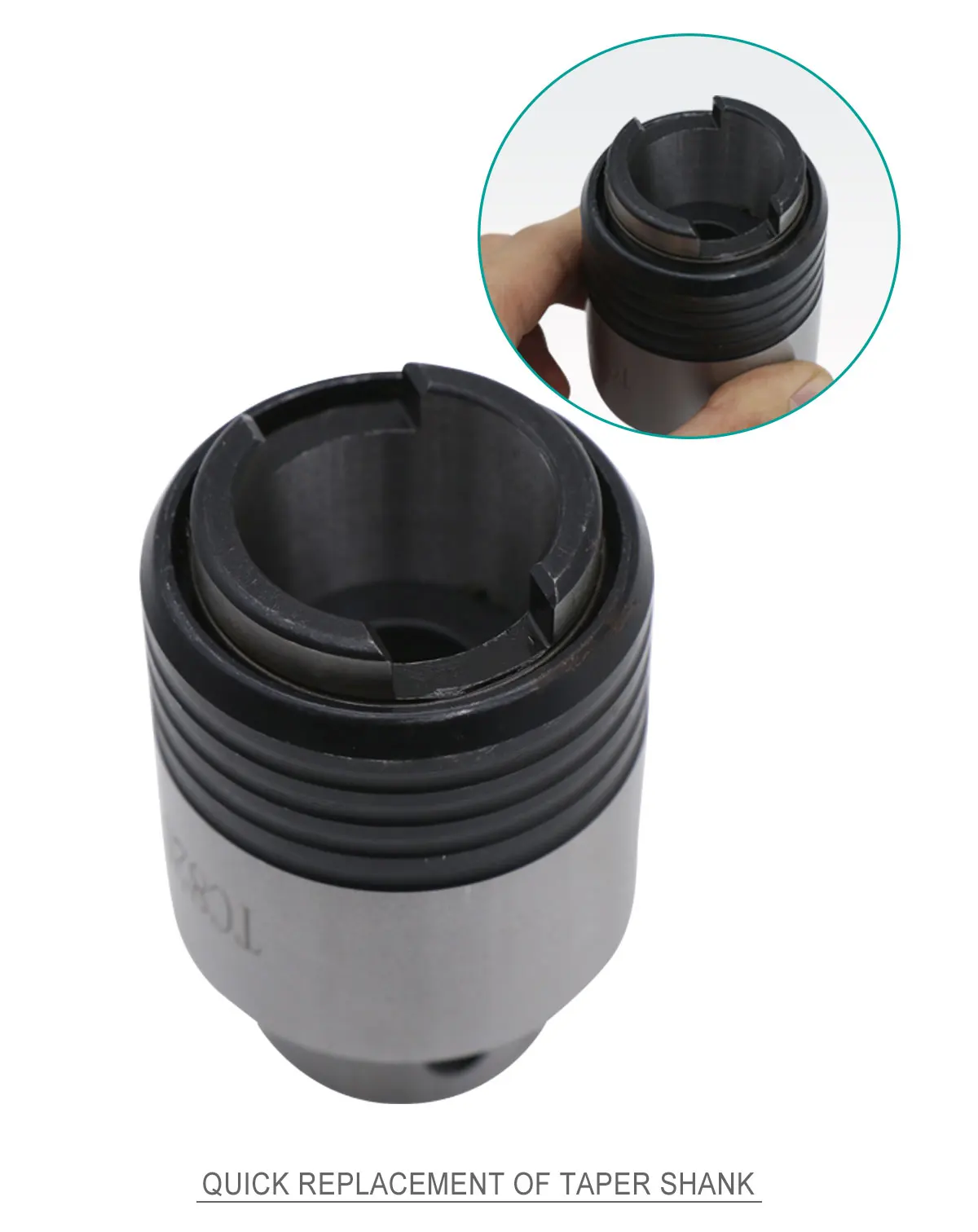

Quick change design: Press the change cone without locking
