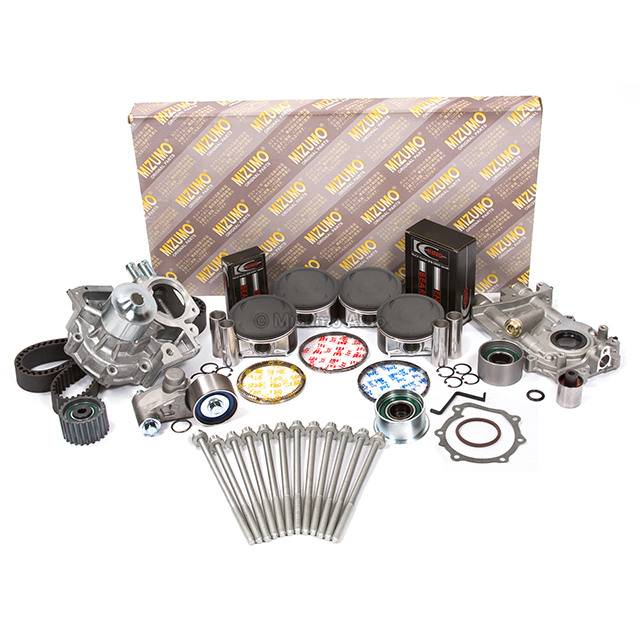

Overhaul Engine Rebuild Kit Fit 04-06 Subaru TURBO DOHC EJ255 EJ257. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost. Replace Part #: 12006AD210, 12006AD810

Fits Following Models:
2006 SAAB 9-2X 2.5L 2458CC H4 DOHC TURBOCHARGED, (16 VALVE), ENG CODE "EJ255"
2004-2006 SUBARU BAJA 2.5L 2458CC H4 DOHC TURBOCHARGED, (16 VALVE), ENG CODE "EJ255"
2004-2005 SUBARU FORESTER 2.5L 2458CC H4 DOHC TURBOCHARGED, (16 VALVE), ENG CODE "EJ255"
2004-2006 SUBARU IMPREZA 2.5L 2458CC H4 DOHC TURBOCHARGED, (16 VALVE), ENG CODE "EJ257"
2005-2006 SUBARU LEGACY 2.5L 2458CC H4 DOHC TURBOCHARGED, (16 VALVE), ENG CODE "EJ255"
2005-2006 SUBARU OUTBACK 2.5L 2458CC H4 DOHC TURBOCHARGED, (16 VALVE), ENG CODE "EJ255"

This item includes:

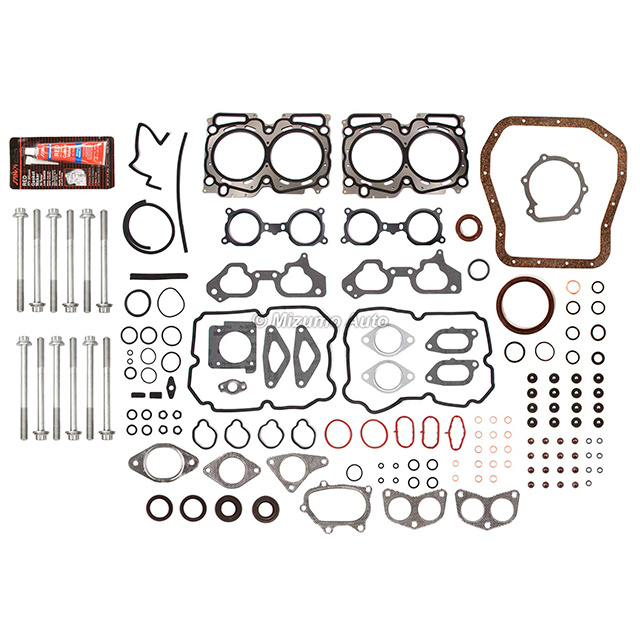

Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Valve Stem Seals, Intake Manifold Gasket, ..., Other Small Gaskets, RTV Silicone)

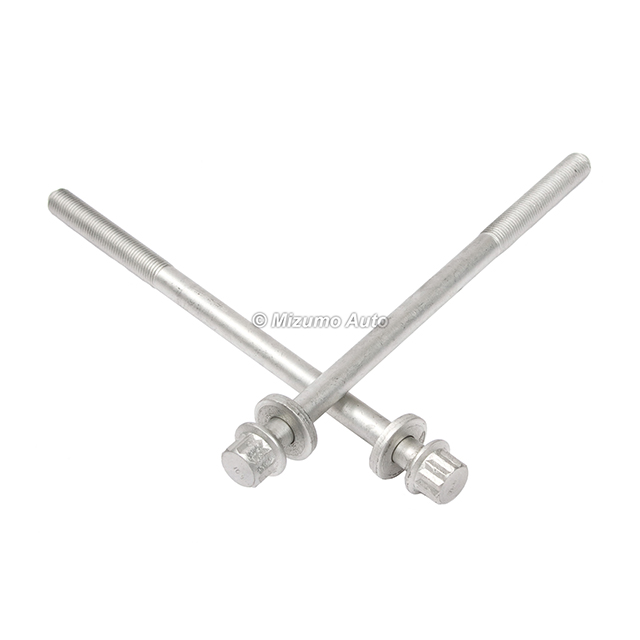

12 Cylinder Head Bolts

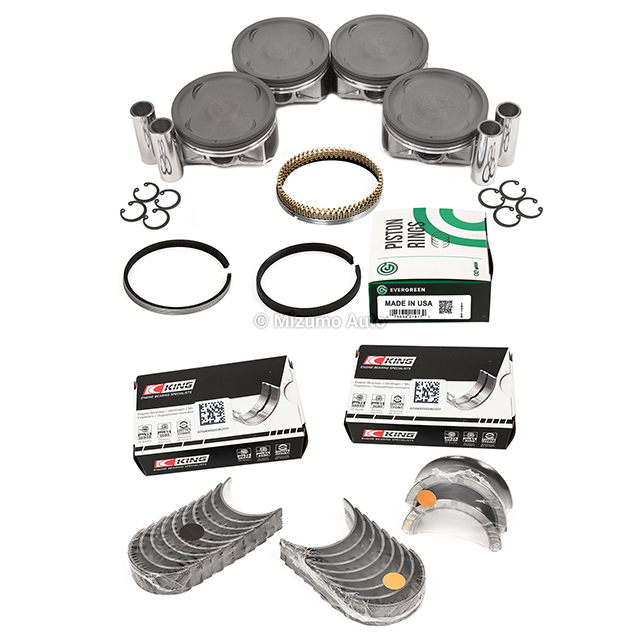

4 Pistons with Complete Ring Set (Sizes available: see option above)

Standard Bore Diameter: 99.50mm
1st Group: 1.20mm
2nd Group: 1.20mm
Oil Ring: 2.00mm

4 Piston Wrist Pins
8 Cir Clips
Main Bearing Set - Thrust washers at #5 position (Sizes available: see option above)
Rod Bearing Set - 52mm journal (Sizes available: see option above)

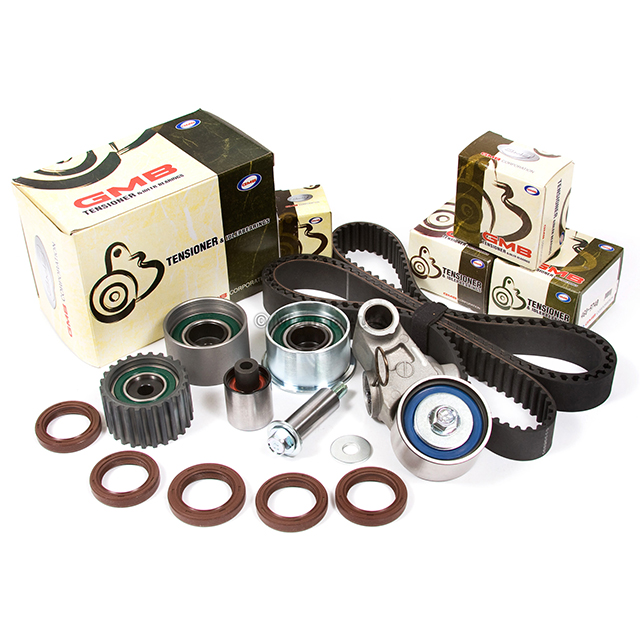

1 Timing Belt (281 teeth)
1 GMB Tensioner (bearing & hydraulic cylindrical integral)
1 GMB Upper Idler (bearing)
1 GMB Lower Idler (bearing with inner flange)
1 GMB Upper Idler (small bearing. outside diameter 31mm)
1 GMB Lower Idler (sprocket with bearing)

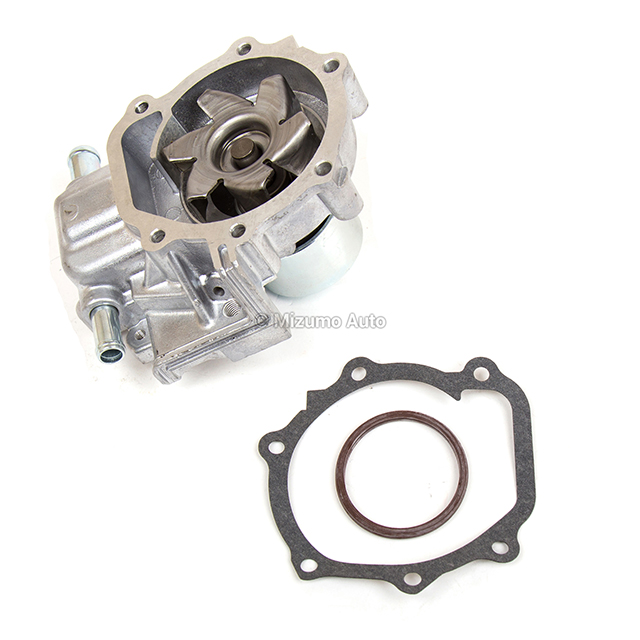

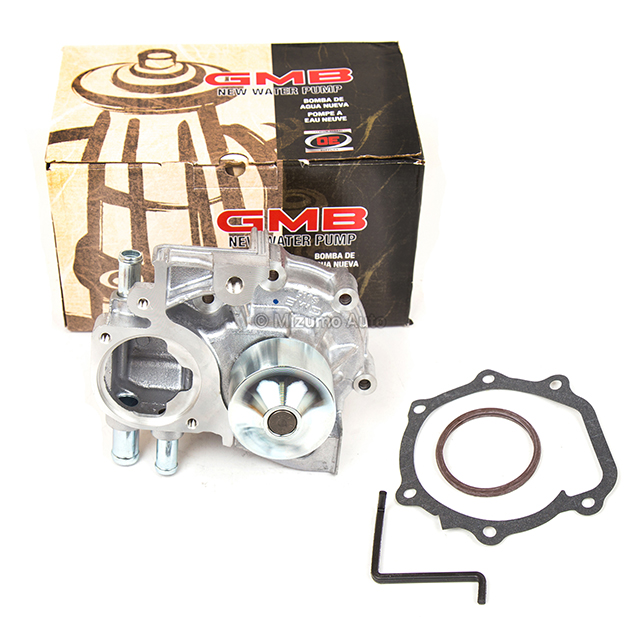

Water Pump w/ Gasket

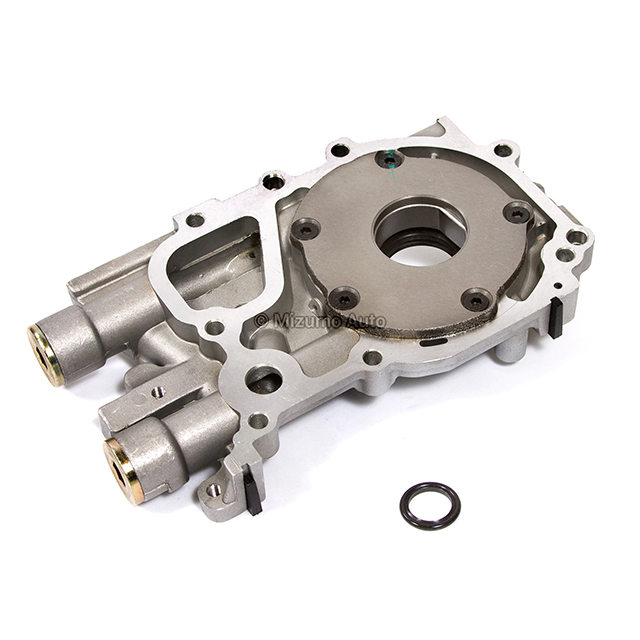

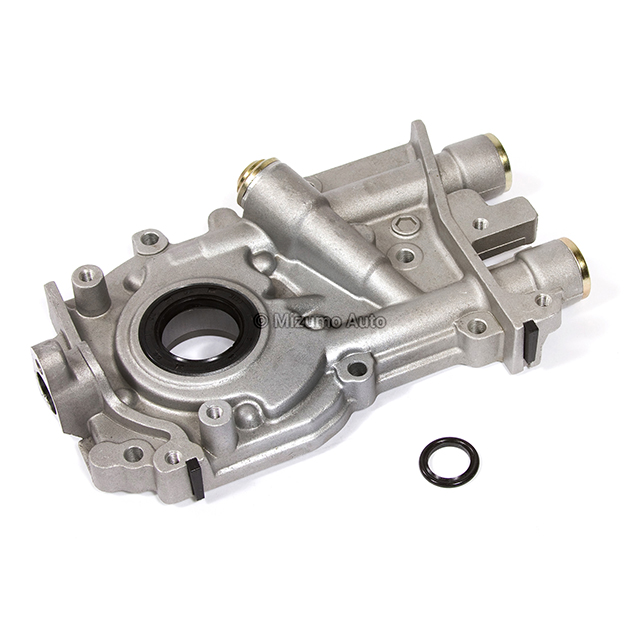

Oil Pump

Remark: If you want the oversize(s), please leave us a note in the "Add Message to Seller" box that eBay provided when you go to check out. Click the SAVE button in order for your note to be saved, and double check to make sure your note is lodged with your payment. For other oversizes please contact us for special order.

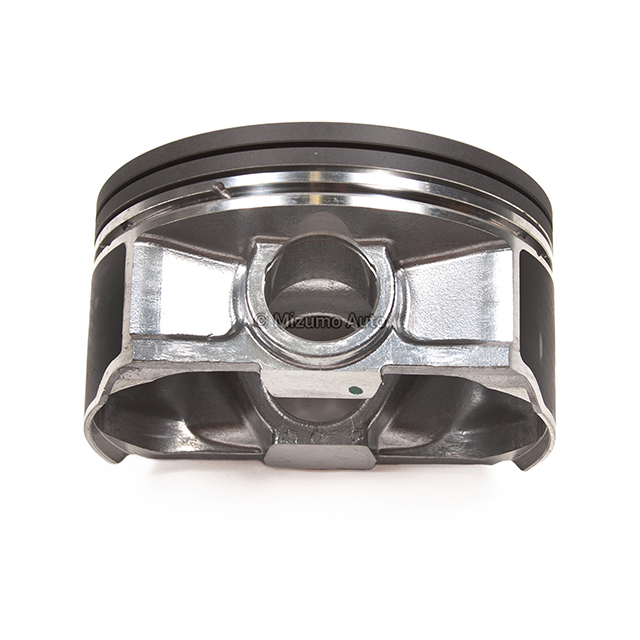

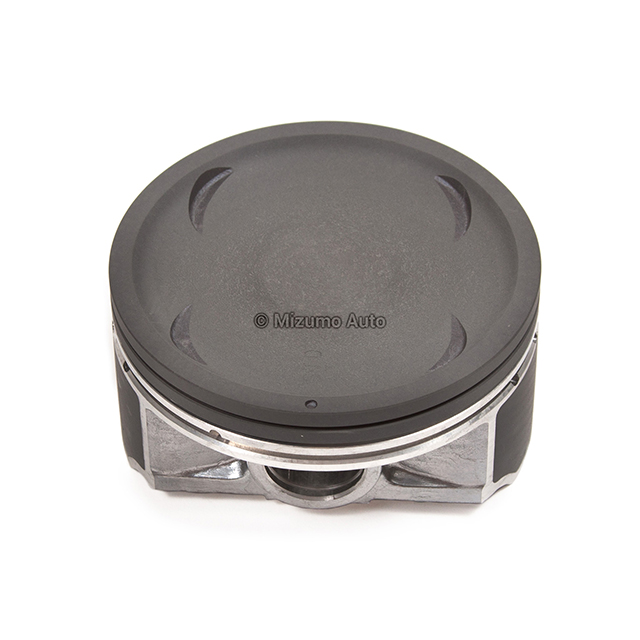

Piston Measurements

Piston Part #

UOM

STD

0.25

0.50

0.75

1.00

PS9013

99.500

99.750

100.000

100.250

100.500

3.917

3.927

3.937

3.947

3.957

Piston Ring Part#

Piston Information

RS9013

Specifications

Cylinder

Bore

99.500

3.917

Comp

30.400

1.197

Dist.	1	-
	2	-
	3

3.200

4.700

5.400

0.126

0.185

0.213

Length

51.300

2.020

Surface Treatment		Cir Clip
Head	Skirt
Anodized Head	Moly Skirt
Remarks
Measure for CYL clearance	MM	IN	From Bottom of the Skirt
Measure for CYL clearance	13.000	0.512	From Bottom of the Skirt

Pin Length

64.000

2.520

Pin Diameter

23.000

0.906

1st

1.200

0.047

2nd

1.200

0.047

Oil Ring

2.000

0.079

CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to maximum Bore Size.
