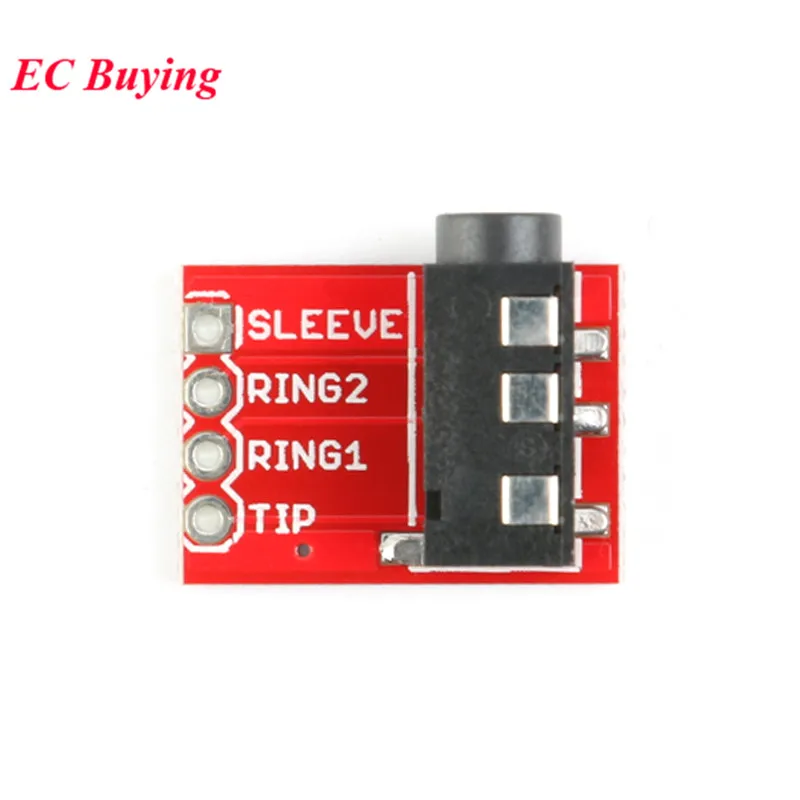

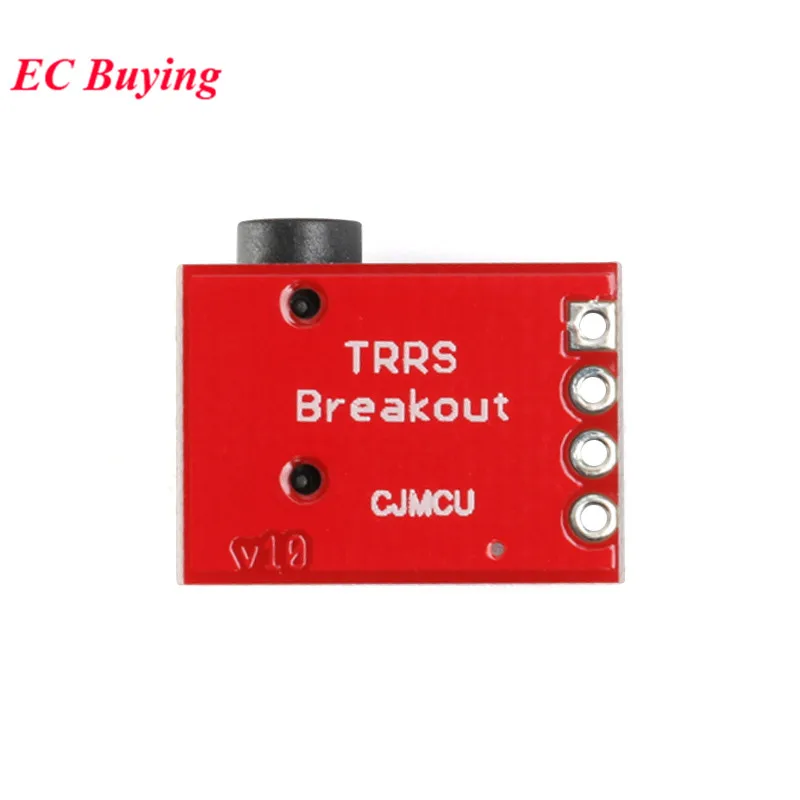

This module realizes the 3.5mm patch headphone to 2.54mm pin header interface, which is convenient for wiring to do audio experiments.

Parameter:

  • Rated voltage and current: DC 30V 0.5A

  • Contact resistance: ≤30mΩ

  • Insulation resistance: ≥100MΩ

  • Withstand voltage: 500V AC

  • Insertion and extraction force: 3-20N

  • Plug and play life: 5000 times

  • Working temperature: -20 ° C ~ 70 ° C


Instructions for use:
