Product Description

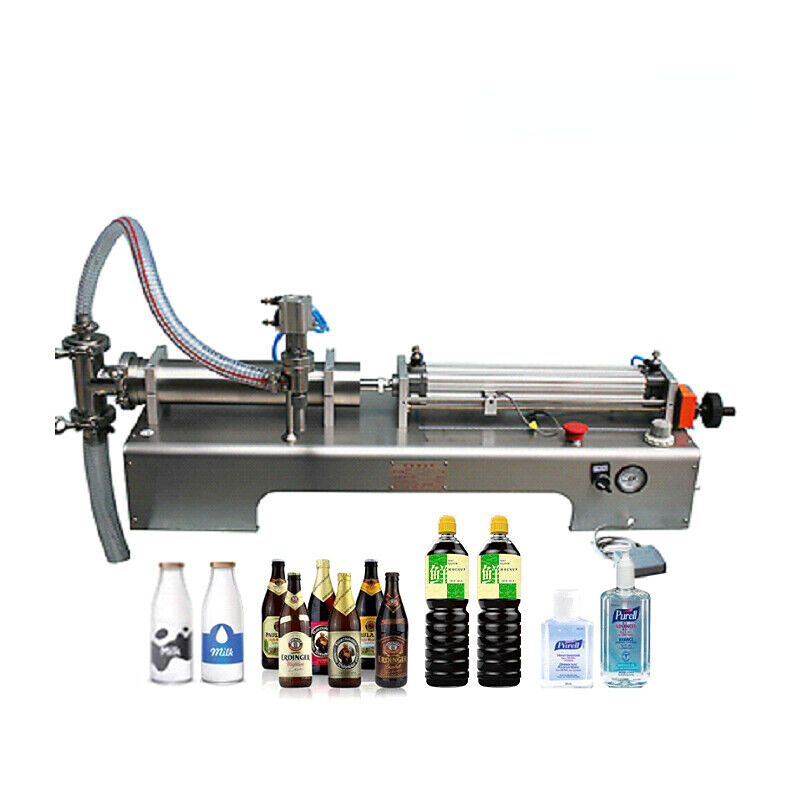

1). Working principle: This series filling machines are of semi-auto piston type. The material is sucked and pumped through a piston driven by a cylinder and its flow direction controlled by a signal valve, use the magnetic switch to control the stroke of the cylinder, it can adjust the filling volume.
2). Property: With foreign filling machine technology adopted, the semi-automatic piston paste filling machine is updated and innovated from the series filling machines produced by this company. This machine is simpler in construction, higher in accuracy and easier operation.
Technical parameters:
|
Filling Volume Range |
10– 100 mL |
|
Filling Head |
Single Head |
|
Filling Speed |
Max. 20 Bottles/min |
|
Filling Accuracy |
±1% |
|
Filling Nozzle Diameter |
1mm |
|
Power |
40W (0.053 HP) |
|
Power Supply |
AC 110 ± 5V, 60Hz |
|
Air Requirement |
58 – 87 psi (0.4 - 0.6 MPa) |
|
Inline Air Hose |
8mm |
|
Application Temperature |
Max. 200℉ (90℃) |
The machine we used the Flourine Rubber Sealing Rings(Best quality on china),
SMC it is the best cylinder in World too (Explosion prevention & Safe /durable)
Additional Information
|
Machine Size (L× W× H) |
41" × 13" × 11" (1030 × 320 × 290mm) |
|
Packing Size (L× W× H) |
43" × 15" × 13" (1080 × 380 × 340mm) |
|
Machine Weight |
48.5lb (22kg) |
|
Packing Weight |
54.7lb (24.8kg) |
【Note】
Due to the recent lock down of many cities in Australia, logistics and transportation will be delayed for many days. We are sorry that we can do nothing. I hope you can understand.
Thank you!
Paypal and Bank Deposit are accepted.
Attention:Because every country custom policy is not same,so if happen to clear custom and pay import tax,buyer need clear custom and bear import tax.
1.Items will be dispatched in 24 hours in warehouse(excluding weekends and holidays) after full payment is received.
2.If it is sent from china so it would be delivery with 3-5 days.
3.We will dispatch the item on a regular service by Standard shipping. It normally takes 2-6 business days on arrival. Express delivery is available too.
4.For the customized machine it would be about 15 days to produce and takes 5-7 business days on arrival
5.Please note that item purchased on weekend or public holiday will be dispatched on the next working day.
6.For less than USD 5 because the items very cheaper so we would send it by economy shipping about 10-20 days to arrival but for the distance place it would take 30-40 days.
7.We do combine by sea So, please ask before if buying multiple items.
8.It is out of our control if delivery is delayed by express. We would help customers to trace parcel together
1.We guarantee the machine 100% easy use because we would take video for every machine for test! If the machine were damaged during delivery,please don't accepted the machine and we would ask the compensation for you or customers should inform us at once and email us photo of the damaged part,after checking,we may send you a new part for you to replace it by yourself.
2.we would cover the shipping cost,we offer 12 months of free repairing warranty,if it is broken in 12 months, we could send you the parts for replacing it by yourself and it is free of charging.
2.We are packing machine manufacturer and you would like to show the video for your reference but the Ebay not allowed to attached the video.So would you please order this machine first and we can talk more about the details because the Ebay forbidden transaction out of Eaby and it is the best way to protect us both.
3.If you have any question please contact us first and don't leave negative feedback without any communication because we have been do this business over 20 years in Wenzhou and have technical in US too so we would deal with the problems very quickly.
