HIFI Stereo 63V2200Uf X 8+MUR860G X 4 Rectifier Power Supply Board Power Amplifier Dedicated

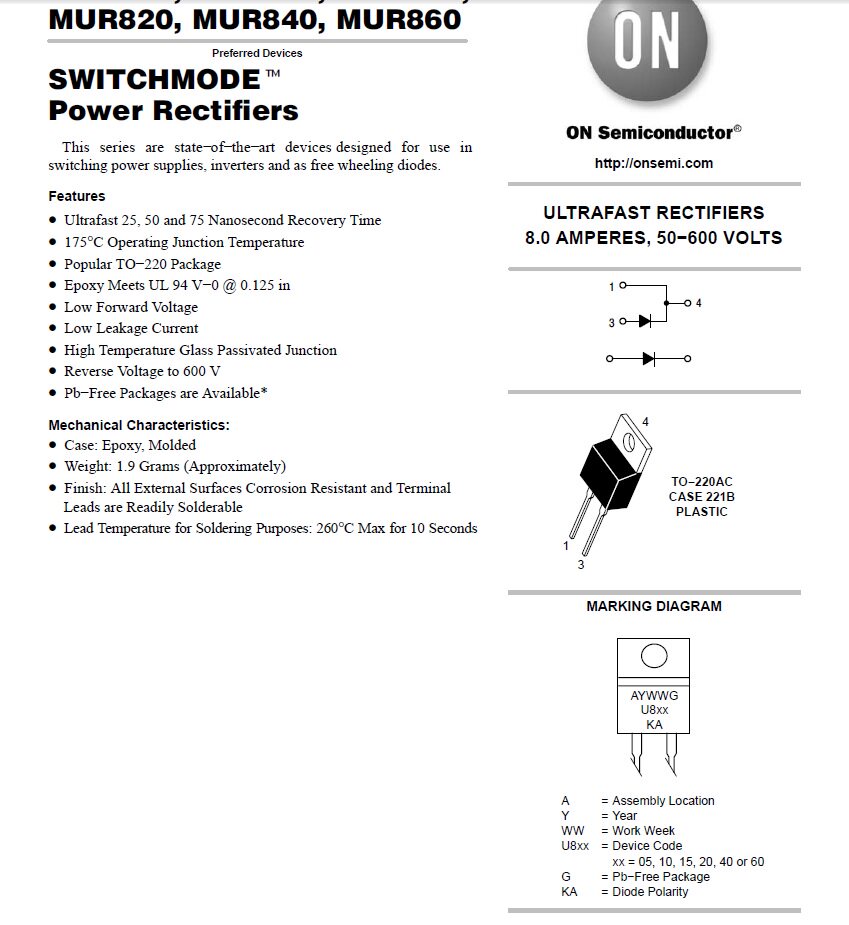

Features of MUR860G:
Vrsm=600v
IFRMS=25A TVJ=TVJM
IFAVM=12A TC=100oC; rectangular, d=0.5
IFRM=150A tp<10us; rep. rating, pulse width limited by TVJM
Trr=50NS IF=1A; -di/dt=50A/us; VR=30V; TVJ=25oC
ADVANTAGES
* High reliability circuit operation
* Low voltage peaks for reduced
protection circuits
* Low noise switching
* Low losses
* Operating at lower temperature or
space saving by reduced cooling
Introduction
1.Using imported original capacitors, a total of 63V2200UF*8.
2. Use ultra-low equivalent resistance ULTRA LOW ESR.

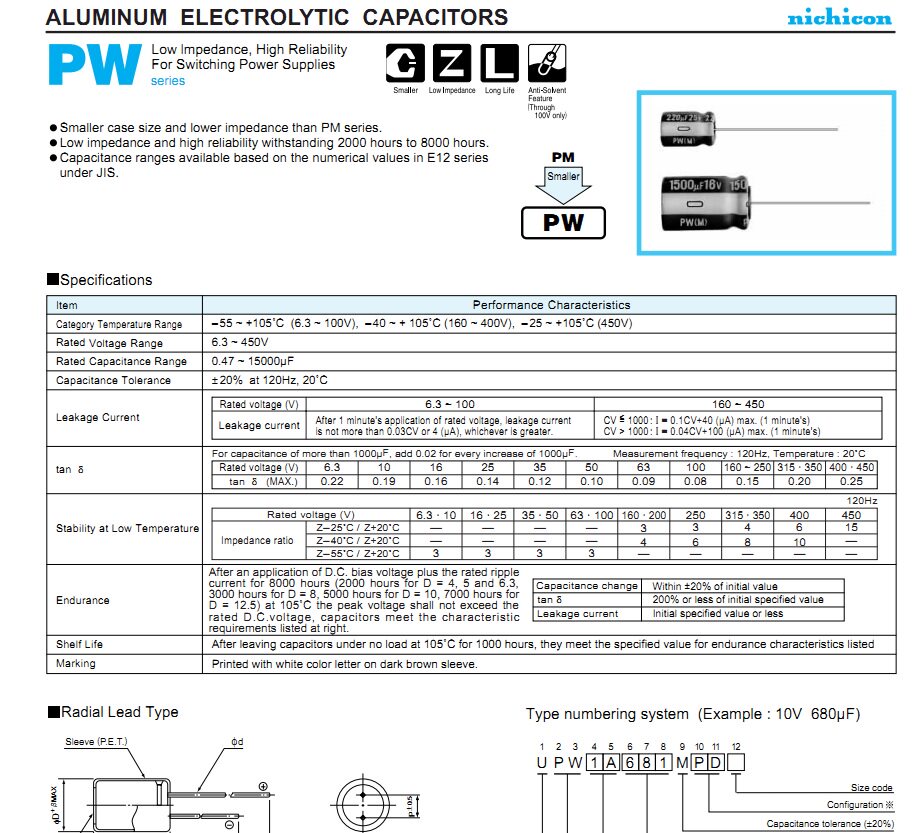

3. Original imported PW series, with extremely low ESR, LOW ESR, LONG LIFE. At present, there is no other capacitor with the same capacity and withstand voltage better than the PW series.
4. It has a life span of 8000 hours at 105°C, approximately 96000 hours at a normal operating temperature of 45°C.
5. Equipped with sockets, VCC+ is the positive power supply with 2 terminals, VEE- is the negative power supply with 2 terminals, and GND is the ground wire with 5 terminals, which is convenient for installation.
6.The weight of the power board is 160 grams, and the size is 70*84MM (width and length).
Package
1pcs Power supply board
