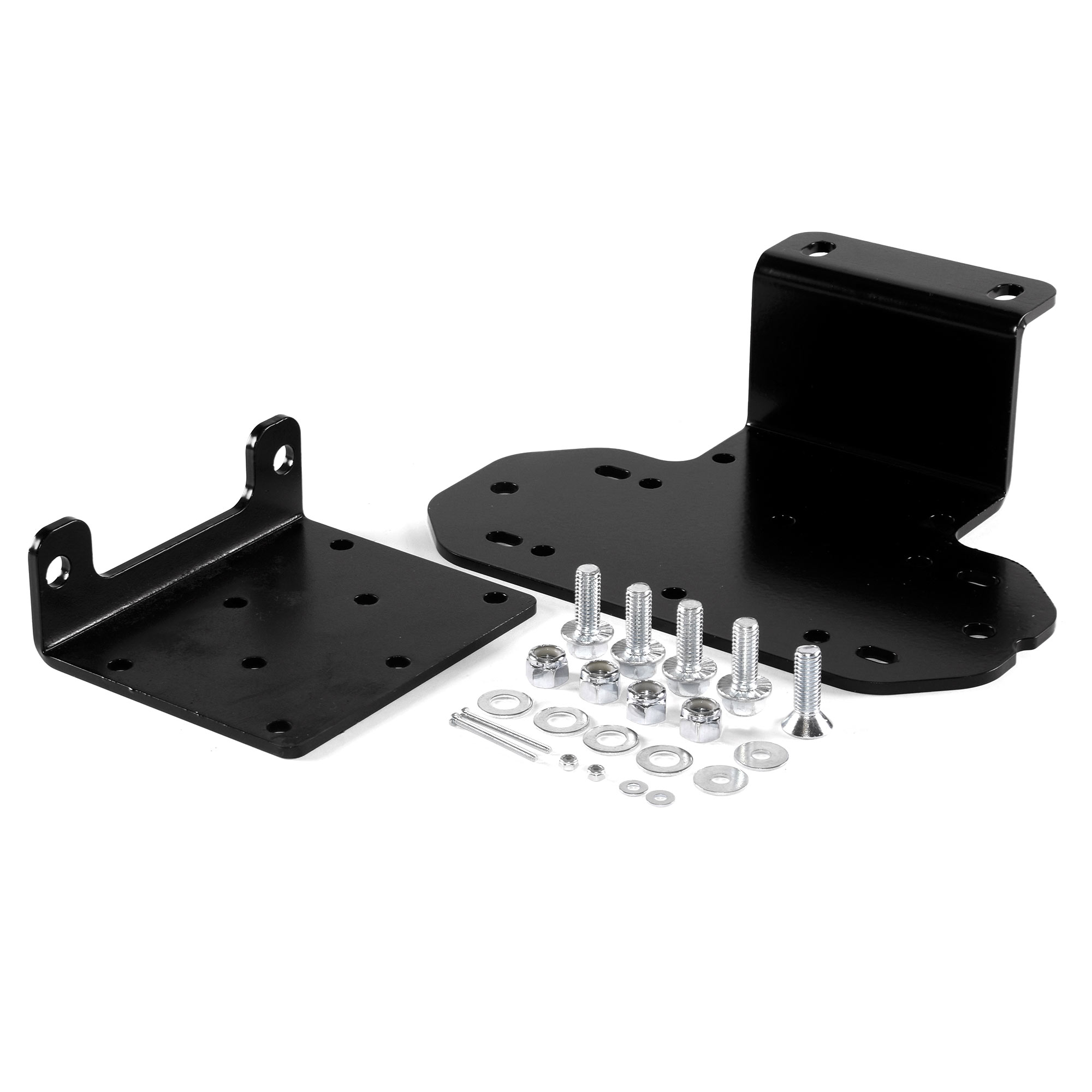

Heavy-Duty UTV Winch Mount Bracket for 2003-2013 Yamaha Rhino 450 660 700 Models

HEAVY DUTY UTV WINCH MOUNT BRACKET
This winch mount is constructed with 3/16" high-tensile strength steel and powder coated for extreme durability.

Features:

  • Heavy-Duty UTV Winch Mounting Plate Compatible with Yamaha Rhino
  • Constructed with 3/16" High-Tensile Steel for High Durability
  • Metal Bead Blasted and Powder Coated for Increased Strength
  • Easy to Install- Mounting Hardware and Instructions Included

Specifications:

  • Color: Black
  • Material: 3/16" Steel
  • Brand: Krator
  • Condition: 100% Brand New

Fitment:

  • Yamaha Rhino 450 2006-2011
  • Yamaha Rhino 660 2003-2007
  • Yamaha Rhino 700 2008-2013

Package Includes:

  • 1x Winch Mount
    (Mounting Hardware and Instructions Included)

Compatible Winches:

  • KFI: ST17 , A2000 , A2500-R2 , A3000 , U45-R2 , U45w-R2 , SE25 , SE35 , SE45-R2 , SE45w-R2
  • KFI:  AS-50 , AS-50w
  • WARN: VRX 25 , VRX 25-S , VRX 35 , VRX 35-S
  • WARN: VRX 45 , VRX 45-S
  • WARN: A2000 , A2500 , U2500 , 1.5ci , 2.5ci , 2.5ce , 3.0ci , 3.0ce , 3.0s
  • WARN: RT15 , RT25 , RT30 , XT15 , XT25 , XT30
  • WARN: RT40 , XT40
  • WARN: Vantage 2000-3000lb
    (Will NOT work with Vantage 4000 due to motor lead orientation)
  • WARN: ProVantage 2500-4500lbs
  • PRO VANTAGE: 3500 and 4500 will require lead rotation.
  • WARN:VRX 25 , VRX 25-S , VRX 35 , VRX 35-S
  • WARN: VRX 45 , VRX 45-S
  • WARN: AXON 35 , AXON 35-S , AXON 45RC
  • WARN: AXON 45 , AXON 45-S , AXON 55 , AXON 55-S
  • RAMSEY : ATV2500 , ATV3000
  • SUPERWINCH : Terra25 , Terra35 , Terra 45 , A3500 , LT2000 , LT2500 , LT3000 , LT4000ATV , LT4000UTV
  • MILE MARKER :PE2.5 , PE 3.5 , VMX2.5 , PE2000 , PE3000 , PE2500 , PE3500
  • CYCLE COUNTRY :Work Power 1500 and 2500 , Powermax 2500 and 3500
  • BADLAND 2-Hole Winches : 68146 , 61258 , 61297 , 61840
  • BADLAND Standard Winches : 68145 , 61604 , 61257 , 61383
  • BADLAND WIDE Winches : 61384 , 68144 , 61605
  • CHAMPION 2-Hole Winches : 10028 , 10032 / 12001 / 12002 / 12003 / 12004 / 13001 / 13005 / 100127 / C20049 / C20051 / C20249 / C30045 / C30145
  • CHAMPION Standard Winches : 10013 , 10018 , 10020 , 10024 , 12053 , 12503 , 12551 , 13004 , 13050 , 13502 , 14001 , 14051 , 14061 , 14560 , 100129 , 100218 , 100243 , 100335
  • CHAMPIONWIDE Winches : 14008 , 14501 , 14551 , 14552 , 40252
  • CHAMPION:14001 and 14061 , 14051 , 14560
  • KEEPER CORP. TRAKKER :KT2500 , KT3000 , KT2500C , KT3000C , KT4000 , KT4000C
  • KEEPER CORP. TRAKKER :KT2000
    (Requires roller fairlead with a 4.875" bolt pattern)
  • SMITTYBILT :XRC 2.0
    (Requires roller fairlead with a 4.875" bolt pattern)
    (Listed models come with incorrect ATV roller fairleads)
  • SMITTYBILT :XRC 3.0 , XRC 4.0
  • XGEAR:  X3000 , X4000
    (4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 , 2500 , 3000 , 3500 , 4000 , 4500 , 5000 (Hardcore Series)
    (All with 3.00" x 4.875" bolt pattern mount-up)
    (All with 3.00" x 6.600" bolt pattern mount-up)
  • QUADBOSS: RP25 , RP35
  • Traveller: 1078311
  • Traveller: 1078088 , 1078302
    (Requires roller fairlead with a 4.875" bolt pattern)

    Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
  • 2-Hole (3.10" with rollers that are 4.875" bolt pattern)
