Inkbird Digital Only Heat Temp Controller Thermostat C/F Sensor timer 220V AC UK
Details
ITC-306T Waterproof Temp. Controller With Timer Only For Heating Device,using in Aquarium,Fishing Keeping etc

Main features:
1.  ITC-306T is a pre-wired heating output temperature controller(No Cooling Controller) with time function specifically for breeding and planting.
2.  It can be set to two different temperatures with its function of dual time cycle setting during 24 hours according to the day and night, which can more suitable for the physiological needs of animals and plants.
3.  It can be widely use in over-heat protection and automatic temperature control system of all sorts of electrical equipment for aquarium, pets breeding, hatching, fungus fermenting, and seed germination accelerating, etc.

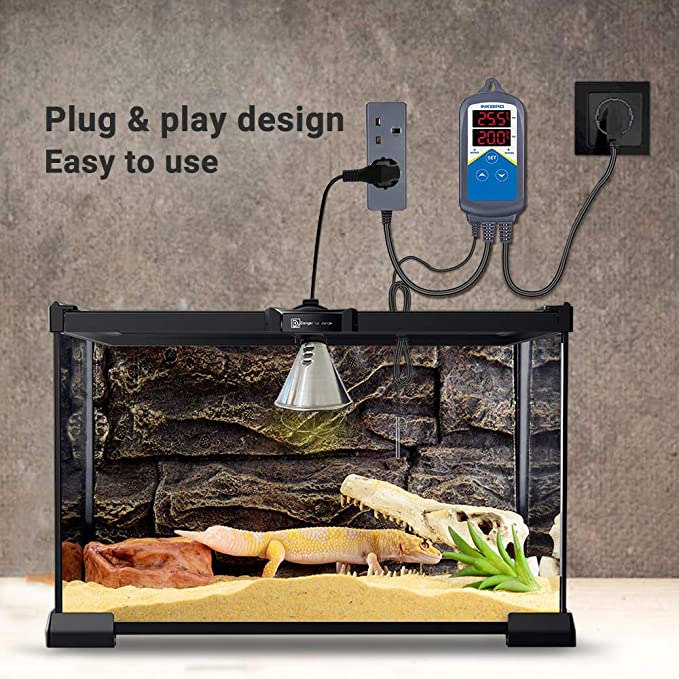

4.  This plug and play product is designed with dual LCD display,
5.  It offers the optional display of Centigrade or Fahrenheit, which makes it more humanized temperature control.
6.  With large power output 2400W, it's suitable for most applications.
7.  The temperature can be controlled more accurately with its function of temperature calibration and temperature hysteresis.

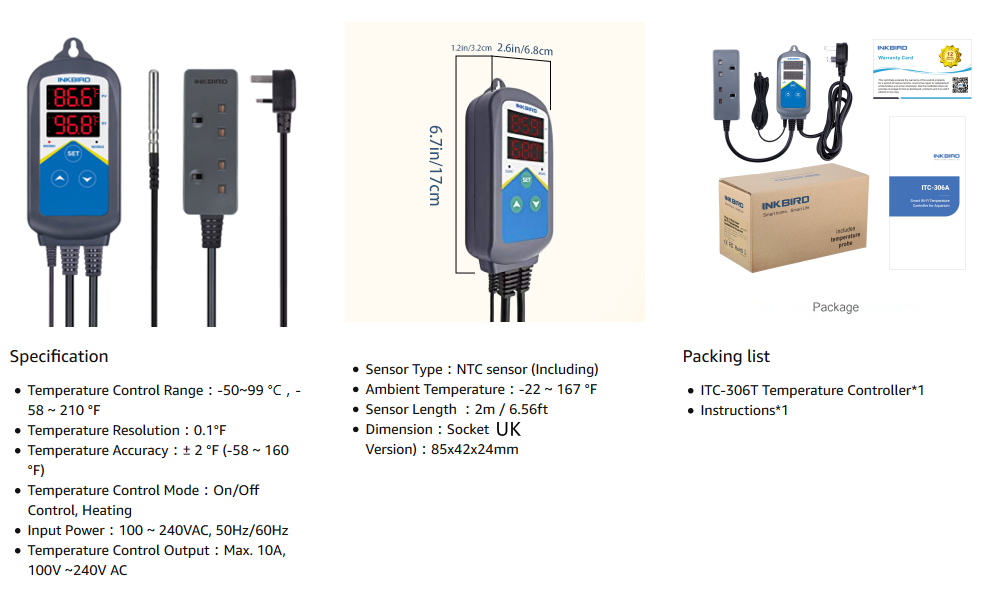

Specification:
- Temperature Control Range: -50~99 °C / -58~210 ° F
- Temperature Resolution: 0.1 ° C / 0.1° F
- Temperature Accuracy:±1°C (-50~70°C) / ±2°F (-58~160°F)
- Input Power : 100 ~240VAC, 50Hz/60Hz
- Temperature Control Output: Max. 10A, 100V ~240V AC
- Sensor Type: NTC sensor (Including)
- Sensor Length: 2m / 6.56ft
- Relay Contact Capacity: Heating (10A, 100-240VAC)
- Input Power Cable Length: 1.5m (5ft)
- Output Power Cable Length: 25cm (1ft)
- Dimension: Body:140x68x33mm (5.5x2.7x1.3 inch.)
- Socket:85x42x24mm (3.3x1.7x1 inch.)
- Ambient Temperature : -30~ 75 ° C / -22~ 167 ° F
- Storage: Temperature -20~ 60 ° C / -4~ 140 ° F
- Humidity 20~85% (No Condensate)
- Warranty: 1 Year

Important note:
- Control two heaters at same temperature at the same time.
- If you want to control 20~25°C, please set TS=25, DS=5. Only current temperature lower than 20°C,heating lamp on and start heating.
- If between 20~25°C, heating lamp off,no heating output.
- The probe is waterproof, but if want to immerse it under water for a long time, please use waterproof tape to bind probe & wire connection for double protection
- Please note the display will not dim

Package Content:
1 x ITC-306T Controller UK plug
1 x English Manual

Note: Heating Only
DataCaciques

Copyright©2017 DataCaciques

Store Categories

Product View

There will be 2 situations when you use this reptile thermostat:

'PV' is the current temperature

'SV' is the setting temperature

'TS' is your target value

'DS' is the differential value 'CA' is the calibrated value

'CF' is the unit of temperature (C or F)

'TR' is time setting ( 0:off / 1:on )

1.If you only need to control one temperature range the whole day:

Your ideal temperature range: 22~25C, the settings as follow:

TS1=25, DS1=3, CA=0, CF=C, TR=0

With this setting, when the PV actual temperature lower than TS1-DS1=25-3=22C, the work light will turn on and your heaters will start outputting until the temperature reaches 25C (TS1/SV), it will stop.

2.If you need to control different temperature range during day and night:

Your ideal temperature range: during 8:00~18:00, keep the temperature within 22~25C, during 18:00~8:00, keep the temperature within 27~25C

TS1=25, DS1=3, CA=0, CF=C, TR=1, TS2=27, DS2=2, TA=8, TB=18, TH=the hour of the current time when you set, TM= The minute of the current time when you set

During (8:00~18:00) TA~TB, the thermostat will work with TS1 and DS1. During (18:00~8:00) TB~TA, the thermostat will work with TS2 and DS2


   ITC-308 ITC-308 WIFI  ITC-306T  ITC-310T-B  ITC-308S Aquarium Probe
Wi-Fi Monitor    ✓
Heating Control  ✓  ✓  ✓  ✓  ✓
Cooling Control  ✓  ✓    ✓  ✓
Time Control Mode     Day and Night Mode Periods Timer
Temperature Range  -50~120℃ /-58~248 ℉  -40~100°C / -40~212 °F -50~99 °C / -58~210 °F  -50~120℃ /-58~248 ℉  -50~120℃ /-58~248 ℉
Probe Type Waterproof Stainless Steel Probe  Waterproof Stainless Steel Probe  Waterproof Stainless Steel Probe  Waterproof Stainless Steel Probe Waterproof Plastic Probe
Max Output 10A, 100V ~240V AC 10A, 100V ~240V AC 10A, 100V ~240V AC 10A, 100V ~240V AC 10A, 100V ~240V AC
