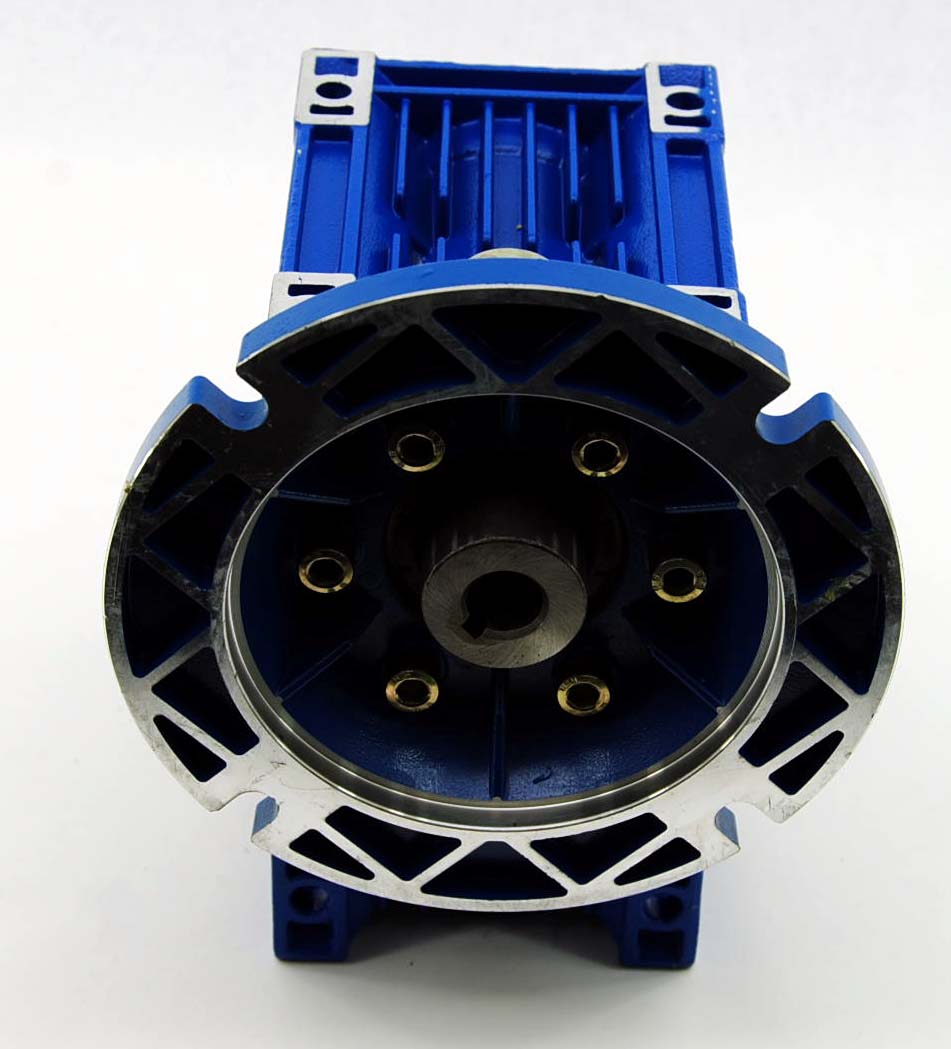

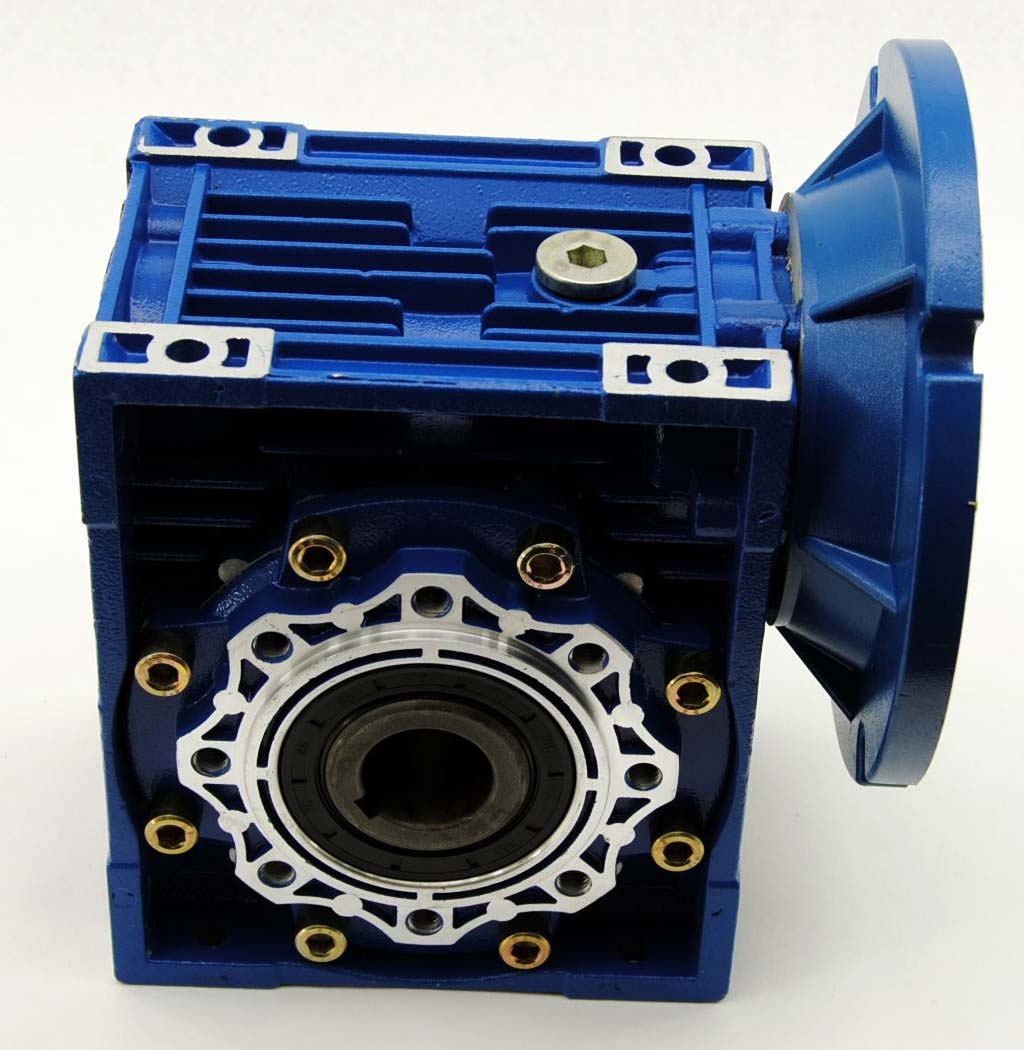

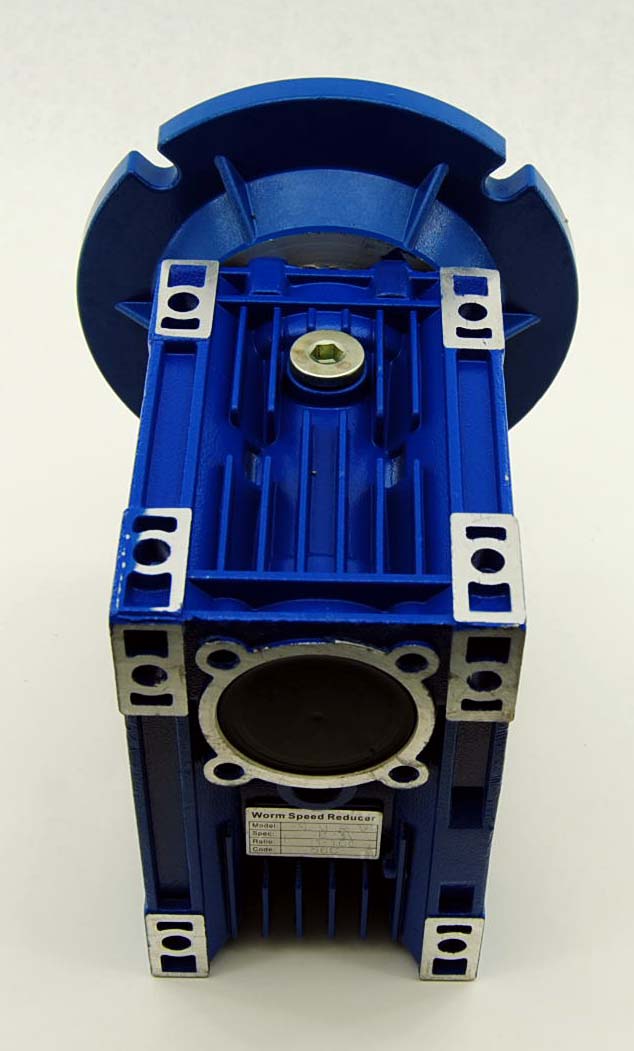

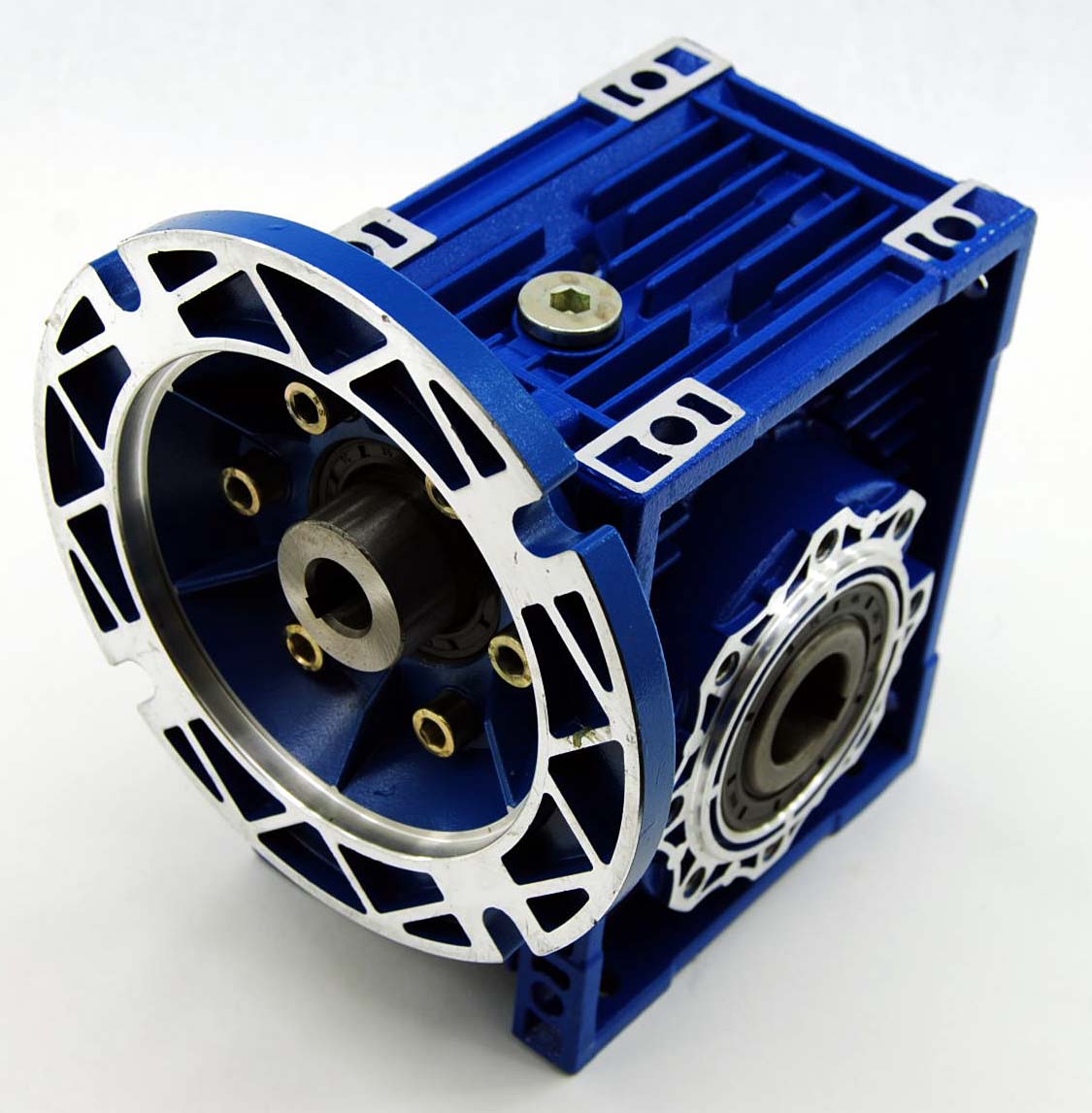

MRV063 series worm gear speed reducer.

This 100:1 ratio speed reducer is rated for 0.57 HP input at 1750 RPM on a hollow 5/8" diameter x 1-7/8" long keyed shaft and 56C mounting flange.

Output is 1044 lb/in on a hollow 1-1/8" diameter x 4-7/16" long keyed shaft.

High quality reducer has an all aluminum heat sinking designed housing with epoxy coating.

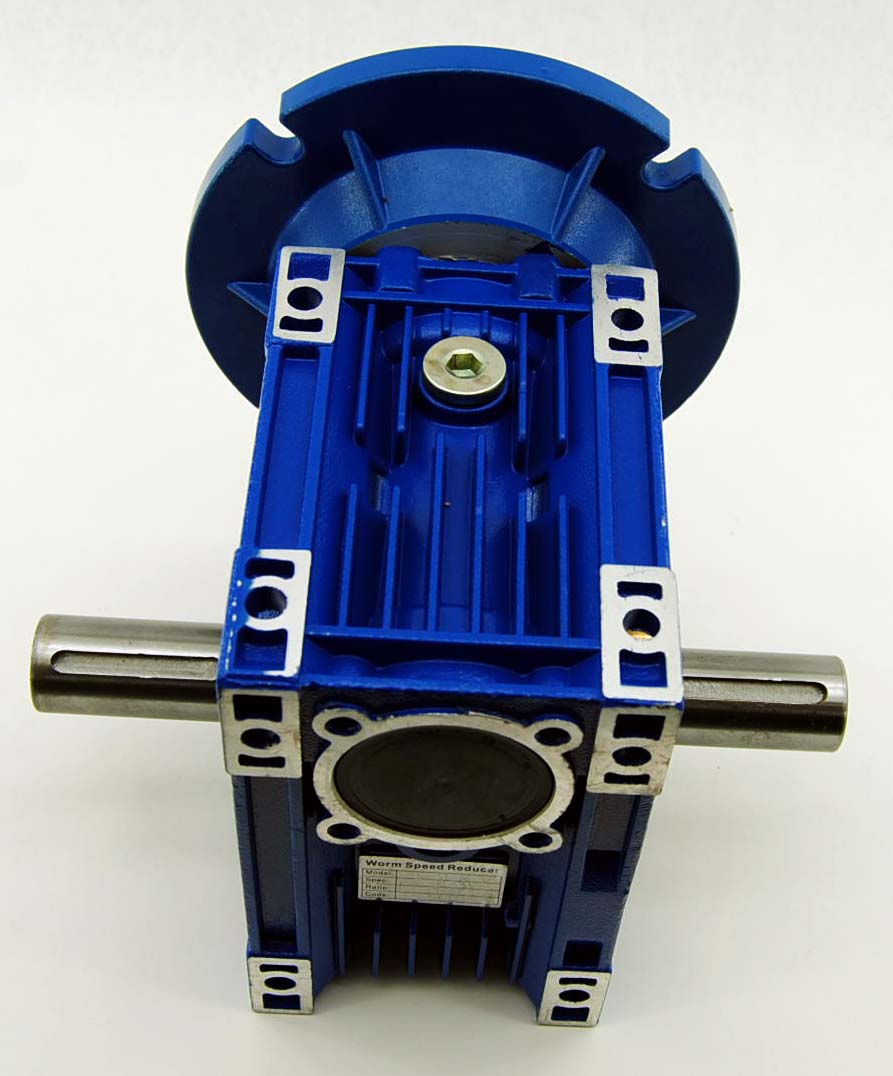

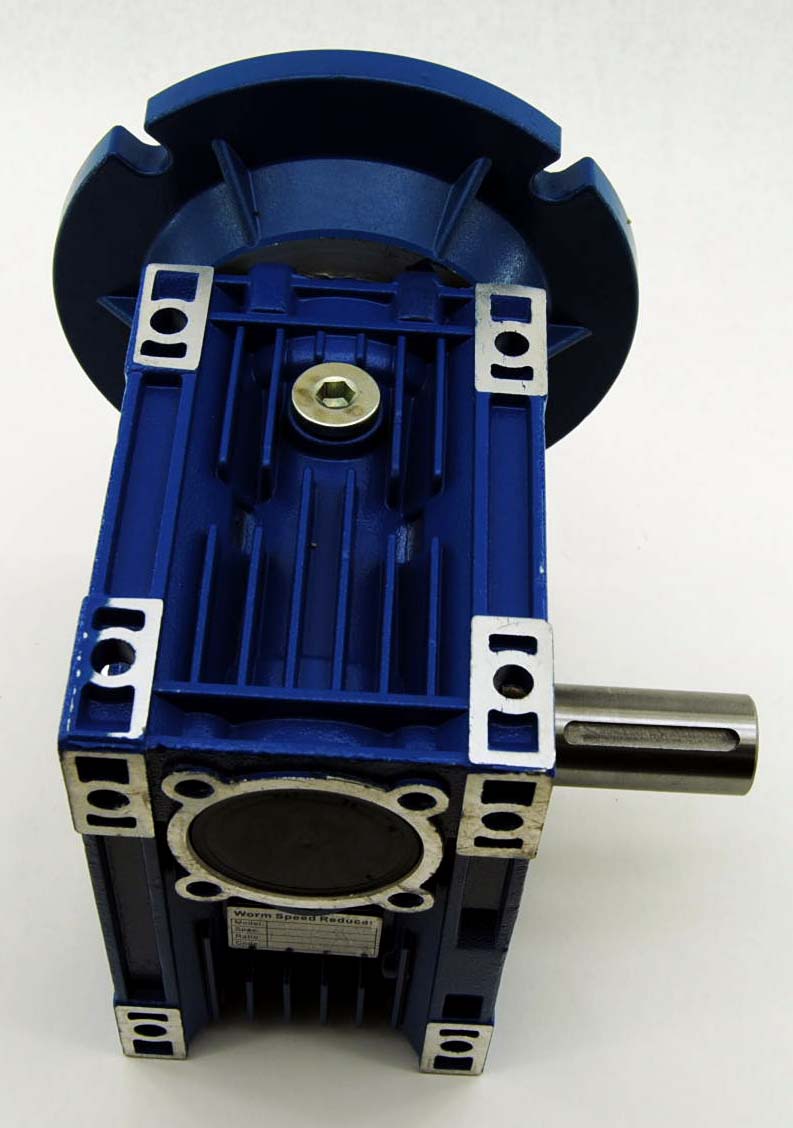

You can add a single output shaft (1-1/8" x 2-5/16" usable) for $19.99 or a double output shaft (2X 1-1/8" x 2-5/16" usable) for $24.99.

Shipping weight: 20 lbs.
