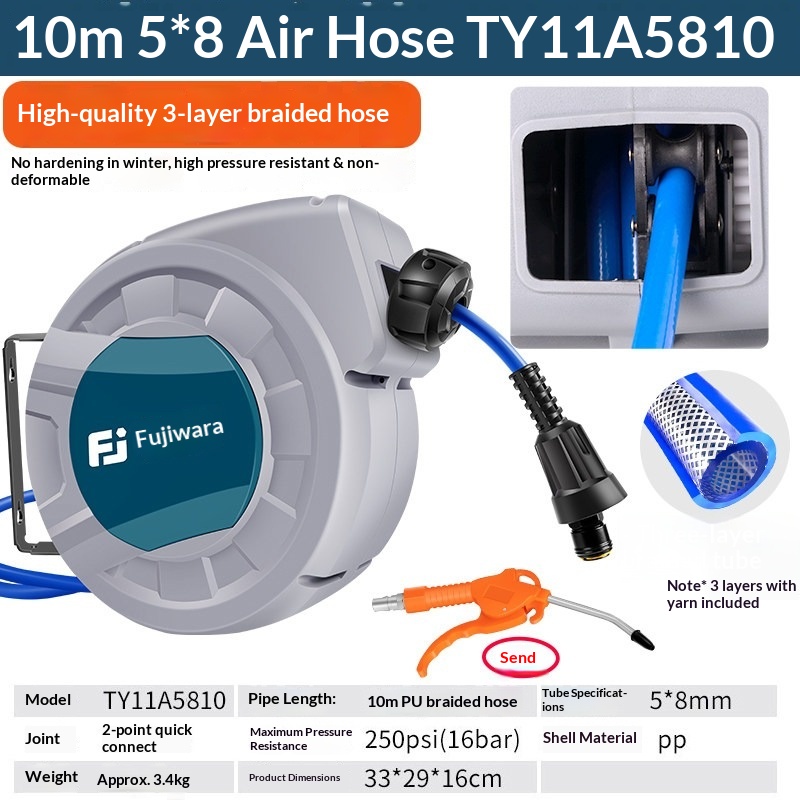

TY11A5810 Air Hose
Hose Length: 10 meters, PU three-layer braided hose
Hose Specifications: 5×8 mm
Fittings: 2-fen quick-connect
Maximum Working Pressure: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 3.4 kg
Dimensions: 33 × 29 × 16 cm

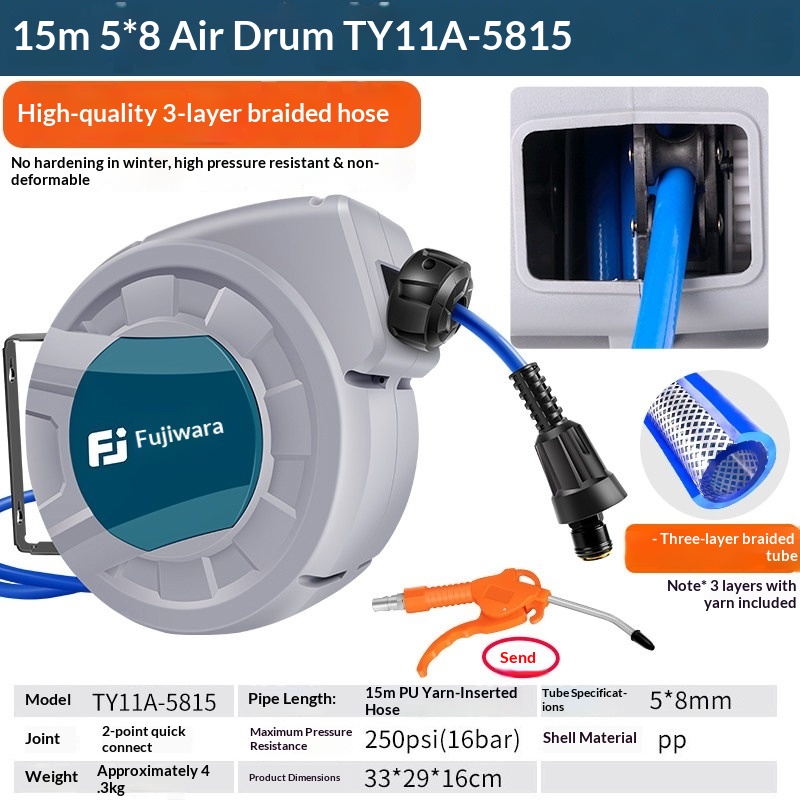

TY11A‑5815 Air Drum
Hose Length: 15 meters, PU three-layer braided hose
Hose Diameter: 58 mm
Fittings: 2-fen quick-connect
Maximum Working Pressure: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 4.3 kg
Dimensions: 33 × 29 × 16 cm

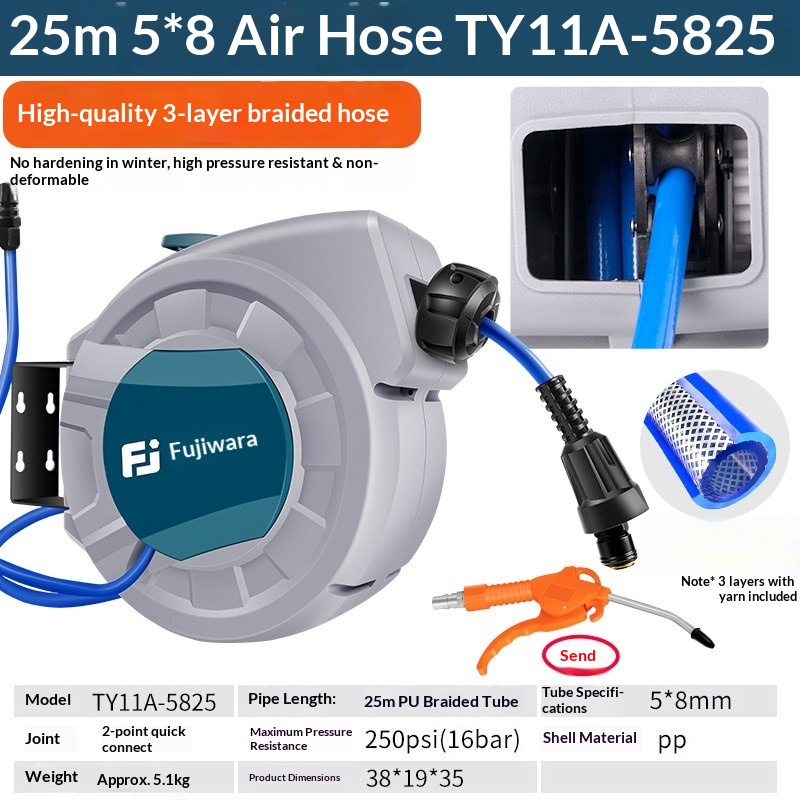

TY11A‑5825 Air Drum
Hose Length: 25 meters, PU three-layer braided hose
Hose Diameter: 58 mm
Fittings: 2-fen quick-connect
Maximum Pressure Rating: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 5.1 kg
Dimensions: 38 × 19 × 35 cm
TY11A‑6510 Air Drum
Hose Length: 10 meters, PU three-layer yarn-reinforced hose
Hose Specifications: 6.5 × 10 mm
Fittings: 2-fen quick-connect
Maximum Pressure Rating: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 4.2 kg
Dimensions: 29 × 16 × 33 cm
TY11A‑6515 Air Drum
Hose Length: 15 meters, PU three-layer yarn-reinforced hose
Hose Specifications: 6.5 × 10 mm
Fittings: 2-fen quick-connect
Maximum Working Pressure: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 5.1 kg
Dimensions: 29 × 16 × 33 cm
TY11A‑6520 Air Drum
Hose Length: 20 meters, PU three-layer yarn-reinforced hose
Hose Specifications: 6.5 × 10 mm
Fittings: 2-fen quick-connect
Maximum Working Pressure: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 5.9 kg
Dimensions: 38 × 19 × 35 cm

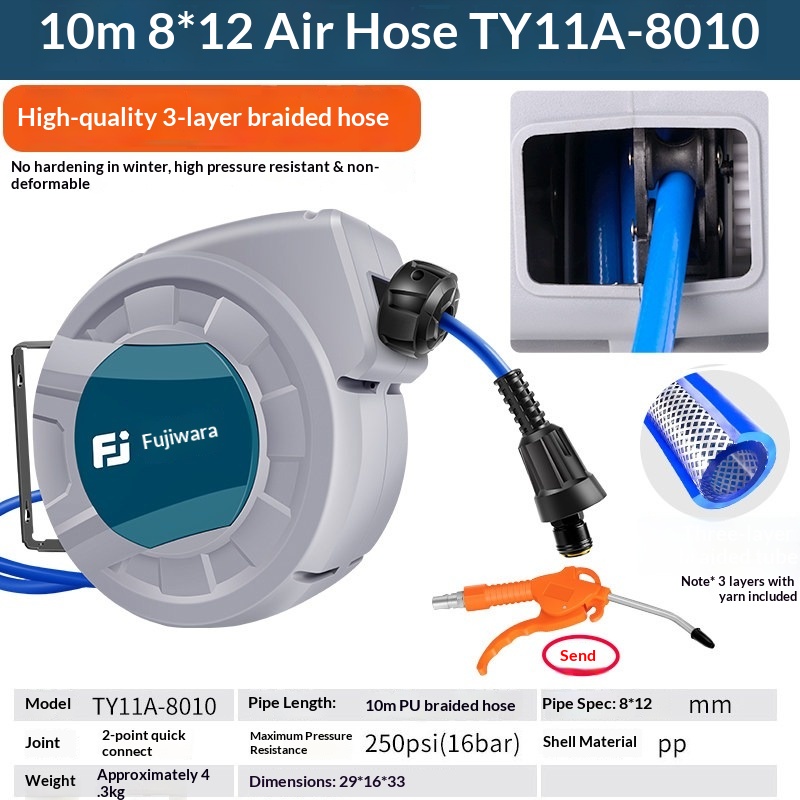

TY11A‑8010 Air Drum
Hose Length: 10 meters, PU three-layer yarn-reinforced hose
Hose Specifications: 8 × 12 mm
Fittings: 2-fen quick-connect
Maximum Working Pressure: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 4.3 kg
Dimensions: 29 × 16 × 33 cm

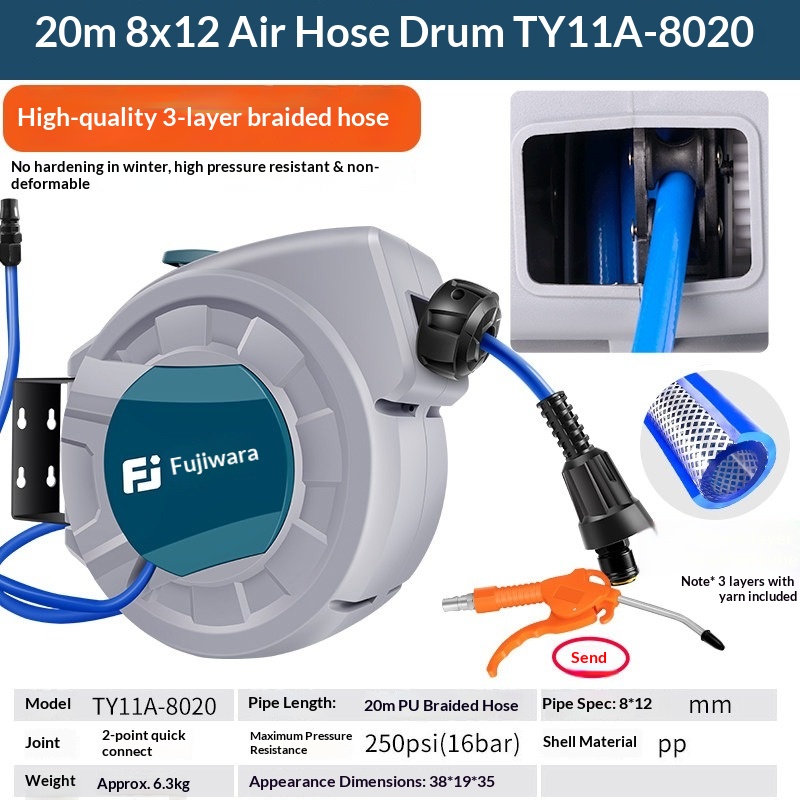

TY11A‑8020 Air Blower
Hose Length: 20 meters, PU three-layer fabric-reinforced hose
Hose Specifications: 8 × 12 mm
Fittings: 2-fen quick-connect
Maximum Pressure Rating: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 6.3 kg
Dimensions: 38 × 19 × 35 cm

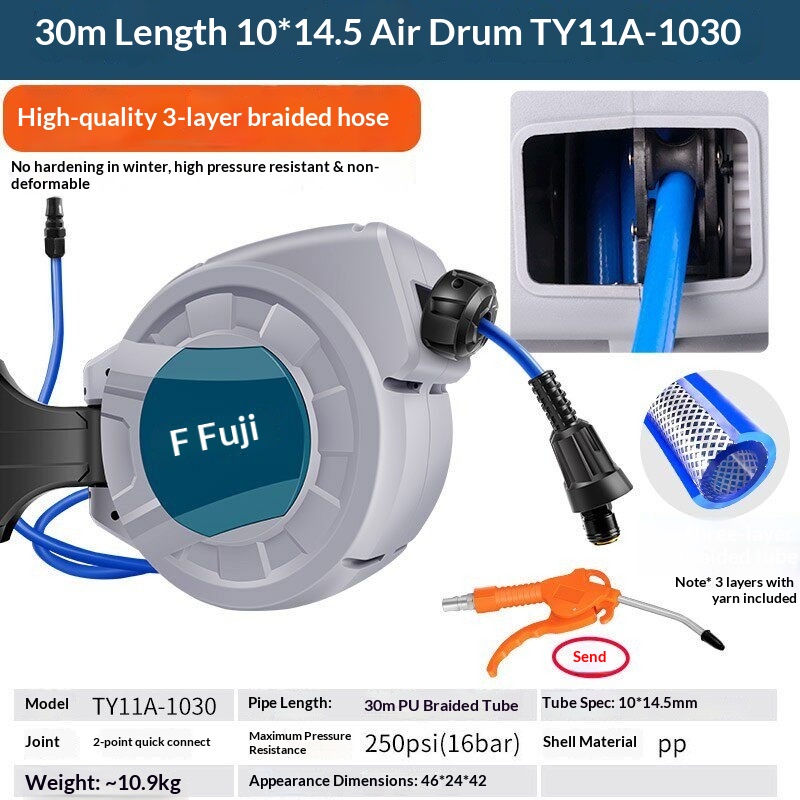

TY11A‑1030 Air Drum
Hose Length: 30 meters, PU three-layer braided hose
Hose Specifications: 10 × 14.5 mm
Fittings: 2-fen quick-connect
Maximum Working Pressure: 250 psi (16 bar)
Housing Material: PP
Weight: Approx. 10.9 kg
Dimensions: 46 × 24 × 42 cm

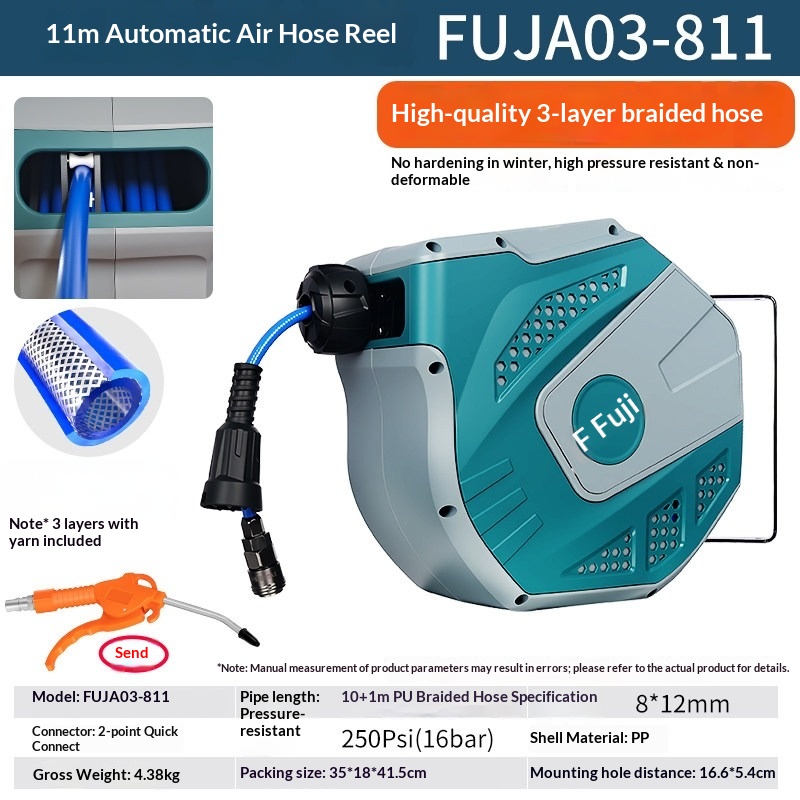

FUJA03‑811 Automatic Air Drum
Hose Length: 10 + 1 meters, PU three-layer braided hose
Hose Specifications: 8 × 12 mm
Fittings: 2-fen quick-connect
Pressure Rating: 250 psi (16 bar)
Housing Material: PP
Gross Weight: 4.38 kg
Packaging Dimensions: 35 × 18 × 41.5 cm
Mounting Hole Spacing: 16.6 × 5.4 cm
