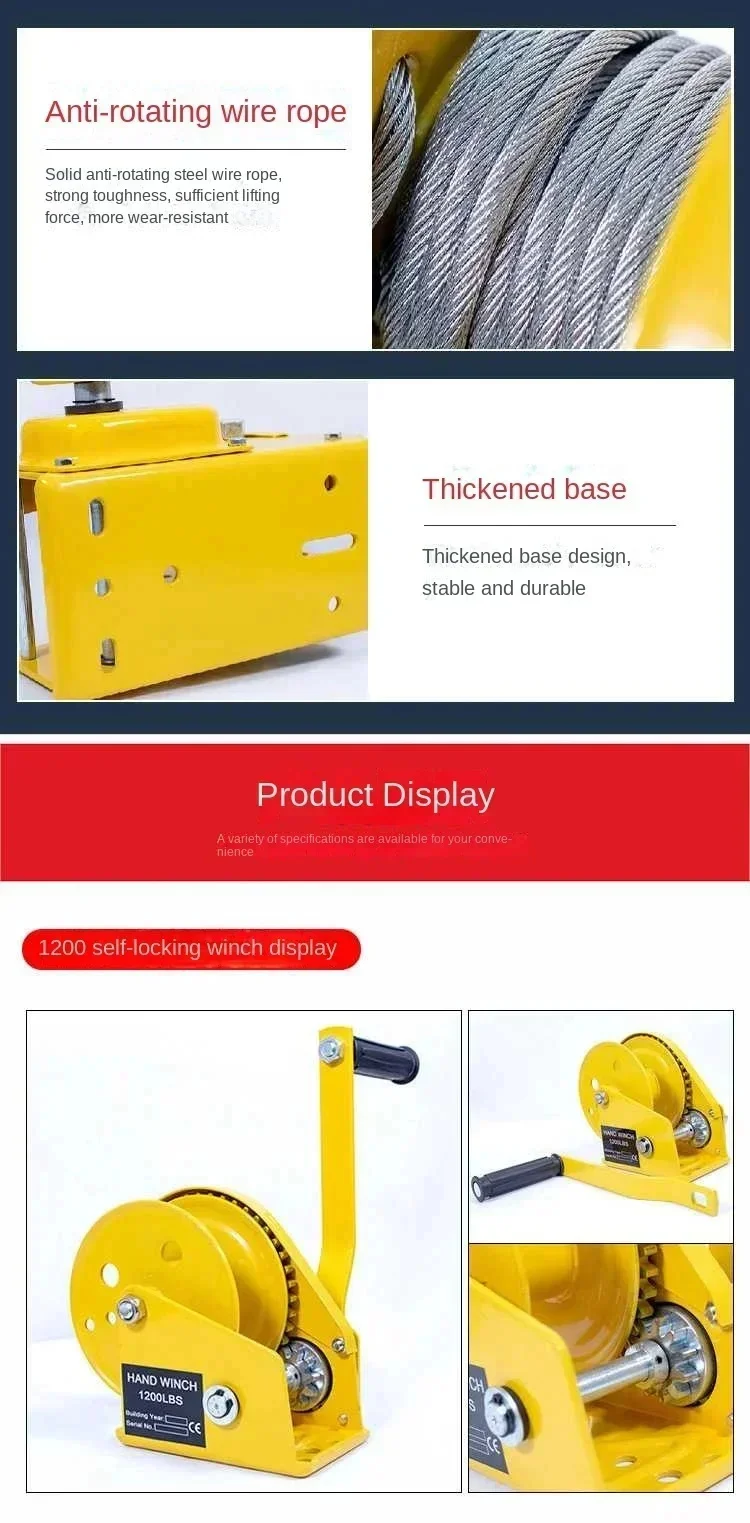

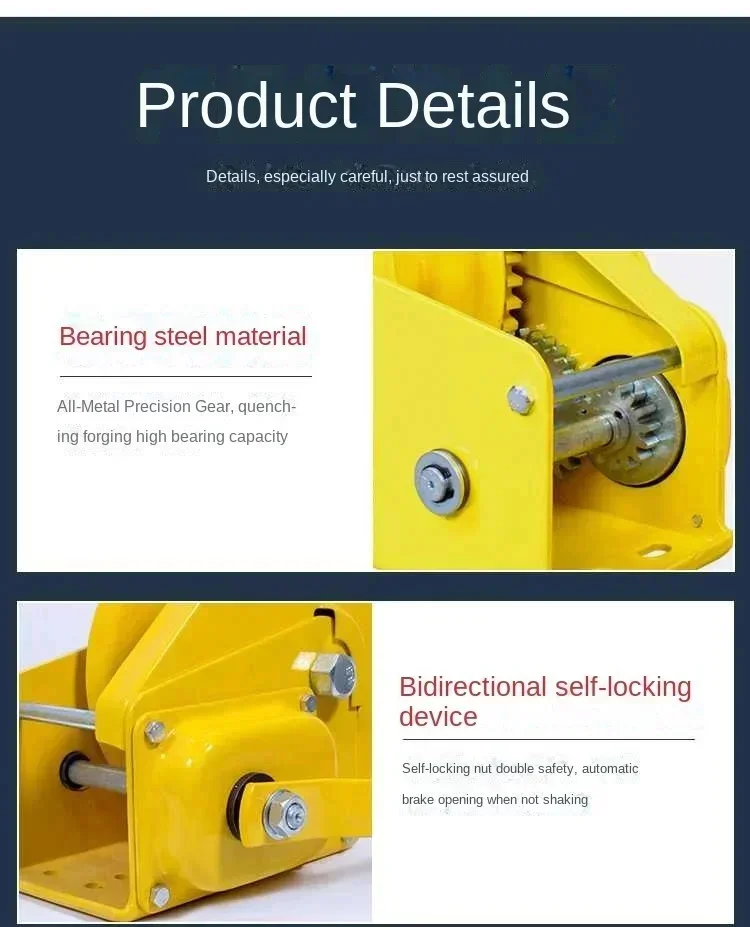

Hand-Crank Winch, Bidirectional Self-Locking, Compact Hoist, Portable Towing Winch, Household Mini Crane, Wire Rope Winch

1,200-pound Winch (Bare Unit):

Lateral Towing: 500 kg

Vertical Lifting: Up to 150 kg

Gear Ratio: 4:1

Wire Rope Diameter: 4 mm

Wire Rope Length: 5–30 m

Hook: 0.5 metric ton eye hook

Drum Outer Diameter: 132 mm

Drum Inner Diameter: 48 mm

Lifting Speed: 6 m/min

Weight (Unit Only): 4 kg

Product Dimensions: Length 136 mm, Width 90 mm, Height 155 mm

Handle Length: 250 mm

---

1,800-pound Winch (Unit Only):

Lateral Traction: 800 kg

Vertical Lifting Capacity: Up to 300 kg

Gear Ratio: 4:1

Wire Rope Diameter: 5 mm

Wire Rope Length: 5–30 m

Hook: 1-metric-ton eye hook

Drum Outer Diameter: 180 mm

Drum Inner Diameter: 60 mm

Lifting Speed: 6 m/min

Weight (Unloaded): 8 kg

Product Dimensions: Length 195 mm, Width 108 mm, Height 200 mm

Handle Length: 350 mm

---

2,600-pound Winch (Unmounted):

Lateral Pull: 1,100 kg

Vertical Lifting: Up to 500 kg

Gear Ratio: 8:1

Wire Rope Diameter: 6 mm

Wire Rope Length: 5–30 m

Hook: 1-metric-ton eye hook

Drum Outer Diameter: 180 mm

Drum Inner Diameter: 75 mm

Lifting Speed: 3 m/min

Weight (without accessories): 10.3 kg

Dimensions: Length 240 mm, Width 128 mm, Height 210 mm

Handle Length: 350 mm

Note: The product shipped is the unit only! The product shipped is the unit only! The product shipped is the unit only! The cables are for display purposes only!
