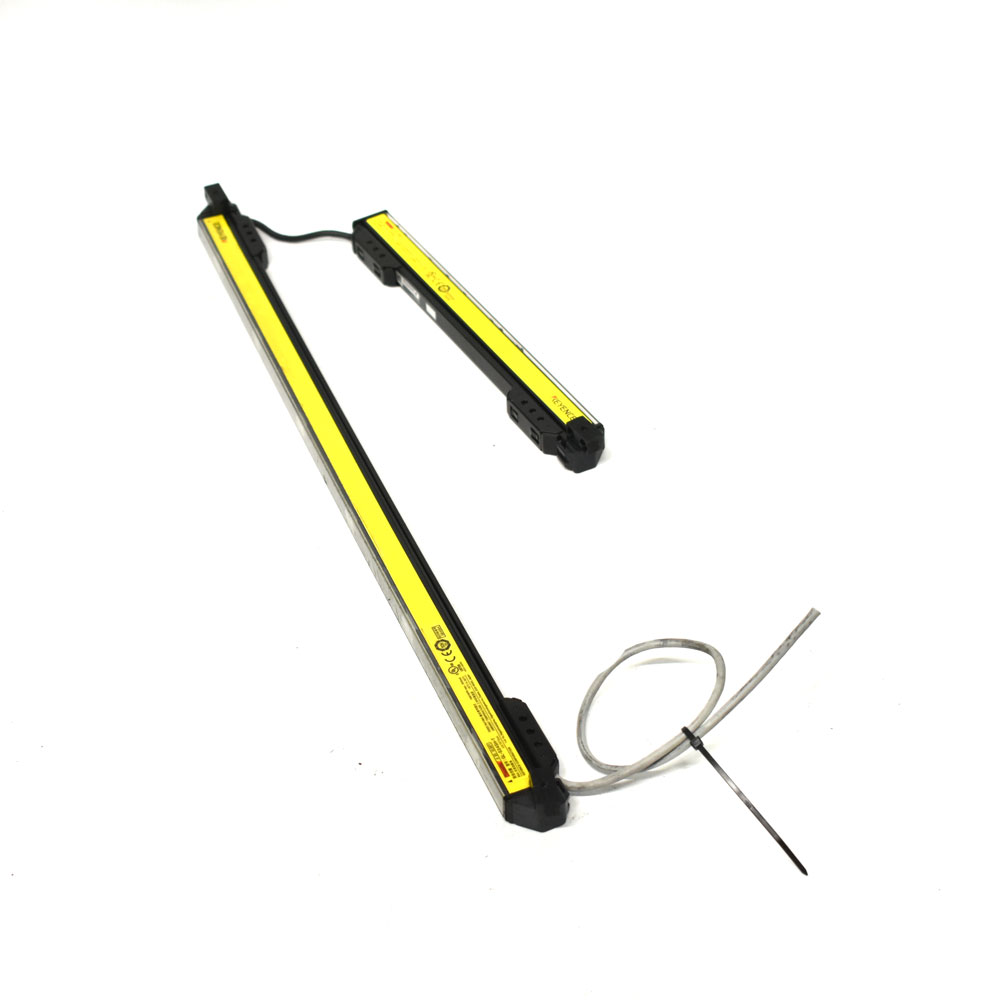

Keyence GL-S24SH-T & GL-S12SH-T Safety Light Curtain Transmitters 24/12 Axes
Manufacturer: Keyence
Model: GL-S24SH-T & GL-S12SH-T
Condition: Used
Manufacturer: Keyence
Condition: Used. Comes in non-original packaging. These light curtains are in fair cosmetic condition with some scuffs and scratches from normal use, but nothing too major or anything that would affect function.
Notes: These safety light curtains were pulled from a working automation setup that was being decommissioned, but were not tested separately after removal.
No manuals, cords/cables, or additional items are included if not listed or shown.
Included:
- (1) Keyence GL-S24SH-T Safety Light Curtain Transmitter 12-Beam Axes
- (1) Keyence GL-S12SH-T Safety Light Curtain Transmitter 12-Beam Axes
Specifications:
- Manufacturer: Keyence
- Model: GL-S24SH-T
-
Description: Safety Light Curtain
- Type: Slim type
- Detection capability: ø25 mm ø0.98"
- Total length: 499.5 mm 19.67"
- No. of beam: 24
- Detection height: 460mm 18.11"
- Protection height: 506mm 19.92"
- Beam axis spacing: 20 mm 0.79"
- Operating distance: 0.1 to 2 m 0.3' to 6.6'
- Effective aperture angle: Max. ±3.75° (when the operating distance is 2 m 6.6')
- Light source: Infrared LED (870 nm)
-
Wire synchronization, one-line, or optical synchronization system (channel 0):
- ON→OFF: 7.0 *1
- OFF→ON: 49.3 *1 *2
- All blocked→ON: 64.9 *1 *3
-
Optical synchronization system (channel A or B):
- ON→OFF: 9.5 *1
- OFF→ON: 53.0 *1 *2
- All blocked→ON: 74.7 *1 *3
-
Output type:
- 2 transistor outputs
- (PNP or NPN output is determined by the cable type.)
- Max. load current: Max. 300 mA
- Residual voltage (when ON): Max. 2.5 V (with a cable length of 5 m 16.4')
- OFF state voltage: Max. 2.0 V (with a cable length of 5 m 16.4')
- Leakage current: Max. 200 µA
- Max. load capacitance: 2.2 µF
- Load wiring resistance: Max. 2.5
- Manufacturer: Keyence
- Model: GL-S12SH-T
-
Description: Safety Light Curtain
- Type: Slim type
- Detection capability: ø25 mm ø0.98"
- Total length: 259.5 mm 10.22"
- No. of beams: 12
- Detection height: 220mm 8.66"
- Protection height: 266mm 10.47"
- Beam axis spacing: 20 mm 0.79"
- Operating distance: 0.1 to 2 m 0.3' to 6.6'
- Effective aperture angle: Max. ±3.75° (when the operating distance is 2 m 6.6')
- Light source: Infrared LED (870 nm)
-
Wire synchronization, one-line, or optical synchronization system (channel 0):
- ON→OFF: 6.6
- OFF→ON: 48.7
- All blocked→ON: 63.1
-
Optical synchronization system (channel A or B):
- ON→OFF: 7.4
- OFF→ON: 49.9
- All blocked→ON: 66.3
-
Output type:
- 2 transistor outputs
- (PNP or NPN output is determined by the cable type.)
- Max. load current: Max. 300 mA
- Residual voltage (when ON): Max. 2.5 V (with a cable length of 5 m 16.4')
- OFF state voltage: Max. 2.0 V (with a cable length of 5 m 16.4')
- Leakage current: Max. 200 µA
- Max. load capacitance: 2.2 µF
