Reclaim Your Space, Power Without Limits

Mini size doesn't mean mini power. The LiTime 12V 200Ah Xtra Mini pairs 2056Wh of energy with an upgraded 200A continuous BMS for 2560W continuous power, ready for heavy-load appliances. Break up with bulky “old habits” and step into compact, modern energy.

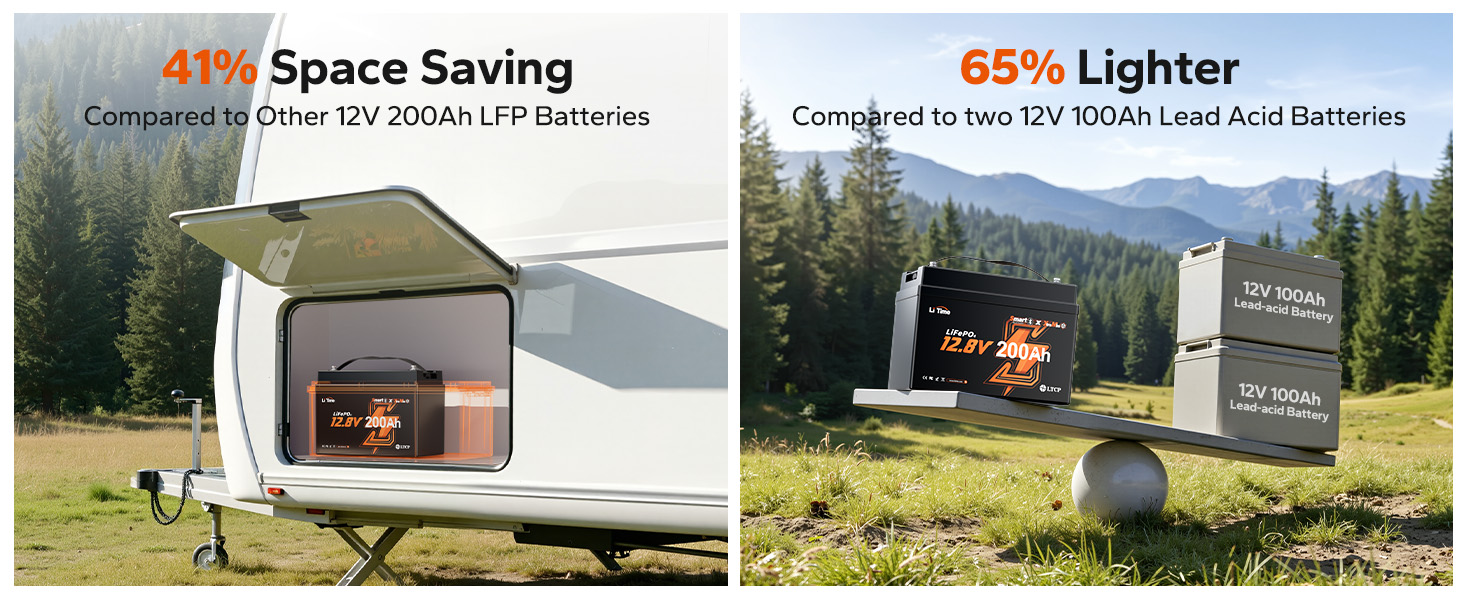

Fits Where Others Can't. Lighter. Easier.

Still struggling with bulky battery boxes? 2560Wh in a compact 13.11×6.93×9.45 in case—41% smaller than traditional 12V 200Ah LiFePO4. Replaces two 12V 100Ah lead-acids at up to 65% less weight, helping reduce tongue weight and making installation a one-person job.

Run High-Load with Ease

Don't let your battery limit your lifestyle. The upgraded 200A continuous BMS (with 1000A peak for 1 second) delivers the muscle to power demanding appliances like air conditioners and microwaves. It’s the power you expect from a large battery, now in a Xtra Mini size.

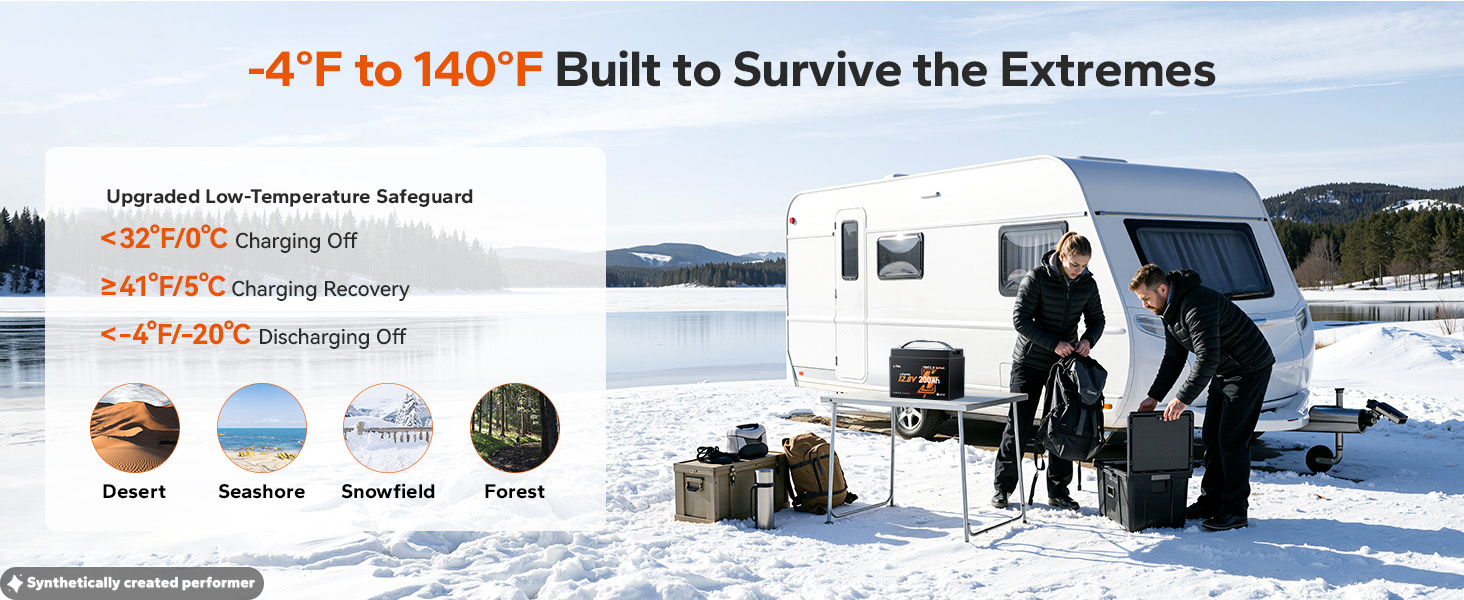

Low-Temp Protection for All-Weather Freedom

No switches, no guesswork. The 12V 200Ah Xtra Mini Battery automatically pauses charging below 32℉ (0℃) and discharging below -4℉ (-20℃), then safely resumes charging at ≥41℉ (5℃) to help protect the battery and extend its cycle life.

End Your Power Anxiety with Bluetooth 5.0

Checking battery status shouldn’t be a chore. Built-in Bluetooth 5.0 allows you to monitor SOC, voltage, cycles, and more. No more manual testing or "power anxiety" in the middle of your trip.

Clean Setup. Serious Power

Built for tight spaces and real-life upgrades: expand when you’re ready, cut the cable clutter with less wiring, and get more usable power for heavy RV loads reliably.

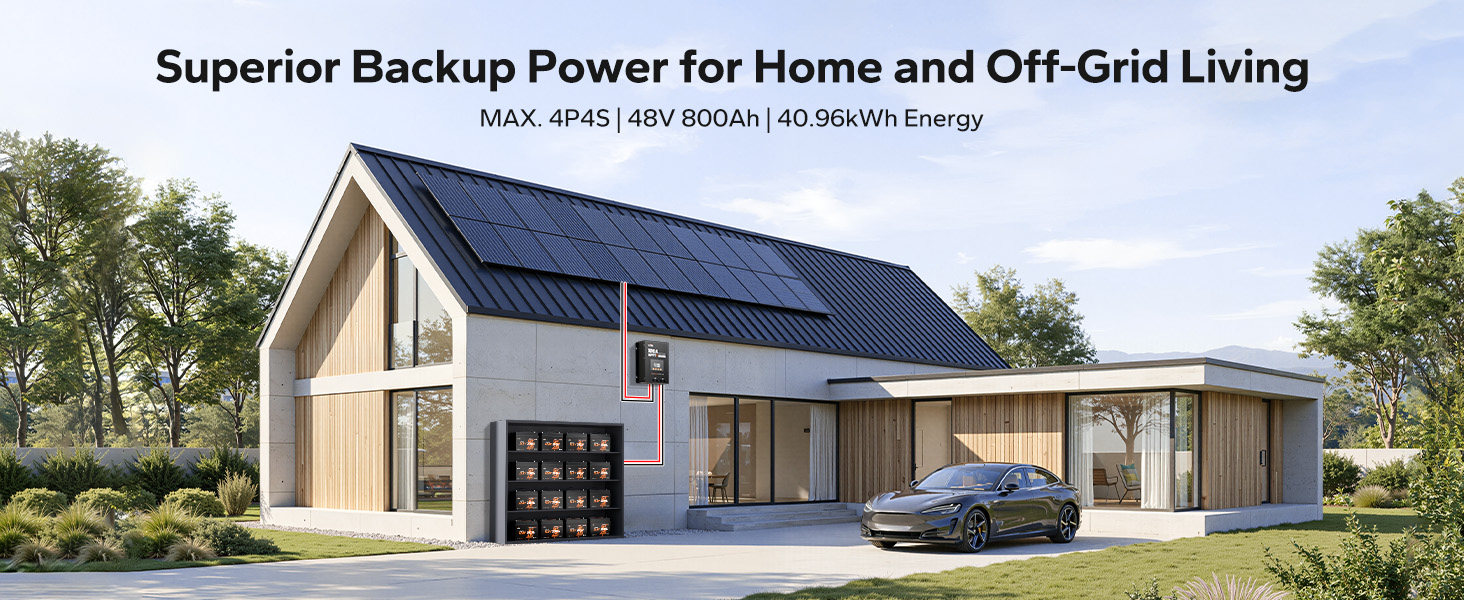

Scale to 40.96kWh for Home & Off-Grid Backup

Expand up to a 40.96kWh (4P4S 51.2V 800Ah) energy system for home or off-grid living. Power through long nights and surprise outages with steady, reliable energy. Made your space stays bright, comfortable, and secure.

Compact Power, Built to Go Anywhere

Made for RVs, cabins, camping, and marine use—reliable energy in a space-saving 12V 200Ah Xtra Mini design that fits tight installs without compromising on power.

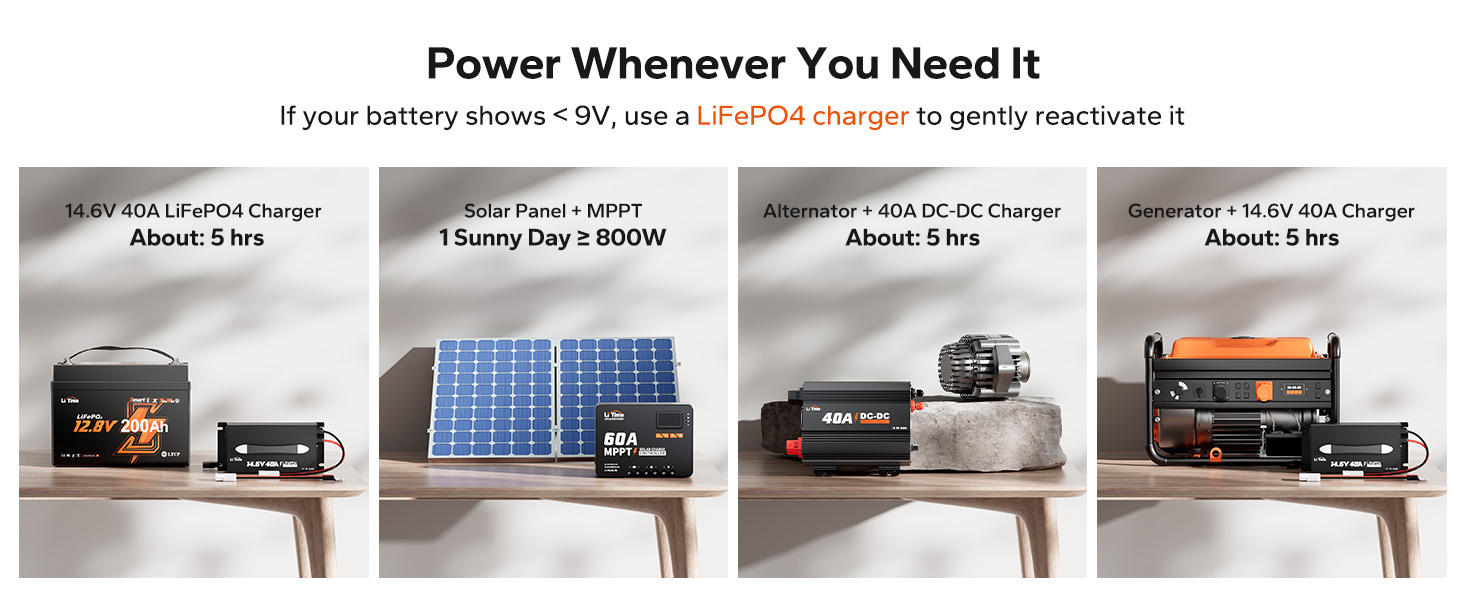

Charge Your Way. Anywhere. Anytime.

Four supported charging methods — solar charging, alternator charging, generator charing or a dedicated LiFePO4 charger. If the BMS protection is active, the battery must be reactivated using a LiFePO4 charger with a builtin activation function.

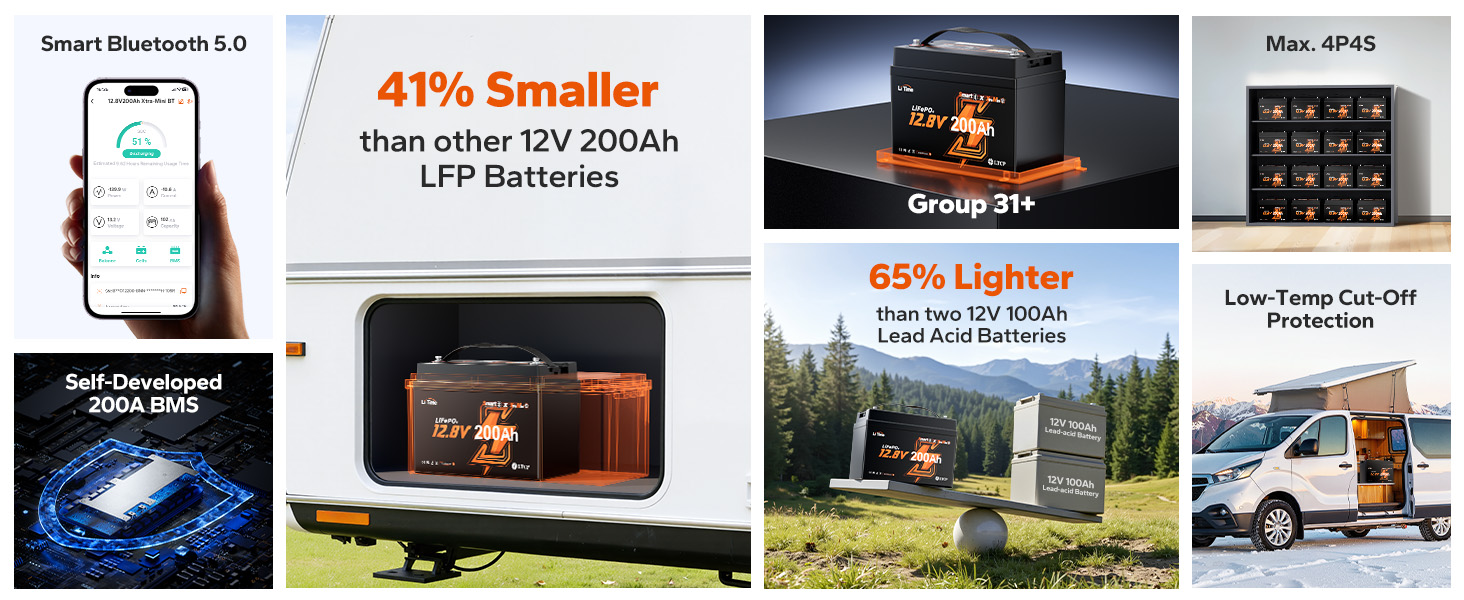

Mini in Size, Big on Power. Stop fighting bulky batteries, 12V 200Ah Xtra Mini help upgrade without rebuilding your battery bay.

Swap-in simplicity for RVs: 13.11×6.93×9.45 in—41% smaller than a 12V200Ah LFP battery.

Easier to Carry: Only 44.5 lbs, up to 65% lighter than two 12V 100Ah lead-acid batteries.

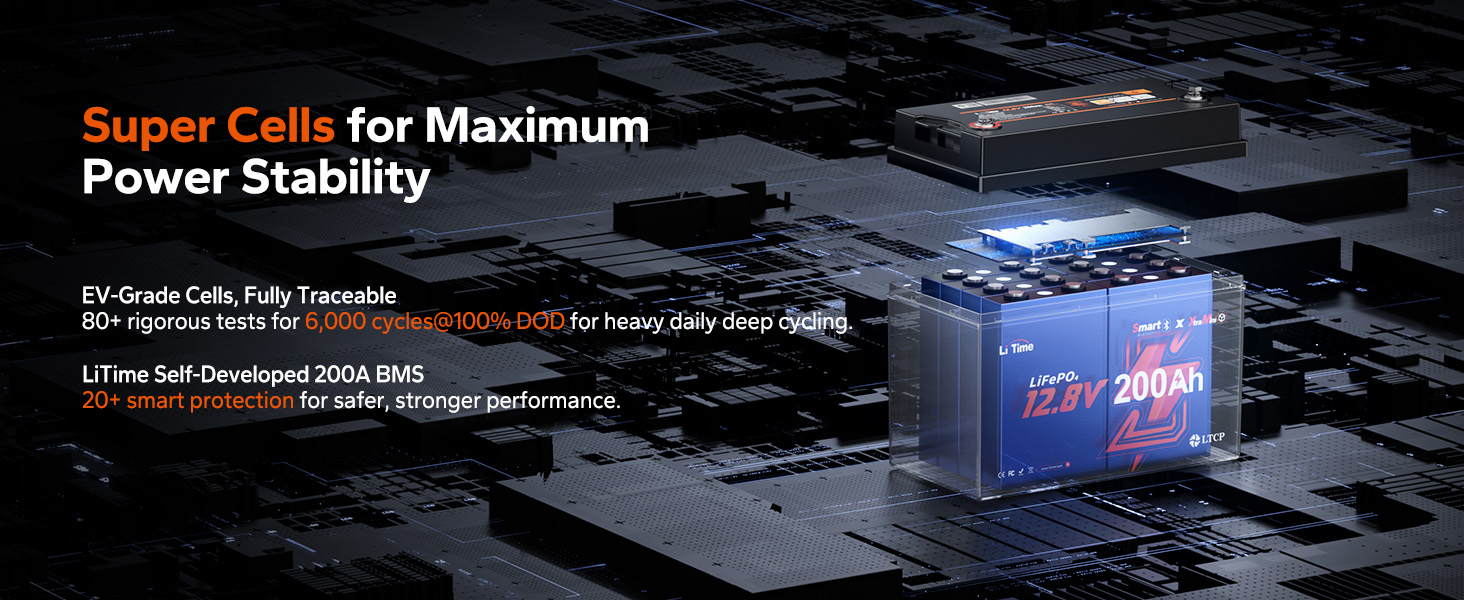

Super EV grade LiFePO4 cells: 6,000+ cycles@100% DOD, 10 years lifespan, non-toxic and environmental.

Supports max 4P4S expansion: up to 40.96kWh energy & 40.96kW power. Clean setup, serious power.

Cold-weather confidence：Low-Temp protection enables safe discharge from -20°C (-4°F) and above, helping keep stable performance in extreme weather.

Pro-Grade 200A BMS: delivers a max continuous output of 200A and supports 1000A peak discharge for 1 second.

Smart Bluetooth 5.0: monitor battery status in real time via the LiTime App.

2-Year warranty, FCC, CE, RoHS, UN38.3 certified.

Protection Upgrade: This LiTime product is covered by AIG Product Liability Insurance, effective from May 22, 2026.

IP65 waterproof and dustproof rating.

Please Note: Do Not use as Starter Battery or a golf cart battery.

BATTERY
Cell Type：LiFePO4
Warranty：2-Year
Nominal Voltage：12.8V
Rated Capacity：200Ah
Energy：2560Wh
Max. Expansion (Parallel & Series)：4P4S
Internal Resistance：≤40mΩ
Certifications：FCC,CE,RoHS,UN38.3
Bluetooth Function ：Yes

BMS
BMS：200A
Max. Continuous Output Power：2560W
Max. Continuous Charge Current：200A(1C)
Max. Continuous Discharge Current：200A(1C)
Max. Discharge Current 1 Second：1000A(5C)

CHARGE
Charge Method：CC/CV
Charge Voltage：14.4±0.2V
Recommend Charge Current：40A(0.2C)

TEMPERATURE
Charge Temperature：0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection：Yes
Low-Temperature Charging Protection Auto Recovery：-10℃ / 14℉
Automatic Discharge Off：-20℃ / -4℉
Automatic Charge Off：0℃ / -4℉
Automatic Charging Recovery：5℃ / 41℉

OTHERS
Terminals：M8*16 mm
Weight Approx.：44.5 lbs
Size：L13.11*W6.93*H9.45 in
Housing Material：ABS
Protection Class：IP65
