Application:

for Subaru BRZ, Toyota GT86, GR86, and more.

Fitting Size AN10 Suitable for AN10 size hose fitting and oil coolers.

Specification:

Material: Aluminum alloy

Inlet / Outlet Size: 10AN

Working Temperature: 73-83℃

Center Adapter: M20*1.5& 3/4-16UNF

Package included:

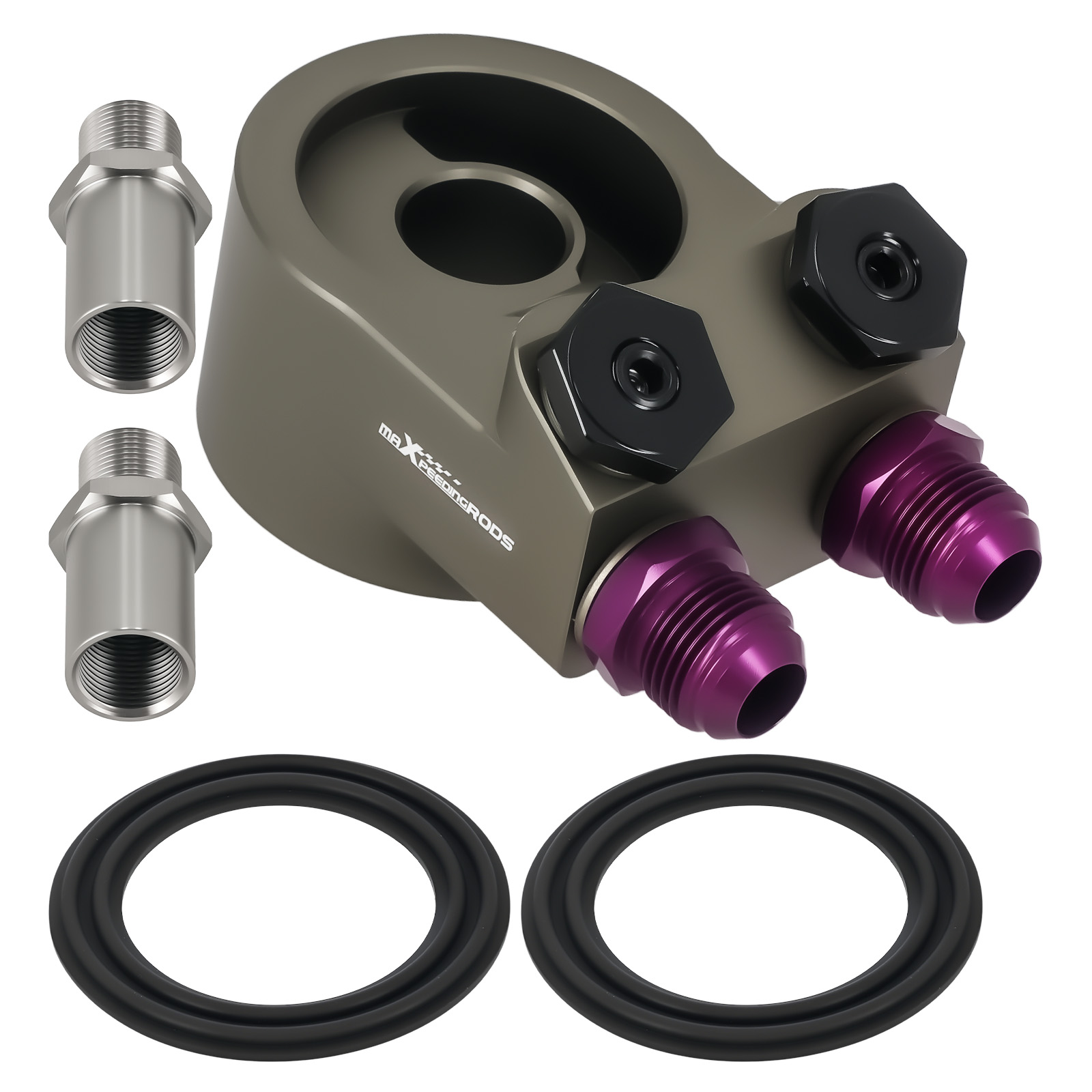

1* Oil Filter Sandwich Adapter Kit

(As Shown in the Picture)

Feature:

1. Optimized Oil Cooling Performance: This oil filter sandwich adapter is designed to improve the cooling efficiency of vehicle oil and is a must-have for those who require their engines to perform at their best. When the oil temperature is lower than 73 degrees Celsius, the valve remains closed. The oil directly enters the filter through the main oil channel, and then returns to the engine. This can avoid the heat loss caused by the radiator at low temperature and shorten the time of warming up the vehicle. When the temperature exceeds 73 degrees Celsius, the valve gradually opens, and part of the oil is shunted to the oil cooler for cooling, and then returned to the engine after mixing with the uncooled oil. Thereby it can reduce the overall oil temperature. When the oil temperature reaches 83 degrees Celsius, the valve is fully opened.

2.User-friendly Design: Its lightweight and compact design makes it easy to install without compromising space or performance.There are two 1/8 NPT ports for option to install oil temperature sensor or oil pressure sensor. The upper fittings and lower fittings of the angled fittings oil filter sandwich adapter can be interchanged which can achieve a flat orientation installation or an angled orientation installation for the needs of installation position.

3. Heat Dissipation Improvement: Increased heat dissipation area design accelerates oil heat conduction, working with the vehicle cooling system to reduce engine operating temperature and enhance sustained performance

4. Durable and Reliable Construction: This oil filter sandwich adapter is made of aluminum alloy for durability. The durable construction ensures it can withstand the rigors of daily use and extreme driving conditions. It can provide consistent performance and protection for your engine.

5.Modification Compatibility: Suitable for various engine upgrade scenarios, such as turbocharging and high-load driving, providing professional-grade cooling solutions.

Note:

1. The fittings of oil filter sandwich adapter are AN10 and they should be compatible with AN10 oil cooler hoses.

2. Professional Installer is Highly Recommended.
