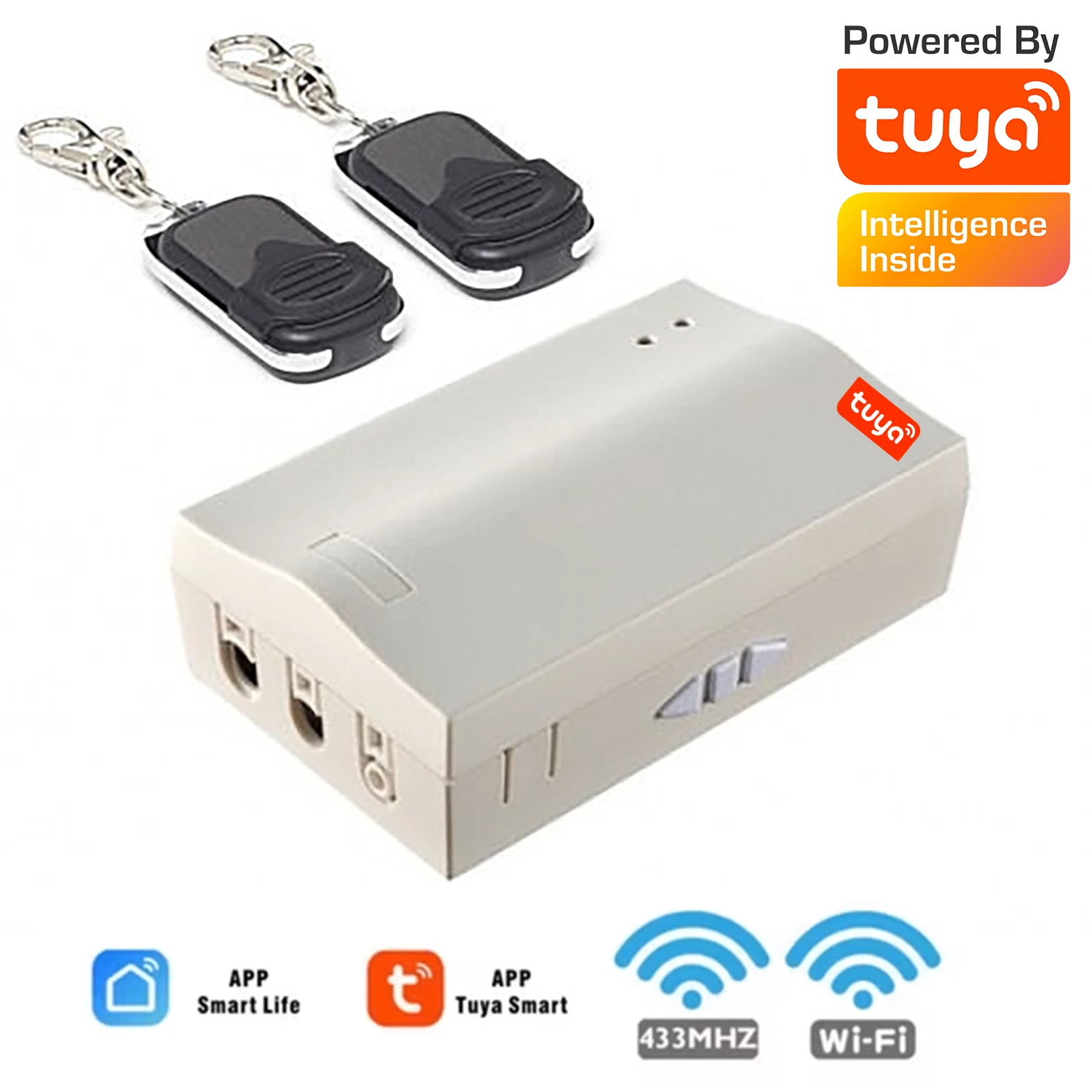

Receiver Unit + 2 Stainless Steel Remote Handsets
UKVISION
Smart Access Solutions
Model: UKV-WSR-433BT-PRO
Model: UKV-WSR-433BT-PRO
WiFi App Control
Bluetooth Local Control
2 Remotes Included
Smart WiFi Roller Shutter Receiver Controller
Upgrade your existing roller shutter, garage door, or motorised access system with remote handset control, Tuya Smart app control, and Bluetooth local control in one clean receiver kit.
433.92MHz RFPhysical remote control
Tuya Smart AppControl from your phone
Up to 1000W230V AC motor output
Smart Home Upgrade
Control Your Shutter From Anywhere
Connect to the Tuya Smart App and manage your shutter remotely from your phone. Ideal for shops, garages, warehouses, domestic shutters, and motorised roller doors.
🌍
Worldwide App ControlOpen or close your shutter from any location with internet access.
⏰
Schedules & TimersSet daily, weekly, or custom open and close schedules.
👥
Share AccessAllow family, staff, or business partners to control the shutter from their own phone.
🔔
Status & AutomationUse app features such as scenes, timer control, and supported smart-home integration.
Triple Control System
Three Easy Ways To Operate
Use the method that suits you: physical remote, smartphone app, or Bluetooth when nearby.
📡
RF Remote
Traditional 433.92MHz remote control with Up, Stop, and Down operation. Works without internet.
Up to 20 handsets📶
WiFi App
Use the Tuya Smart App for remote access, scheduling, timer functions, and shared app control.
Worldwide control🔵
Bluetooth
Nearby phone control without relying on the network. Useful when standing close to the shutter.
Up to 15 metres

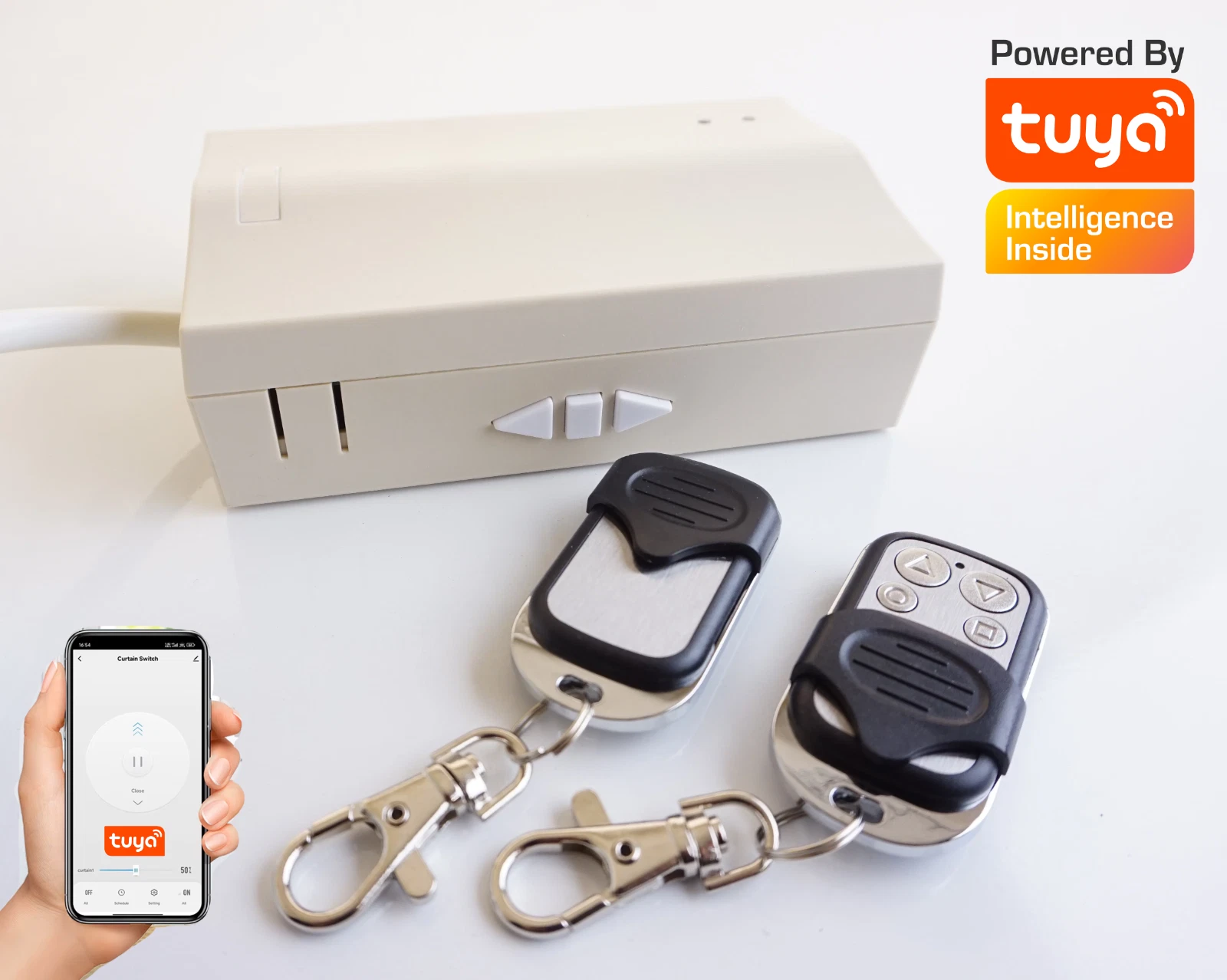

Premium Remotes Included
2 Stainless Steel Remote Handsets
Unlike basic plastic remotes, the included handsets use a stainless steel surround and top panel for a stronger daily-use finish. Suitable for homeowners, shop owners, garages, and staff use.
2 remotes included
Up / Stop / Down buttons
433.92MHz frequency
CR2032 battery included
Compact keyring style
Add up to 20 handsets
Practical Receiver Functions
Built For Shutter Automation
Useful functions for controlling compatible 230V AC tubular motors and motorised shutter systems.
Plug-In TerminalsTerminal block wiring connections for installation.
1000W Motor RatingSuitable for many home and commercial shutter motors.
12V DC Auxiliary OutputCan power compatible photocells and accessories.
Photocell InputSeparate safety loop input for supported sensors.
Manual Switch PortExternal low-voltage switch input support.
Up / Stop / DownFull three-button shutter operation.
Deadman FunctionHold-to-run safety option where required.
Auto-Close TimerSet a timed close function for convenience.
Motor Current MonitorHelps detect motor stop position and reduce mis-operation.
Dry Contact InterfacesUp, Stop, and Down interfaces for integration.
Onboard ButtonsManual Up, Stop, and Down buttons on the receiver.
UV-Resistant ABS HousingDurable casing for long-term operation.
Compatibility
Suitable For Many 230V AC Motorised Systems
Please check your existing motor type and wiring before purchase or installation.
🏪Shop Roller Shutters
🚗Garage Doors
🏢Industrial Shutters
🏠Domestic Roller Doors
🪟Window Shutters
☀️Solar Shading Systems
🎛️Venetian Blind Motors
🔧230V Tubular Motors
Technical Specifications
Product Details
| Input Voltage | AC 100-240V, 50/60Hz |
| Output to Motor | 240V AC, up to 1000W |
| Auxiliary DC Output | 12V DC for photocells and compatible accessories |
| RF Frequency | 433.92MHz |
| WiFi Band | 2.4GHz 802.11 b/g/n |
| Bluetooth Range | Up to 15 metres |
| Working Current | 1.3A |
| Receiving Sensitivity | ≤ -107dBm |
| Maximum Motor Load | 1000W |
| Working Temperature | -40°C to +70°C |
| Remote Handset Size | 55 × 30 × 13mm |
| Remote Battery | CR2032 included |
| Remote Capacity | Up to 20 handsets |
| App Platform | Tuya Smart for iOS and Android |
| Housing Material | ABS UV-resistant plastic |
| Remote Casing | Stainless steel surround and top panel |
| Included in Box | 1 receiver unit, 2 stainless steel remote handsets, manual |
| Model | UKV-WSR-433BT-PRO |
| Brand | UKVISION |
User Manual
To download the full user manual and wiring information for this device, please use the button below.
Download ManualProfessional Installation Recommended
This receiver involves mains voltage wiring. We strongly recommend installation by a qualified professional installer to ensure safe, compliant, and correct operation.
Remote Programming
Simple Pairing Steps
Remote handset programming is quick and normally takes under 60 seconds per handset.
Locate the Learn / Study button inside the receiver next to the LED indicator.
Press and hold the Learn button for 1 to 2 seconds until the LED flashes.
Press the round button on the remote handset you want to programme.
Test the Up, Stop, and Down buttons to confirm correct operation.
Repeat for extra handsets. The receiver supports up to 20 remotes.
Box Contents
What You Receive
1 × Receiver UnitUKV-WSR-433BT-PRO with plug-in terminal block.
2 × Remote Handsets433.92MHz stainless steel remotes with CR2032 batteries.
1 × ManualQuick start wiring and programming information.
