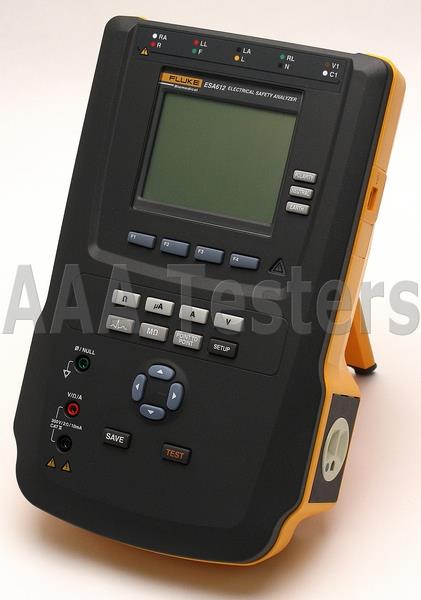

Fluke ESA612 115V ac Electrical Safety Analyzer
The ESA612 offers the functionality of a simulator, multimeter and electrical-safety analyzer in a single test tool
With selection of two test loads, this versatile product can be used worldwide to test to preventative maintenance electrical safety standards of choice: ANSI/AAMI ES1:1993 (NFPA-99), IEC62353 (VDE 751), and AN/NZS 3551

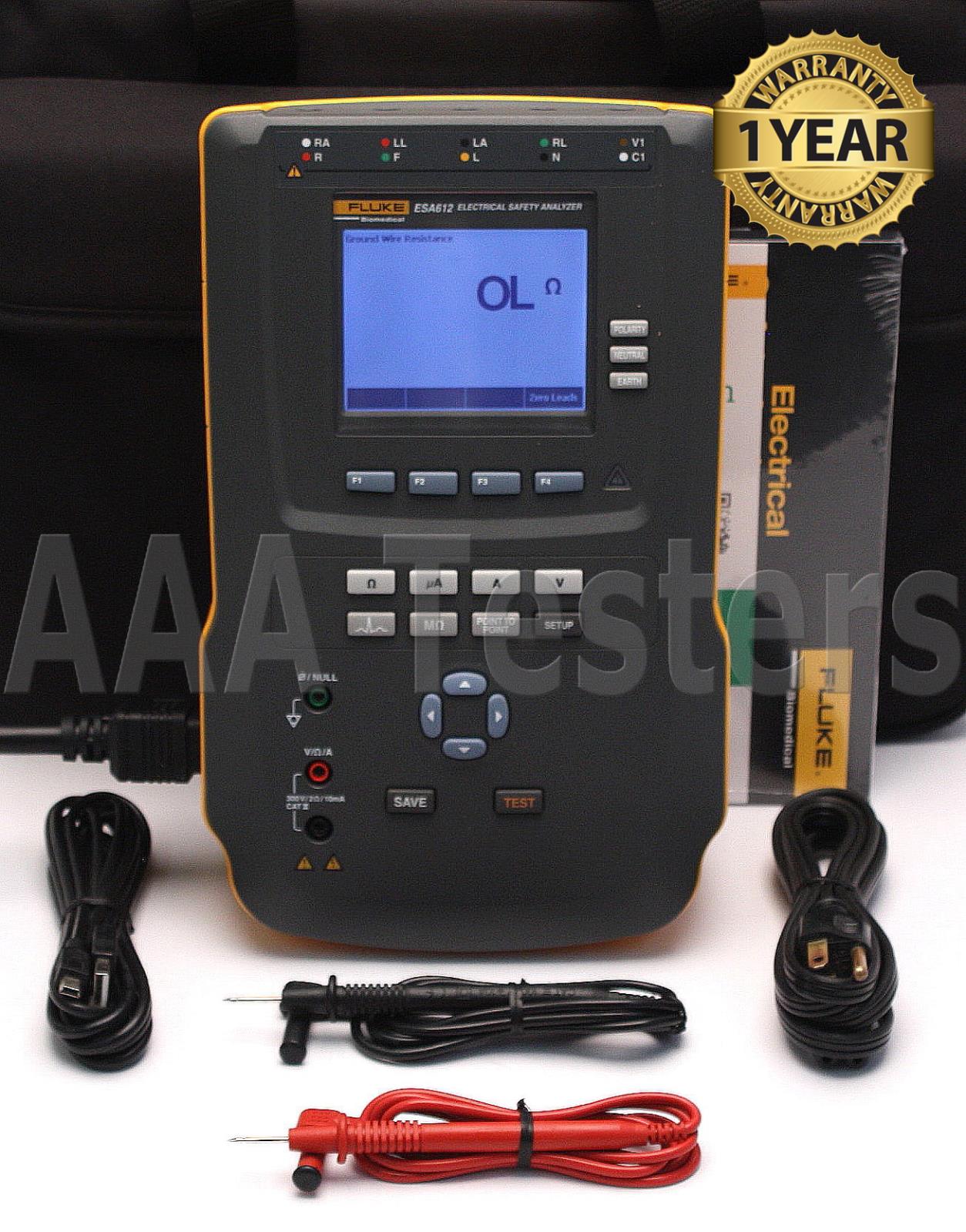

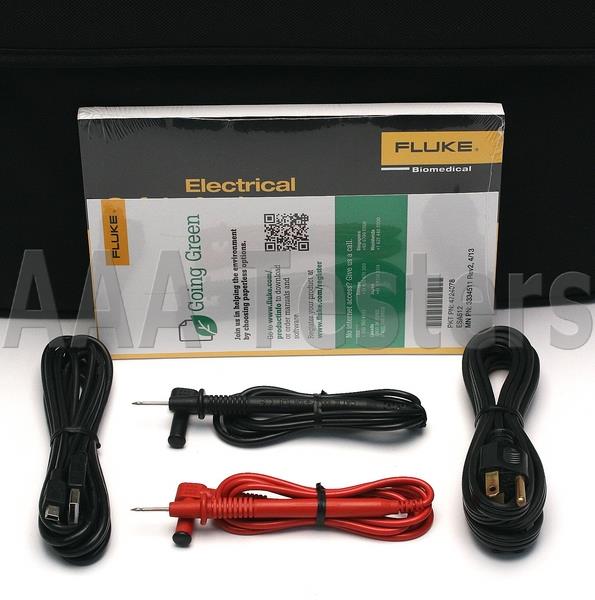

Includes Carrying Case & Acccessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Warranty: 1 YEAR WARRANTY

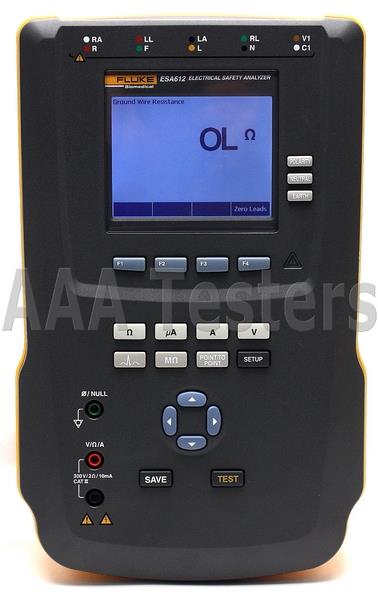

Fluke Networks ESA612 Electrical Safety Analyzer
The ESA612 Electrical Safety Analyzer represents the next generation in testers for biomedical professionals that perform field service on medical equipment throughout their facilities, in clinics, and anywhere onsite service is required. Portable, lightweight, and designed for operation in tight spaces, the ESA612 offers the functionality of a simulator, multimeter and electrical-safety analyzer in a single test tool.
With selection of two test loads, this versatile product can be used worldwide to test to preventative maintenance electrical safety standards of choice: ANSI/AAMI ES1:1993 (NFPA-99), IEC62353 (VDE 751), and AN/NZS 3551.
The versatility of the multifaceted ESA612 is further expanded with optional automation software, which speeds and simplifies testing and provides high-end-analyzer productivity at software-level investment. Ansur-automated ESA612 standardizes test procedures, compares results to standards limits, and generates and stores reports for total digital data management.
Features:
- Portable, ergonomic, lightweight and easy to use
- Large, easy-to-read display with adjustable contrast
- Human-factors-designed user interface
- Bail design for stand-up testing in field environments

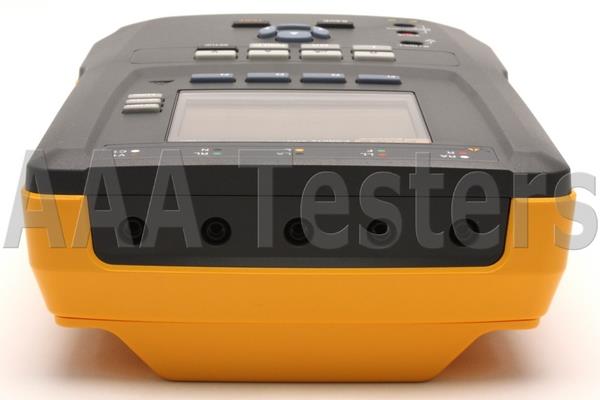

- Five applied parts jacks and easy ECG snap connection with optional expander box
- ECG waveform tests and dual-lead measurements combine the functionality of a simulator, multimeter and electrical-safety analyzer in a single test tool
- Replaceable mains fuses keep the device in the field and out of the repair shop
- Internal memory for 100 test records
- 20 A at 120 V current capability
- USB connection for use with Ansur and Data Viewer software (for memory download to PC)
- Optional Ansur automation software standardizes test procedures, compares results to standards limits, generates/stores reports and provides total digital data management
- Rigorously tested for rugged field applications, with CE and CSA in addition to the Fluke-quality-design stamp of approval
Specifications:
Voltage
|
Range (mains voltage)
|
90 V ac to 132 V ac rms
|
Range (accessible voltage)
|
0 V ac to 300 V ac rms
|
Accuracy
|
± (2 % of reading + 0.2 V)
|

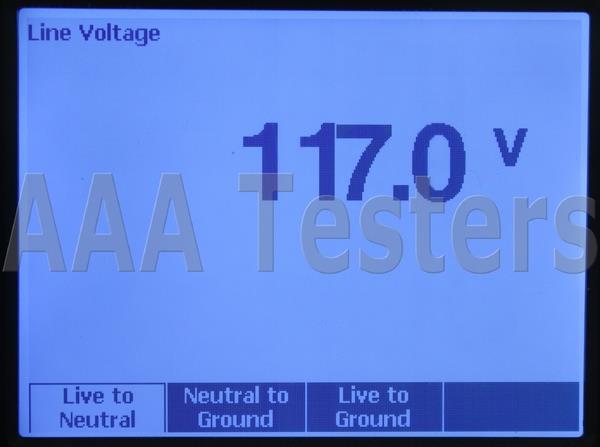

Voltage tests
|
Mains, accessible, and point-to-point
|
| Earth resistance |
Mode
|
Two terminal
|
Test current
|
> 200 mA ac
|
Range
|
0 W to 2 W
|
Accuracy
|
± (2 % of reading + 0.015 W)
|
Resistance tests
|
Earth resistance and point-to-point
|
Equipment current
|
Mode
|
AC rms
|
Range
|
0 A to 20 A
|
Accuracy
|
± 5 % of reading + (2 counts or 0.2 A, whichever is greater)
|
Duty cycle
|
15 A to 20 A, 5 min on/5 min off
10 A to 15 A, 7 min on/3 min off
0 A to 10 A continuous
|
| Leakage current |
Modes
Modes are available in all leakage tests with the exception
of MAP leakages that are available only in true-rms
|
AC + DC (true-rms)
AC only
DC only
|
Patient load selection
(input impedance)
|
AAMI ES1-1993
IEC 60601
|
Crest factor
|
≤ 3
|
Ranges
|
0 μA to 199.9 μA
200 μA to 1999 μA
2 mA to 10 mA
|
Frequency response/accuracy
DC to 1 kHz
1 kHz to 100 kHz
100 kHz to 1 MHz
|
± (1 % of reading + (1 μA or 1 LSD, whichever is greater))
± (2 % of reading + (1 μA or 1 LSD, whichever is greater))
± (5 % of reading + (1 μA or 1 LSD, whichever is greater))
|
Leakage tests
|
Ground wire (earth)
Chassis (enclosure)
Lead to ground (patient)
Lead to lead (patient auxiliary)
Lead isolation (mains on applied part)
Direct equipment
Direct applied part
Alternative equipment
Alternative applied part

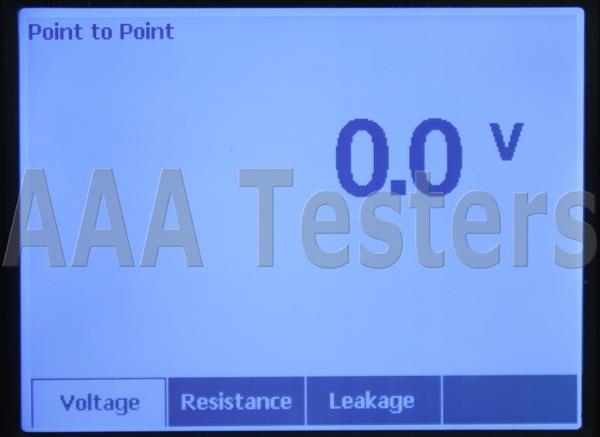

Point to point
|
Mains on applied part test voltage
|
100 % of mains
|
Differential leakage
|
Ranges
|
10 μA to 199 μA
200 μA to 2000 μA
2 mA to 20 mA
|
Accuracy
|
± 10 % of reading + (2 counts or 20 μA, whichever is greater)
|

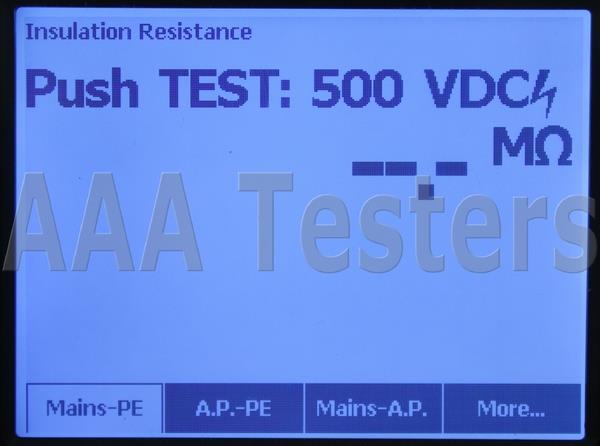

Insulation resistance
|
Ranges
|
0.5 MW to 20 MW
20 MW to 100 MW
|
Accuracy
|
± (2 % of reading + 0.2 MW)
± (7.5 % of reading + 0.2 MW)
|
Source test voltage
|
500 V dc
250 V dc
|
Insulation resistance tests
|
Mains-PE, AP-PE, Mains- PE, Mains-NE (non-earthed accessible
conductive part) and AP- NE (non-earthed accessible conductive
part)
|

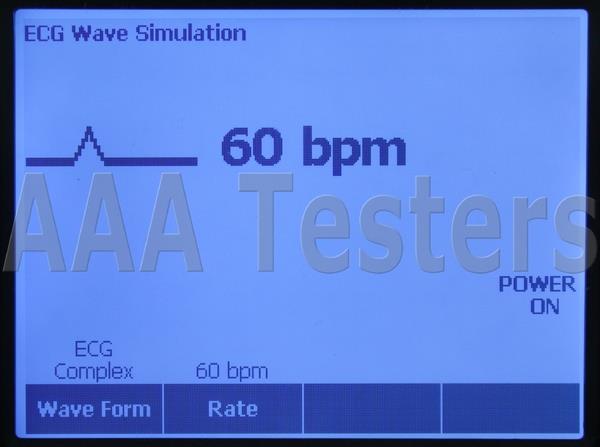

| ECG performance waveforms |
Accuracy
|
± 2 %
± 5 % for amplitude of 2 Hz square wave only, fixed at 1 mV
Lead II configuration
|
Waveforms
ECG complex (BPM)
Ventricular fibrillation
Square wave (50 % duty cycle) (Hz)
Sine wave (Hz)
Triangle wave (Hz)
Pulse (63 ms pulse width)
|
30, 60, 120, 180, and 240
0.125 and 2
10, 40, 50, 60, and 100
2
30 BPM and 60 BPM
|
| Power ratings |
Mains voltage outlet
|
120 V ac
|
Mains voltage inlet power range
|
90 to 132 V ac rms
|
Maximum current
|
20 A
|
Hz
|
50 or 60
|
Environmental specifications
|
Operating temperature
|
10 °C to 40 °C (50 °F to 104 °F)
|
Storage temperature
|
-20 °C to 60 °C (-4 °F to 140 °F)
|
Operating humidity
|
10 % to 90 % non-condensing
|
Altitude
|
120 V ac mains supply voltage up to 5,000 m
|
For full Fluke ESA612 product specifications, please click here: Fluke ESA612
|
|
|
|
