Features:
1. 1.8-inch LCD screen: equipped with a large-size LCD screen, providing clear data display and wide viewing angle.
2. Buzzer alert: Built-in buzzer alert function, key prompts, alarm prompts, everything has an echo.
3. anti-reverse connection/anti-backflow: with anti-reverse connection and anti-backflow protection function, to ensure that the power supply will not be damaged when the power supply is connected incorrectly or load abnormality.
4. Multiple Protection Mechanisms: Provides multiple protection functions, including under-voltage protection, over-voltage protection, over-current protection, over-temperature protection and over-power protection.
5. Upgraded plug-in terminals: Adopting upgraded plug-in terminal design, which is convenient for users to quickly remove and replace.
Parameter:
Input voltage: DC 7-36V
Output voltage: 0.5-40V
Voltage resolution: 0.01V
Accuracy: ±0.3% + 3 words (calibratable)
Output current: 0-8A
Current resolution: 0.001A
Accuracy: ±0.5%+3 words (calibratable)
Output power: 150W
Data set storage: 11 sets

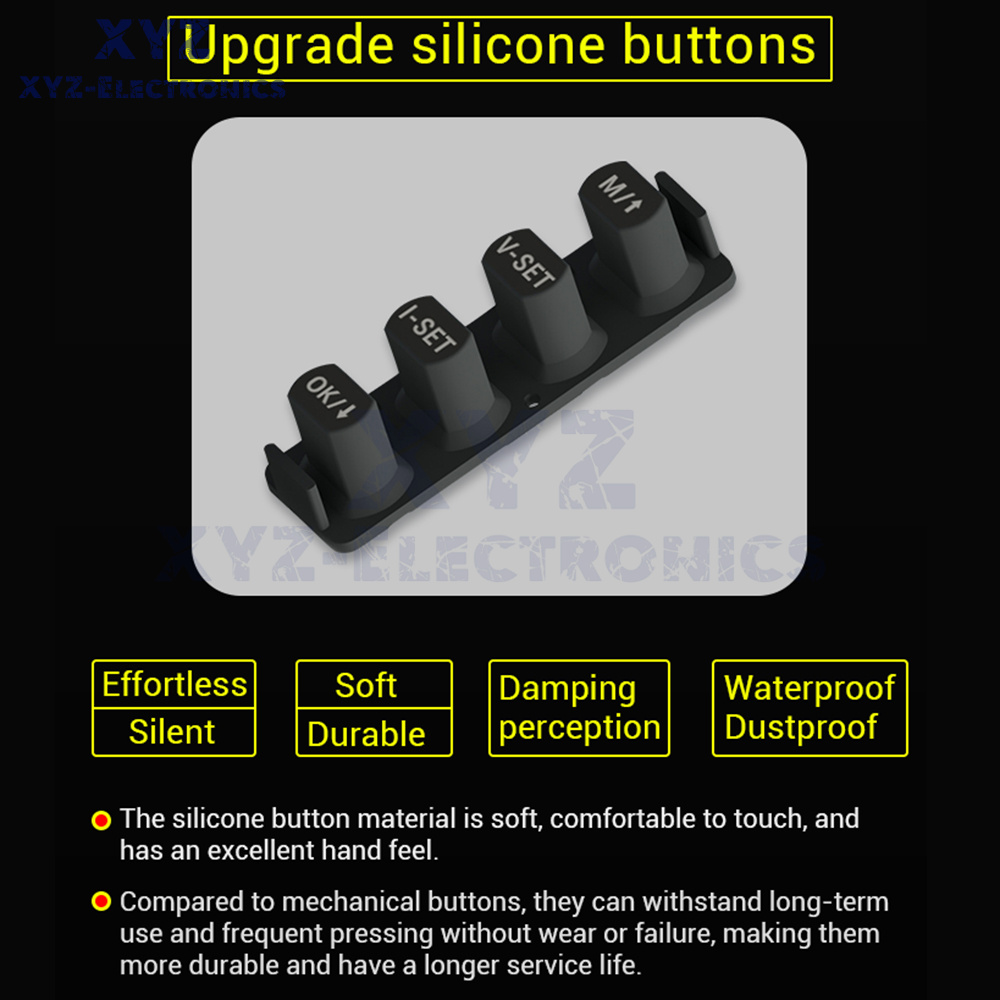

Silicon buttons: 5
Conversion efficiency: 88% or so
Screen size: 1.8 inch, 36*29mm visual range
Product size: 83*48*25mm
Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection (LVP): 6.0-40V adjustable, factory default 6.0V
Output overvoltage protection (OVP): 0.5-42V adjustable, factory default 42V
Output overcurrent protection (OCP): 0.001-8.2A adjustable, factory default 8.2A
Output over power protection (OPP): 0.01-180W adjustable, factory default 160W
Over Temperature Protection (OTP): 30-99℃ adjustable, factory default value 60℃.
Overtime protection (OHP): 1 minute-99 hours 59 minutes, factory default off
Over capacity protection (OAH): 0.001-9999Ah, factory default off
Over-energy protection (OWH): 0.001-4000KWh, factory default off
Package include:
Power Module*1
