Olympus OmniScan MX2 32:128 Ultrasonic Phased Array Flaw Detector
Offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance ensuring superior advanced AUT application performance with faster setups, test cycles, and reporting

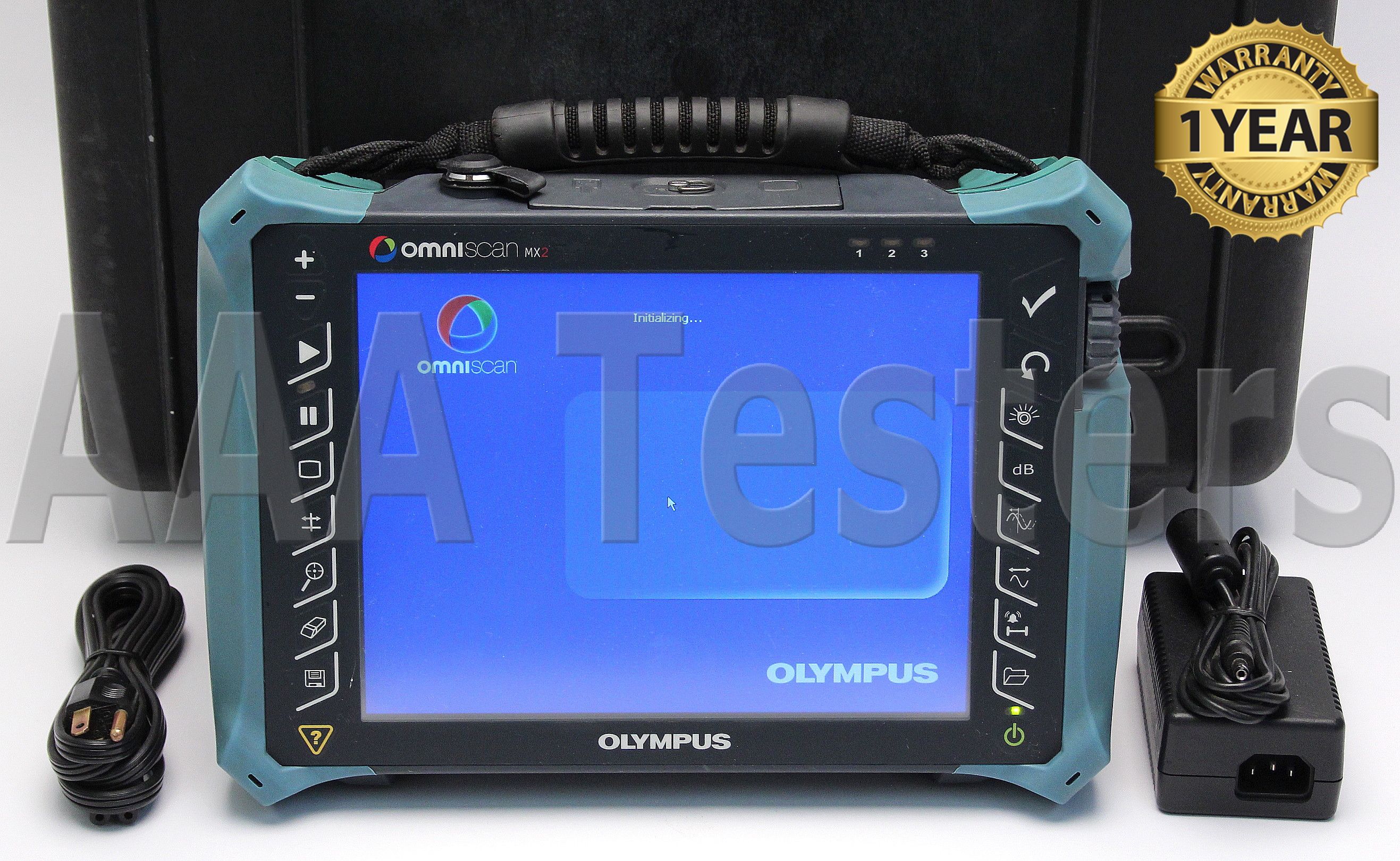

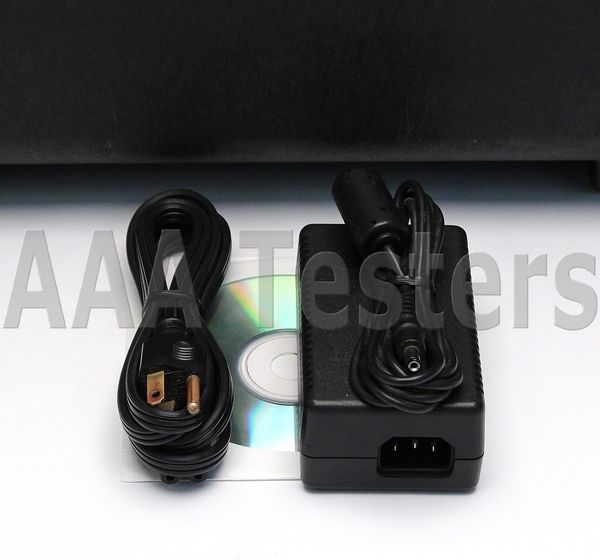

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

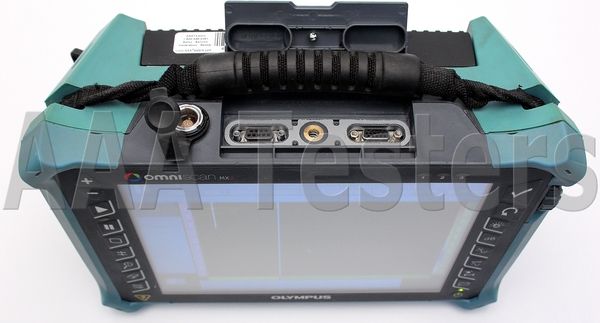

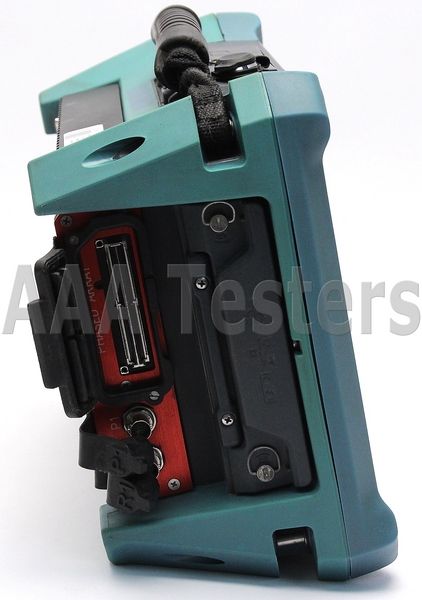

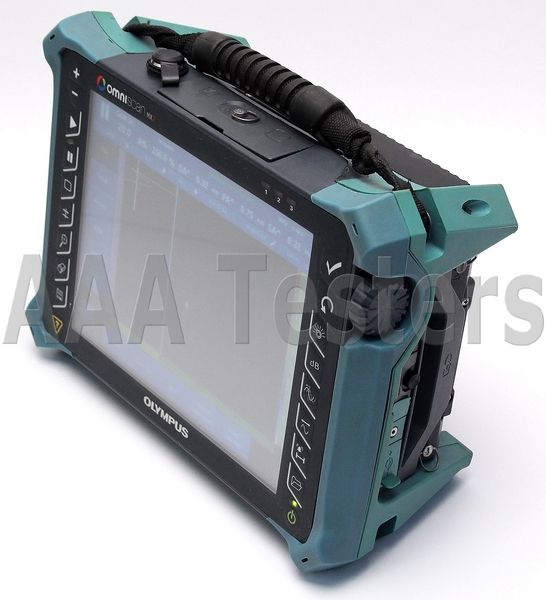

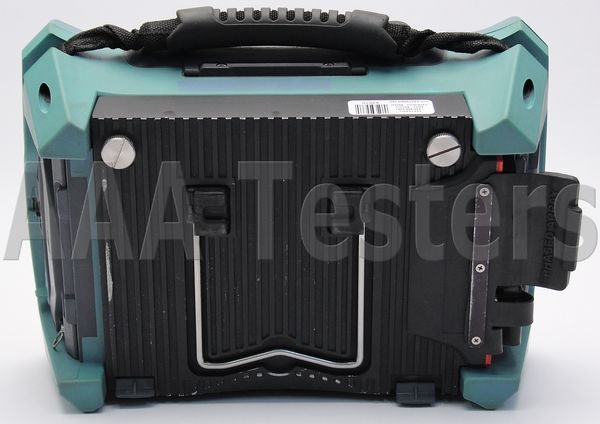

Olympus OmniScan MX2 Ultrasonic Flaw Detector
You’ll see…
The result of over 10 years of proven leadership in modular NDT test platforms, the OmniScan MX has been the most successful portable and modular phased array test instrument produced by Olympus to date, with thousands of units in use throughout the world.
Building on a Solid Basis
This second generation OmniScan MX2 increases testing efficiencies, ensuring superior manual and advanced AUT application performance with faster setups, test cycles, and reporting, in addition to universal compatibility with all phased array and ultrasound modules: past, present and future. Designed for NDT leaders, this high-end, scalable platform delivers true next-generation NDT performance.
The OmniScan MX2 offers a high acquisition rate and new powerful software features for efficient manual and automated inspection performance—all in a portable, modular instrument.
Faster Is Better!

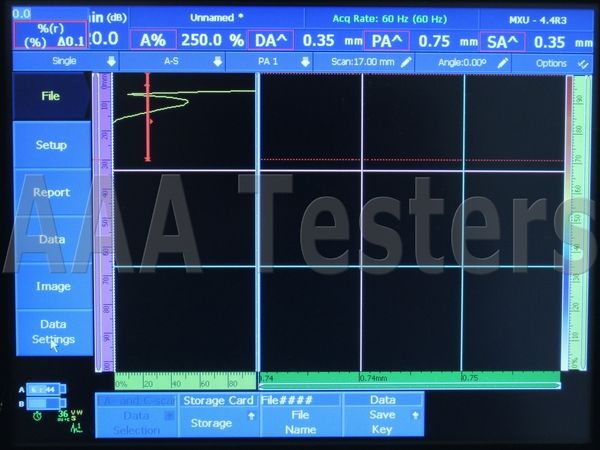

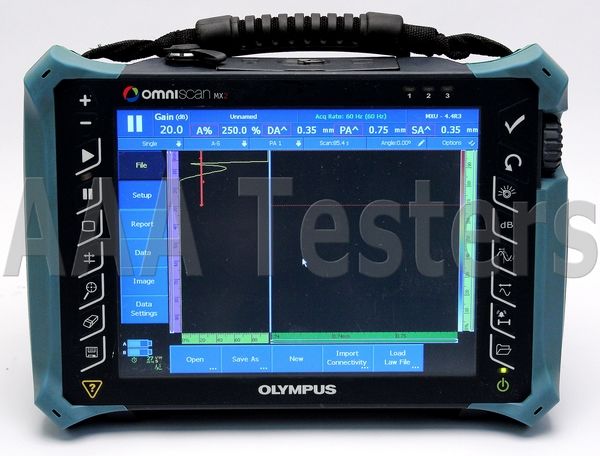

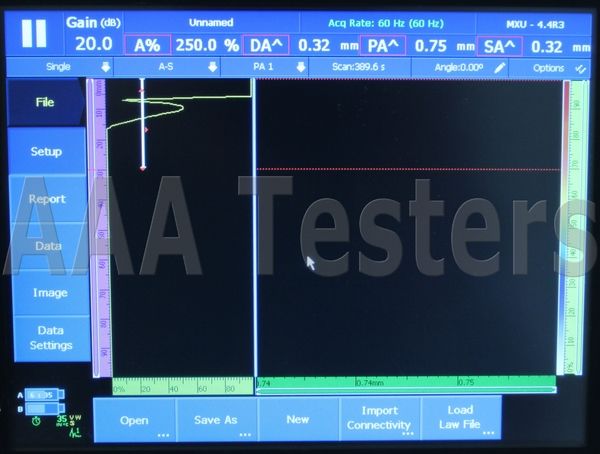

Powerstart your day the right way with the OmniScan MX2. The OmniScan MX2 simplifies and speeds up the setup process with its intuitive Weld Overlay software feature, so you can start testing immediately. Featuring the industry-standard phased array user interface with faster-than-ever performance, a bigger and brighter 10.4 inch screen, new and unique intuitive touch-screen capabilities, and faster data transfer, enabling you to get to your next inspection quicker.
More than an Instrument —A Solution Provider
The OmniScan MX2 is an important part of your inspection solution, and can be combined with other critical components to form a complete inspection system. Olympus offers a complete product range that includes phased array probes, scanners, analysis software, and accessories, all of which are integrated and packaged into rapidly deployable, applicationspecific solutions for quick returns on your investment. In addition, Olympus offers a high-quality calibration and repair service worldwide, that is backed by a team of phased array application experts to ensure that you get the support you need.
Weld Inspection of Small-Diameter Pipes
When coupled with the COBRA manual scanner, the OmniScan flaw detector is capable of inspecting pipes ranging from 0.84 inch OD to 4.5 inch OD. With its very slim design, this manual scanner is able to inspect pipes in areas with limited access.
Pressure Vessel Weld Inspection
A complete inspection of pressure vessel welds can be performed manually, or in a single scan using an OmniScan and a scanner for a turnkey solution. Inspection results are available immediately, enabling you to detect problems with welding equipment and fix them right away
Composite Inspection
Olympus offers complete solutions for the inspection of carbon-fiberreinforced polymer structures. These solutions are based on the OmniScan flaw detector, the GLIDER™ scanner, and dedicated probes and wedges designed for CFRP flat panel and radius inspection.
Corrosion Mapping Inspection
The OmniScan PA system with the HydroFORM scanner is designed to offer the best inspection solution for the detection of wall-thickness reductions resulting from corrosion, abrasion, and erosion. For this application, phased array ultrasound technology offers superior inspection speed, data point density, and detection.
Specifications:
| Overall dimensions (W x H x D) |
325 mm x 235 mm x 130 mm (12.8 in. x 9.3 in. x 5.1 in.) |
| Weight |
3.2 kg (7 lb), no module and one battery |
| Data Storage |
| Storage devices |
SDHC card, most standard USB storage devices, or fast Ethernet |
| Data file size |
300 MB |
| I/O Ports |
| USB ports |
3 |
| Speaker out |
Yes |
| Video output |
Video out (SVGA) |
| Ethernet |
10/100 Mbps |
| I/O Lines |
| Encoder |
2-axis encoder line (quadrature, up, down, or clock/ direction) |
| Digital input |
4 digital TTL inputs, 5 V |
| Digital output |
4 digital TTL outputs, 5 V, 15 mA |
| Acquisition on/off switch |
Remote acquisition enabled TTL, 5 V |
| Power output line |
5 V, 500 mA power output line (short-circuit protected) |
| Alarms |
3 TTL, 5 V, 15 mA |
| Analog output |
2 analog outputs (12 bits) ±5 V in 10 kΩ |
| Pace input |
5 V TTL pace input |
| Display |
| Display size |
26.4 cm (10.4 in.) (diagonal) |
| Resolution |
800 pixels x 600 pixels |
| Brightness |
700 cd/m2 |
| Number of colors |
16 million |
| Type |
TFT LCD |
| Power Supply |
| Battery type |
Smart Li-ion battery |
| Battery life |
Minimum 7 hours with two batteries |
| Environmental Specifications |
| Operating temperature range |
-10 °C to 45 °C (14 ºF to 113 ºF) |
| Storage temperature range |
–20 °C to 60 °C (–4 ºF to 140 ºF) with batteries
–20 °C to 70 °C (–4 ºF to 158 ºF) without batteries |
| Relative humidity |
Max. 70% RH at 45°C noncondensing |
| Ingress Protection Rating |
IP54 |
| Shockproof rating |
Drop-tested according to MIL-STD-810G 516.6 |
| Phased Array Module Specifications (Applies to OMNI-M-PA32128) |
| Voltage |
Low: 45 V
High: 90 V |
| Pulse width |
Adjustable from 30 ns to 500 ns; resolution of 2.5ns |
| Fall time |
<5 ns |
| Pulse shape |
Negative square pluse |
| Output impedance |
<30 ohms |
| Receiver |
| Gain range |
0 dB to 74 dB in steps of 0.1 dB, maximum input signal 1.25 Vp-p |
| Input impedance |
50 Ohms |
| System bandwidth |
0.53 MHz to 21 MHz +10% (-3 dB) |
| Beam formation |
| Scan type |
Sectorial and linear |
| Aperture |
32 elements |
| Number of elements |
128 elements |
| Number of focal laws |
256 |
| Delay range transmission |
0 us to 10 us in 2.5 ns increments |
| Delay range recetption |
0 us to 10 us in 2.5 ns increments |
| Acquisition Specifications |
| Frequency |
| Digitizing frequency |
100 MHz (10 Bits) |
| A-scan (acquisition mode) |
Up to 6000 A-scans per second (512-point, 8-bit A-scan) |
| Maximum pulsing rate |
Up to 10 KHz (C-scan) |
| Depth in material |
59.8 meter in steel (longitudinal wave), 10 ms in with compression
0.49 meter in steel (longitudinal wave), 81.9 us without compression |
| Display |
| Refresh rate |
A-scan: 60 Hz; s-scan: 20 Hz to 30 Hz |
| Envelope (echo-dynamic mode) |
Yes: Volume-corrected S-scan (30 Hz) |
| Synchronization |
| On internal clock |
1 Hz to 10 kHz |
| External pace |
Yes |
| On encoder |
on 2 Axes: from 1 step to 65536 steps |
| Data Specifications |
| Number of data points |
Up to 8000 |
| Real-time averaging |
2, 4, 8, and 16 |
| Rectification |
RF, full wave, half wave+, half wave- |
| Filtering |
Low-pass (adjusted to probe frequency), digital filtering (bandwidth, frequency range) |
| Video filtering |
Smoothing (adjusted to the probe frequency range) |
| Programmable TCG |
| Number of points |
16: one TCG(time-corrected gain) curve per channel for focal laws |
| Storage |
| A-scan recording |
6000 A-scans per second (512-point, 8-bit A-scan) |
| C-scan recording |
I, A, B, up to 10 kHz |
| Maximum file size |
Limited to available internal flash memory; OmniScan MX2: 300MB |
For full Olympus OMNIScan MX2 Ultrasonic Flaw Detector product specifications, please click here: Olympus OMNIScan MX2
|
