Overview

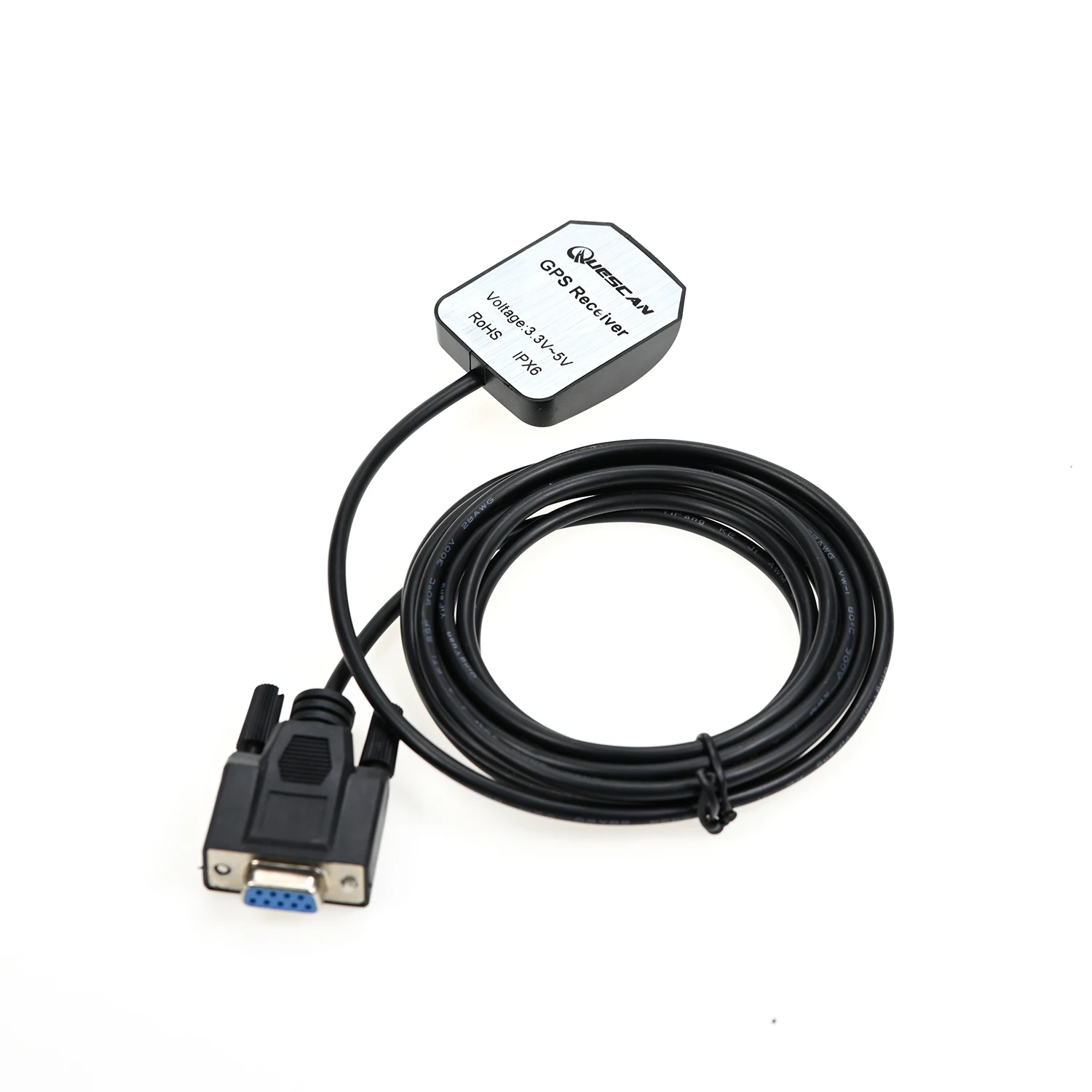

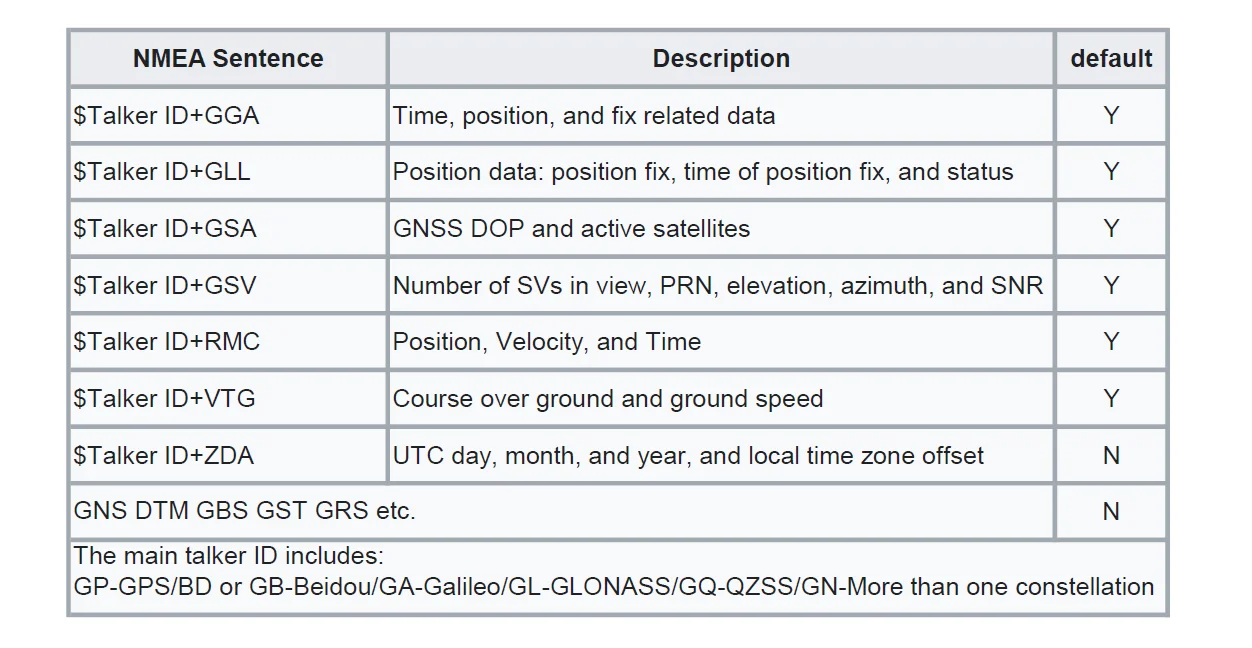

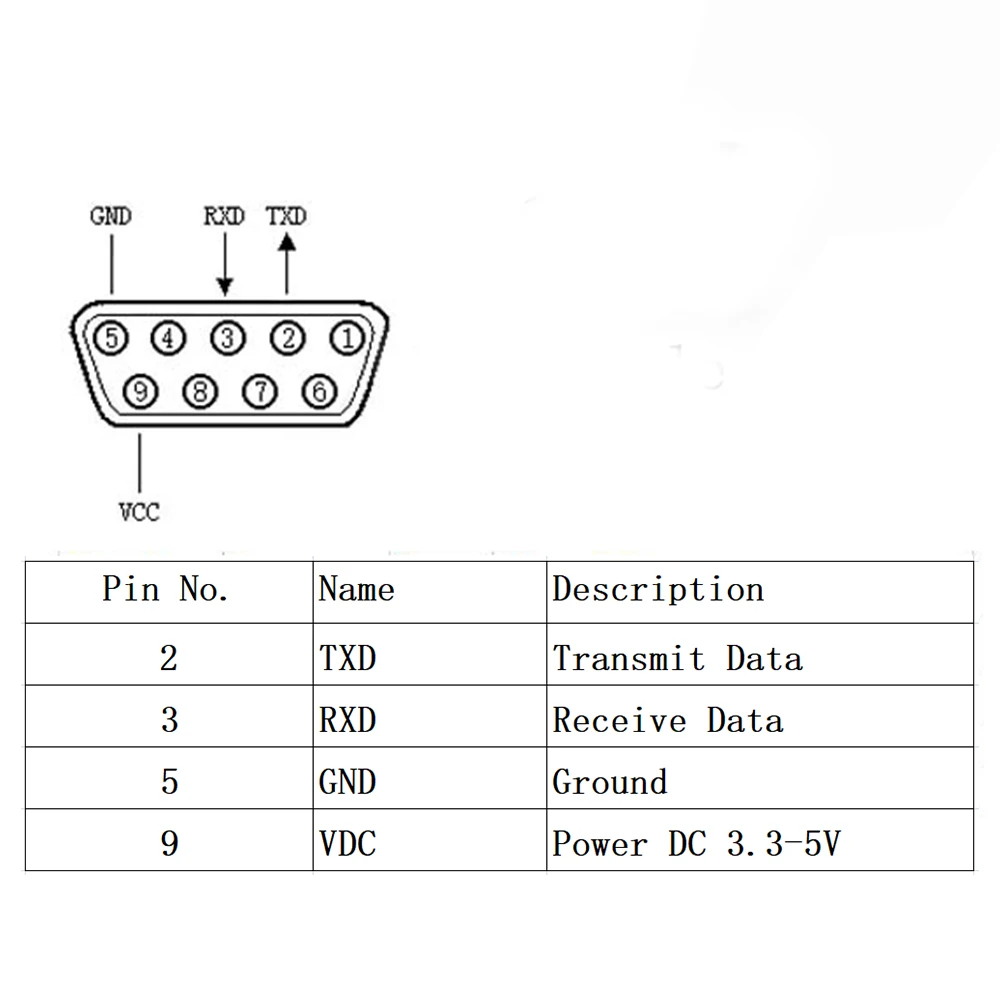

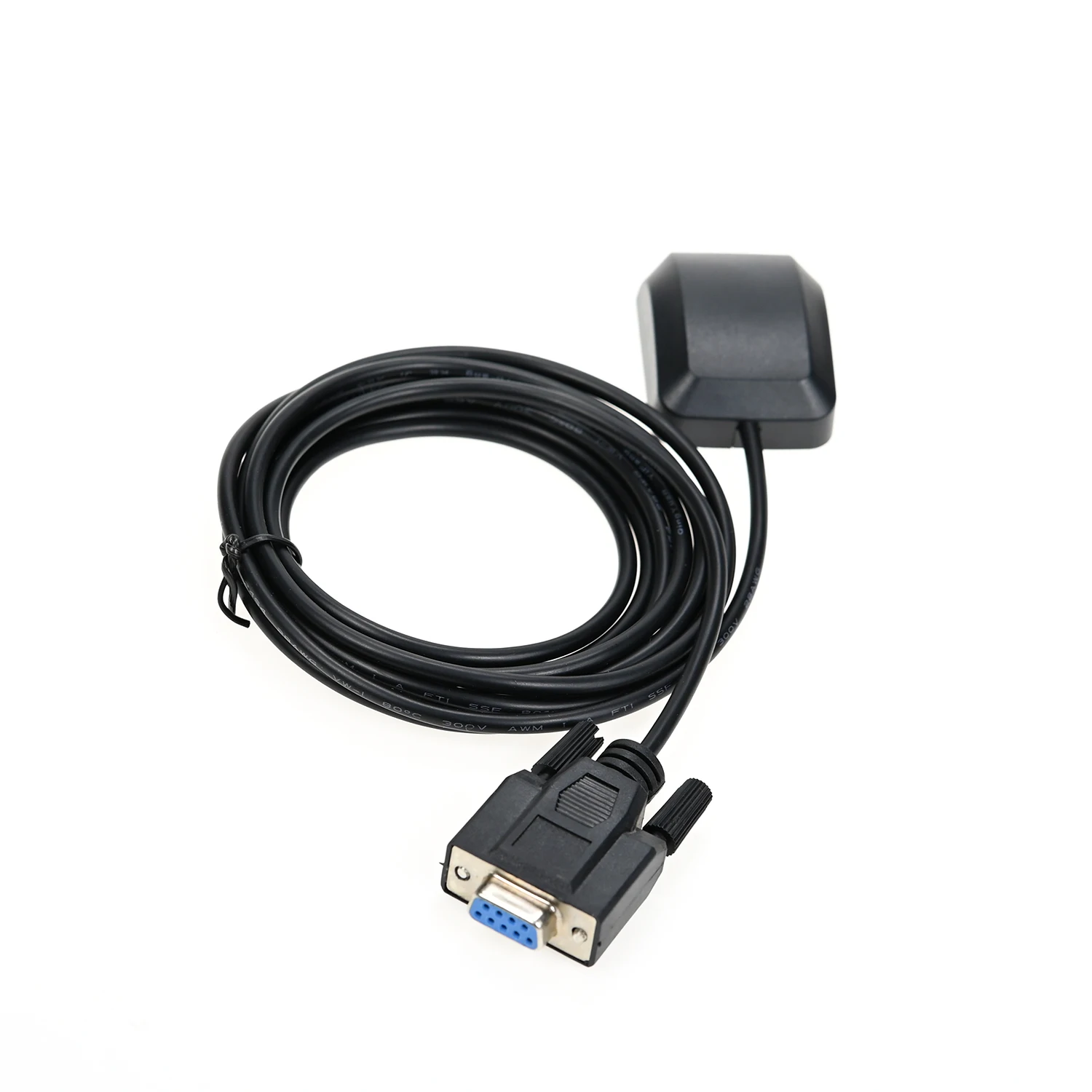

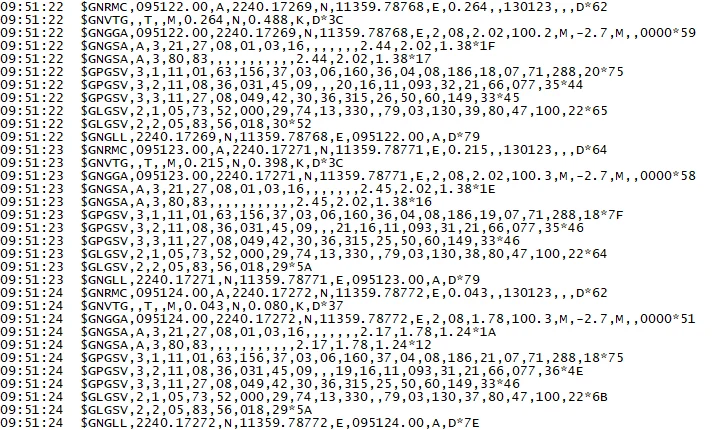

QU8RS is a RS-232 GPS+GLONASS antenna receiver.The end connector is a DB9 female connector, powered by DB9's pin-9.The protocol for this receiver is standard NMEA 0183. The NMEA messages output by the receiver include NMEA-RMC, GGA, GSA GSV, GLL, VTG. The receiver supports 72 channels to receive GPS/QZSS and SBAS. With the help of WAAS, the positioning accuracy is 1.5 meters for outdoor open areas,and max navigation update rate is 10Hz. It is a low-cost NMEA 0183 solution that can be widely used in marine electronics, transportation management, public transportation systems, etc. ​Note: If you need to change the receiver configuration, such as baud rate and NMEA message output, please fell free to contact us. ​Users can configure various settings through the Windows software U-center.
