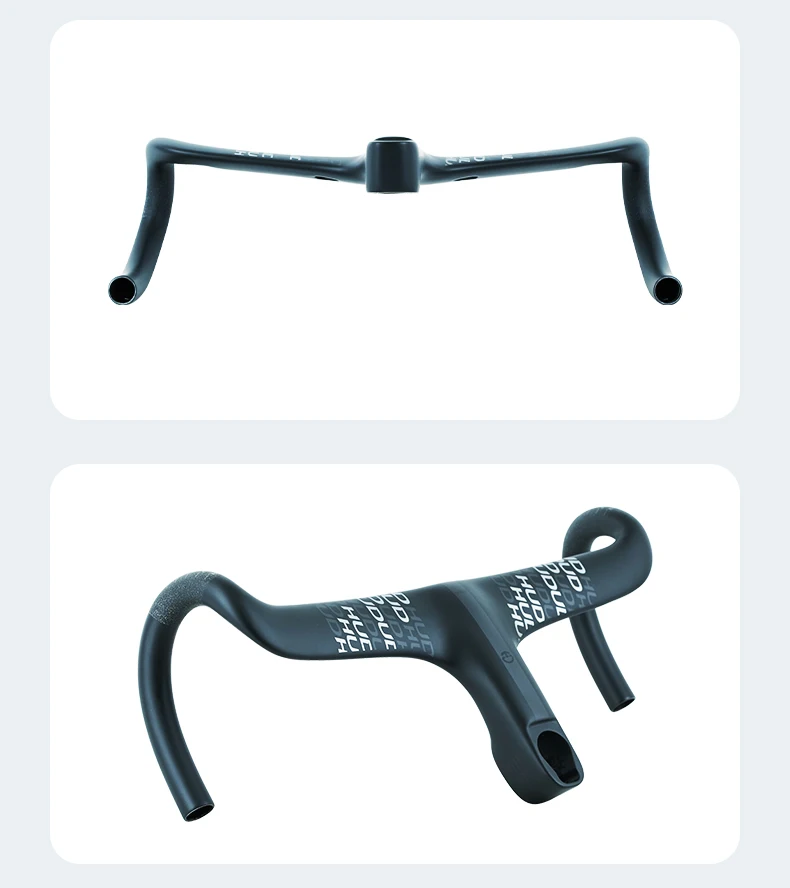

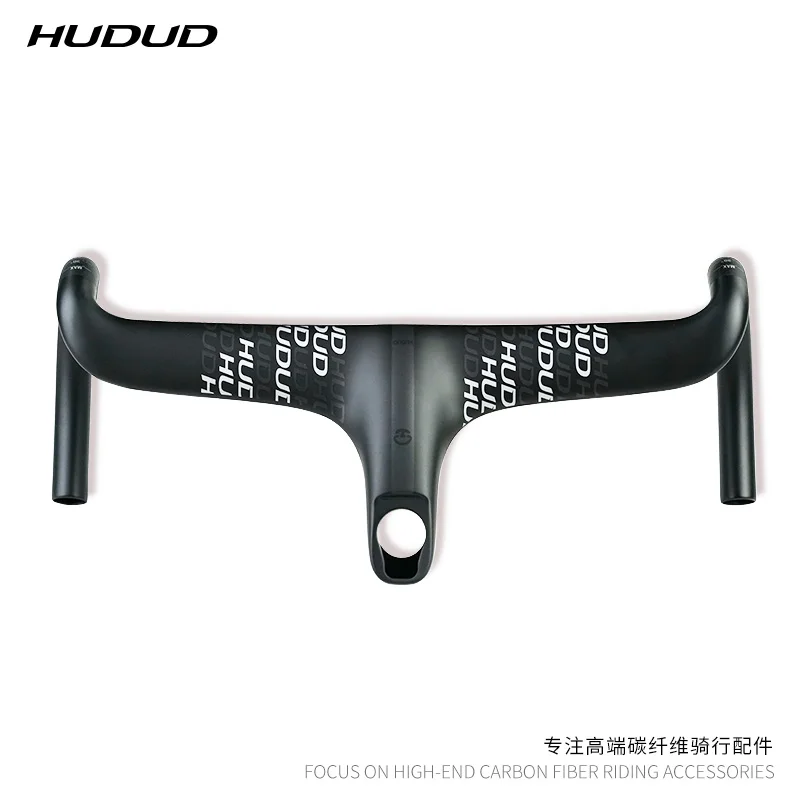

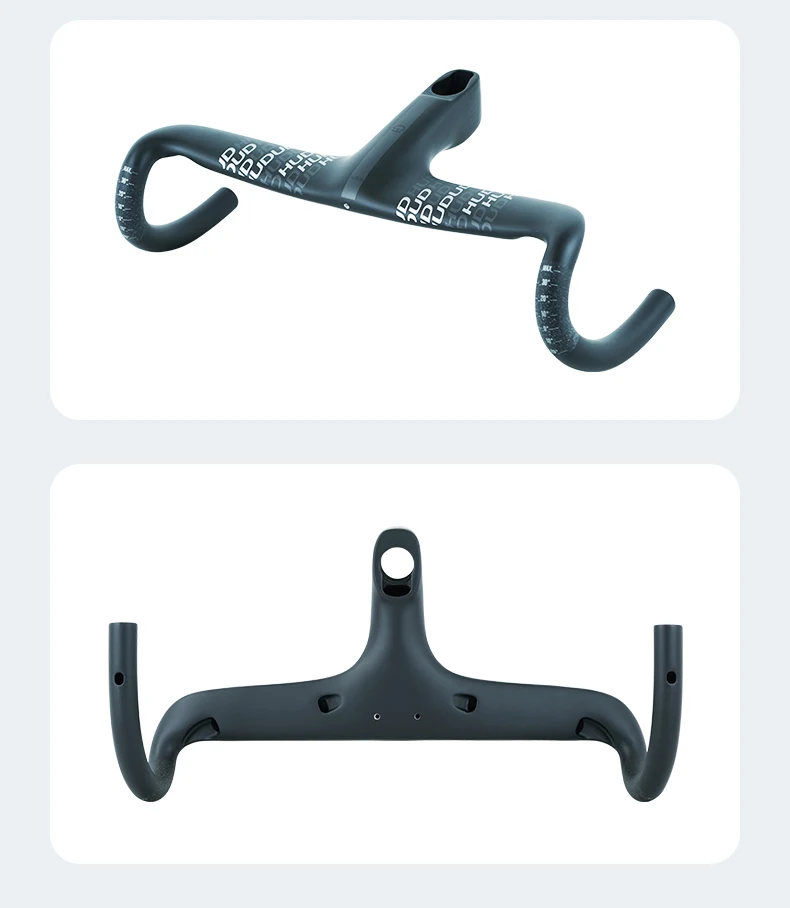

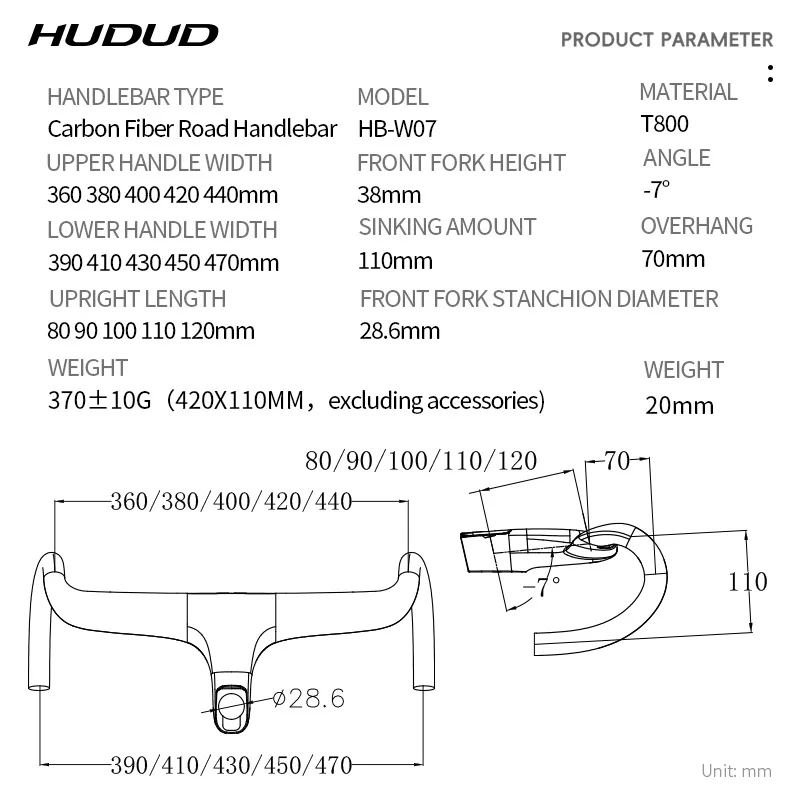

Model: Road Bike Integrated Handlebar HB-07
Material: Full Carbon Fiber (T800)

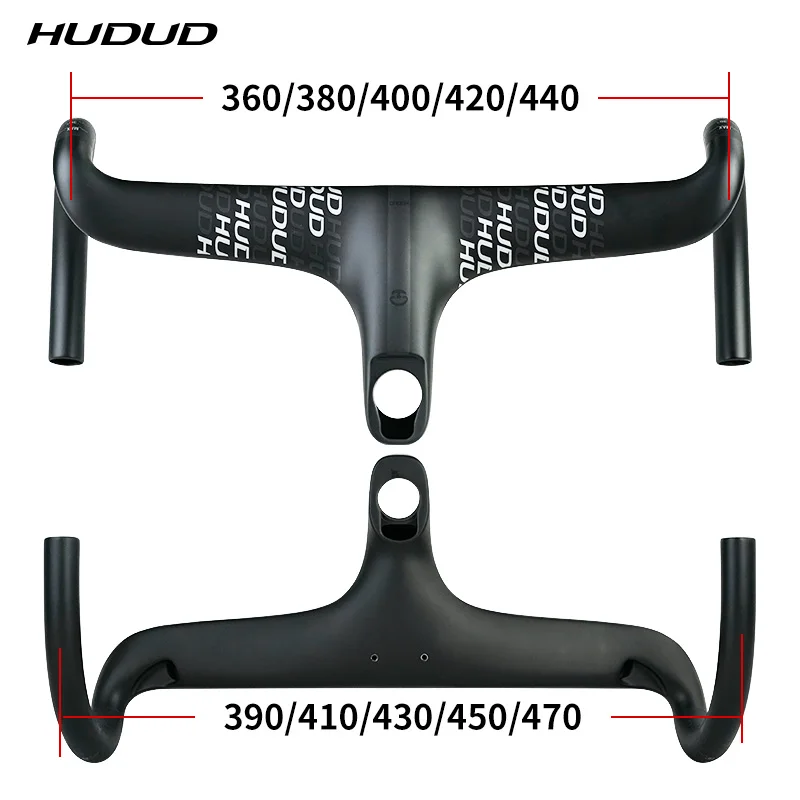

Upper Handlebar Width: 360/380/400/420/440mm (Please select desired size)
Lower Handlebar Width: 390/410/430/450/470mm

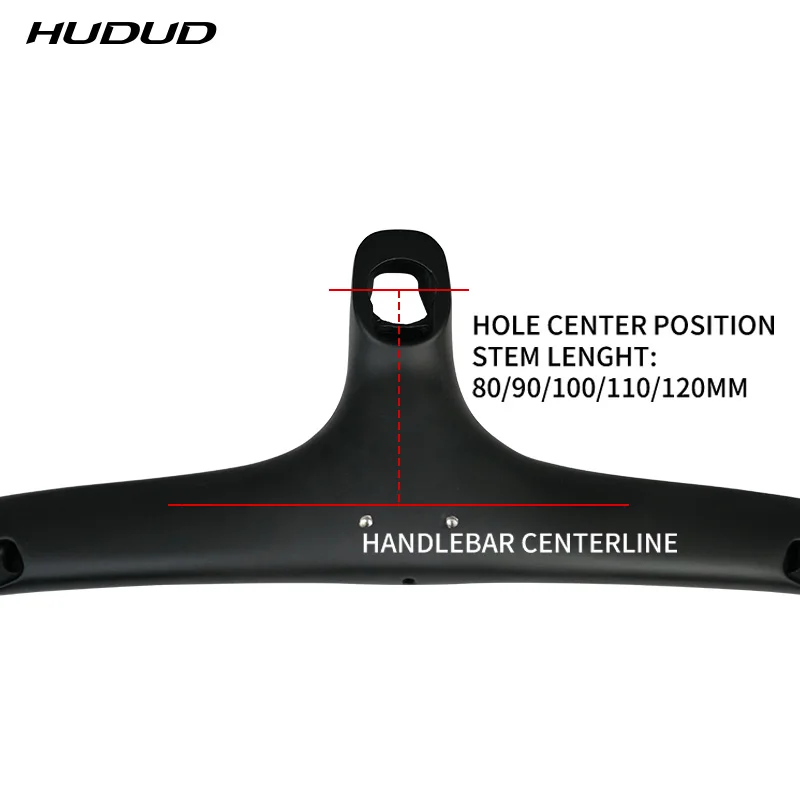

Stem Length: 80/90/100/110/120mm

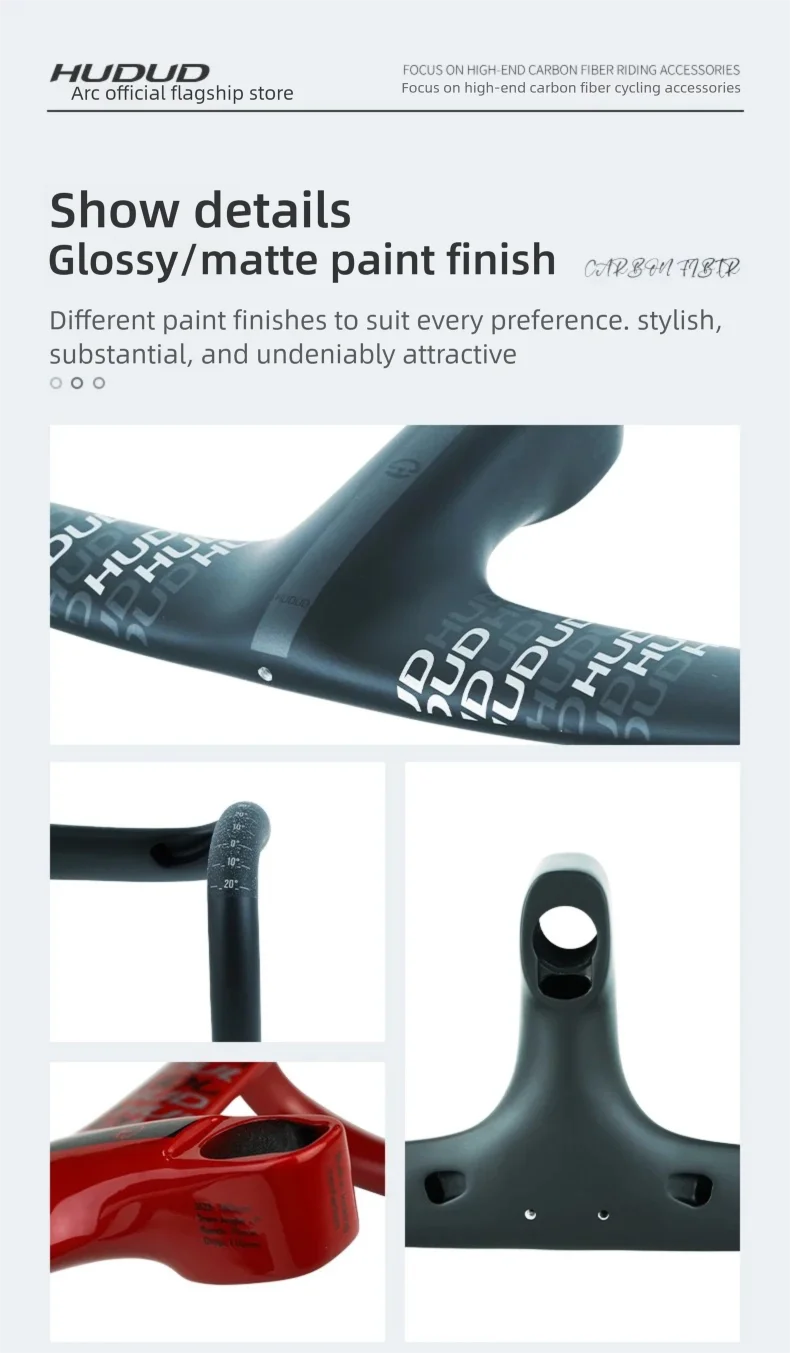

Color: UD Matte Black (as shown)
Fork Height: 38mm
Stem Clamp Diameter: 28.6mm

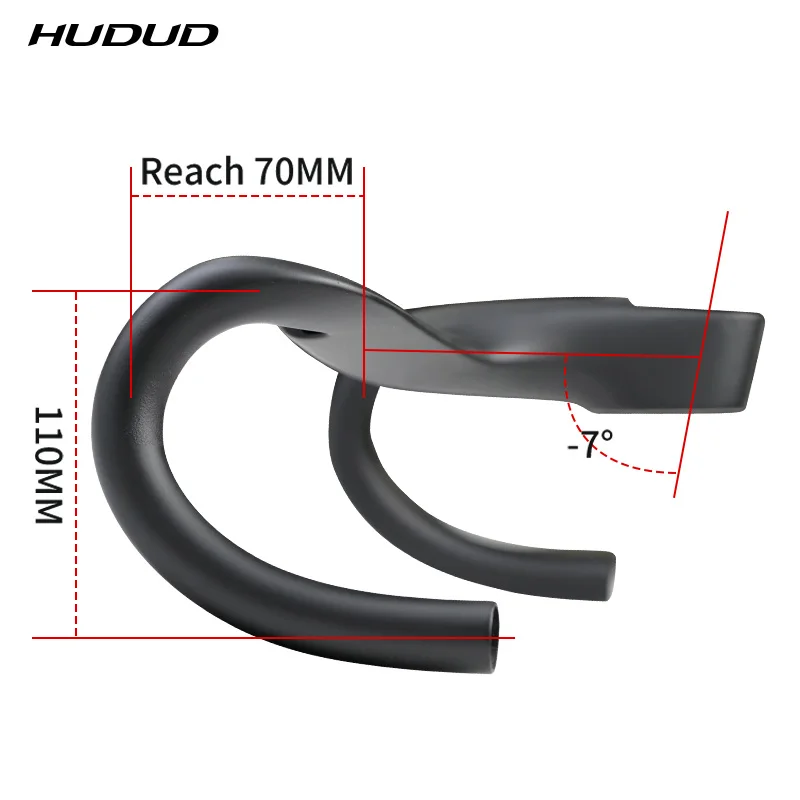

Stem Offset: 70mm
Stem Drop: 110mm
Angle: -7°

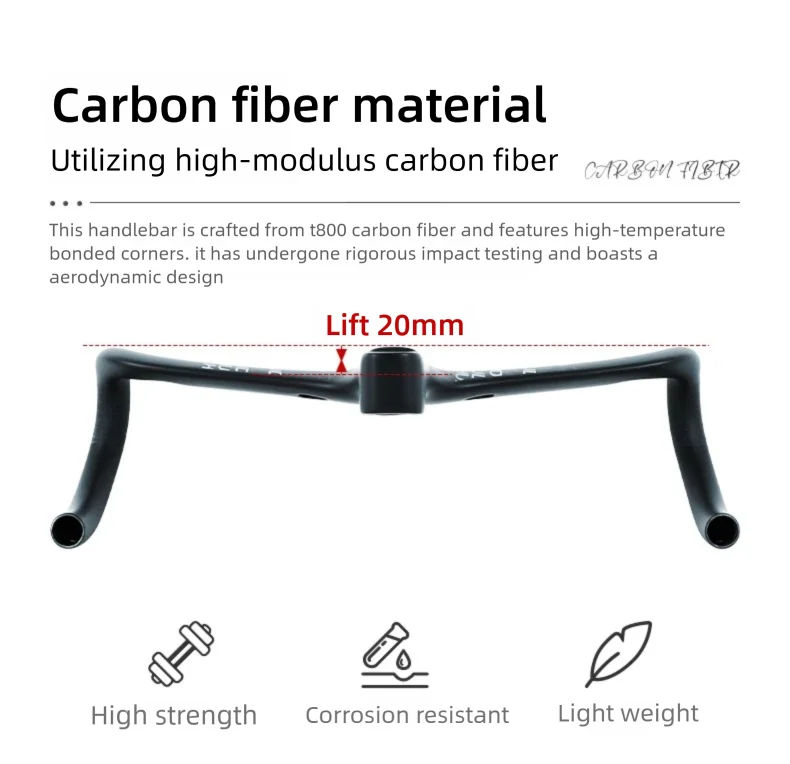

Rise: 20mm

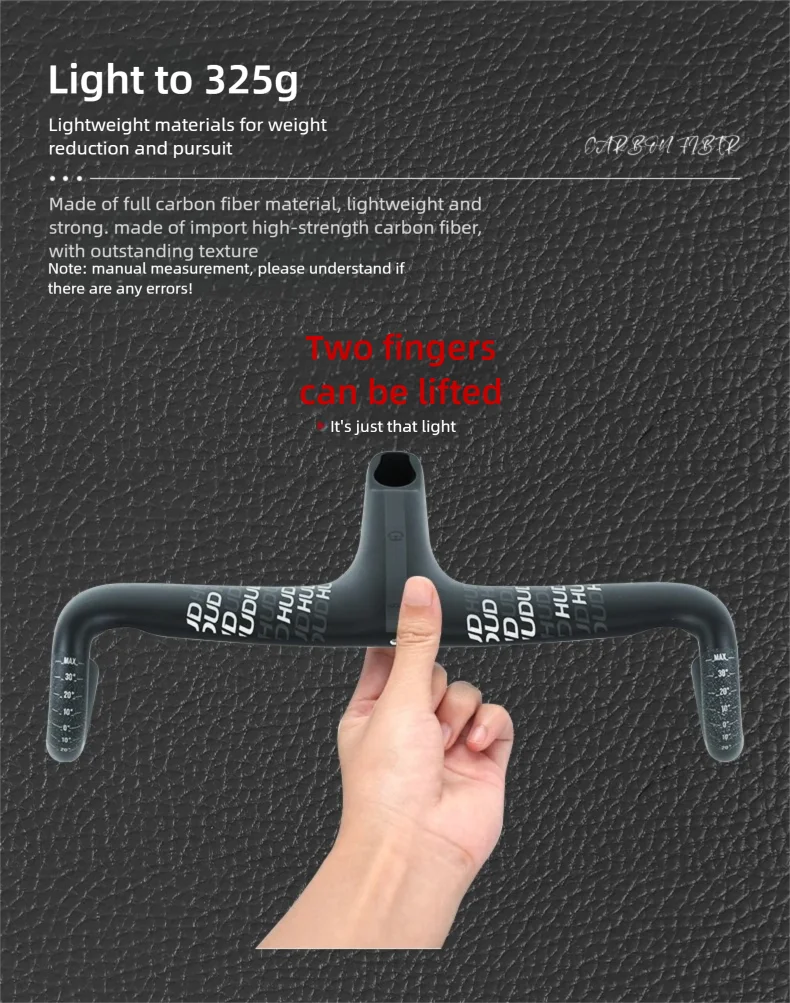

Weight: 370±10g (420x110mm, excluding accessories)
Warranty: 1 year
Compatible Bikes: Disc-brake road bikes

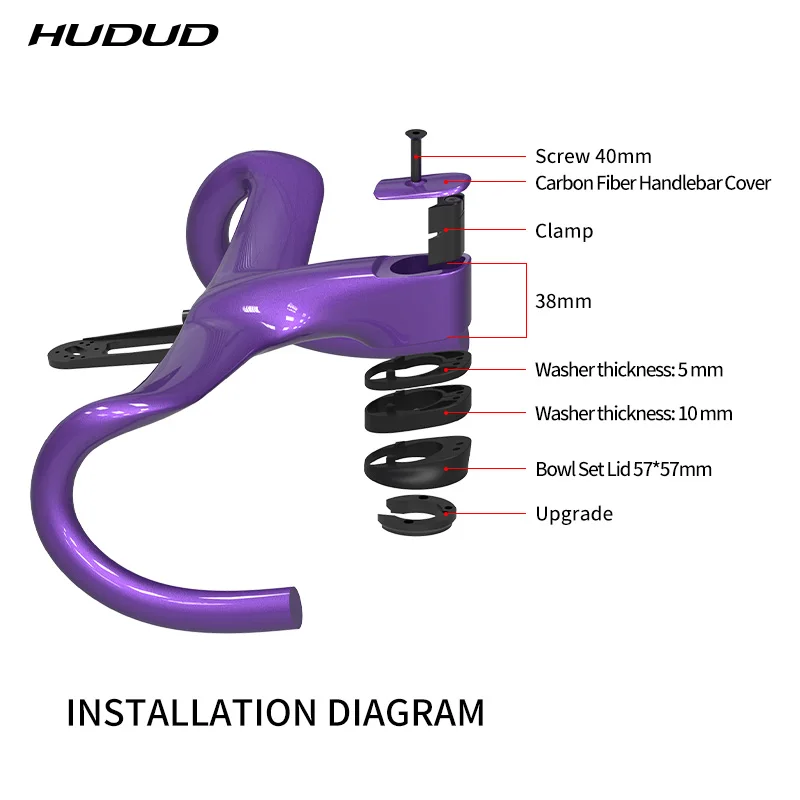

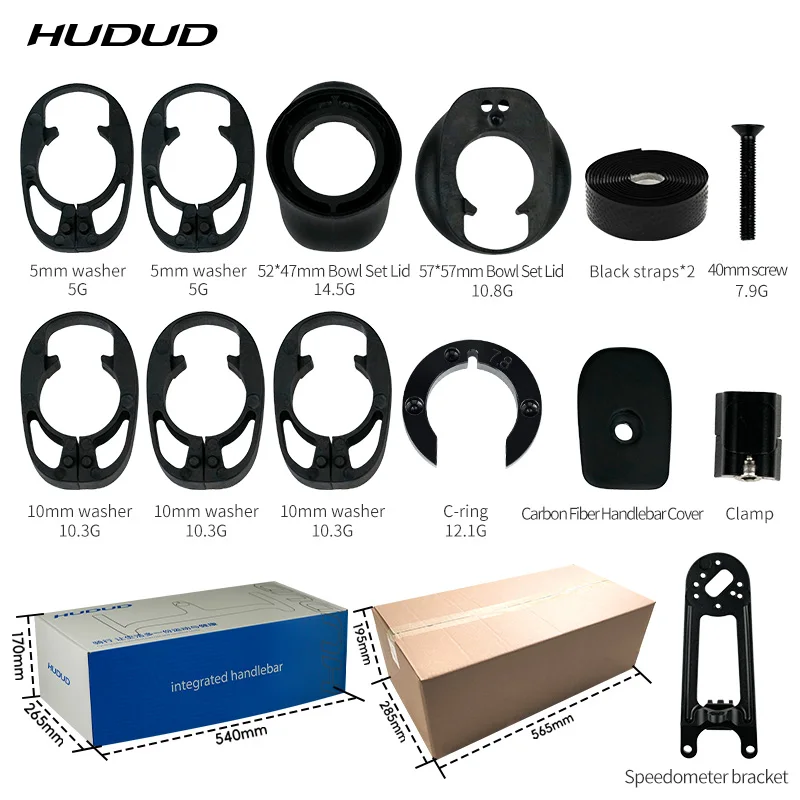

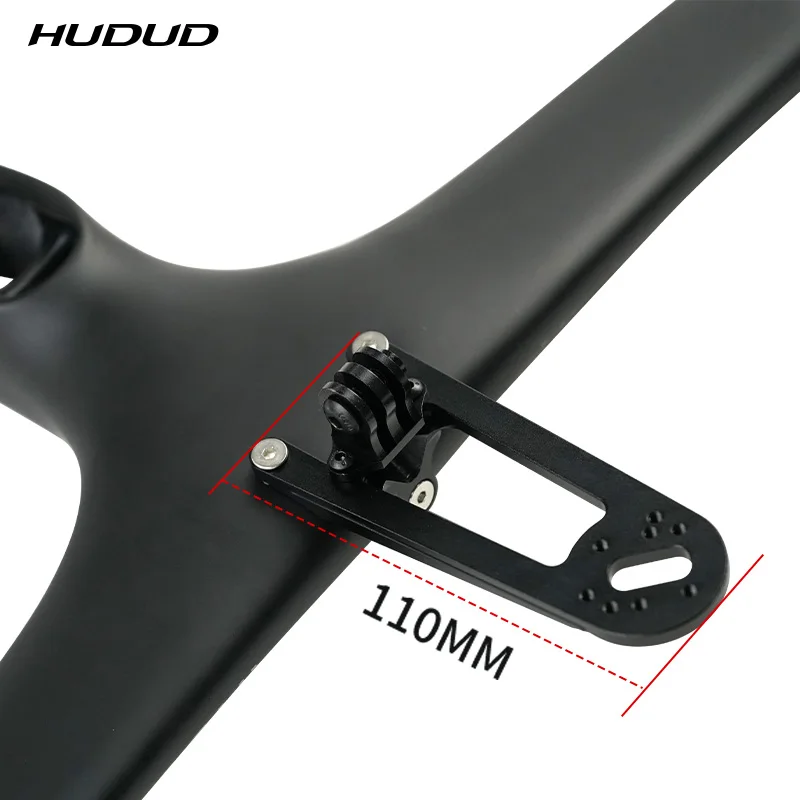

Included Items: 1 x Handlebar, 1 x Clamp, 2 x 5mm Washers, 3 x 10mm Washers, 1 x Carbon Stem Cap, 1 x C-Ring, 1 x 57x57mm Headset Cap, 1 x 52x47mm Headset Cap, 2 x Black Bar Tape, 1 x 40mm Screw, 1 x Computer Mount Kit

Installation Instructions

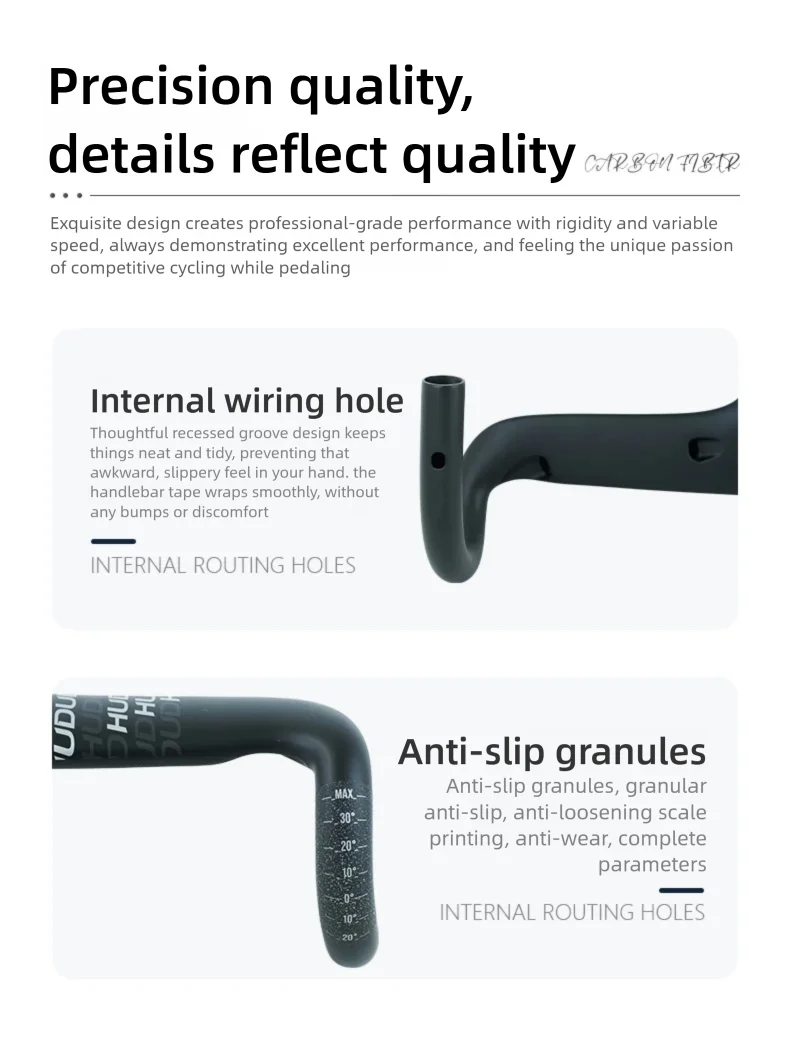

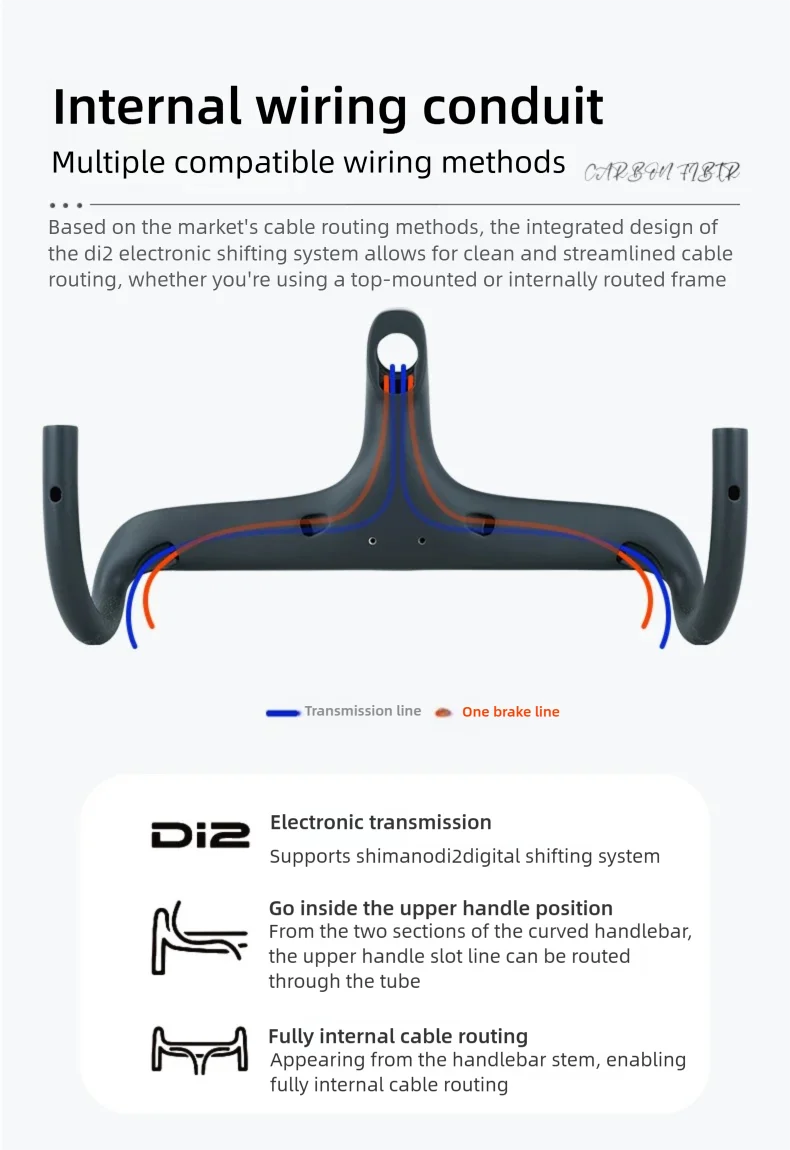

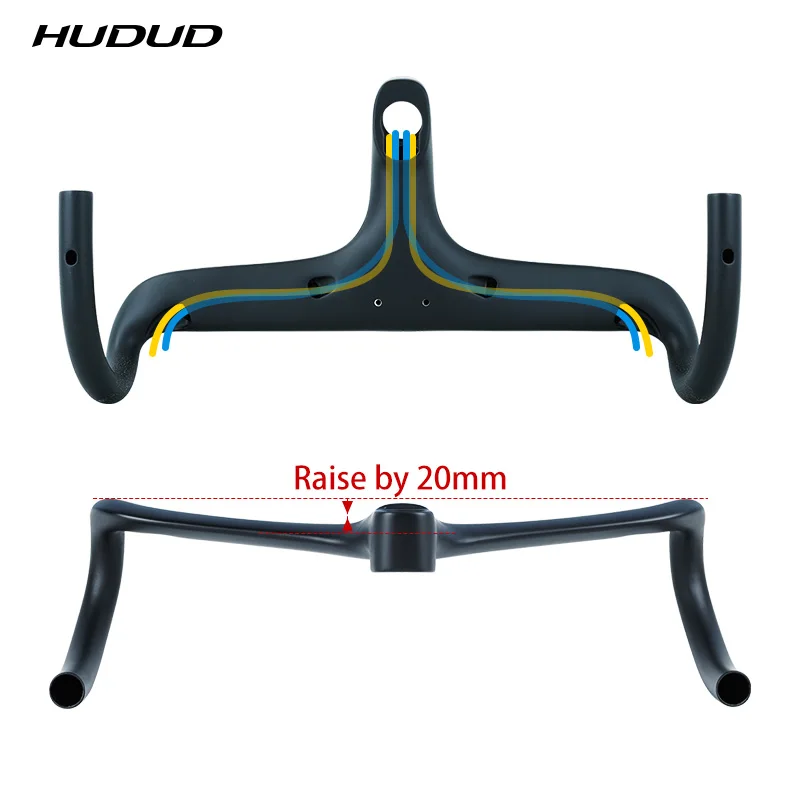

This handlebar is compatible only with OD02 head tubes and 28.6mm head tubes, supporting full internal cable routing and semi-hidden routing. (If your frame features a non-standard head tube, please contact customer service to confirm compatibility. We can print a custom adapter for you.) Standard head tubes can be installed directly using the included components.
