I. General Specifications for the Entire Series
Outer diameter of the coil under test: Less than 120 mm
Height of the coil under test: Less than 110 mm
Measurable coil turn range: 0 to 60,000 turns
Coil Turn Measurement Accuracy Standards
0–300 turns: Error ±0 turns;
300–500 turns: error ±1 turn;
500–20,000 turns: error ±0.2%;
20,000–60,000 turns: error ±0.5%.
Three measurement speeds: Fast—3 times/second, Medium—2 times/second, Slow—1 time/second
Overall Dimensions: 370 × 220 × 110 mm
II. Compatibility Specifications for Each Model
YG108-2, YG108R-2
The inner diameter of the coil under test must be greater than 2 mm; the corresponding test sensor specification is Φ2.
YG108-3, YG108R-3
The inner diameter of the coil under test must be greater than 3 mm; the corresponding test sensor specification is Φ3.
YG108-4, YG108R-4
The inner diameter of the coil under test must be greater than 4 mm; the corresponding test sensor specification is Φ4.
YG108-6, YG108R-6
The inner diameter of the coil under test must be greater than 6 mm; the corresponding test sensor specification is Φ6.
YG108-10, YG108R-10
The inner diameter of the coil under test must be greater than 10 mm; the corresponding test sensor specification is Φ10.
III. Parameters Distinguishing the Two Models

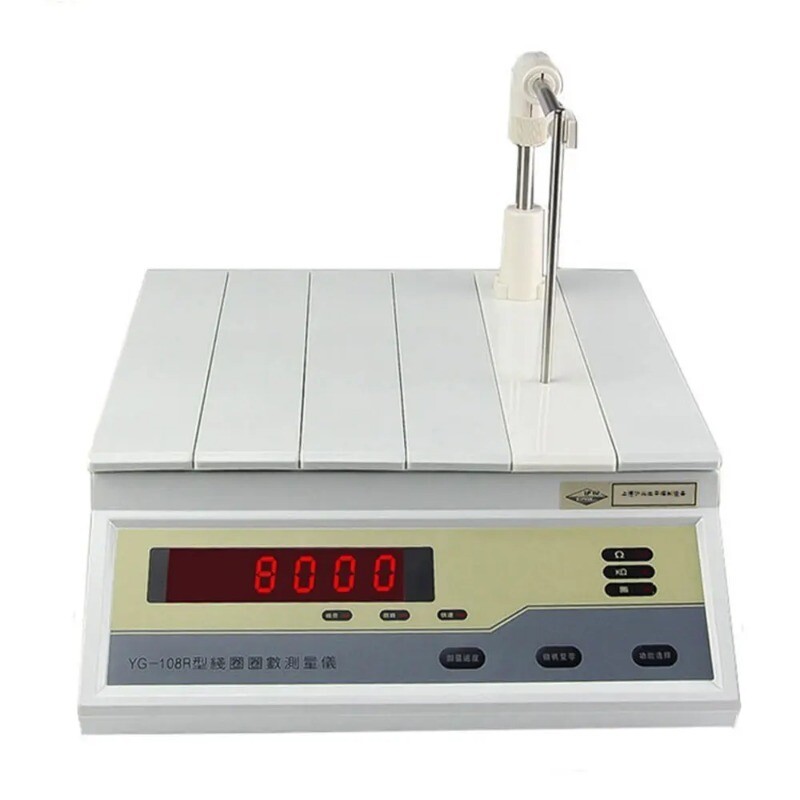

YG108R Series (with resistance measurement function)
Total unit weight: approximately 10 kg;
Resistance measurement range: 0.00001 Ω to 100 kΩ;
Resistance measurement accuracy: ±0.2%, valid measurement range 0.1Ω–100KΩ.
YG108 Basic Series (turns counting only, no resistance measurement)
Unit weight: approximately 8 kg; does not feature coil resistance measurement.
IV. Product Description
Both models share identical specifications regarding coil size compatibility, turns counting accuracy, speed measurement ranges, and unit dimensions; The number at the end of the model number corresponds to the minimum compatible coil inner diameter and the matching sensor probe size.
For applications requiring only turn counting and prioritizing portability, choose the YG108 Basic model; for applications requiring both turn counting and DC resistance measurement—such as quality inspection of transformer and motor coils—select the YG108R series.
