Product Overview

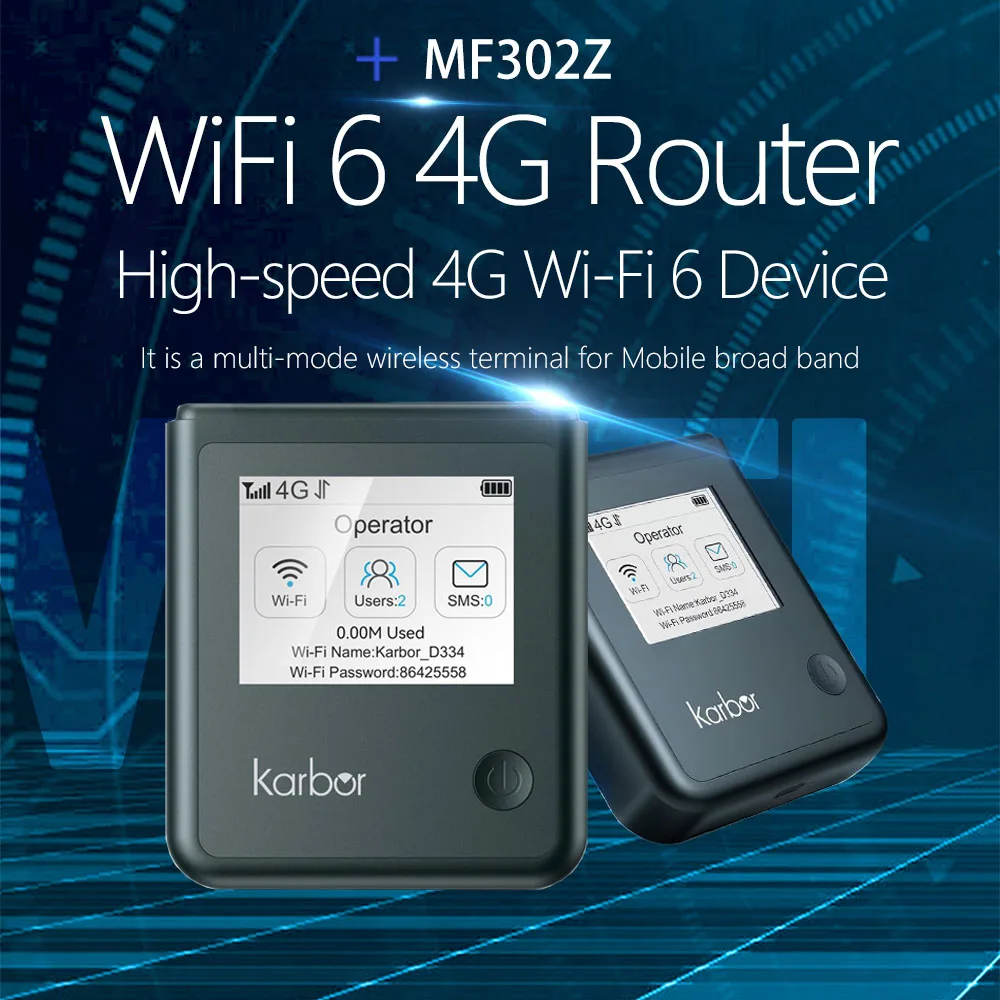

MF302 Portable WiFi
Karbor Portable Wi-Fi Device MF302 series is designed to offer a pure wireless high-speed data service to the end user, it utilizes LTE network backward connect to internet and uses Wi-Fi upward to share the data service with different Wi-Fi devices, it has small size and can be used as portable device.
Product Specifications
|
NO
|
Item
|
Data
|
|
1
|
Model No
|
MF302
|
|
2
|

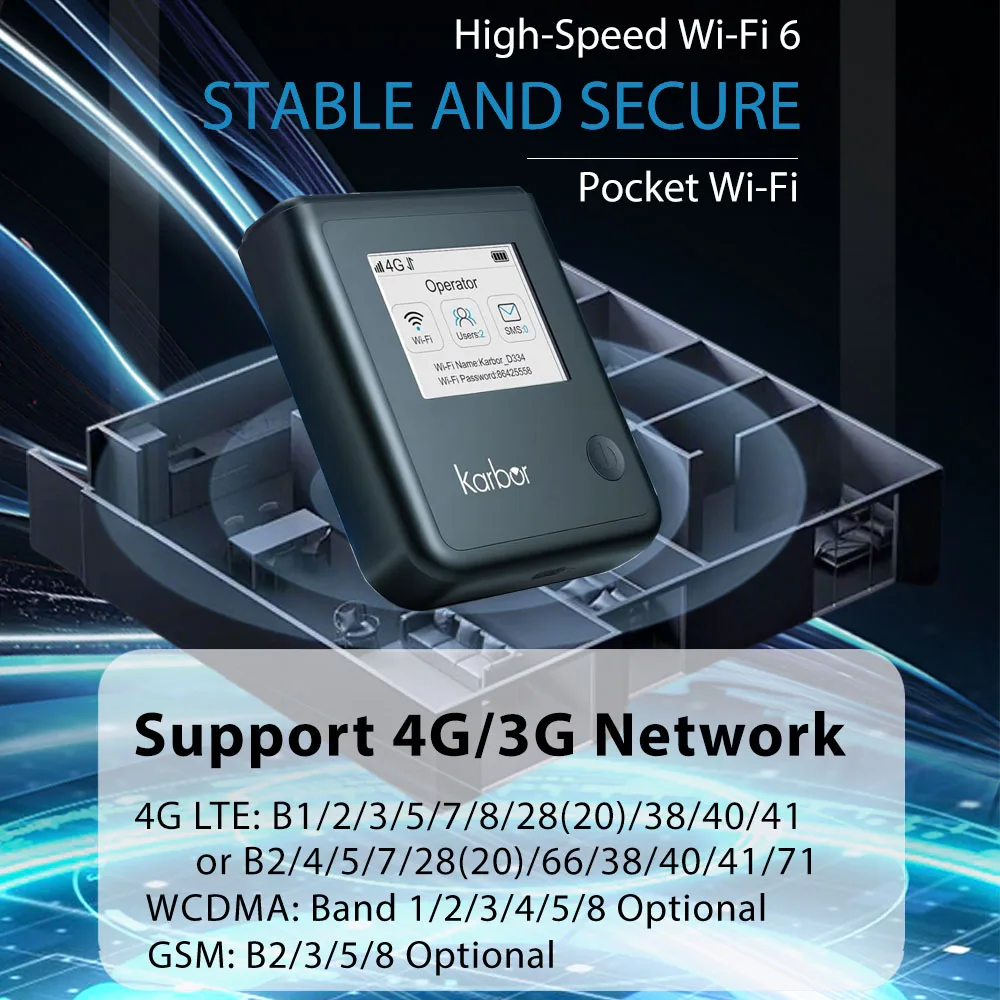

Support network
|
4G LTE:B1/2/3/5/7/8/28(20)/38/40/41
or B2/4/5/7/28(20)/66/38/40/41/71
WCDMA: B1/2/3/4/5/8 0ptional
GSM: B2/3/5/8 0ptional
|
|
3
|
Chipset
|
Wi-Fi Chipset: AICSEMI AIC8800DW
RF chipset: ZX234230A
BB Chipset：Sanechips ZX297520V3
|
|
4
|
WiFi
|
WiFi 6 2.4GHz 802.11b/g/n/ax
|
|
5
|
MIMO
|
LTE: 2x2 MIMO, Wi-Fi: 1x1 MIMO
|
|
6
|
LTE Category
|
CAT 4
|
|
7
|
Peak Data Throughput (theoretical)
|
Wi-Fi: 286.8Mbps@TX / 229.4Mbps@RX FDD-LTE: 150Mbps(DL)/50Mbps(UL) TDD-LTE: 130Mbps(DL)/35Mbps(UL) HSPA+:
21.6Mbps(DL)/5.76Mbps(UL) WCDMA: 384kbps(DL)/384kbps(UL) |
|
8
|
Battery
|
Li-on 5000mAh
|
|
9
|
USB Port
|
Type-C
|
|
10
|
WiFi Max Client
|
Up to 10 connected users
|
|
11
|

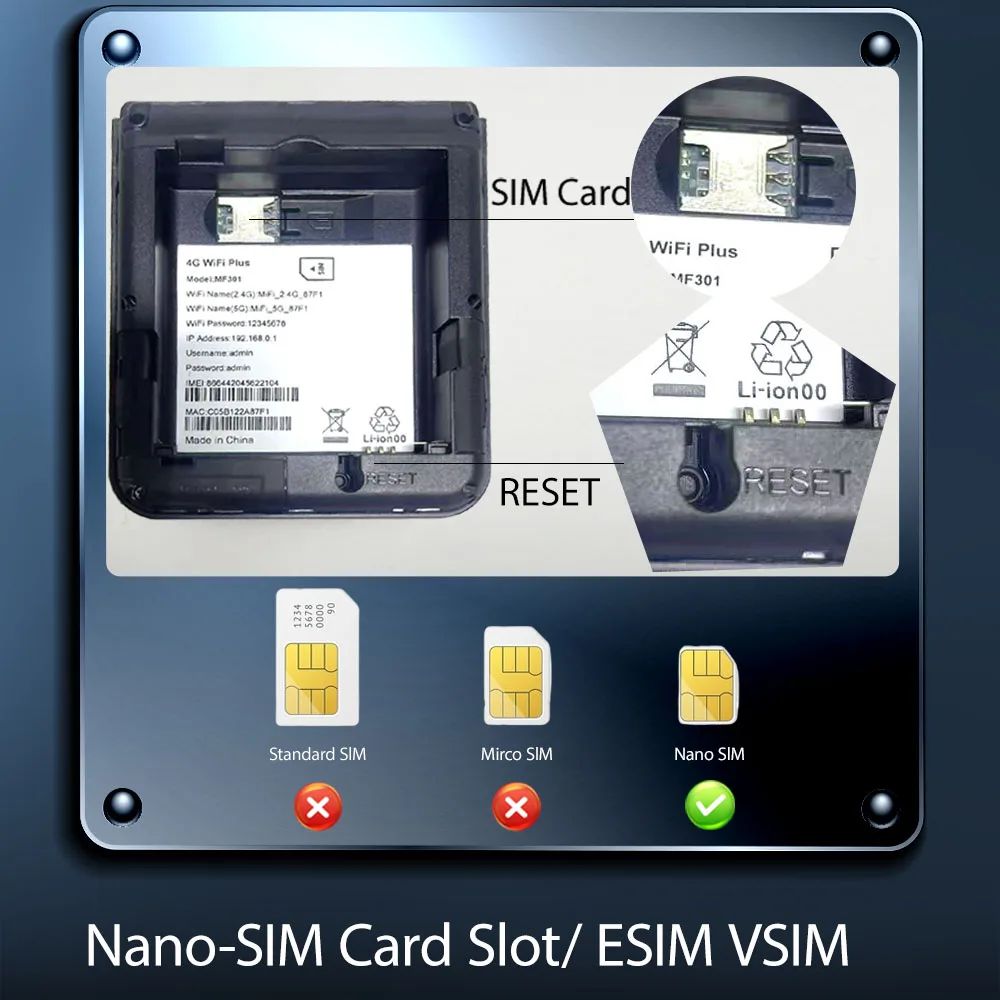

SIM Slot
|
1*SIM (Nano SIM 4FF) + 1*5*6Esim (Optional)
|
|
12
|
Power
|
5V/2A
|
|
13
|
WiFi Security
|
OPEN & WPA-PSK& WPA2-PSK & WPA-PSK/WPA2-PSK;
|
|
14
|

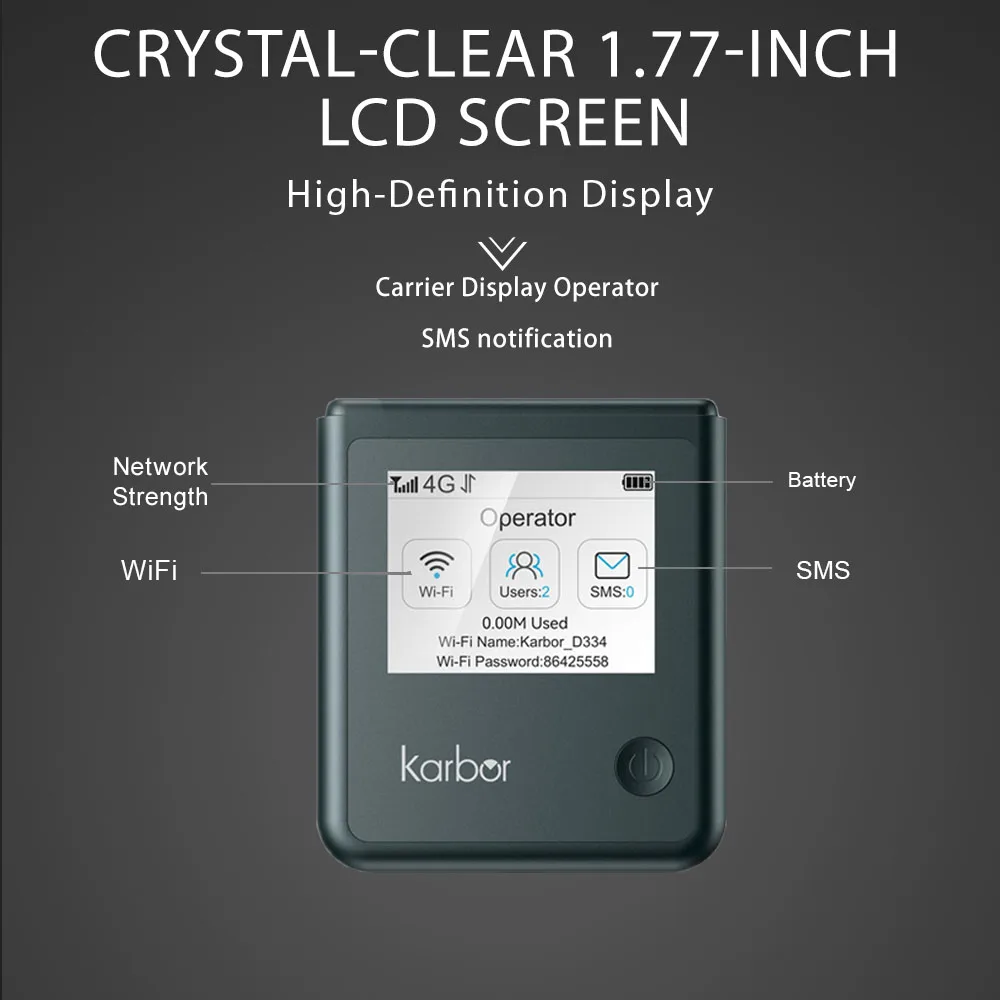

Display
|
1.77 inch LCD display
|
|
15
|
Size
|
83*73*22 mm
|
