Description
Introduction:

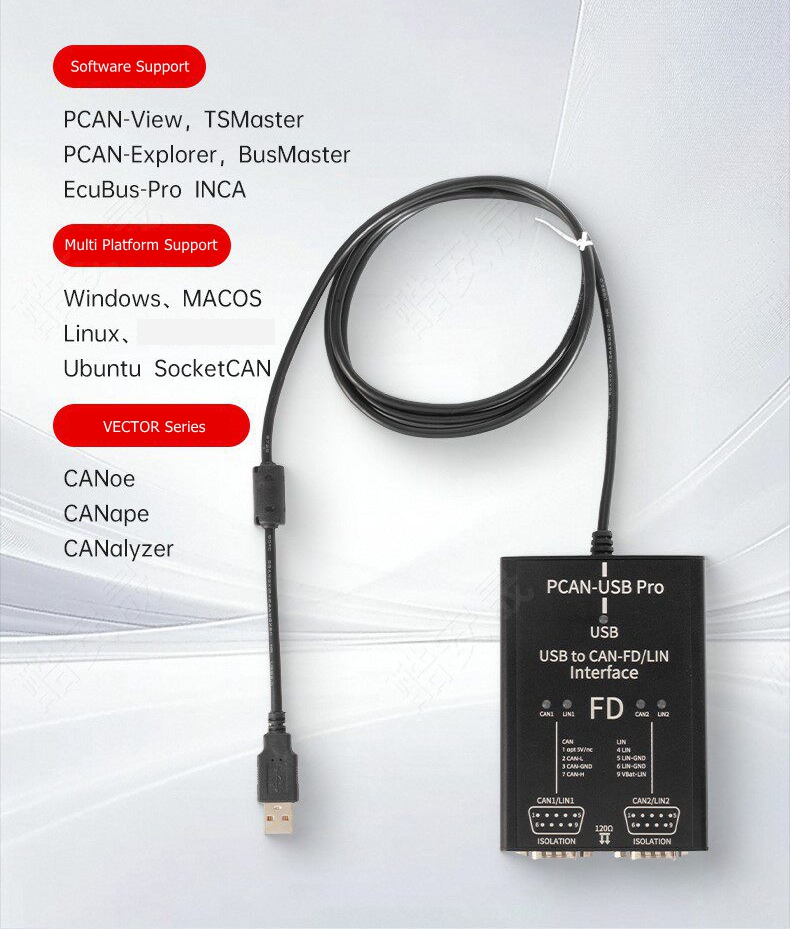

- This product is a high-performance dual channel CANFD (Flexible Data Rate) bus communication solution, compatible with CAN2.0B protocol, supporting a maximum data segment transmission rate of 16Mbps, meeting the high-speed and reliable communication needs of automotive electronics, industrial automation, embedded system development and other scenarios. Industrial grade design ensures stable operation in complex environments and facilitates efficient system integration.
Replacement for VECTOR devices with KAS Vector Bridge Scheme:
- Can replace devices such as VN1610/1630/1640/1670
- Support CAN/CANFD to set any bit rate and sampling point
- Support timestamp
- Support for TSMaster
- Support for CANoe/CANape/CANalyzer/vFlash/CAPL
Ultimate Performance of 1M+16M (CAN FD Protocol):
- Arbitration segment supports up to 1Mbps
- The data segment supports up to 8Mbps/12Mbps/16Mbps
USB and CAN Isolation Design:
- Complete isolation: Channel supports 1500VDC electrical isolation, effectively resisting electromagnetic interference and ensuring independent processing of dual channel data.
- Parallel processing: The dual CANFD channels can independently configure baud rates, support simultaneous transmission and reception of data at different rates, and improve system communication efficiency.
Industrial Grade Reliability:
- Adaptation to harsh environments: meeting the needs of routine scenarios; The industrial grade working temperature ranges from 40â to 85â, with built-in TVS/ESD protection circuit. It has passed EMC testing and is suitable for high vibration and strong electromagnetic interference environments.
- Plug and play: USB Type-A interface design, supports hot plugging, simplifies deployment process.
Integrated Terminal Resistor 120Ω: ready to use upon dialing
- Turn on CAN1 terminal: Turn the left dial down to the ON position;
- Turn on CAN2 terminal: Turn the right dial down to the ON position.
Application Scenario:
- Automotive electronics: ECU development and testing, new energy vehicles, BMS battery management system communication, OBD diagnostic interface integration.
- Industrial control: PLC multi node communication, robot real-time control bus, industrial automation equipment data exchange.
- Embedded systems: Aerospace equipment data acquisition, IoT edge node communication, intelligent device protocol conversion.
Specification:
- Channel number: 2 channels independent CAN FD
- LIN: bit rate of 1-20kbit/s
- Baud rate range: 10kbps or 12Mbps or 16Mbps (programmable)
- Data field length: up to 64 Bytes (CAN FD), 8 Bytes (CAN 2.0B)
- Isolation characteristics: dual channel independent isolation 1500V DC
- Power supply: USB 5C, 1W
- Interface type: USB2.0/DB9
- Storage temperature: -55â to +125â
- Working temperature: industrial level -40â to 85â
- Product size: 117 x 80 x 30mm
- Net weight: about 300g
Package Included:
- 1 x USB to CAN FD Adapter
- This product is a high-performance dual channel CANFD (Flexible Data Rate) bus communication solution, compatible with CAN2.0B protocol, supporting a maximum data segment transmission rate of 16Mbps, meeting the high-speed and reliable communication needs of automotive electronics, industrial automation, embedded system development and other scenarios. Industrial grade design ensures stable operation in complex environments and facilitates efficient system integration.
Replacement for VECTOR devices with KAS Vector Bridge Scheme:
- Can replace devices such as VN1610/1630/1640/1670
- Support CAN/CANFD to set any bit rate and sampling point
- Support timestamp
- Support for TSMaster
- Support for CANoe/CANape/CANalyzer/vFlash/CAPL
Ultimate Performance of 1M+16M (CAN FD Protocol):
- Arbitration segment supports up to 1Mbps
- The data segment supports up to 8Mbps/12Mbps/16Mbps
USB and CAN Isolation Design:
- Complete isolation: Channel supports 1500VDC electrical isolation, effectively resisting electromagnetic interference and ensuring independent processing of dual channel data.
- Parallel processing: The dual CANFD channels can independently configure baud rates, support simultaneous transmission and reception of data at different rates, and improve system communication efficiency.
Industrial Grade Reliability:
- Adaptation to harsh environments: meeting the needs of routine scenarios; The industrial grade working temperature ranges from 40â to 85â, with built-in TVS/ESD protection circuit. It has passed EMC testing and is suitable for high vibration and strong electromagnetic interference environments.
- Plug and play: USB Type-A interface design, supports hot plugging, simplifies deployment process.
Integrated Terminal Resistor 120Ω: ready to use upon dialing
- Turn on CAN1 terminal: Turn the left dial down to the ON position;
- Turn on CAN2 terminal: Turn the right dial down to the ON position.
Application Scenario:
- Automotive electronics: ECU development and testing, new energy vehicles, BMS battery management system communication, OBD diagnostic interface integration.
- Industrial control: PLC multi node communication, robot real-time control bus, industrial automation equipment data exchange.
- Embedded systems: Aerospace equipment data acquisition, IoT edge node communication, intelligent device protocol conversion.
Specification:
- Channel number: 2 channels independent CAN FD
- LIN: bit rate of 1-20kbit/s
- Baud rate range: 10kbps or 12Mbps or 16Mbps (programmable)
- Data field length: up to 64 Bytes (CAN FD), 8 Bytes (CAN 2.0B)
- Isolation characteristics: dual channel independent isolation 1500V DC
- Power supply: USB 5C, 1W
- Interface type: USB2.0/DB9
- Storage temperature: -55â to +125â
- Working temperature: industrial level -40â to 85â
- Product size: 117 x 80 x 30mm
- Net weight: about 300g
Package Included:
- 1 x USB to CAN FD Adapter
