Product Overview

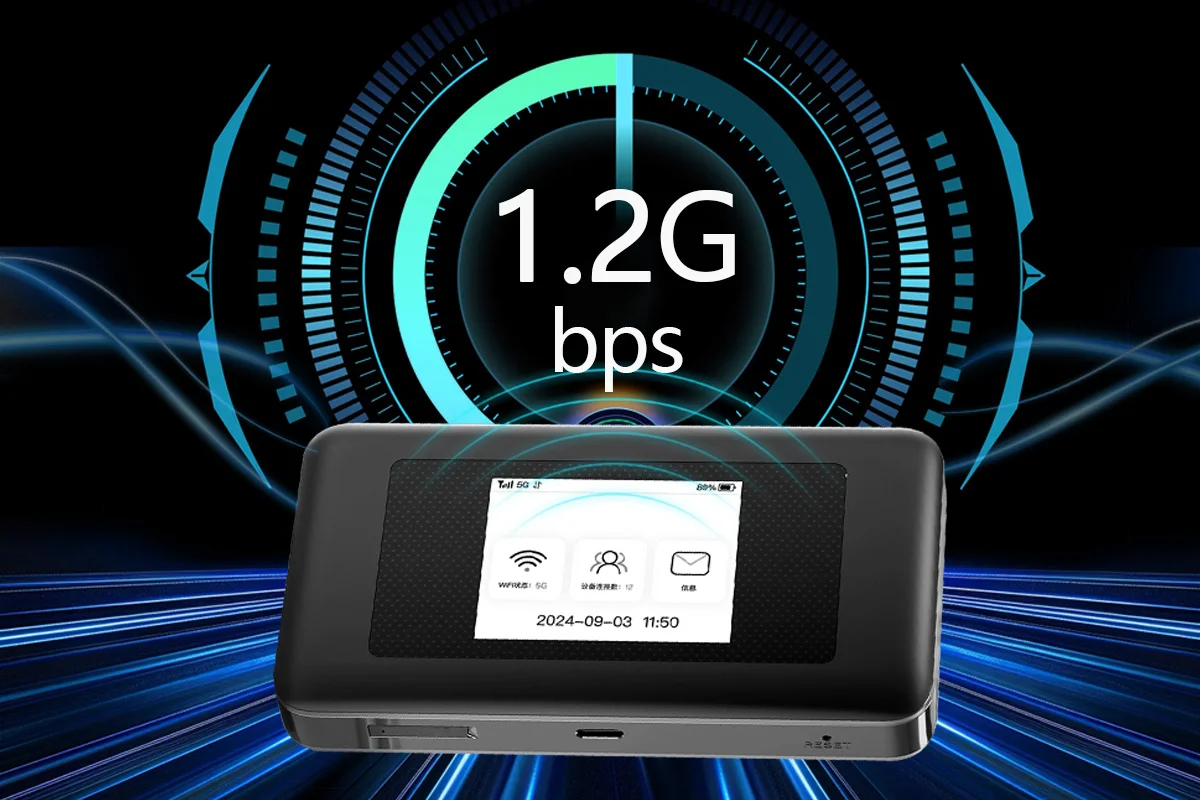

MF511 Portable WiFi
Karbor MF511 uses a powerful wireless chipset: MT6877; WiFi chipset: MT6635, stable signal, safe and reliable. MT6877 adopts an eight core CPU, including two Arm Cortex-A76 cores with a clock speed of up to 2.2GHz. It is made using 7nm technology, which improves energy efficiency by 28% compared to 8nm technology. With high efficiency and low power consumption, it extends battery life and endurance. This will provide you with higher efficiency and a more enjoyable user experience. The high-performance LPDDR4X has a memory frequency of up to 2133MHz and UFS 2.2 for faster data transfer, allowing you to enjoy an extraordinary smartphone experience whether you are watching videos, playing games, taking photos, chatting instantly, or working online.
Features At A Glance
Type-c USB
Rear view
Product 6-sided image
Product Specifications
|
NO
|
Item
|
Data
|
|
1
|
Model No
|
MF511
|
|
2
|
Support network
|
5GNR:n1/n3/n5/n7/n8/n20/n28/n26/n66/n38/n40/n41/n48/n77/n78/n79 or 2/5/12/25/66/41/77/78/79
LTE:B1/B3/B5/B7/B8/B20/B28/B32/B38/B46/B11/B18/B19/B21/B26/B34/B39/B40/B41/B42/B48 or 2/4/5/7/12/13/14/25/26/17/41/66；
WCDMA:B1/B2/B5/B8 or 1/2/4/5/8；
|
|
3
|
Chipset
|
Wireless chipset:MT6877
WiFi chipset:MT6635
|
|
4
|
WiFi
|
2.4GHz+5GHz 802.11a/b/g/n/ac/ax
|
|
5
|
MIMO for Wireless
|
LTE MHB DL 2*2MIMO,
LTE LB DL 2*2MIMO
LTE LMHB 1*1 SISO
5G NR MHB DL 4*4 MIMO,
5G NR LB DL 2*2 MIMO
5G NR UL 1*1 MIMO
|
|
6
|
MIMO for WiFi
|
2.4G 802.11.b/g/n MIMO 1*1
5G 802.11.ac MIMO 1*1
|
|
7
|
Wireless rate
|

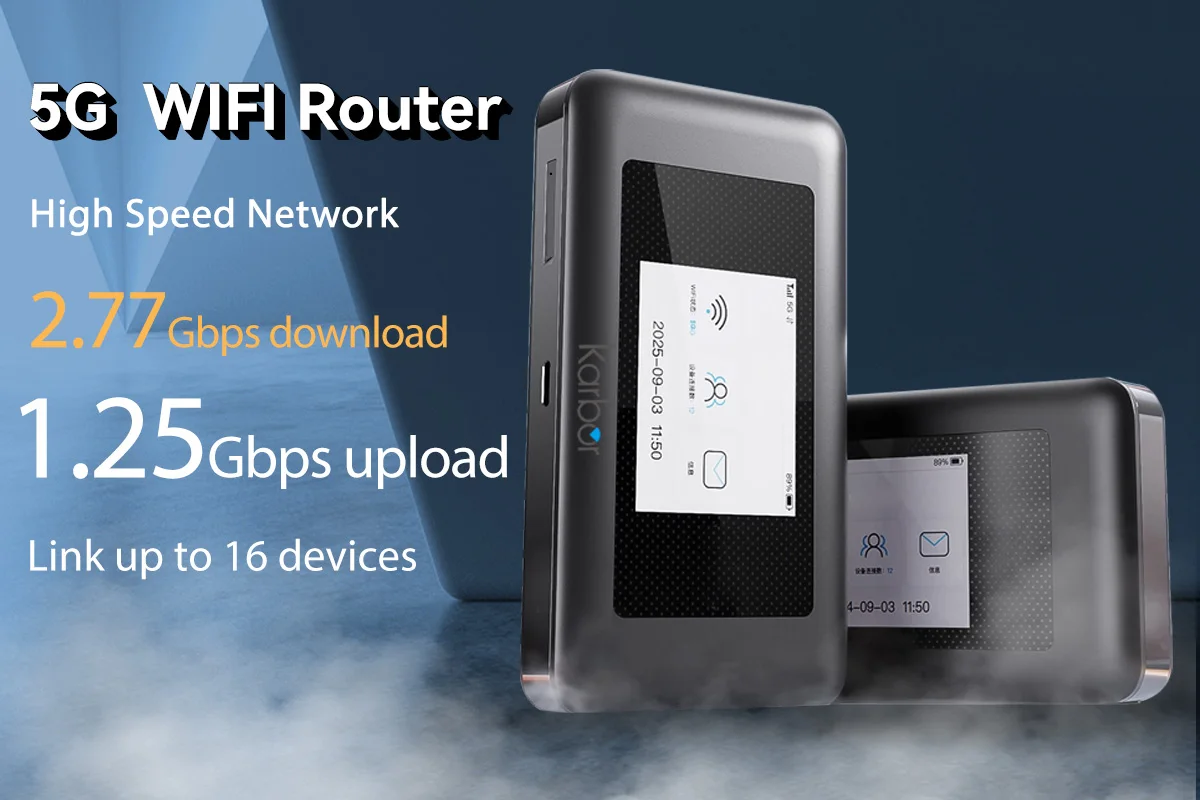

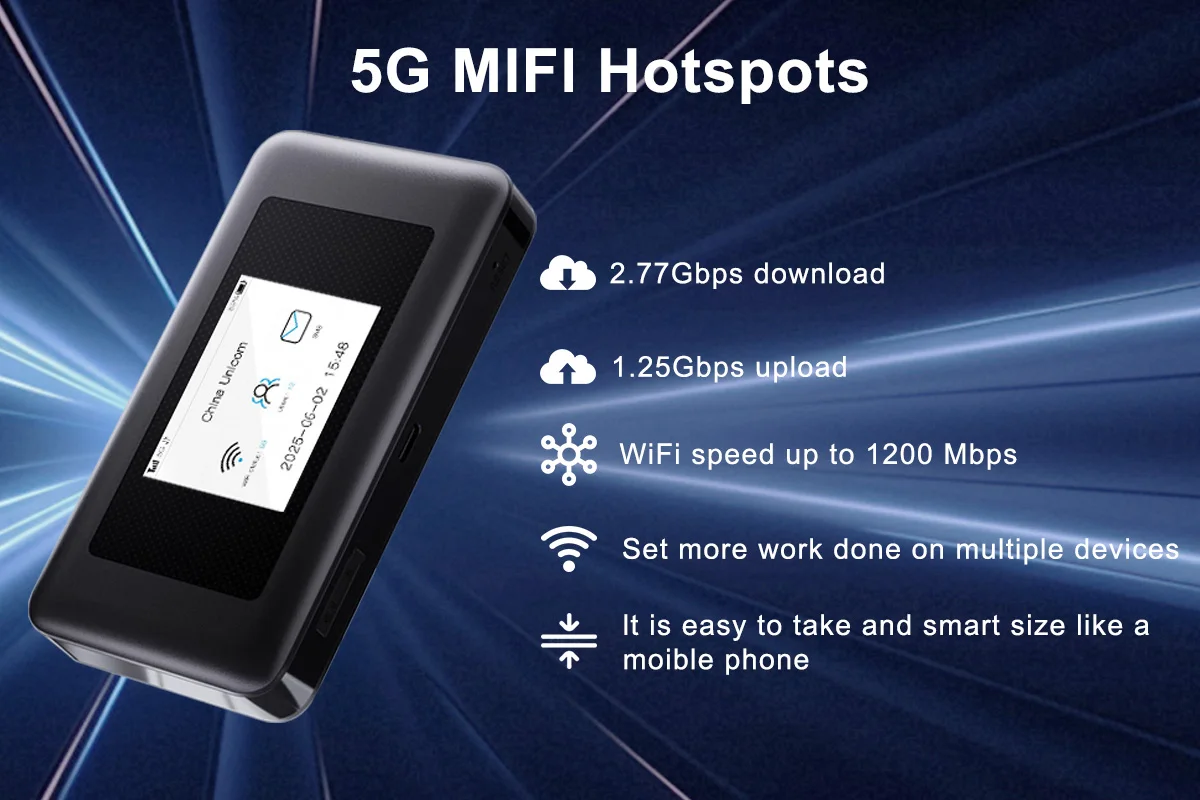

5G NR DL: 2.77Gbps (4*4 MIMO, 256QAM)
5G NR UL: 1.25Gbps (1*1 MIMO, 256QAM)
LTE: DL: UP to 391Mbps, UL: 150Mbps
|
|
8
|
Battery
|

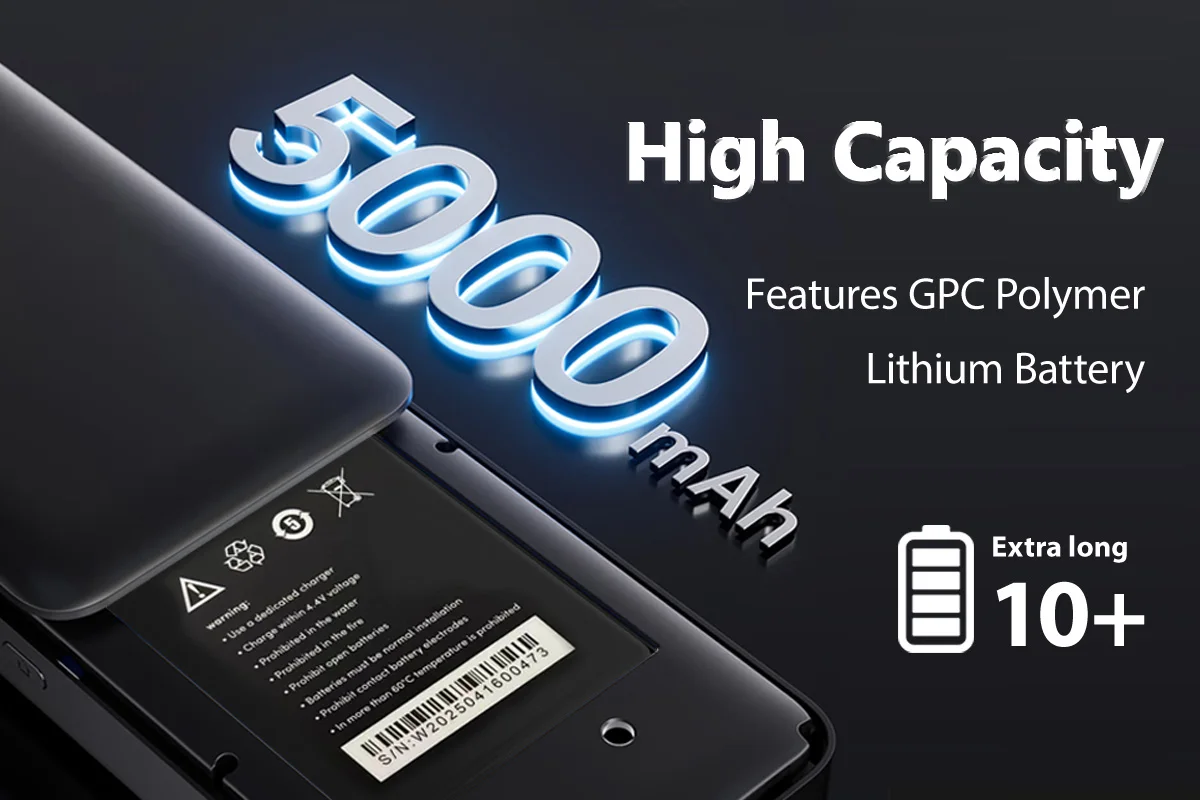

Li-on 5000mAh Removable
|
|
9
|
USB Port
|
Type-C
|
|
10
|
WiFi Max Client
|
Up to 16 connected users
|
|
11
|
SIM Slot
|

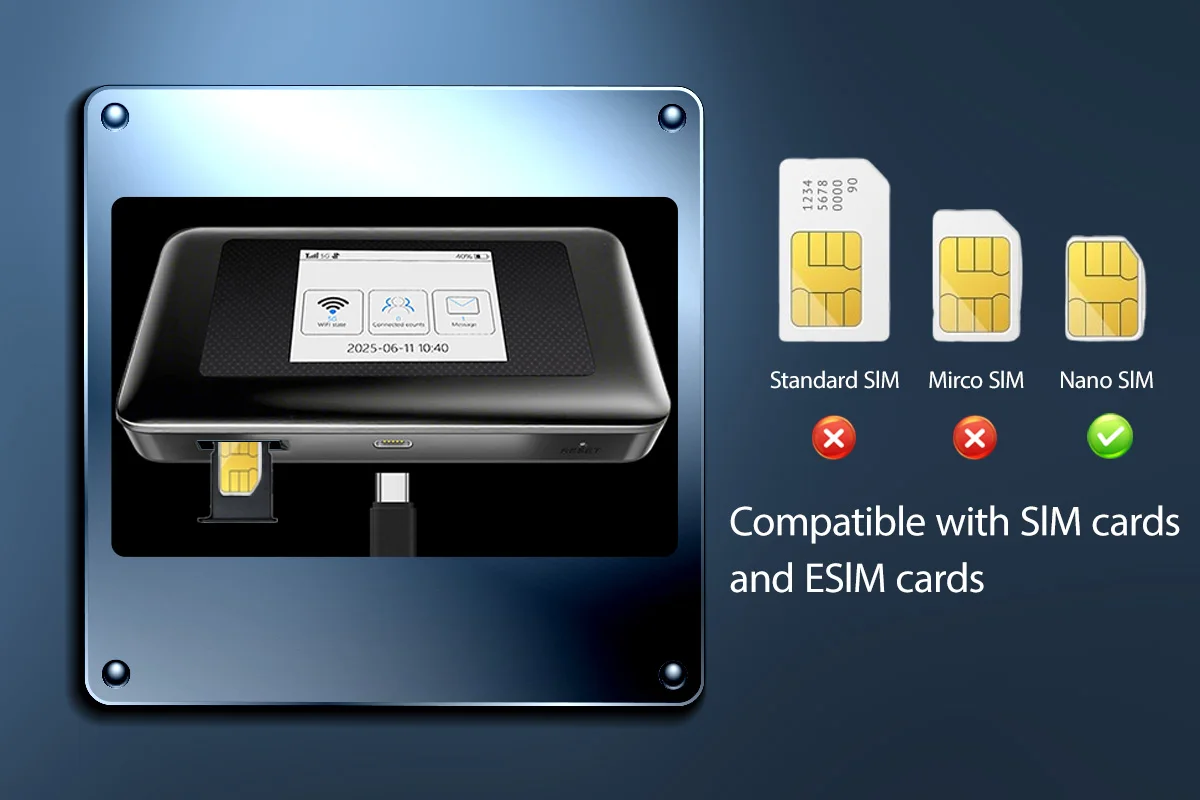

Nano SIM Card (4FF)
|
|
12
|
OS
|
Android 11
|
|
13
|
Memory
|
2GB NAND Flash +8GB LP DDR4
|
|
14
|
Display
|

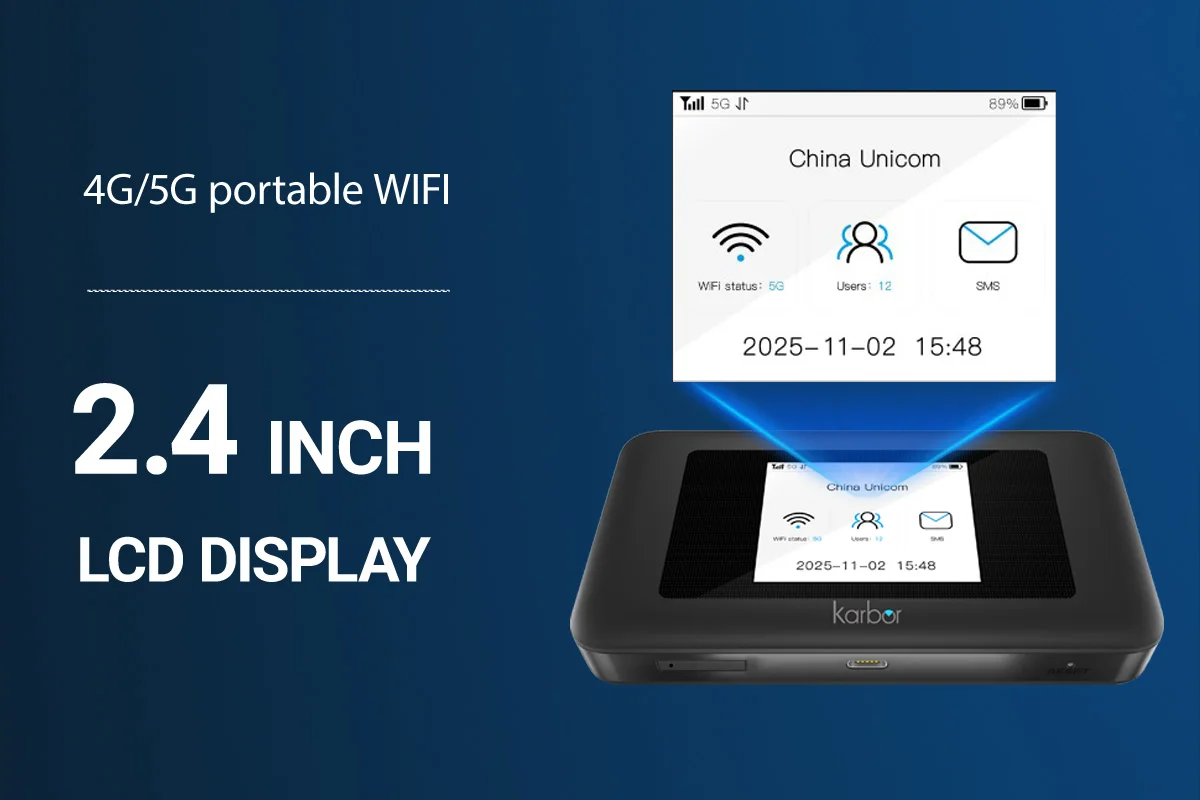

2.4 inch LCD display
|
|
15
|
Size
|
129*68.8*20.8mm
|
