You are bidding a Carbide Saw Blade sharpener grinder.This sharpener can sharpen all the round saw blade,such as Skil saw.
It adopts multi angle of swing, three dimensional slide structures to be in adaptation to the grinding of hard alloy saw blades with many specifications and purposes, which enables the grinding mill to maintain high accuracy and easy operation on any condition.
It’s the essential supply monetary tool for nonferrous metal, plastic and woodworking industries and furniture factories.
Feature:
>>Work with wide range of blade diameter
>>Steel chassis construction
>>Grinding wheel angle control with large aluminum knob
>>Will hold each blade head position by a position lock
>>Extra 2 blade hole adapter
>>X axis feed wheel, stable and very sharp grinding.

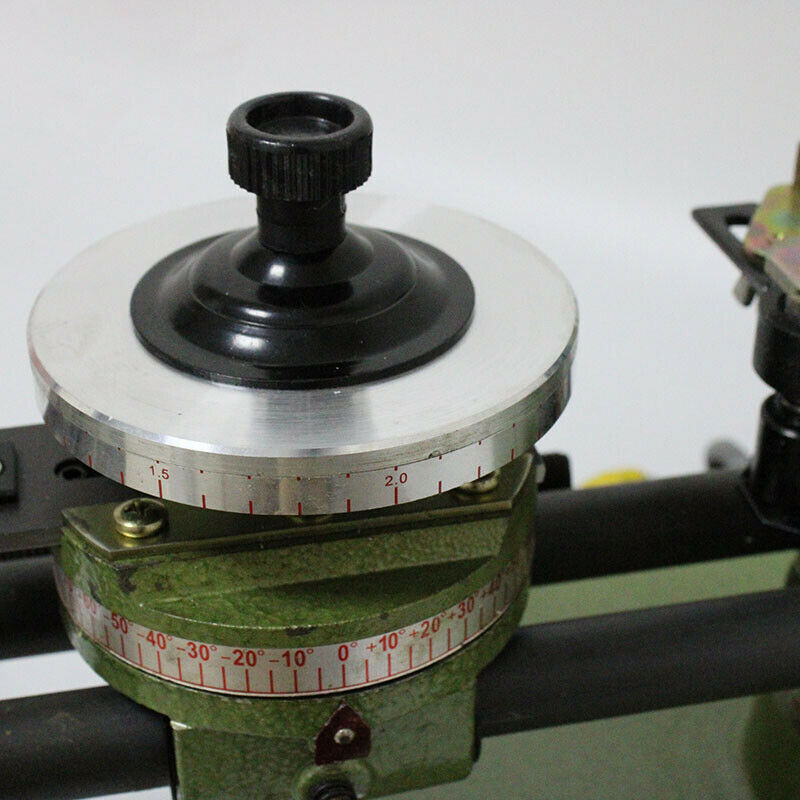

>>Rotary angle mark
Specification:
Blade diameter: 110-550mm (4.5" ~ 19.5”)
Angle of grinding saw tooth: front 0-30 deg. Hind 0-30deg
Saw angle adjustment range: +/- 30 deg
Motor power: 350W
Grinder speed: ~5000 rpm
Grinding wheel diameter: 80mm(spared wheels can be supplied)
Size: 588 x 250 x 210mm / 23” x 9.8” x 8.25”
Input voltage: 220V(for 110V voltage systems,please contact us)
Weight: 13.5kg/ 30lbs
