QM4H 1Z Digital Time Delay SPDT For Relay 220V for DH48S Gate and FOR For reset
DESCRIPTION

Features:

*Digital Time for Relay: Controls timing accurately for various applications in settings.

*SPDT Functionality: Features single-pole double-throw operation for reliable switching and timing control.

*Adjustable Delay: Allows precise time setting via buttons for customized operation needs.

* FOR reset and Gate Functions: Includes FOR reset and gate capabilities for flexible timing management.

*Easy Maintenance: Simple cleaning and upkeep FOR ensure long-term performance and reliability.

he QM4H ( for DH48S) digital time for relay is suitable for all applications requiring time control (, , factory, etc.).

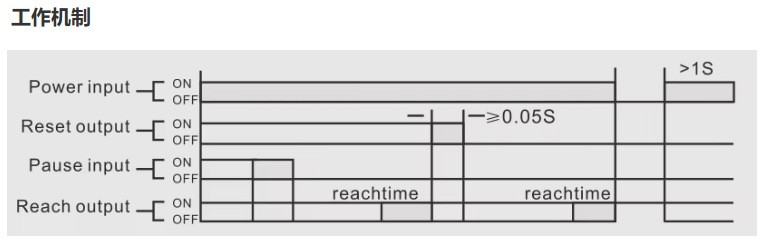

Usage and Operating Principle:

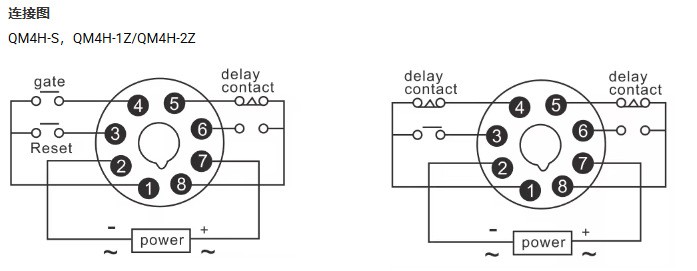

Please connect according to the diagram.

Adjust the delay time using the button.

Power on the device. The device will start timing.

QM4H

-S (Flash Timer): Single-time limit single-pole double-throw switch.

Features for reset and gating functions.

QM4H

-1Z: Single-time limit single-pole double-throw switch. Features for reset and gating functions.

QM4H

-2Z: Double-time limit single-pole double-throw switch.

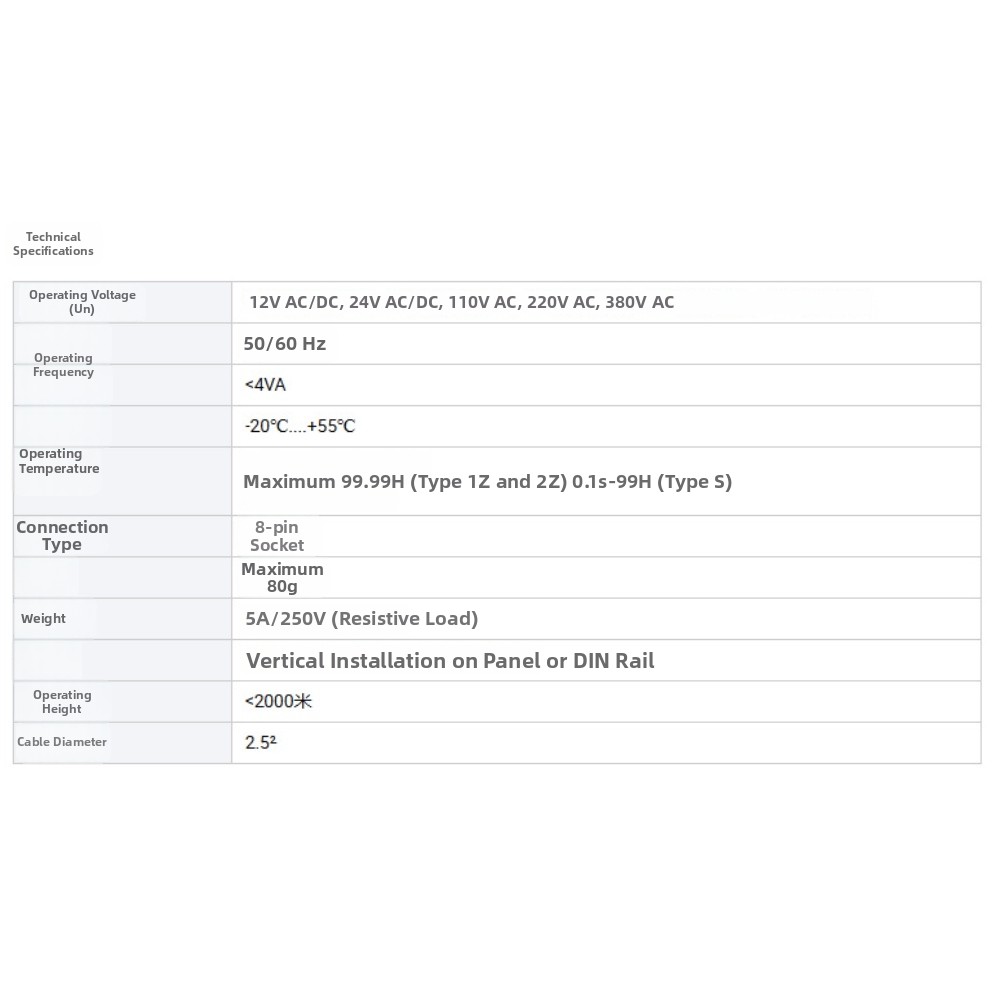

Specifications:

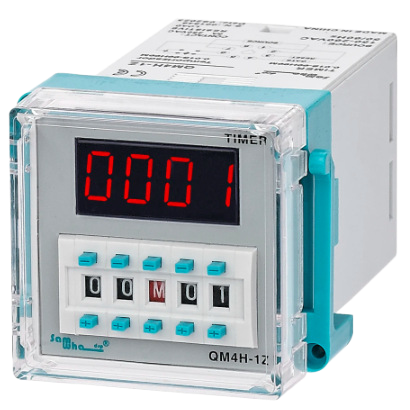

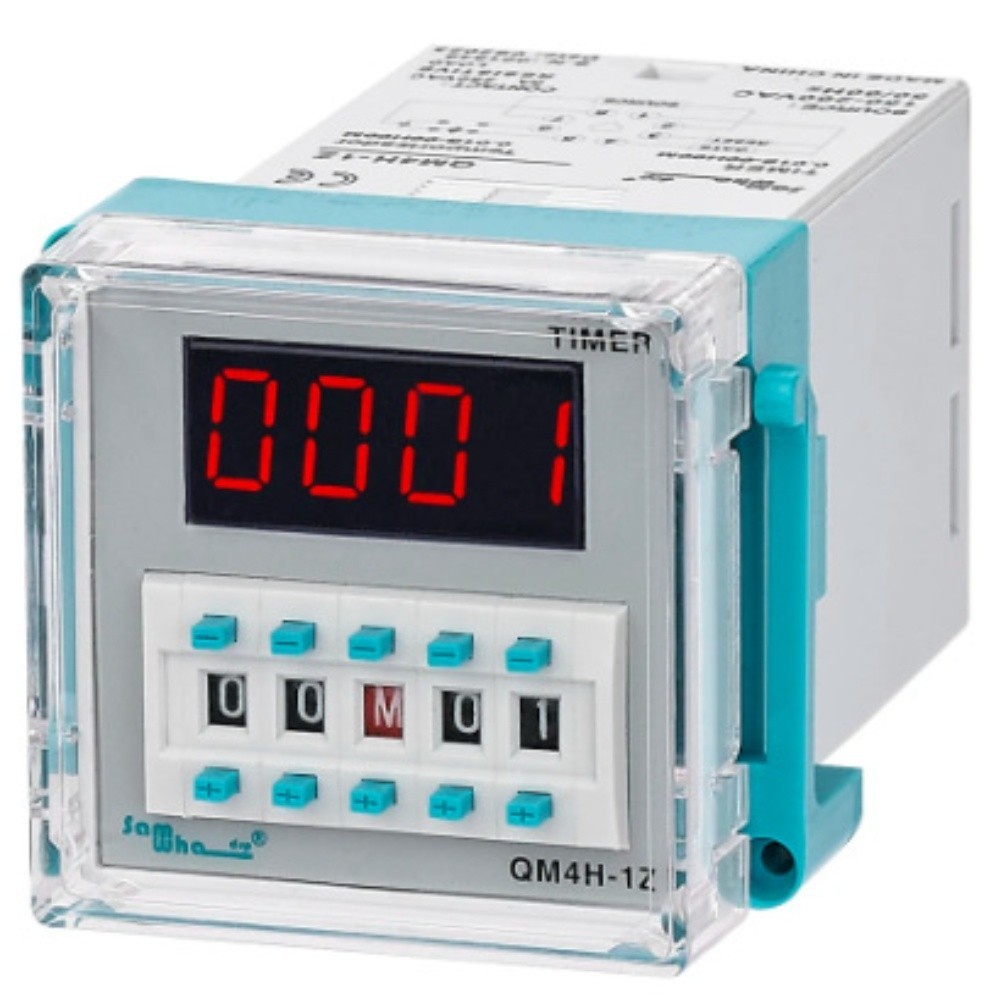

*Product Name:QM4H for DH48S Digital Time for Relay

*Material:none

*Color:QM4H-1Z

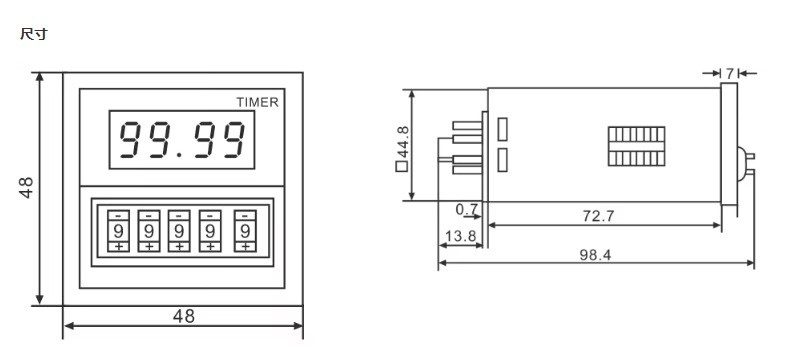

*Size:as shown

Operating Voltage (Un): 220V

Operating for Frequency: 50/60 Hz

Operating Power: <4VA

Operating Temperature: -20°C to +55°C

Time (t): Max. 99.99 hours (Type 1Z & 2Z); 0.1s to 99 hours (Type S model)

Connection Type: 8-pin socket

Weight: Max. 190g

Contact Rating: 5A/250V AC (resistive load)

Mounting way: Vertical mounting on panel or DIN rail

Operating Altitude: <2000 m

Cable Cross-section: for 2.5mm²


Package Content:

1* QM4H for DH48S Digital Time for Relay


Note:

1. The for real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2. Please allow slight manual measurement deviation for the data.
