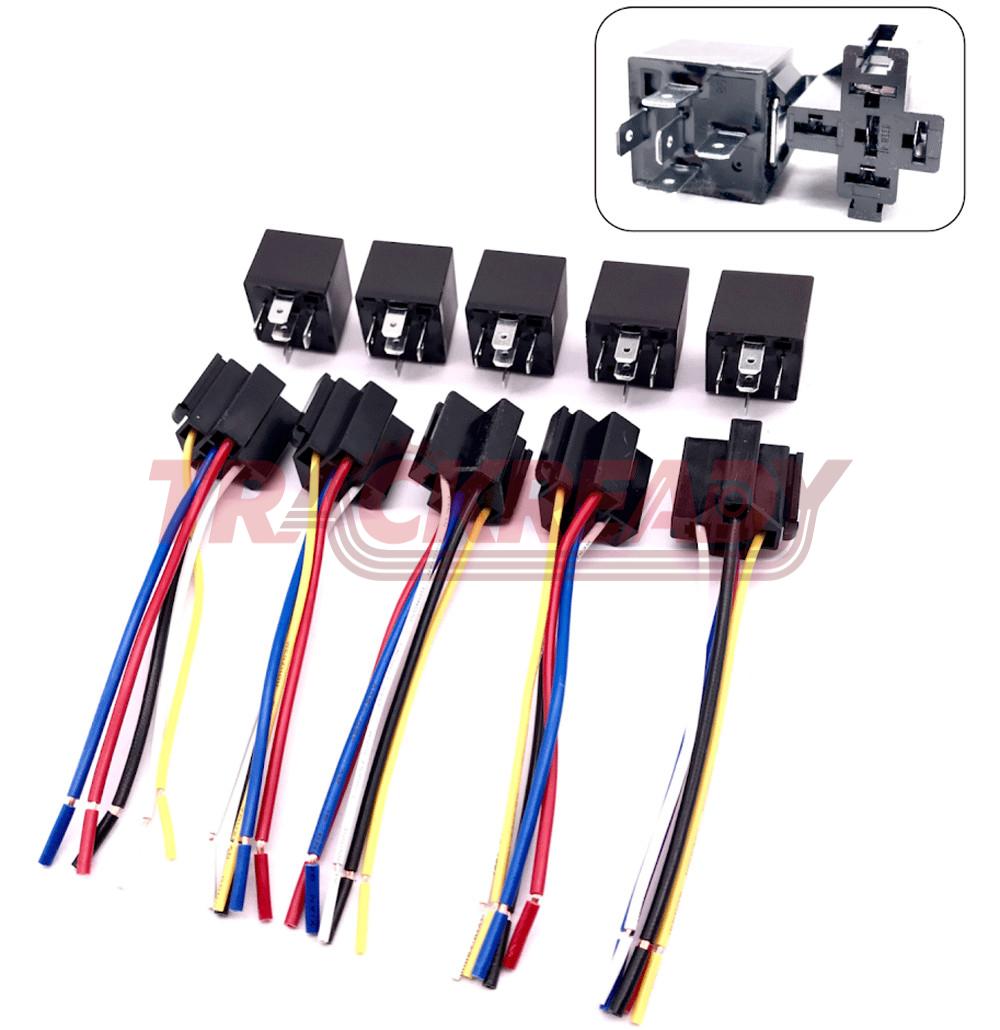

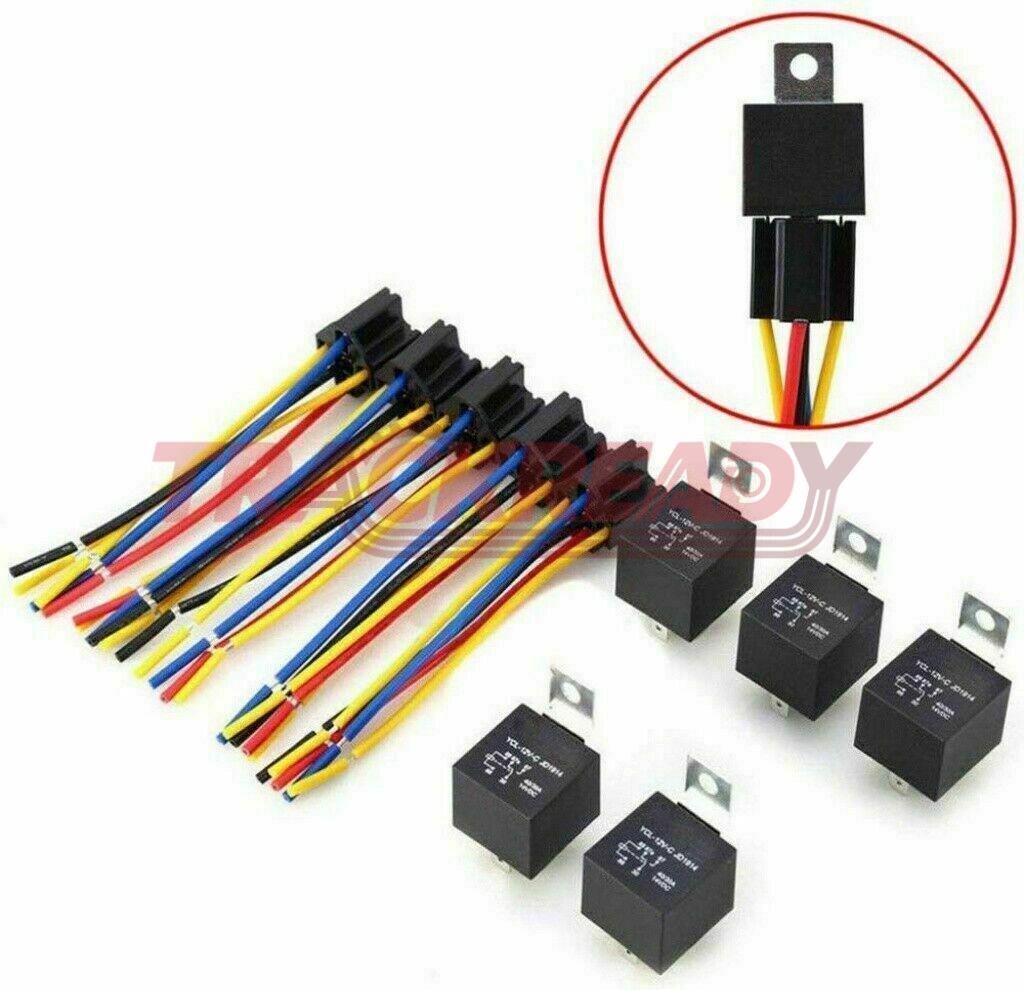

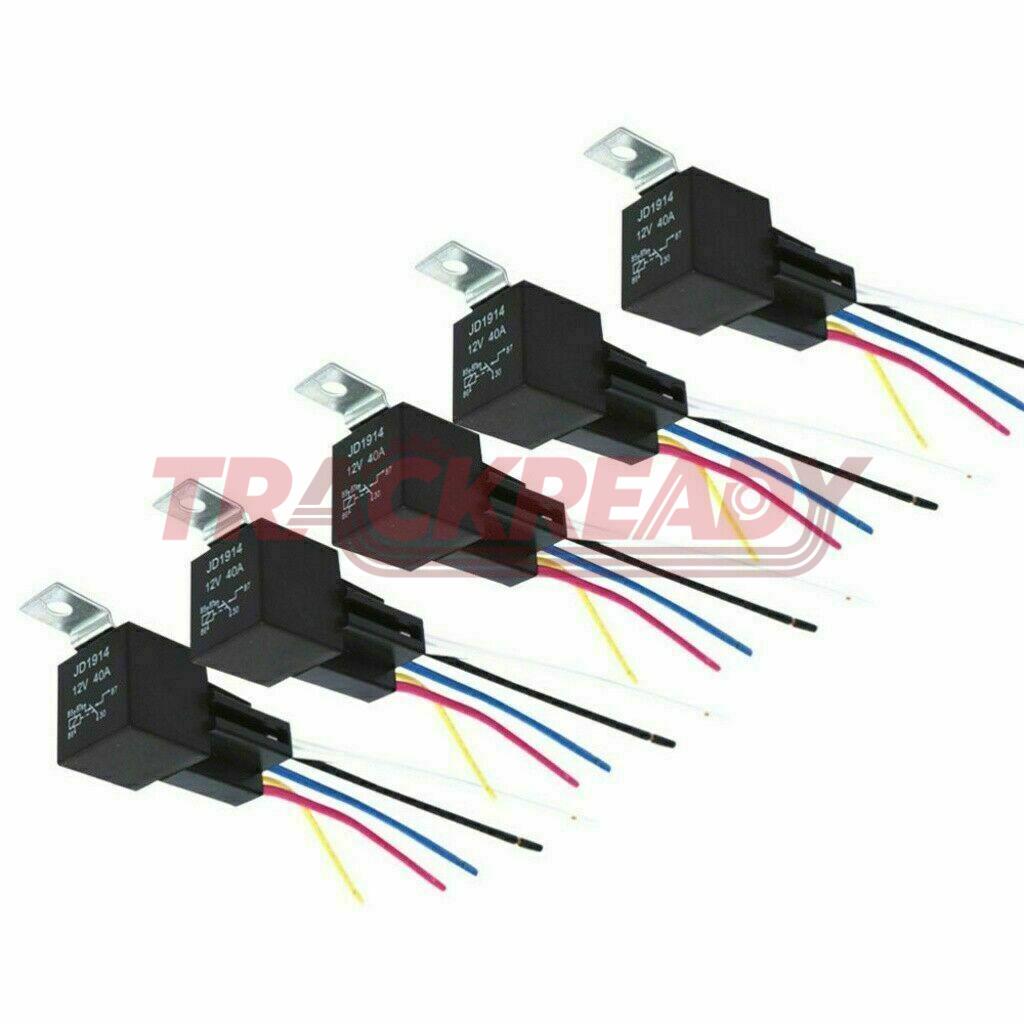

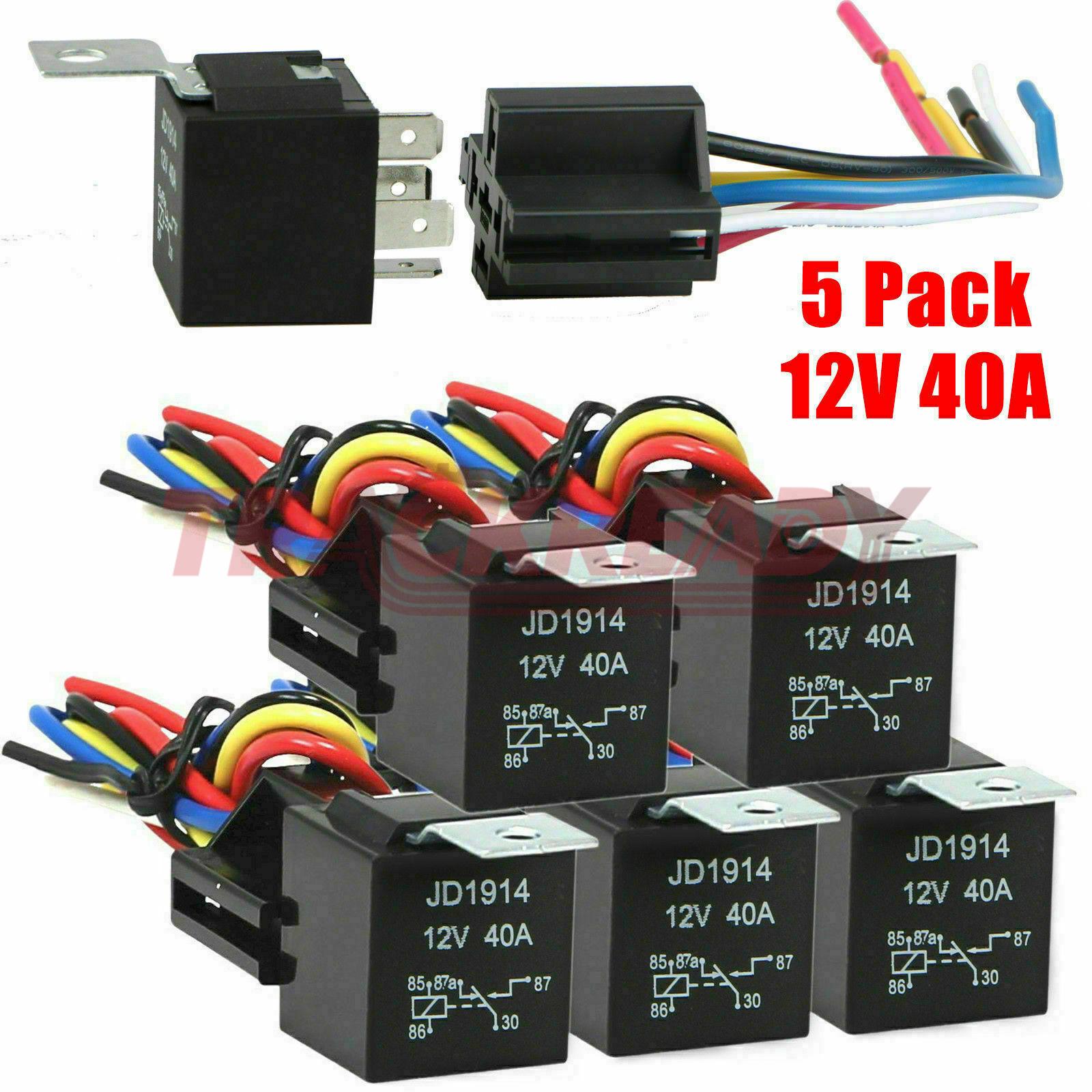

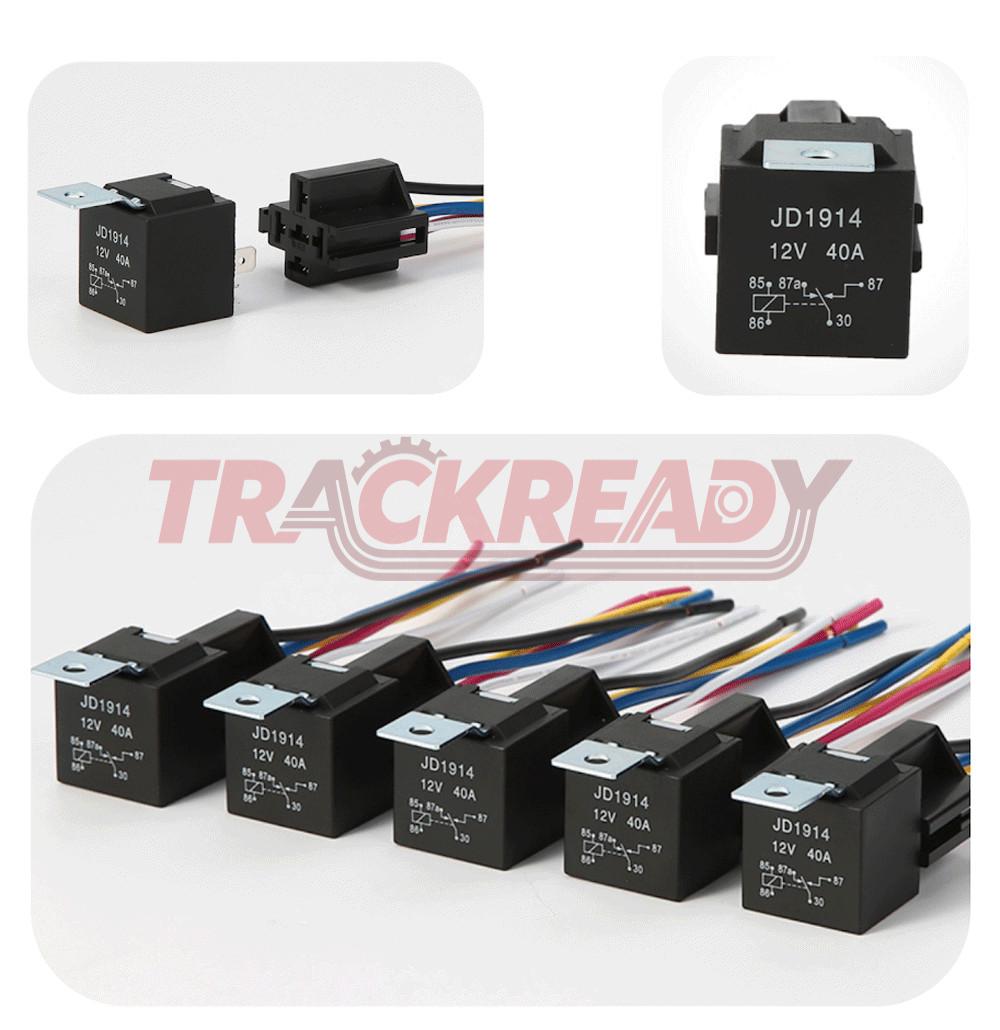

Package Contains:

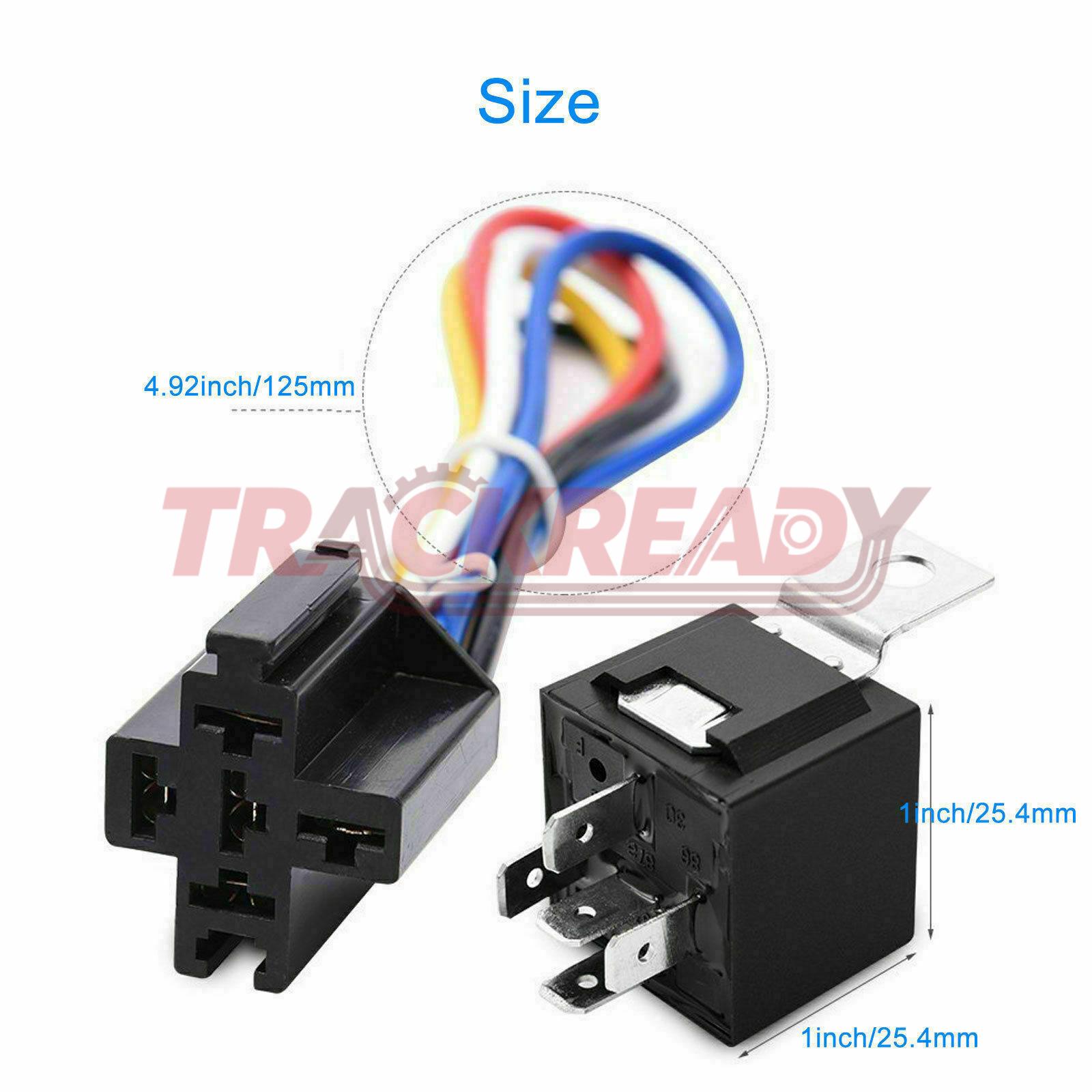

5 x 40A replay (5Pin)
5 X Relay Socket Wire
Features:

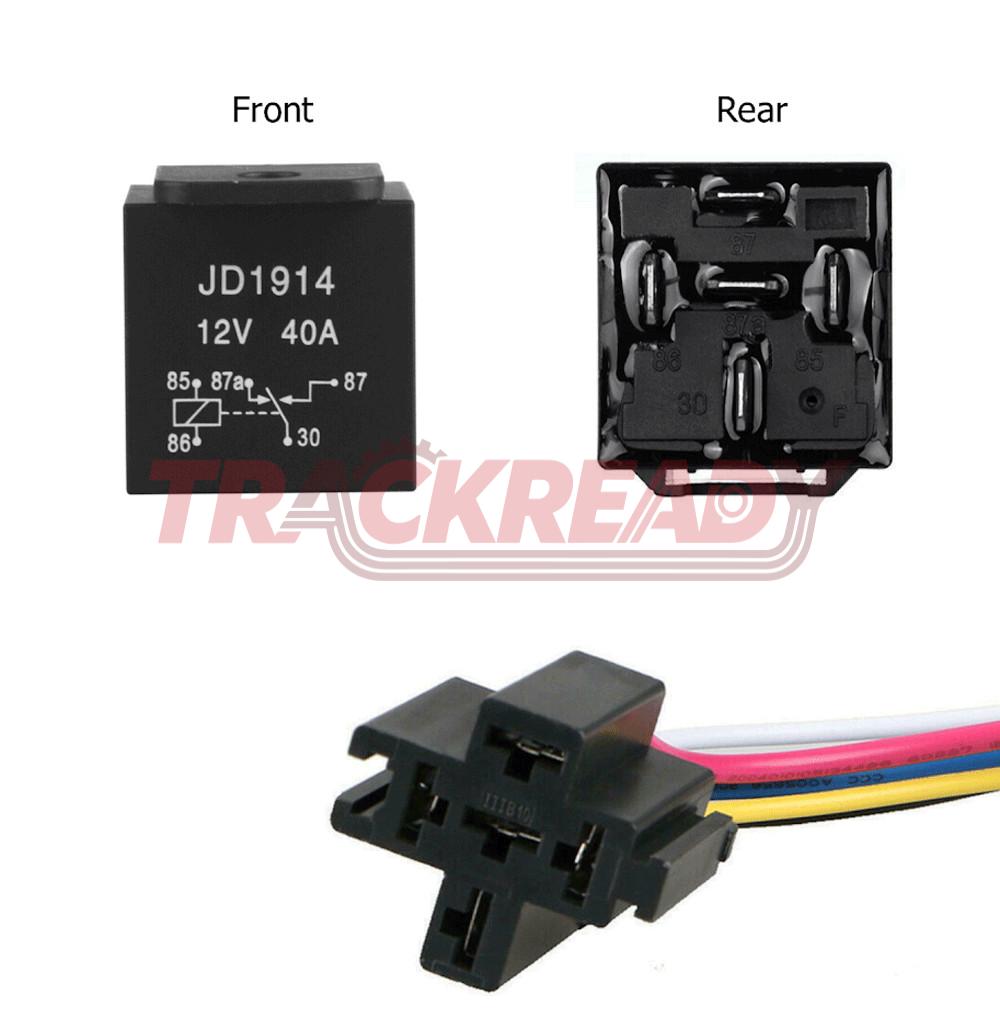

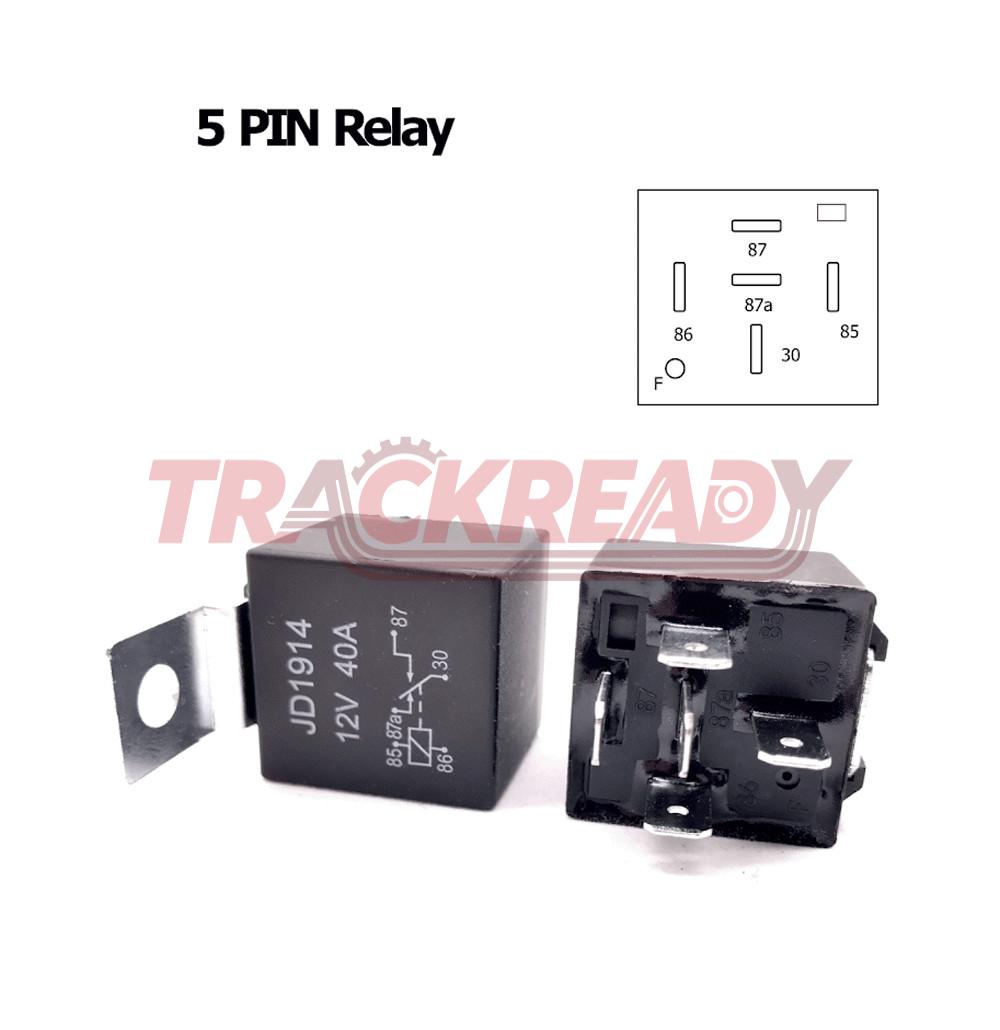

12 Volt 40 amp 5-prong relays
Mechanical life of 10,000+ cycles

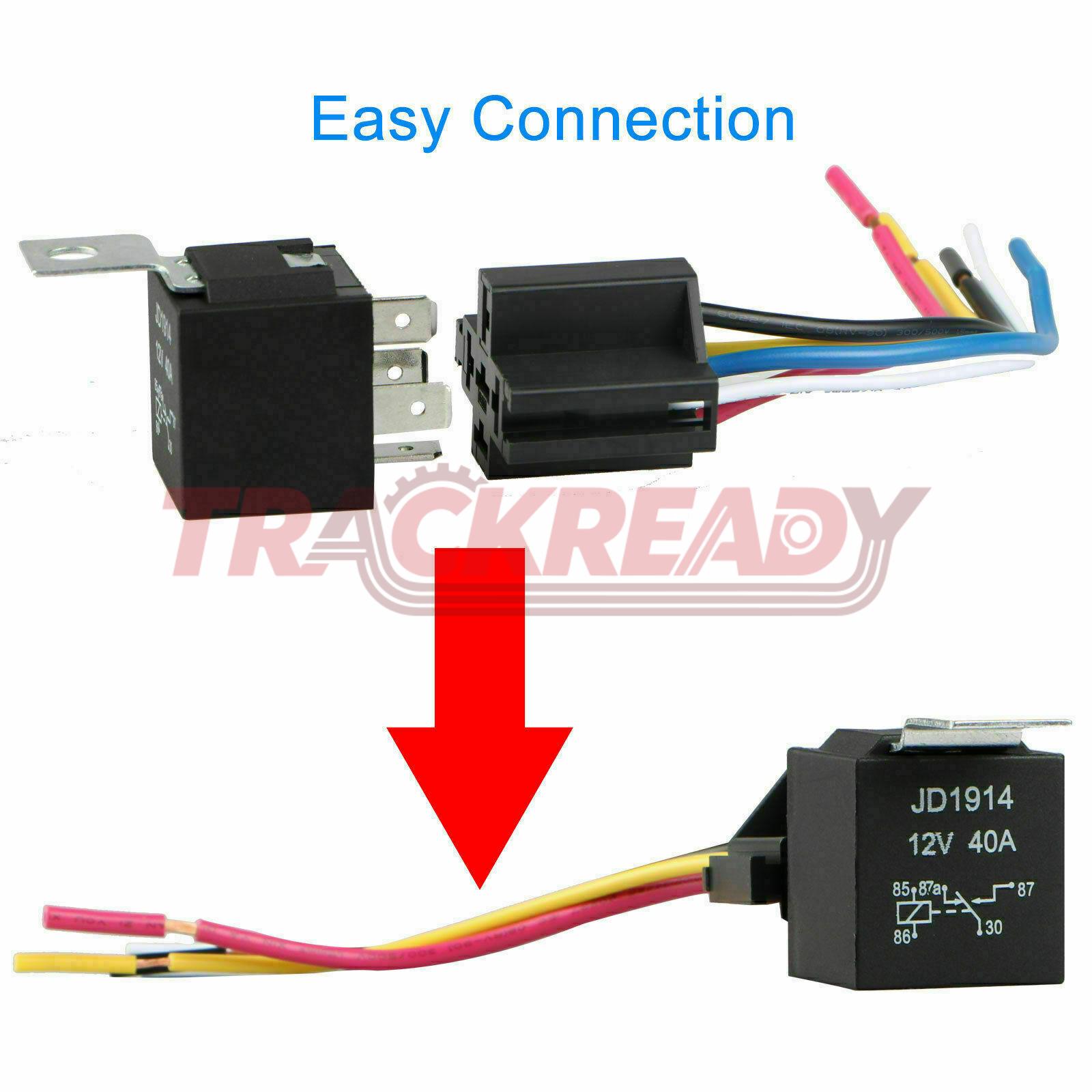

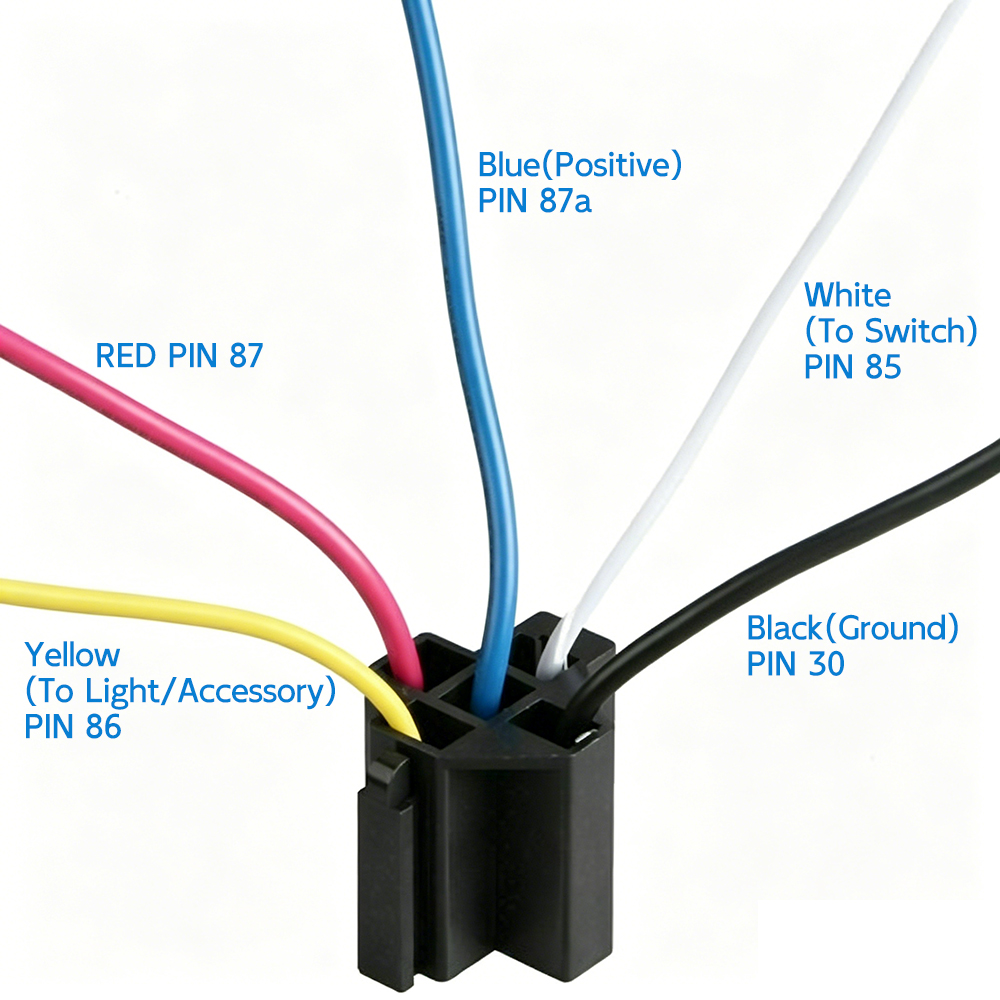

Heavy-duty impact molded relay socket with 5 WIRES
Interlocking relay sockets
High 40A coil capacity- able to handle those high current applications with ease
The Details
Suitable for :

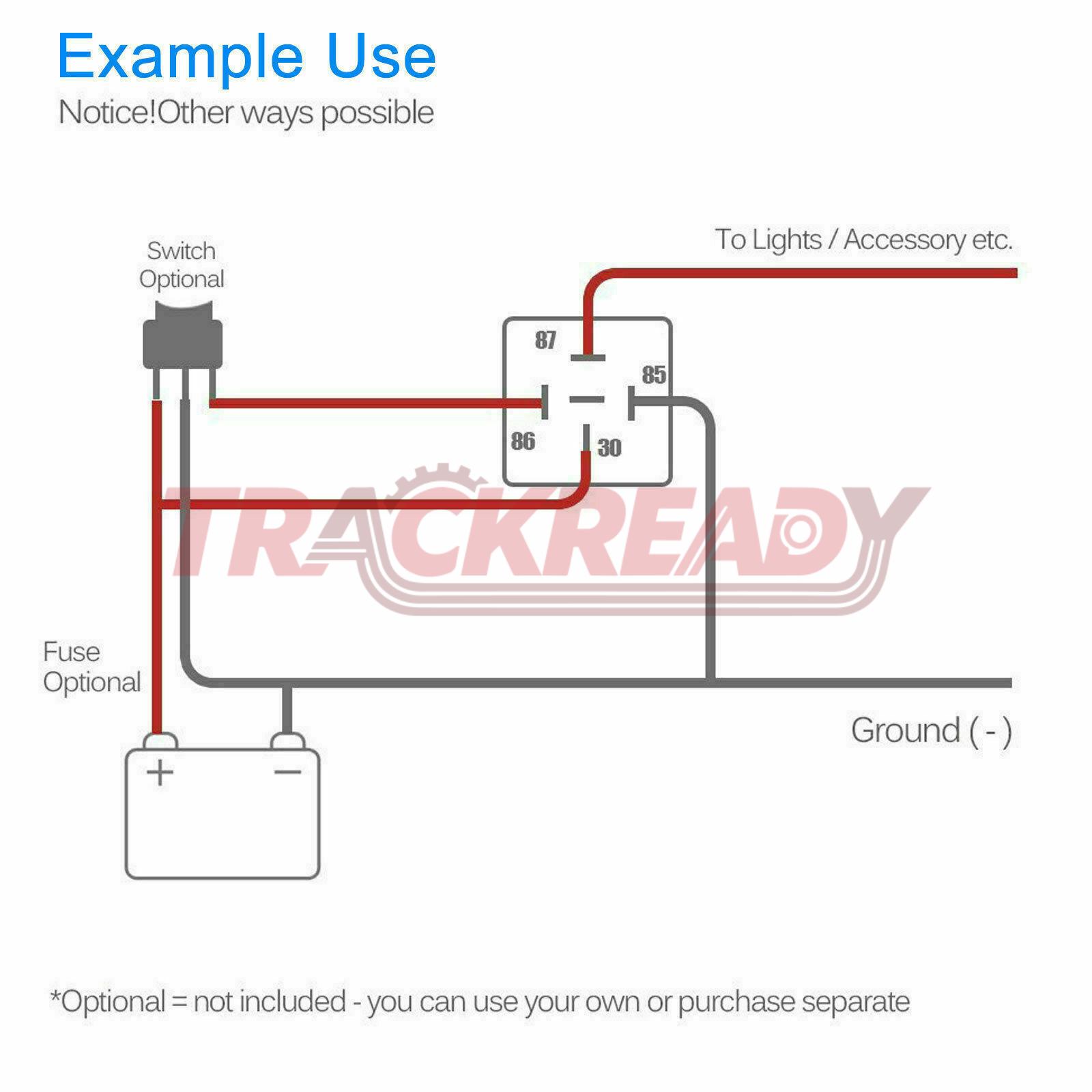

Hundreds of uses include- starter kills, domelight supervision, trunk release, polarity change,power door lock/actuator control,
change a low current output to high current,add ignition/accessory outputs, control motors/other electronics,
It is Also suitable for automobile used for control, alarms, horn, headlight and more....
Specification:
Contact Capacity:
Normal switching Capacity (res.load):
- NO 40A 14VDC
- NC 30A 14VDC
Max. switching current: 40A.
Max. switching voltage: 30VDC.
Max. switching power: 560W.
Characteristic Data:
Initial contact resistance (at 6VDC 1A): 50mΩ Max.
Operate time (at nominal volt.): 10 msec. Max.
Release time (at nominal volt.): 5 msec Max.
Initial insulation resistance: 100MΩ Min. (DC500V).
Initial dielectric strength:
- Between open contacts: AC500V, 50/60 Hz 1Min.
- Between coil and contact: AC500V, 50/60 Hz 1Min.
Vibration resistance:
- Functional: 10 ~ 55Hz at double amplitude of 1.5 mm
- Destructive: 10 ~ 55Hz at double amplitude of 1.5 mm
Shock resistance:
- Functional: 20G Min. - Destructive: 100G Min.
Endurance (operations):
- Mechanical (at 7,200 ops./h): 10,000,000
- Electrical (at 600 ops./h): 100,000
Ambient Temperature: -40°C ~ +125°C (no condensation).
