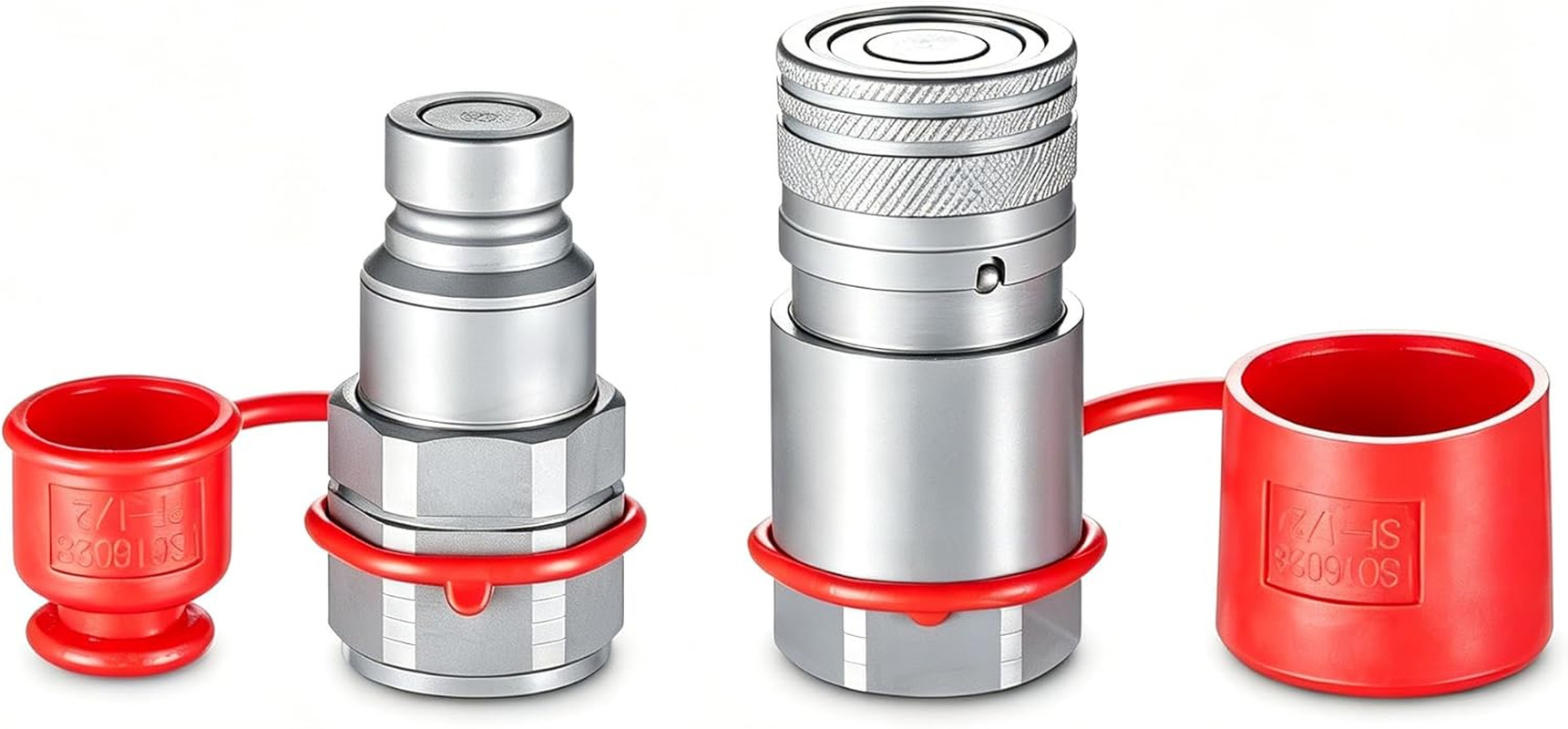

Flat Face Hydraulic Quick Connect Fittings, 1/2” NPT Skid Steer Hydraulic Couplers Set W/Dust Caps, 1 Set

Description

Unit Count	1.0 Count
Item dimensions L x W x H	3.4 x 3.4 x 1.6 inches
Number of Items	1
Item Dimensions	3.4 x 3.4 x 1.6 inches
Color	Sliver,Red
Set Name	1
Material	Alloy Steel
Material Type	Alloy Steel
Connector Type	Coupling
Model Number	FFH-04
Thread Size	1/2"
Manufacturer	Coupler
Thread Type	NPT
Included Components	Dust Caps
Size	1/2 inch
Exterior Finish	Alloy Steel
Number of Pieces	1

• Upgraded fat-faced valve design delivers maximum fow performance2with minimal pressure drop, significantly extending service life forheavy-duty hydraulic applications of fat face hydraulic couplers.
• 1/2" body with 1/2" NPT thread (-04 dash size); fully compatible with ISO 16028 standard couplings and fits most skid steer loaders (Bobcat, Case, New Holland, Kubota) as reliable hydraulic quick connect fittings. Check size chart for exact fit.
• Boasts 5076 PSI working pressure rating and 23.78 GPM max flow rate; non-spill flush face design minimizes fluid loss and air inclusion during disconnection.
• Constructed from premium hardened steel with zinc-nickel plating, providing superior corrosion resistance against rust, abrasion and harsh working environments.
• One-hand push-to-connect operation for fast installation/removal; built-in locking sleeve prevents accidental disconnection, ensuring safe and reliable operation of skid steer hydraulic couplers.

Product description

1/2” NPT Skid Steer Quick Connect Fittings with Dust Caps (ISO16028) Nickel

Technical Parameters

• Body Size(in): 1/2
• Rated Pressure:50Mpa
• Material:Alloy steel
• Standard Seal Material:PTFE+NBR
• Temperature Range:-20℃ ~120℃

Product Features

• IKER FFH Series couplings comply with ISO 16028 and are interchangeable with Parker FEM and Italy’s Stucchi FIRG.
• The innovative PTFE+NBR combined seal design maintains high performance under extreme working conditions such as strong pulse pressure.

• Hardened, alloy zinc-plated steel, which can maximize resistance to damage caused by hydraulic and mechanical shocks.
• New valve design with higher performance to bare the damage from high velocity flow and pulse pressure.
• Sleeve locking mechanism which is coupled by rotating sleeve after connection. It prevents accidental disconnection when the coupler dragged along the ground.
• IKER FFH Series couplings adopt flush valving when con- necting or disconnecting. It means that only a little of fluid will be lost when disconnecting and just a bit air will mix in when reconnecting.
