Overview

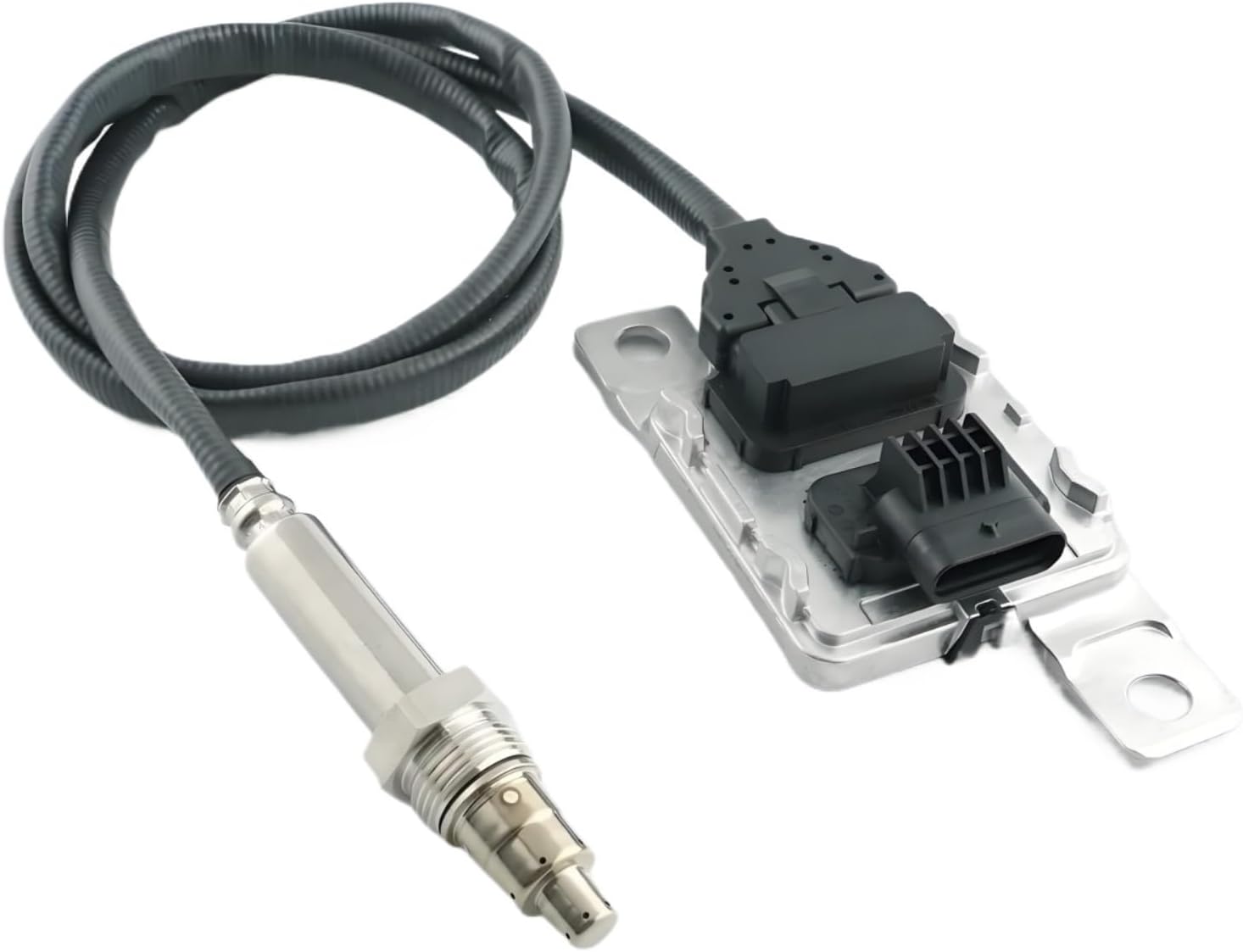

This NOx sensor is designed for diesel SCR system monitoring. It measures nitrogen oxide levels and supports aftertreatment system diagnosis on compatible vehicles.
Key Features

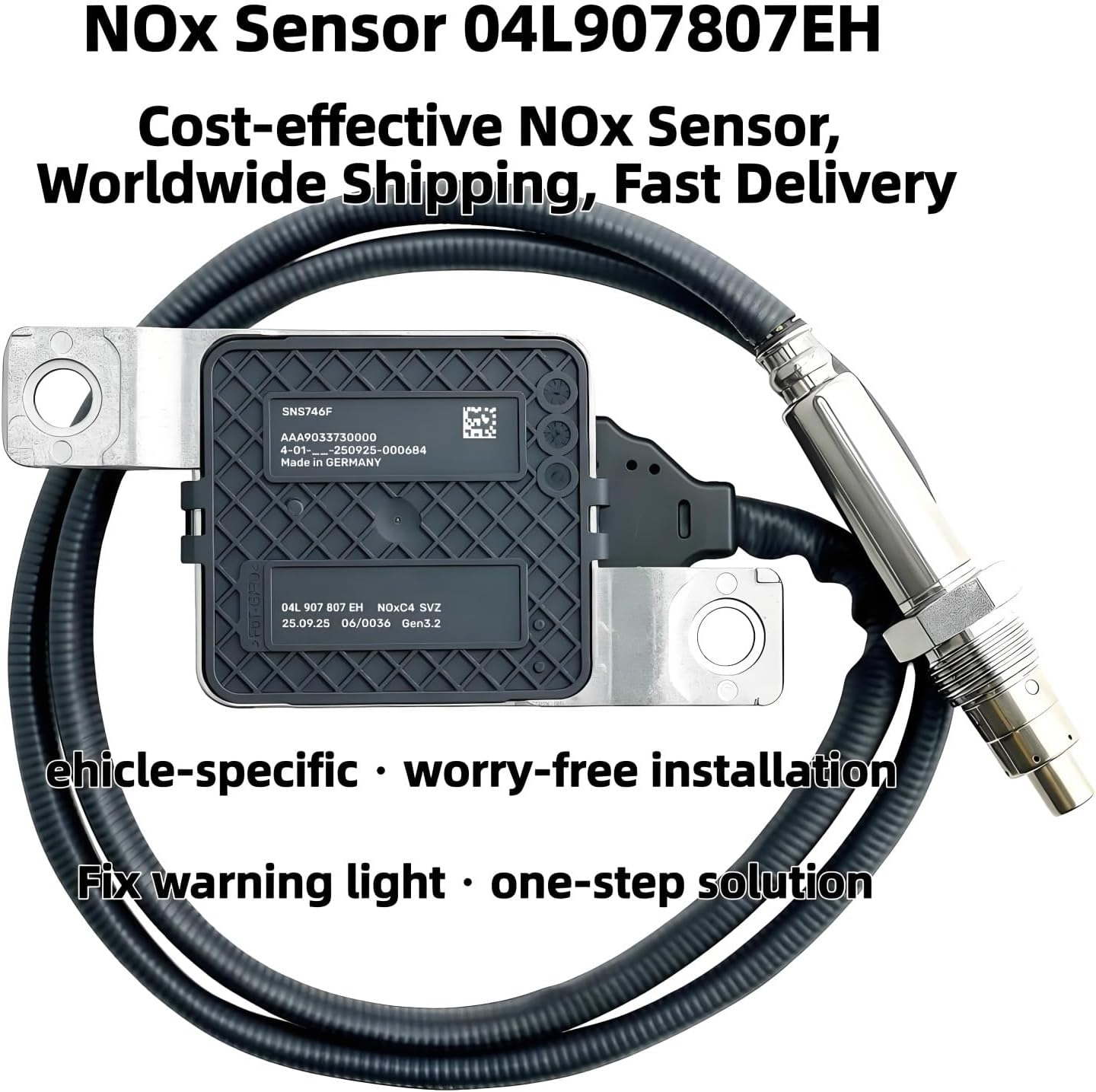

- Reference numbers: 04L907807EH, SNS0746F
- Measuring range: 0-3000 ppm

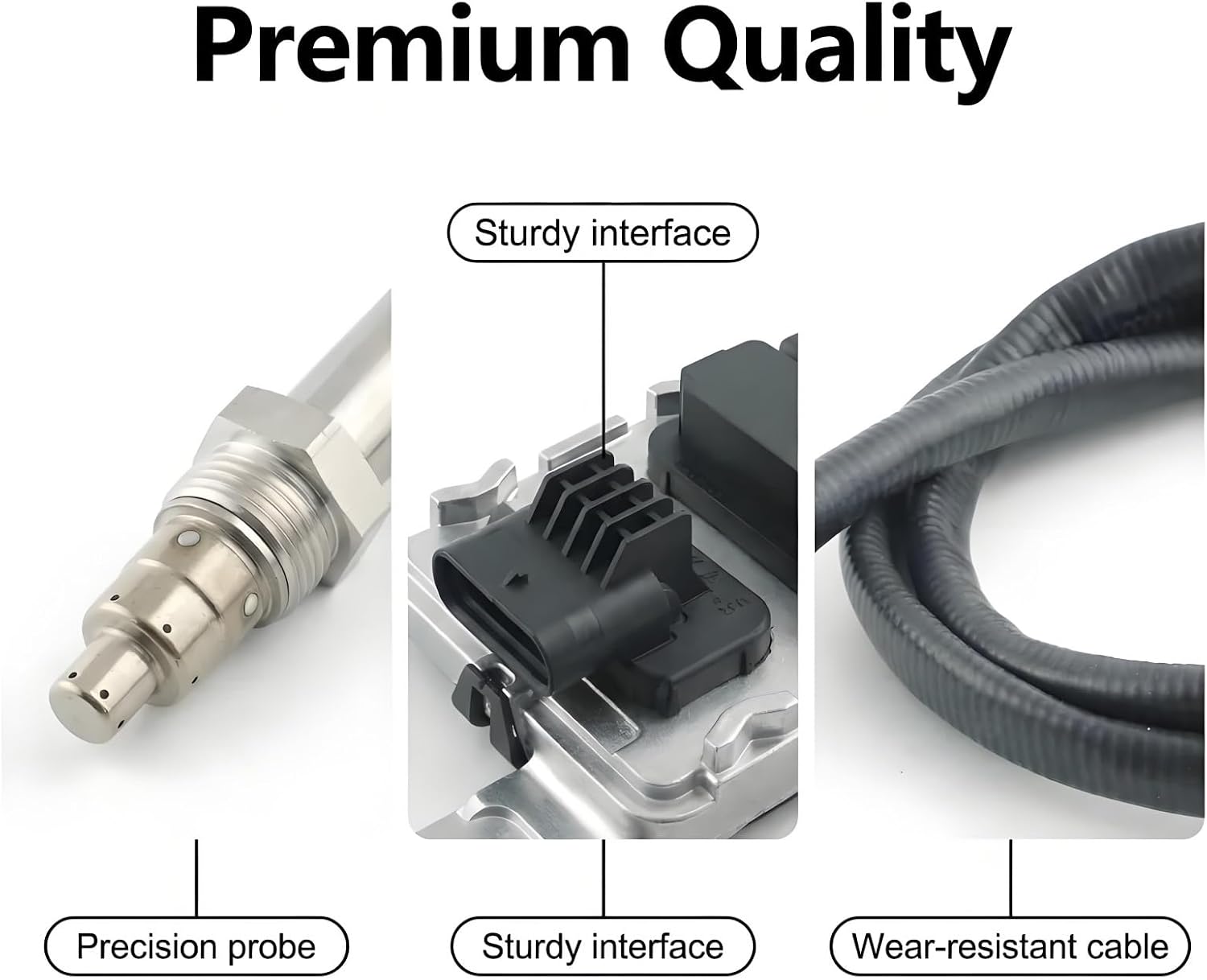

- 5-pin plug-in interface
- IP67 sealed structure
- Supports OBD self-calibration

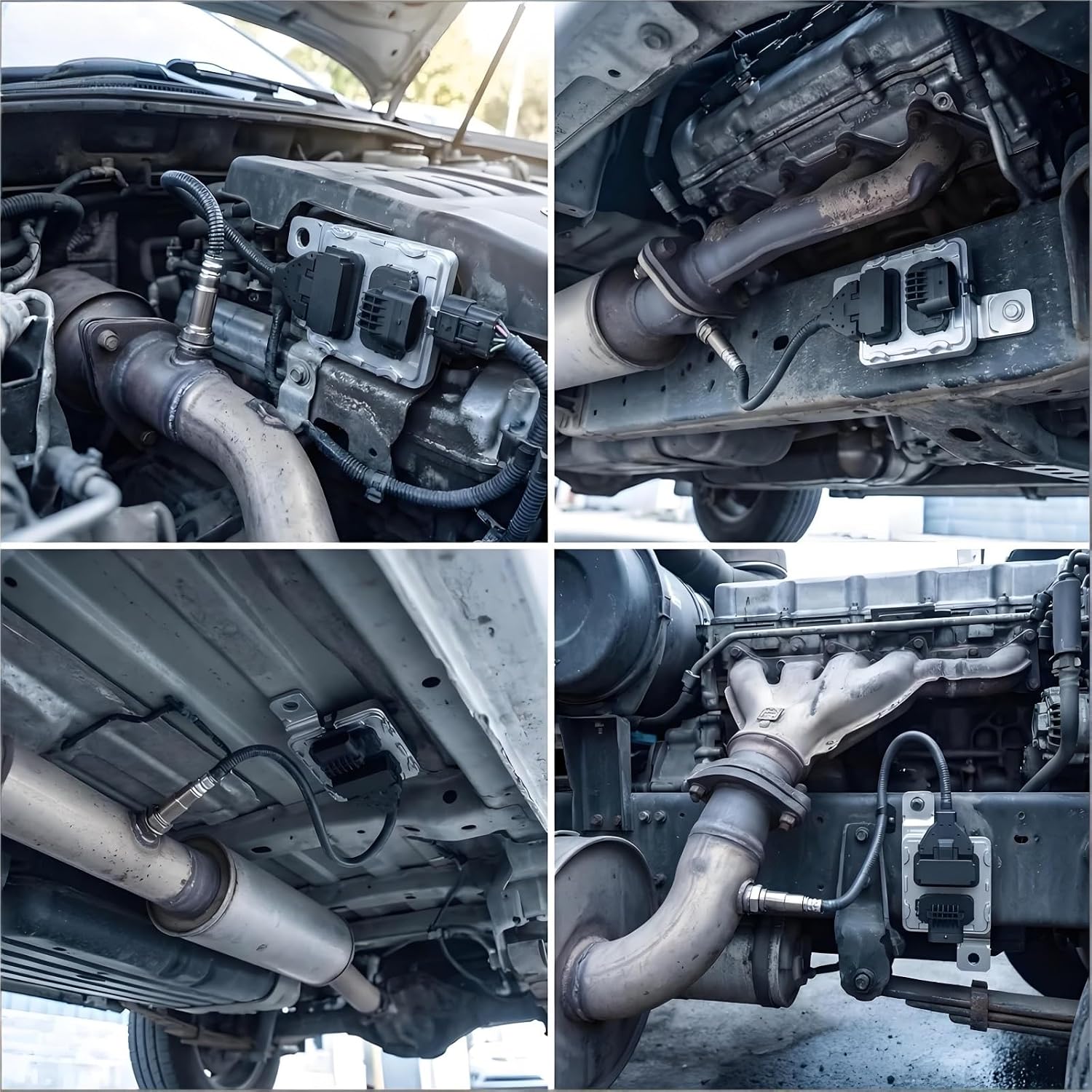

- Suitable for diesel SCR monitoring, warning light checks, workshop diagnosis, scheduled inspection, and sensor replacement
Product Details
| Product Type | Nitrogen Oxide Sensor |
|---|---|
| Reference Numbers | 04L907807EH, SNS0746F |
| Measuring Range | 0-3000 ppm |
| Accuracy | ±2% F.S. |
| Repeatability | ±1% F.S. |
| Response Time | t10-90% NOx under 3900 ms |
| Warm-up Time | About 120 seconds |
| Operating Temperature | -40 to 850 |

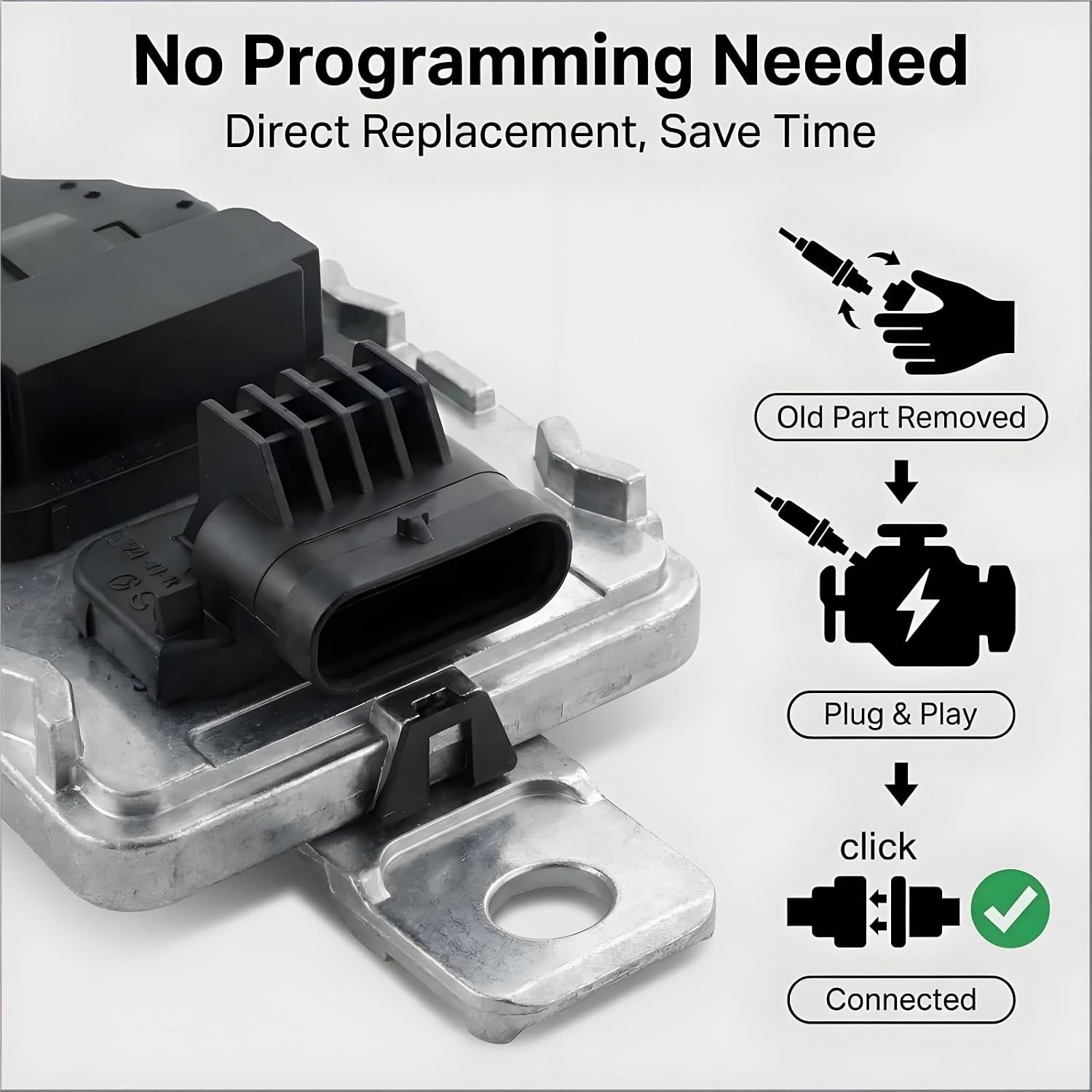

| Connector | 5-pin plug-in type |
| Protection | IP67 |
Package Includes
- 1 x NOx sensor
- Anti-static packaging
- Hard cardboard box
Notes

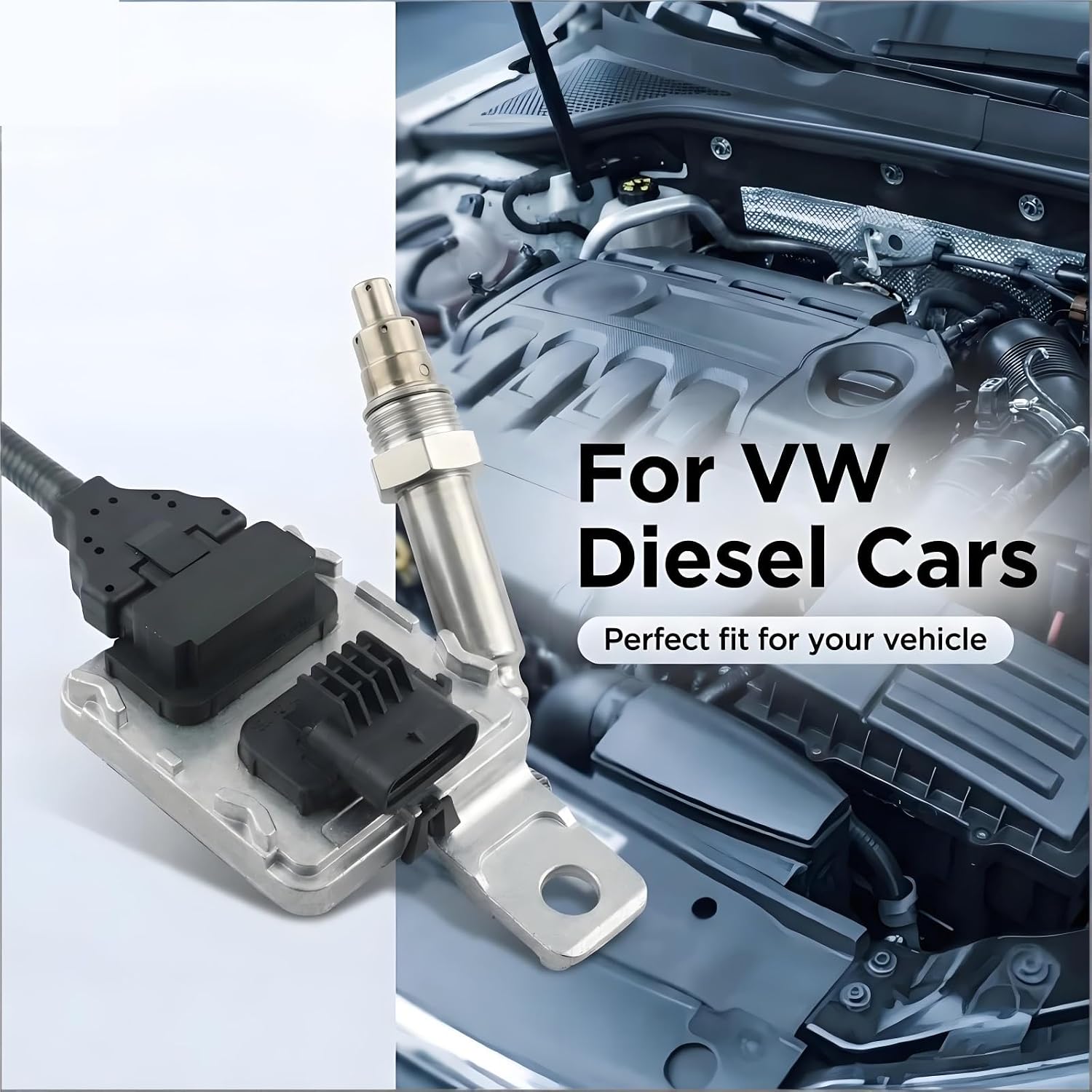

- Compatible vehicle clues include VW Passat B8, VW Arteon, and Skoda Superb from the source listing.
- Please verify compatibility before purchase by matching the OE number, connector, and vehicle requirements.
- Professional installation is recommended. Disconnect vehicle power before fitting.
