Product Overview

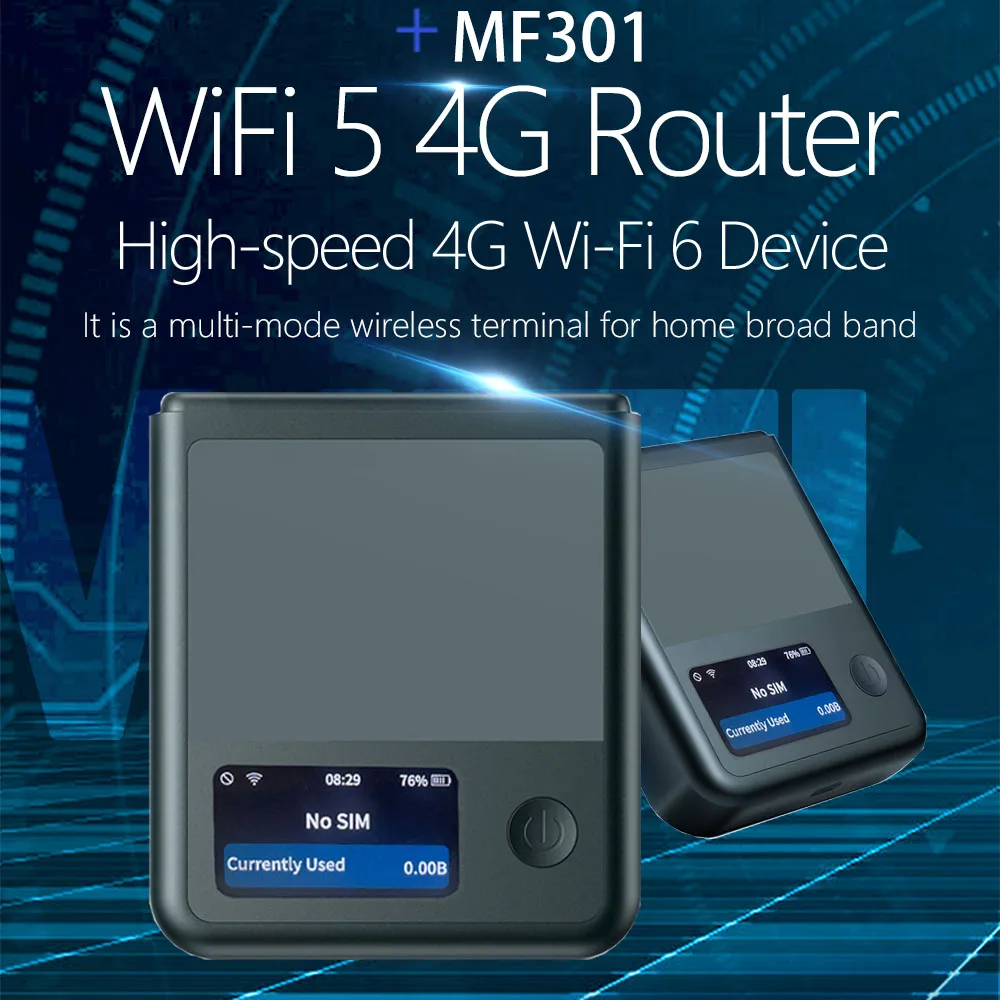

MF301 Portable WiFi
Karbor Portable Wi-Fi Device MF301 series is designed to offer a pure wireless high-speed data service to the end user, it utilizes LTE network backward connect to internet and uses Wi-Fi upward to share the data service with different Wi-Fi devices, it has small size and can be used as portable device.
Product Specifications
|
NO
|
Item
|
Data
|
|
1
|
Model No
|
MF301
|
|
2
|
Support network
|
LTE-FDD: B1/B3/B4/B5/B7/B8/B12/B13/B17/B11/B20/B26/B28/B66 (Optional)
LTE-TDD: B38/B40/B41 (Optional)
WCDMA: B1/B3/B4/B5/B8 (Optional)
|
|
3
|
Qualcomm
Chipset
|
Wireless chipset: QCA6174A
RF chipset: SDR660
BB Chipset：Qualcomm SDX12
|
|
4
|
WiFi
|
WiFi 5 2.4GHz+5GHz 802.11b/g/n/ac
|
|
5
|
MIMO
|
LTE & Wi-Fi：2x2 MIMO
|
|
6
|
LTE Category
|
CAT 6
|
|
7
|
Peak Data Throughput (theoretical)
|
Wi-Fi: 2.4G 300Mbps / 5G 866.7Mbps
LTE: 300Mbps(DL)/50Mbps(UL)
DC-HSPA+: 42Mbps(DL)/5.76Mbps(UL)
WCDMA: 384kbps(DL)/384kbps(UL)
|
|
8
|
Battery
|

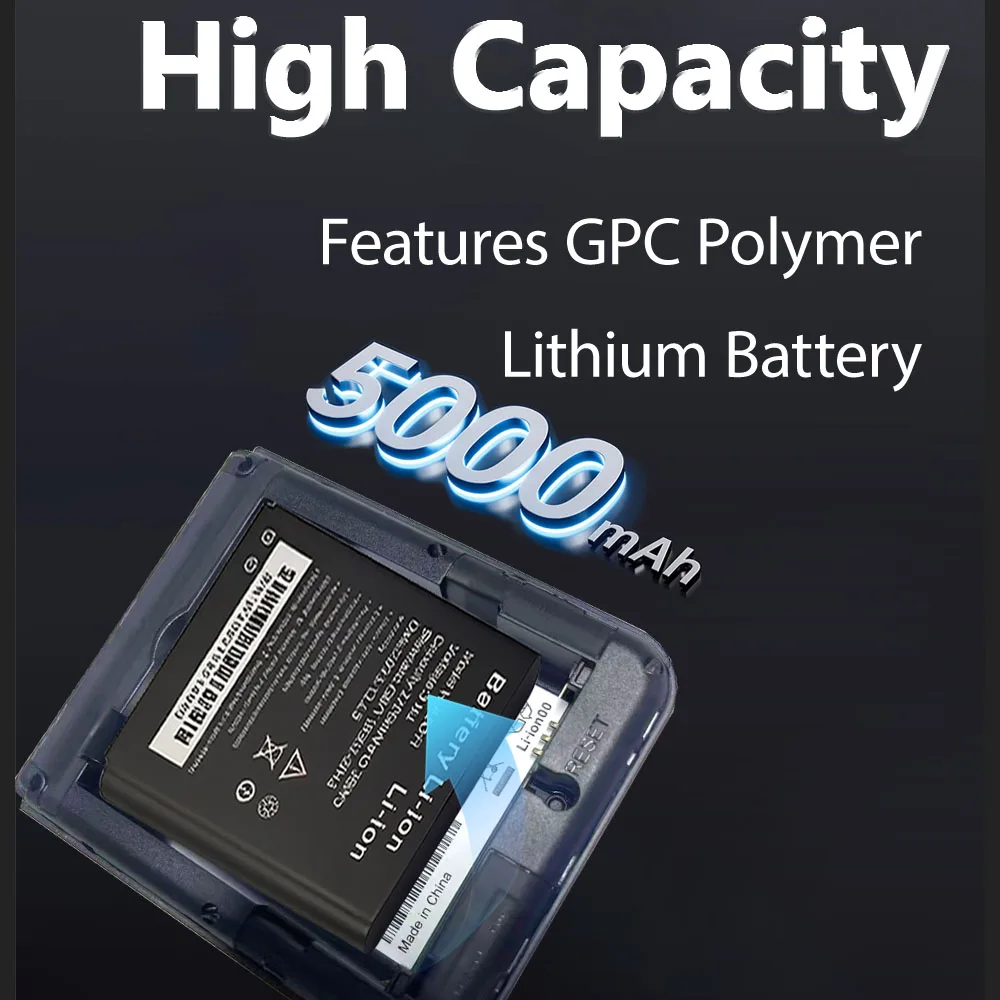

Li-on 5000mAh
|
|
9
|
USB Port
|
Type-C
|
|
10
|
WiFi Max Client
|
Up to 16 connected users
|
|
11
|
SIM Slot
|

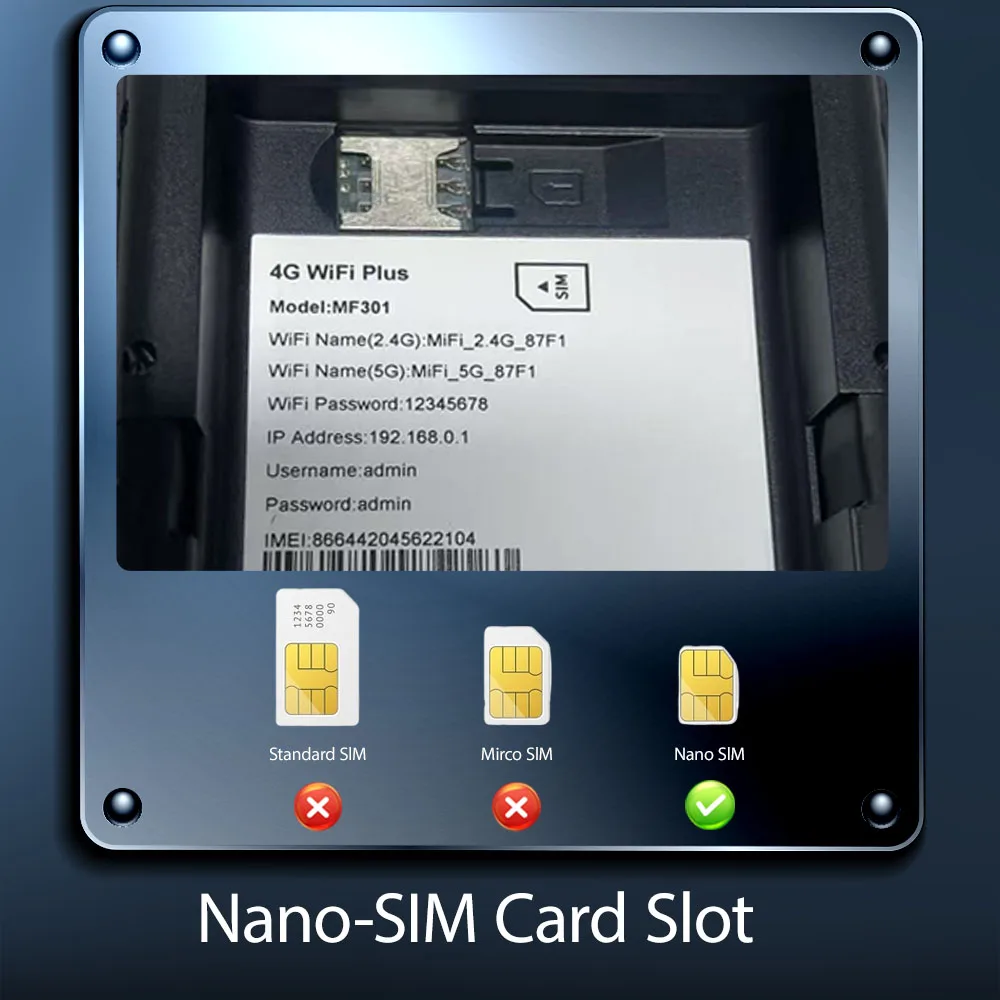

Nano SIM Card (4FF)
|
|
12
|
Memory
|
4Gb NAND flash + 2Gb LPDDR
|
|
13
|
Support
|
TR069/Fota/SMS/USSD/Phonebook/DDNS/DMZ/Port Forwarding/Port Mapping.
|
|
14
|
Display
|

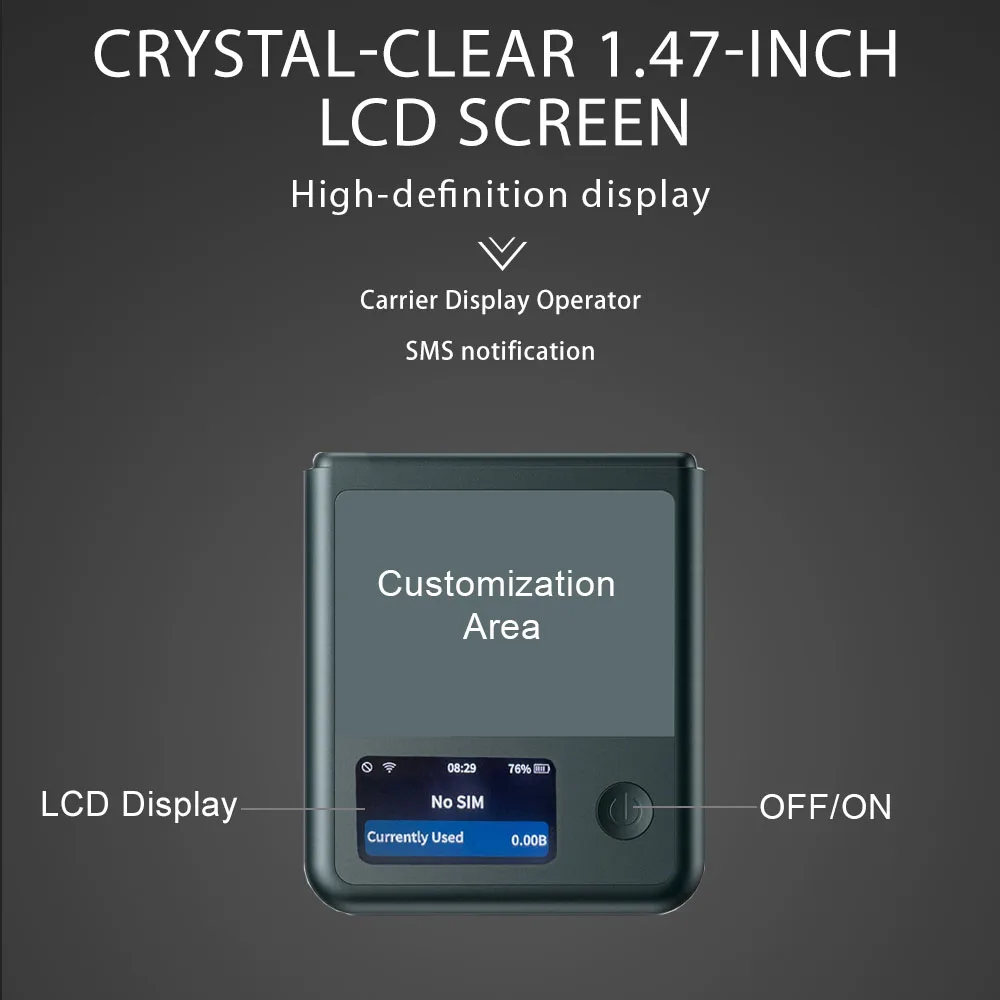

1.47 inch LCD display
|
|
15
|
Size
|
83*73*22 mm
|
