Product Description
|
Model No
|
B30N
|
|
Chipset
|
Wireless chipset: ZX297520V3
WiFi chipset: RTL 8192ES
|
|
Support Bands
|
4G LTE: B1/2/3/5/7/8/28(20)/38/40/41 or B2/4/5/7/28(20)/66/38/40/41 optional
WCDMA: Band 1/2/3/4/5/8 optional
GSM: B2/3/5/8optional
|
|
LTE CAT4
|
150Mbps DL, 50Mbps UL
|
|
WiFi standard
|
300Mbps, 2.4GHz 802.11 b/g/n
|
|
MIMO
|
WIFI MIMO 2*2
|
|
Interface
|

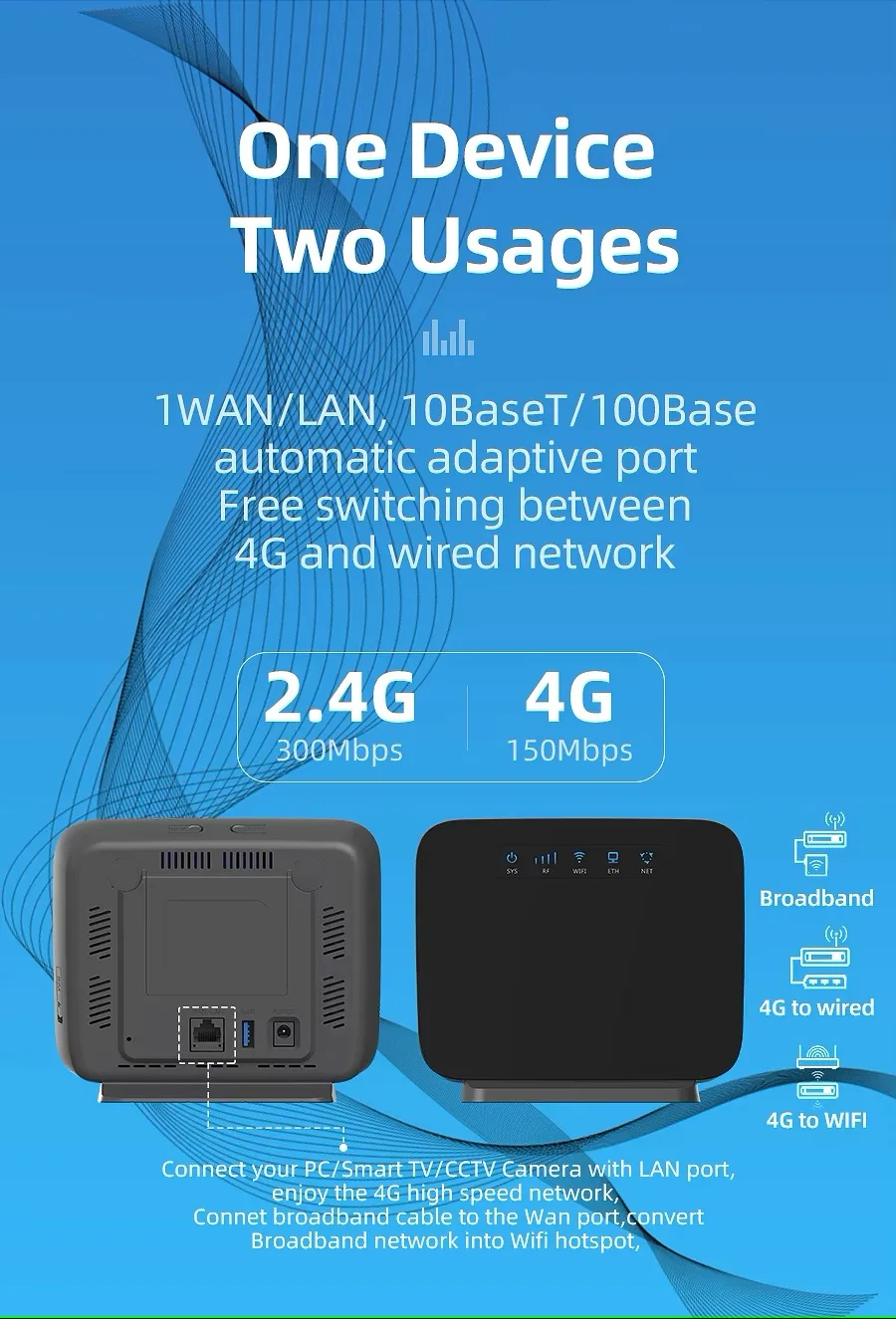

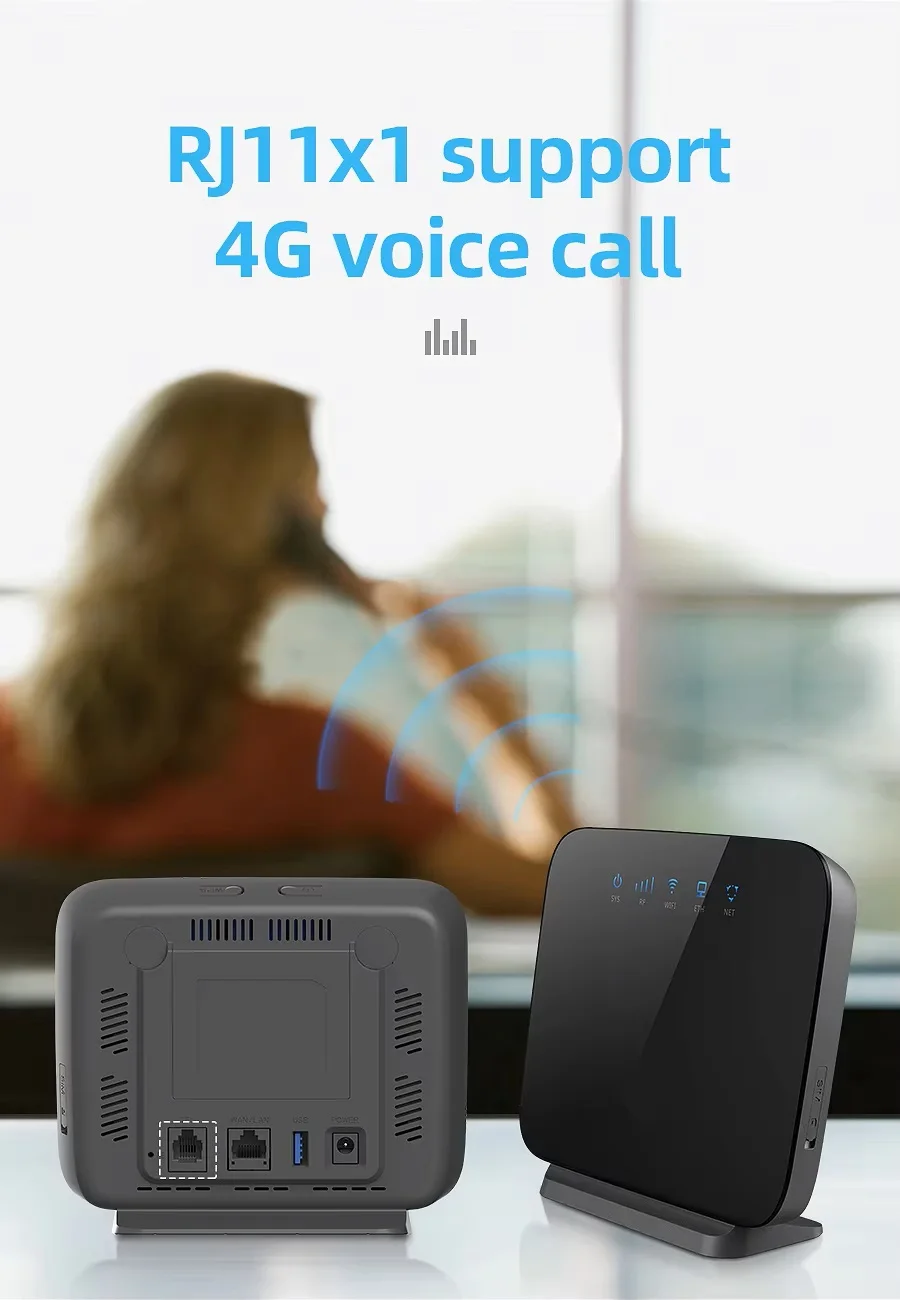

1*WAN/3*LAN, 10BaseT/100Base automatic adaptive port ;1*RJ 11 VoLTE optional;
1*USB 1*DC
|
|
WiFi Max Client
|
Up to 32 connected users
|
|
SIM Slot
|

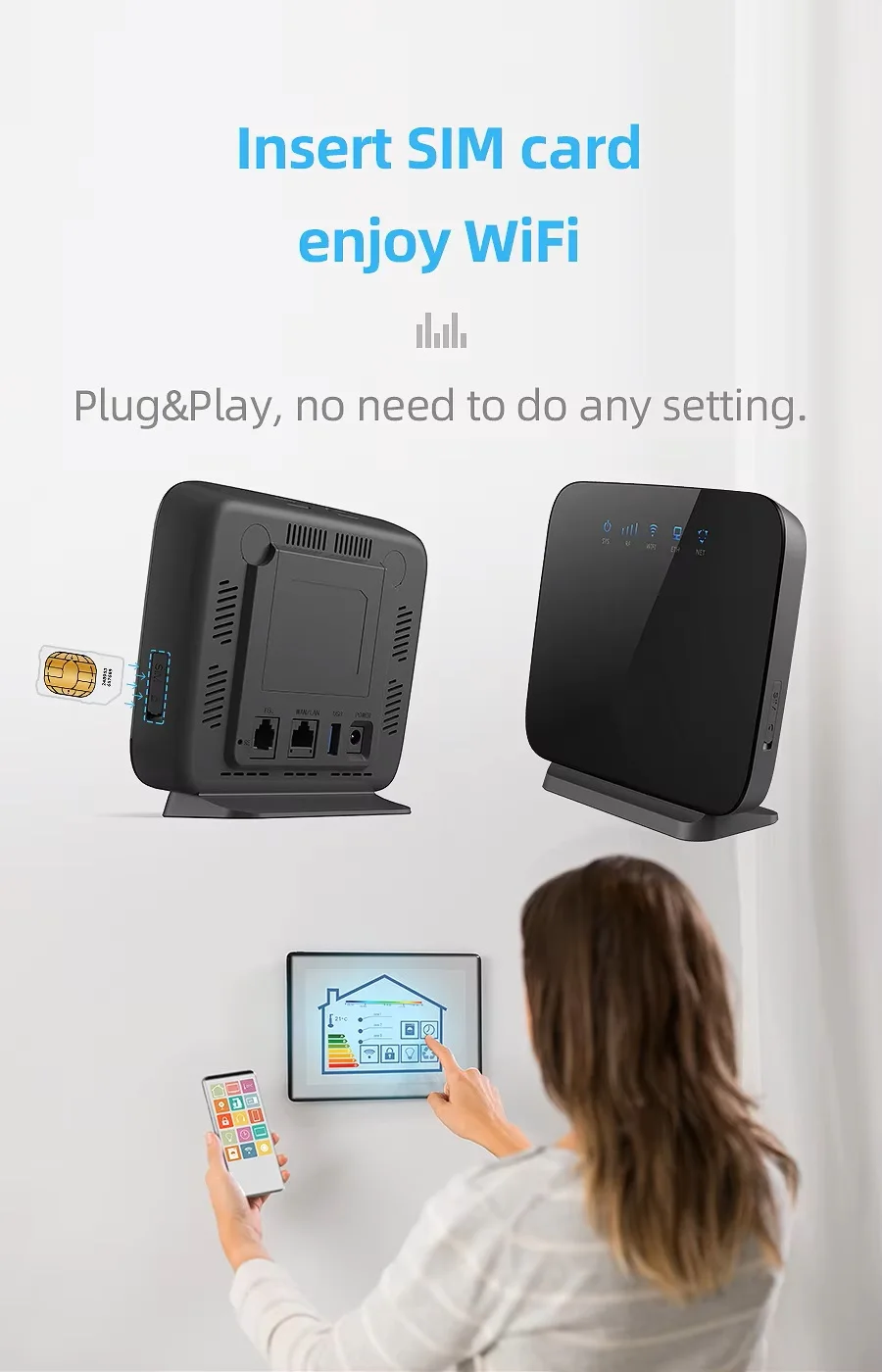

Standard SIM card (2FF)
|
|
Antennas
|
2 Internal antennas
|
|
Support
|
TR069/Fota/IPv4/IPv6/Data Statistics/SNTP/DMZ/Mac/IP Address Filter/Port Forwarding/Port Mapping.
|
|
Adapter Power
|
DC 12V/1A
|
|
Size
|
132.5*150*50.5mm
|
