Description：
This is an electric oil transfer pump kit. Made of high-quality cast iron, aluminum alloy, and carbon steel, it is strong and durable. With a powerful motor and steel impeller, it can lift oil to a maximum height of 49ft. Meanwhile, multiple safety devices allow you to use it safely and the pure copper motor provides a quiet operating environment.
Key Features：
Premium Materials: The pump head made of high-quality cast iron, aluminum alloy housing, and carbon steel base can resist wear, corrosion, shock, heat, and deformation. Meanwhile, copper wires with good conductivity can ensure the stable operation of the machine while saving electricity.
Strong Power: The pure copper motor with high power (0.55KW) and steel impeller can reach a high speed (2800rpm), large flow rate (5.25-15.75GPM), and deep absorbing distance (16ft) to lift oil to a maximum height of 49ft, which can meet the need of pumping oil.
Excellent Heat Dissipation: With a built-in cooling fan and dense heat dissipation holes, it can dissipate heat in time and prolong the service life of the product.
Safer to Use: The power switch is designed with a cover to prevent dust, water, and electric leakage, and the oil return valve in the pump head is helpful for safe pressure relief. Meanwhile, the bypass valve can prevent the motor from burning out due to excessive pump pressure.
Good Stability: The large and thickened base made of carbon steel ensures good stability, so you can use it without worrying about it shaking or tipping.
Low Noise: The pure copper motor produces low noise (about 75dB), bringing your a quiet operation environment while protecting your hearing.
Protective Packaging: This product comes in a custom foam that resists compression and falls to prevent product damage in transit.
Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Details
Ergonomic Handle: The handle on the top is ergonomic, allowing you to easily move the pump without hand soreness.

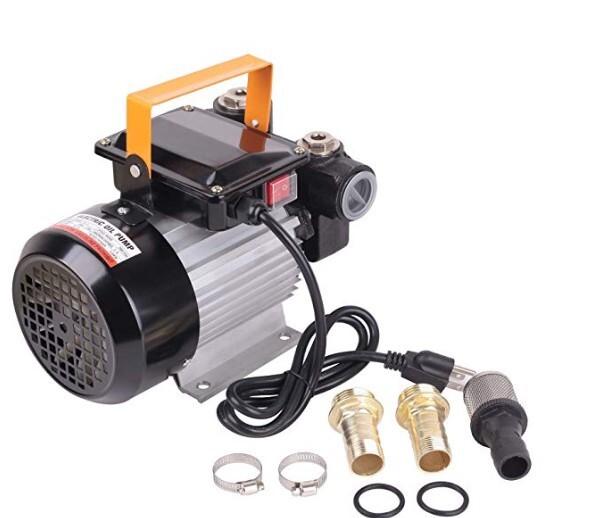

Built-in Filter: it can filter out some particles to ensure the cleanness of the oil.
Application：
It applies to diesel, kerosene, white oil, and hydraulic oil, and can be used for excavator refueling, truck refueling, oil bucket refueling, ship refueling, or pumping light oil for construction sites, farms, or other fuel power equipment. It does not apply to low-combustible fuels such as gasoline, liquefied petroleum gas, and alcohol.
Specification：
Model: YB60-1-110
Color: Black, Silver
Material: Cast Iron, Aluminum Alloy, Carbon Steel
Style: Modern
Rated Voltage: 110V / 220V Optional（(Note: We send 220V default, if you need 110V pls contact us or leave a note when you place an order)）
Rated Power: 0.55KW
Frequency: 50/60Hz
Power Type: Plug-in
Plug: American Standard
Suction Force: 0.2MPA
Flow Rate: 20-60L/min (5.25-15.75GPM)
Absorbing Distance: 5m/16ft
Maximum Lift: 15m/49ft
Motor Type: Pure Copper Motor
Rotation Speed: 2800rpm
Noise: About 75dB
Net Weight: 13kg/28lbs
Gross Weight: 13.5kg/29.7lbs
Package Size: 35*34*32cm/13.7*13.3*12.5inch
Oil Pump Size: 26*16*23cm/10.2*6.3*9.1inch
Oil Gun Total Length: 40cm/15.8inch
Nozzle Length: 16.5cm/6.5inch
Oil Inlet/Outlet Diameter: 25mm/1inch
Oil Inlet Pipe Length: 2m/6.5ft
Oil Outlet Pipe Length: 4m/13ft

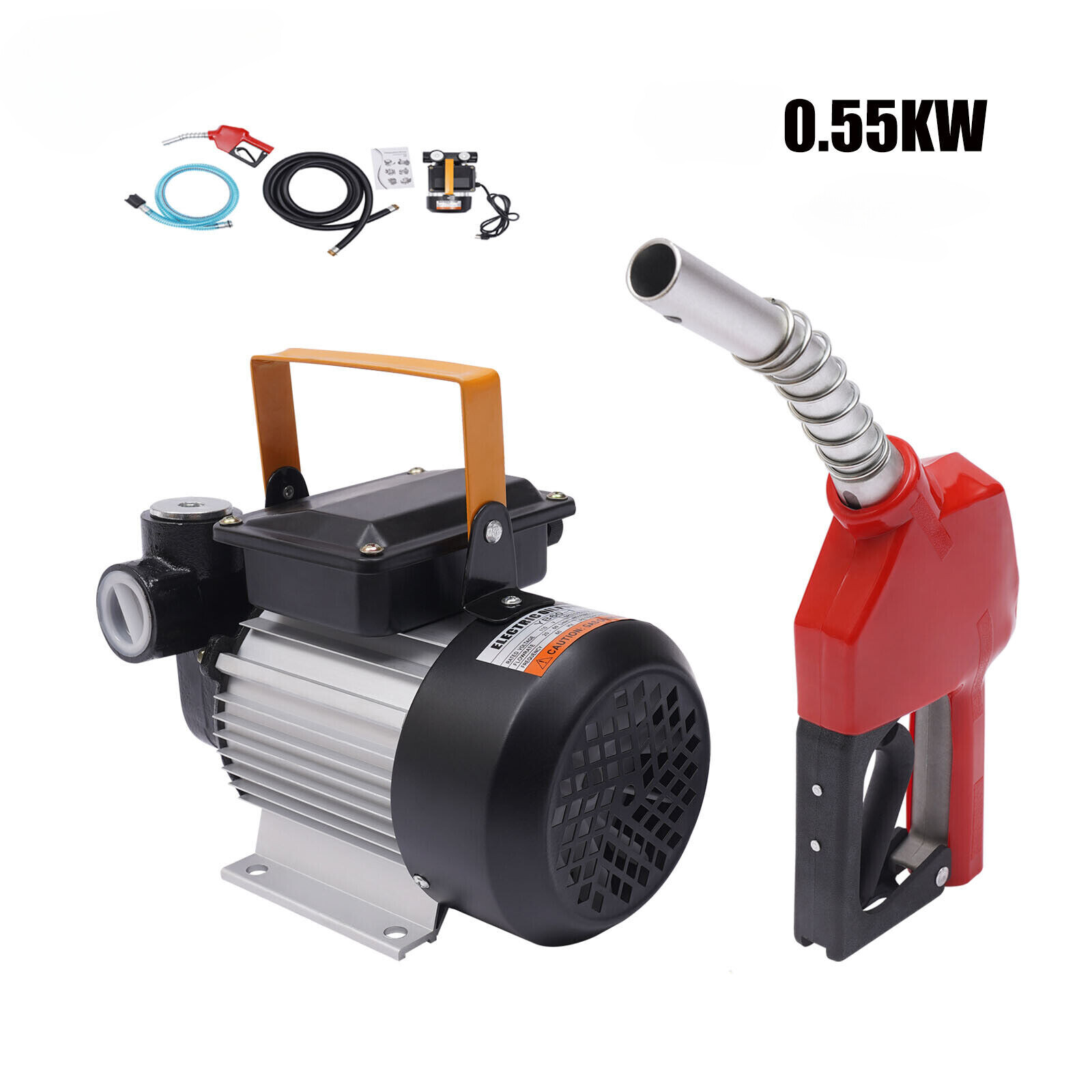

Package Included：
1* Electric Oil Transfer Pump

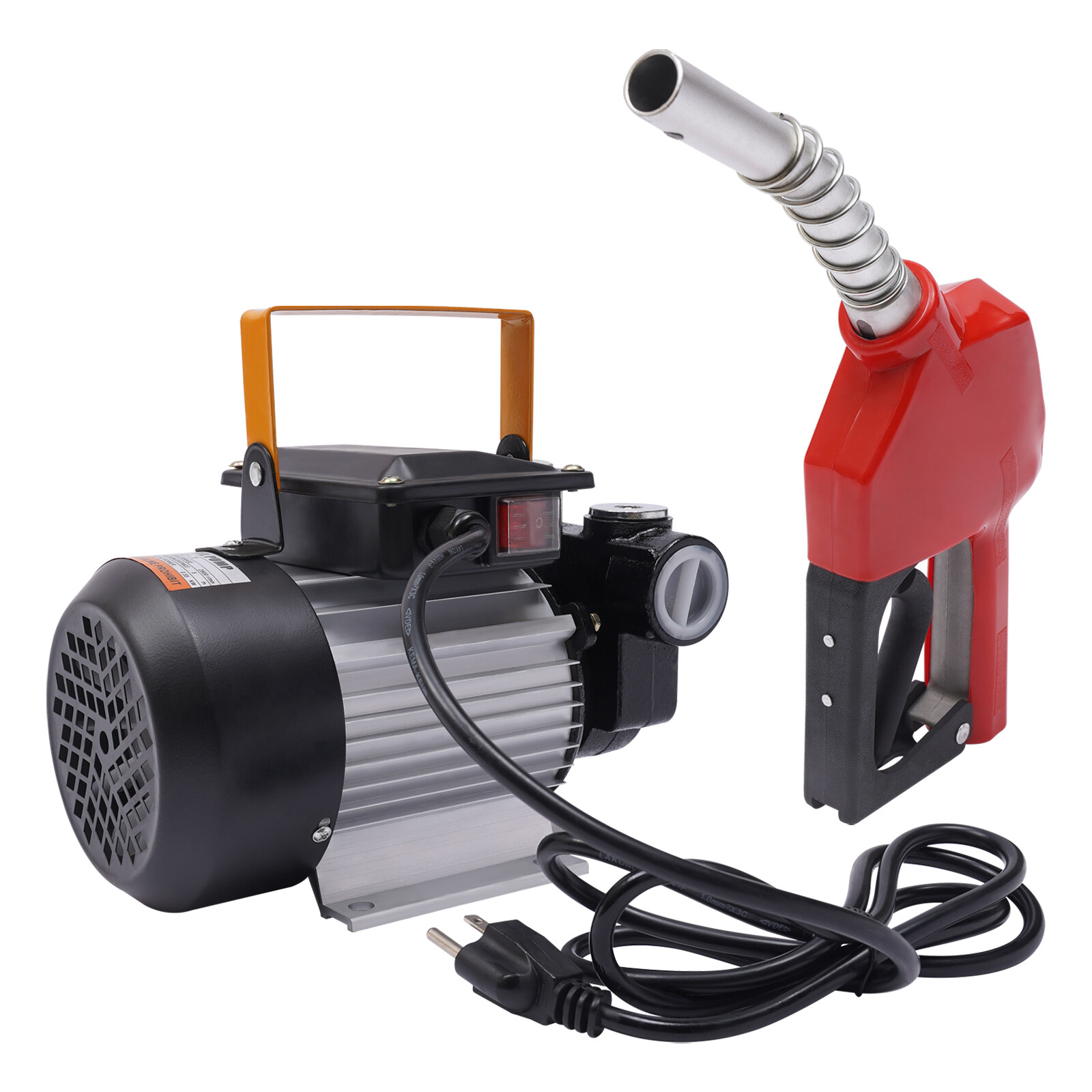

1* Self-sealing Refueling Gun
1* 2m Oil Inlet Pipe
1* 4m Oil Outlet Pipe
1* English Manual
Notes：
Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
