Our materials are Toray T700/T800, better ratio, better design, stronger resin, more scientific stacking, so that our carbon fiber rims have good enough quality!
If you're looking for or looking for carbon fiber wheels, try ours, our rims are competition grade. One day you will look at the wheels on the car and exclaim, "It's been a few years, I can't find a reason to change to a new wheel!"
any question just text me , Welcome bicycle shops to cooperate with us!
- Rim Model: R25 for road bike
- Material: Toray T700 & T800 Premium Carbon Fiber
- Size: 29”/700C (ETRTO 622mm)
- Intended Use: Road
- Bead Type: Clincher

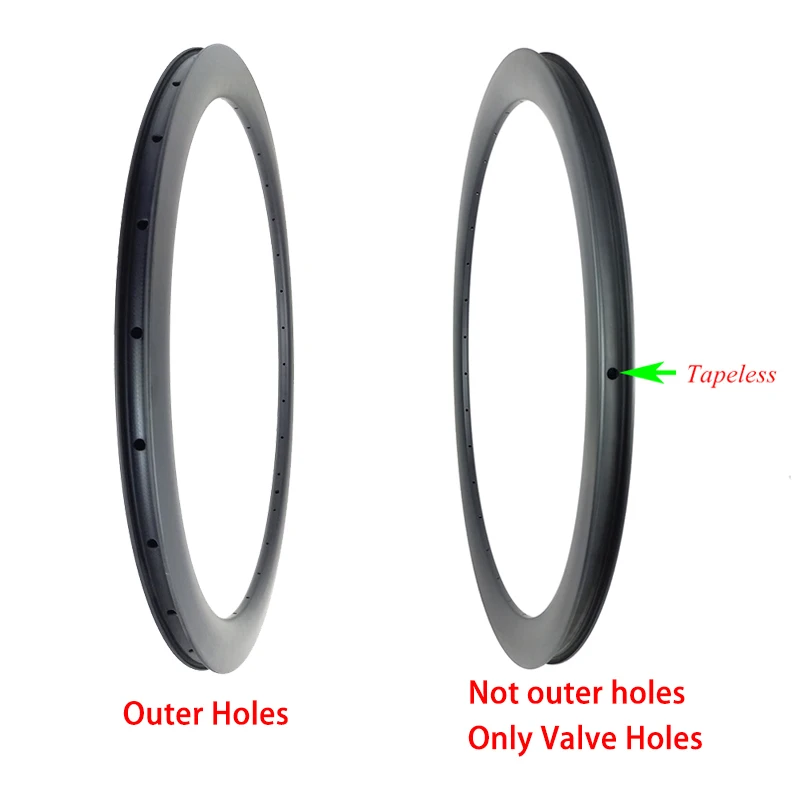

- Tubeless Capable: Yes
- Inner/Outer Width: 18mm/25mm
- Depth: 35/38/45/50/55/60/88mm
- ERD:570mm/564mm/550mm/540mm/530mm/520mm/464mm
- Max Cyclist Weight (on flat ground): 135kg/ 298lbs
- Spoke Hole Angle: ±5°~±8°
- Spoke Tension: 120~135kgf front disc side and rear drive side
- Max Tire Pressure (with 25C): 120psi/ 8.27bar
- Recommended Tire Width: 21C-38C

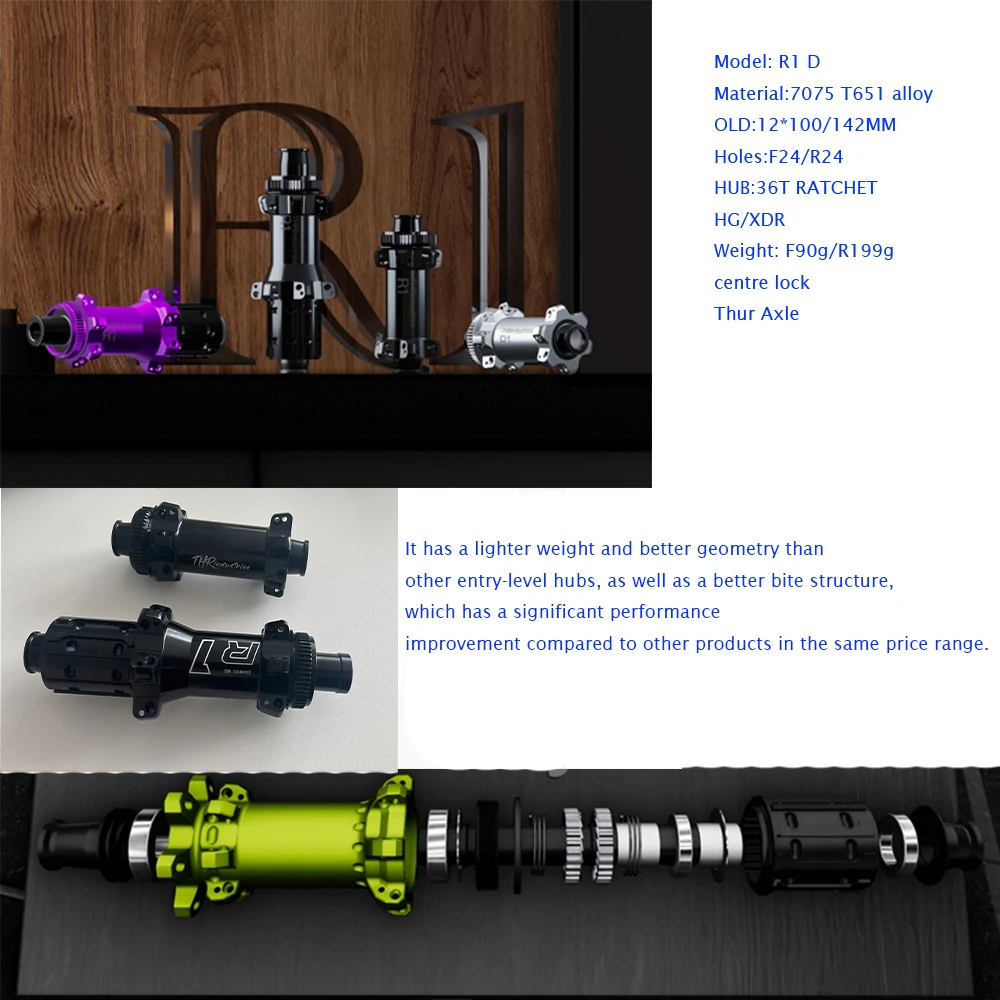

- Hubs:HUb:R1 DISC rachet system only 286g hub black
Other Parts
Leave a note at checkout or contact us if you want spare spokes or nipples.

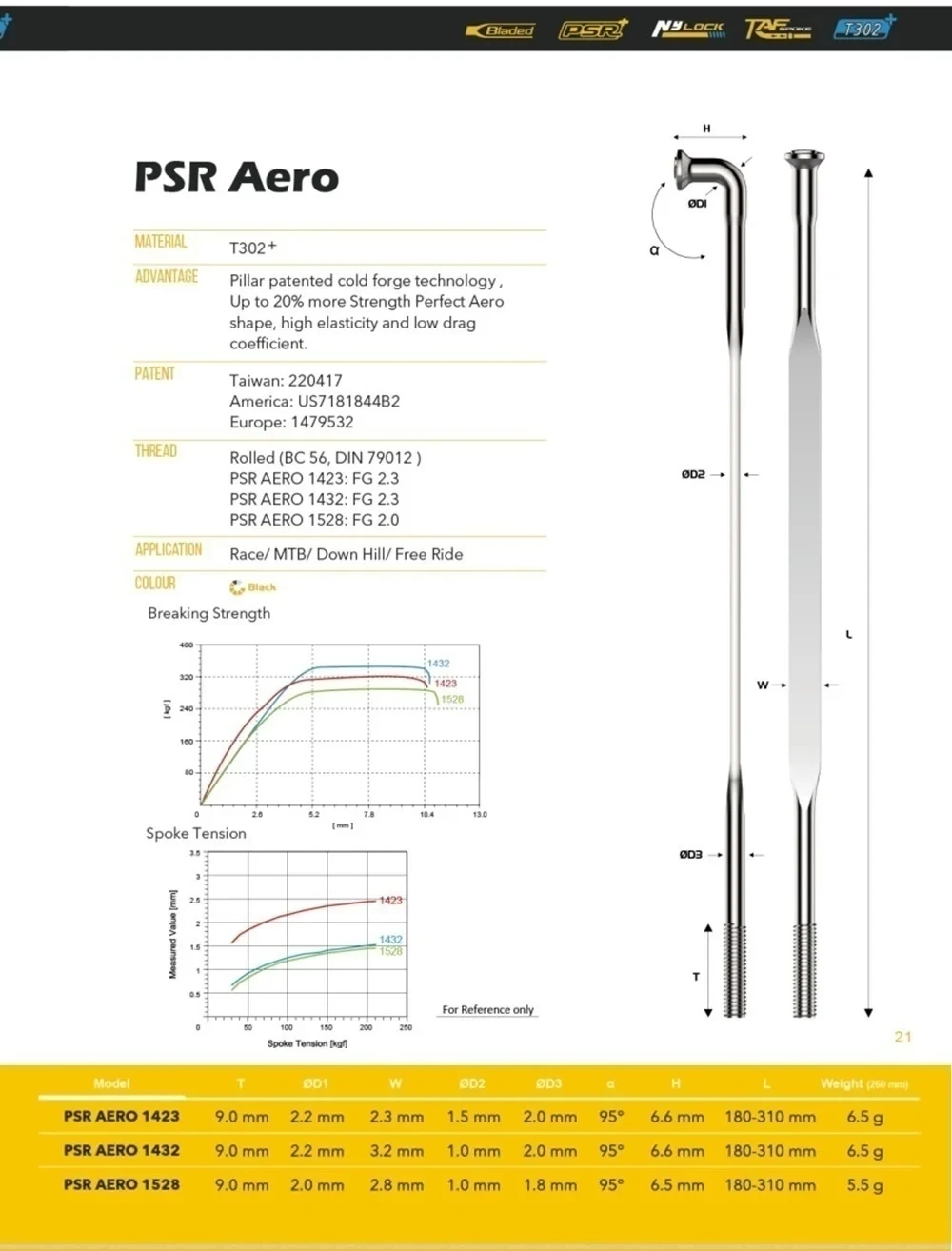

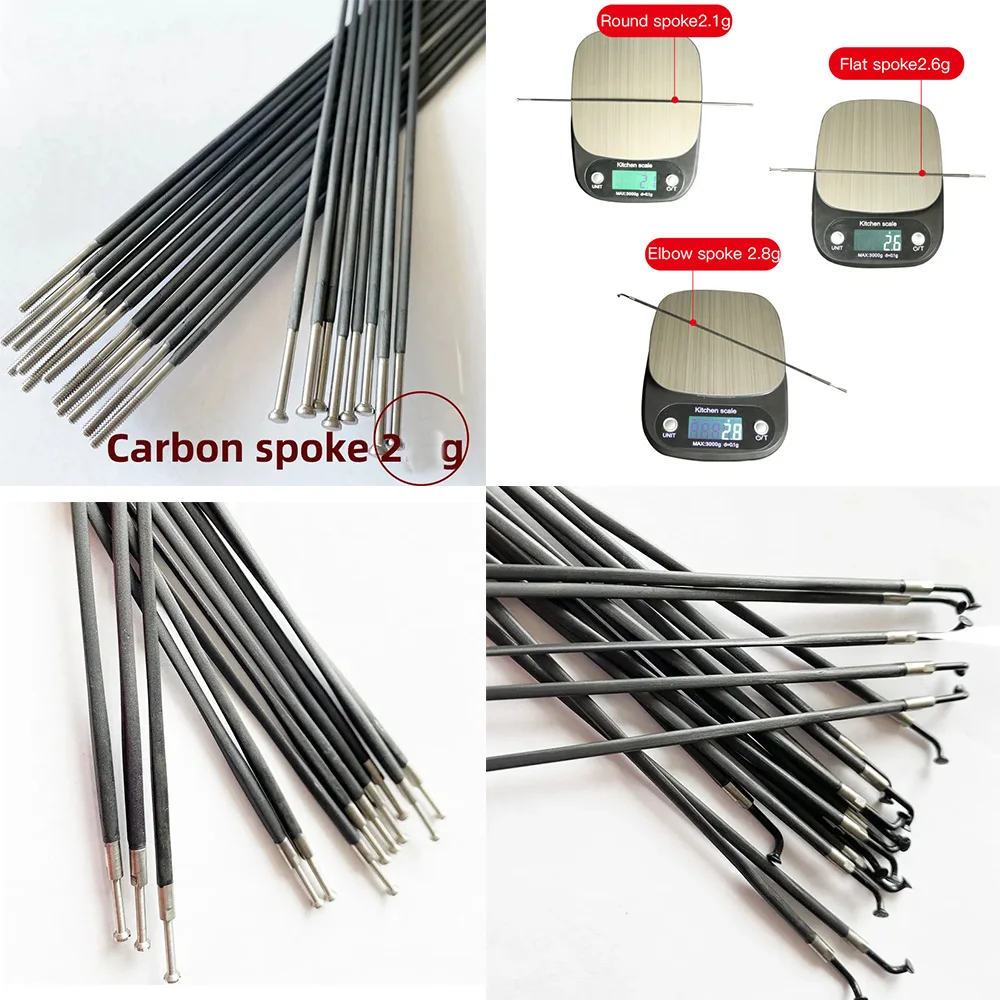

- Spokes: Pillar Aero 1420 (4.3g)MATCH the PREMIUM XL lighter rim, Pillar Aero X-TRA 1423(6.5g) build with STD weight rim

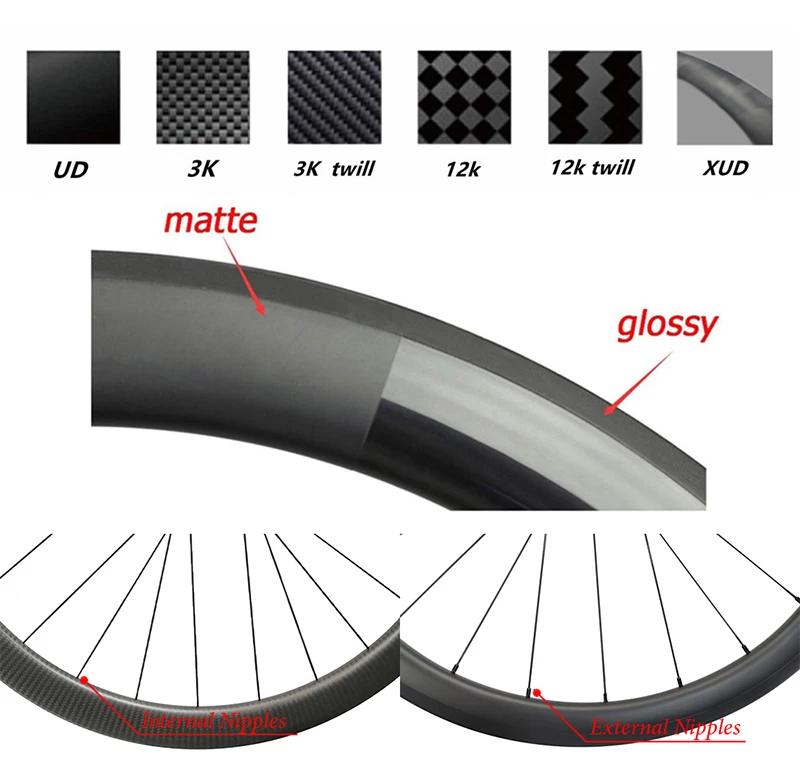

- Nipples: Aluminium Black
Roundness:<0.5mm
Casette body:SHIMANO(XDR avaliable)
Warranty:2 year
Quality control:
All pass EN standard test
Product Details
