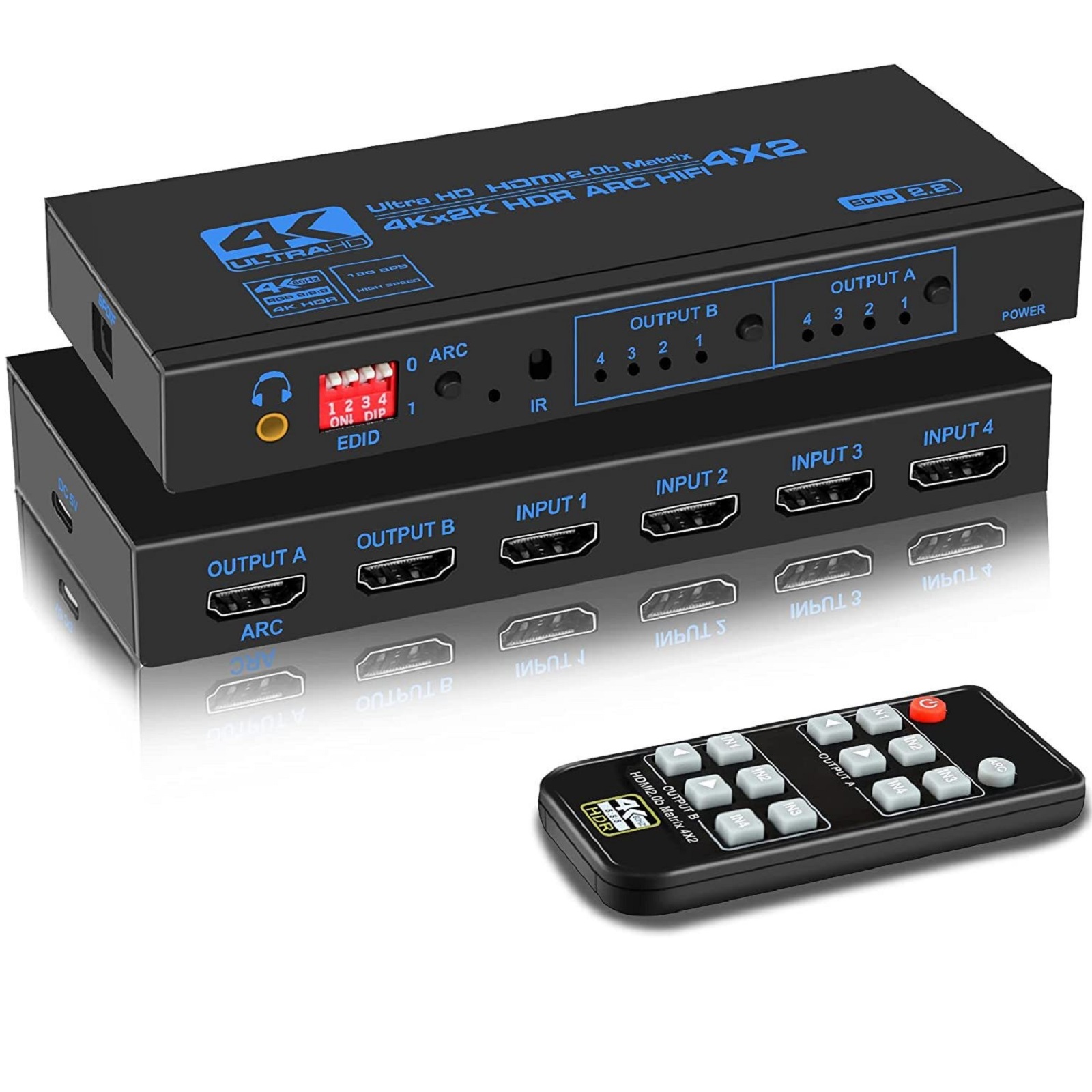

4K 60Hz HDMI Matrix 4x2 With Optical And 3.5mm Stereo Audio Out HDMI Matrix Switcher Splitter 4 In 2 Out Support ARC EDID

Specification:
Supports HDMI 2.0b/HDCP2.2.
Support resolution 3840*2160/60Hz
Support deep color 8/10/12 bit
Support Audio ARC, 5.1CH Audio, EDID mode
Support 4 HDMI inputs, 2 HDMI outputs, 3.5mm jack stereo outputs
Support video format: 8/10/12-bit deep color
Support audio format: LPCM/DTS/Dolby
Maximum bandwidth: 600MHz
Maximum baud rate: 18 Gbps

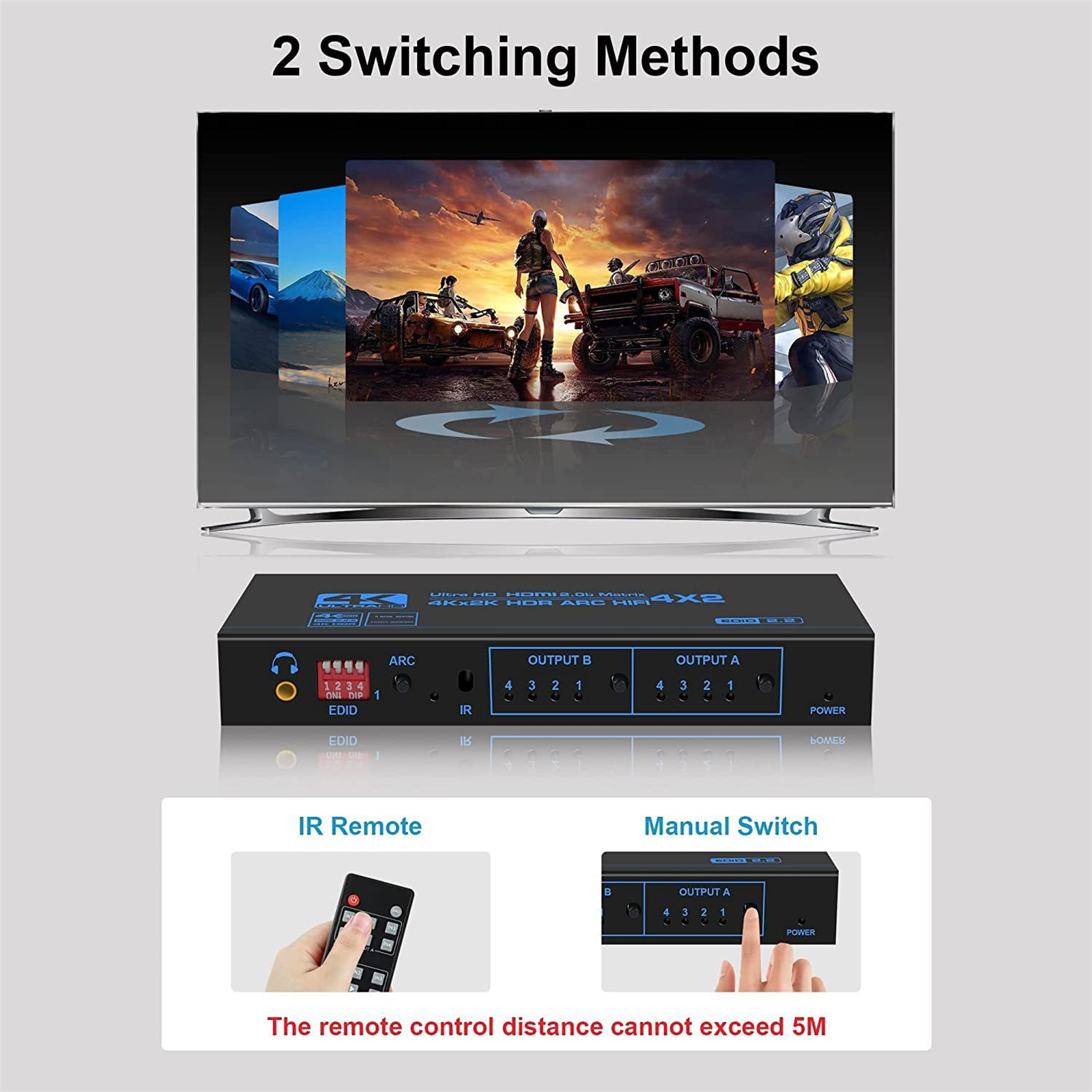

Switching mode: Manual switching and infrared remote control
Input cable distance: 4k ≤ 5m HDMI 2.0 standard cable
Output cable distance: 4k ≤ 5m HDMI 2.0 standard cable
Power supply: DC5V2A(Included 5V Power adapter)

Feature:

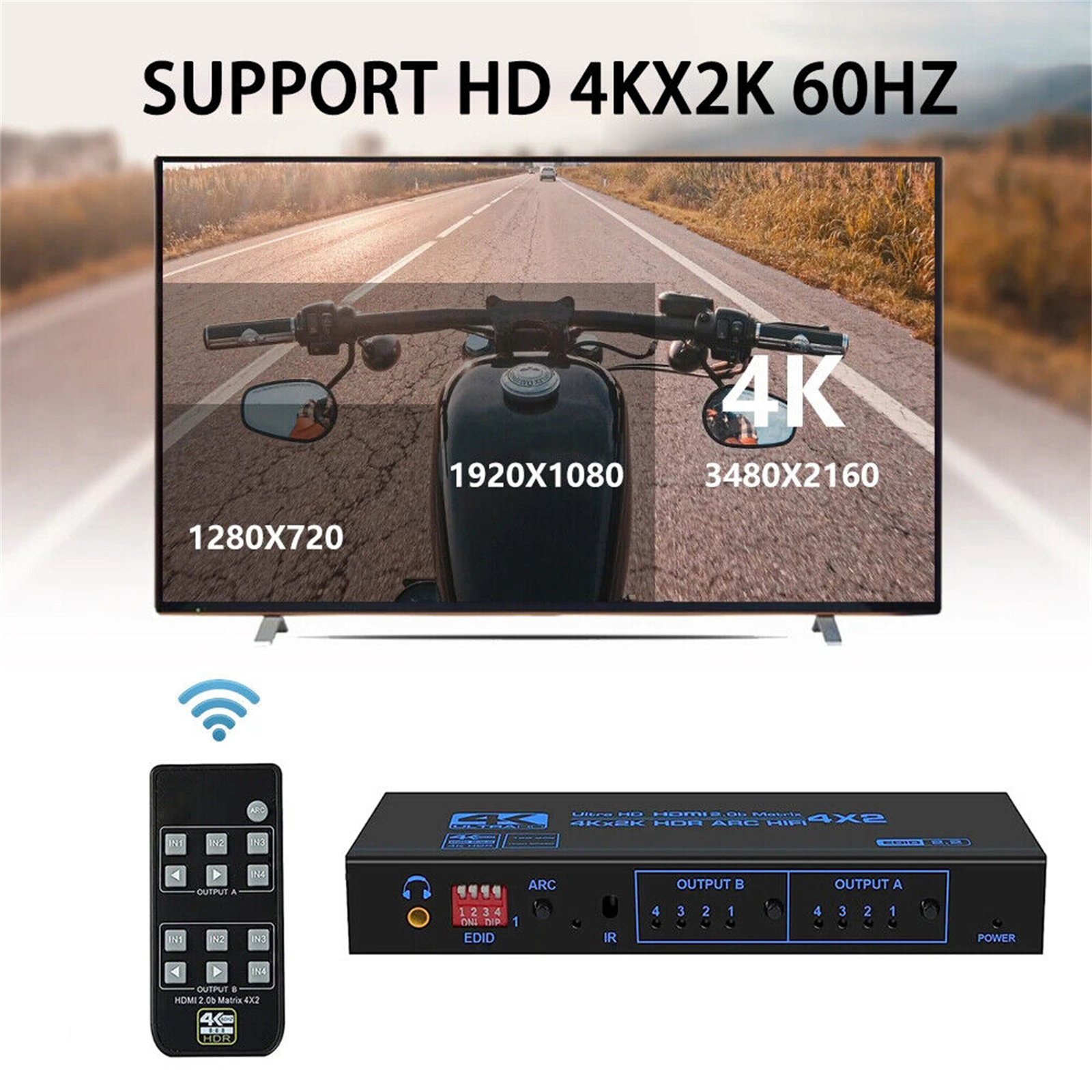

1. 4K@60Hz High Resolution: HDMI 2.0b matrix switch splitter adopt the latest chips, support resolution can up to 4K@60Hz, 1080P, 3D, Support 8/10/12 bit deep color, HDCP 2.2. High Speed transmission rate up to 18Gbps, 600MHz max bandwidth, which brings you smoother, more responsive gameplay experience with a sharper and more realistic picture

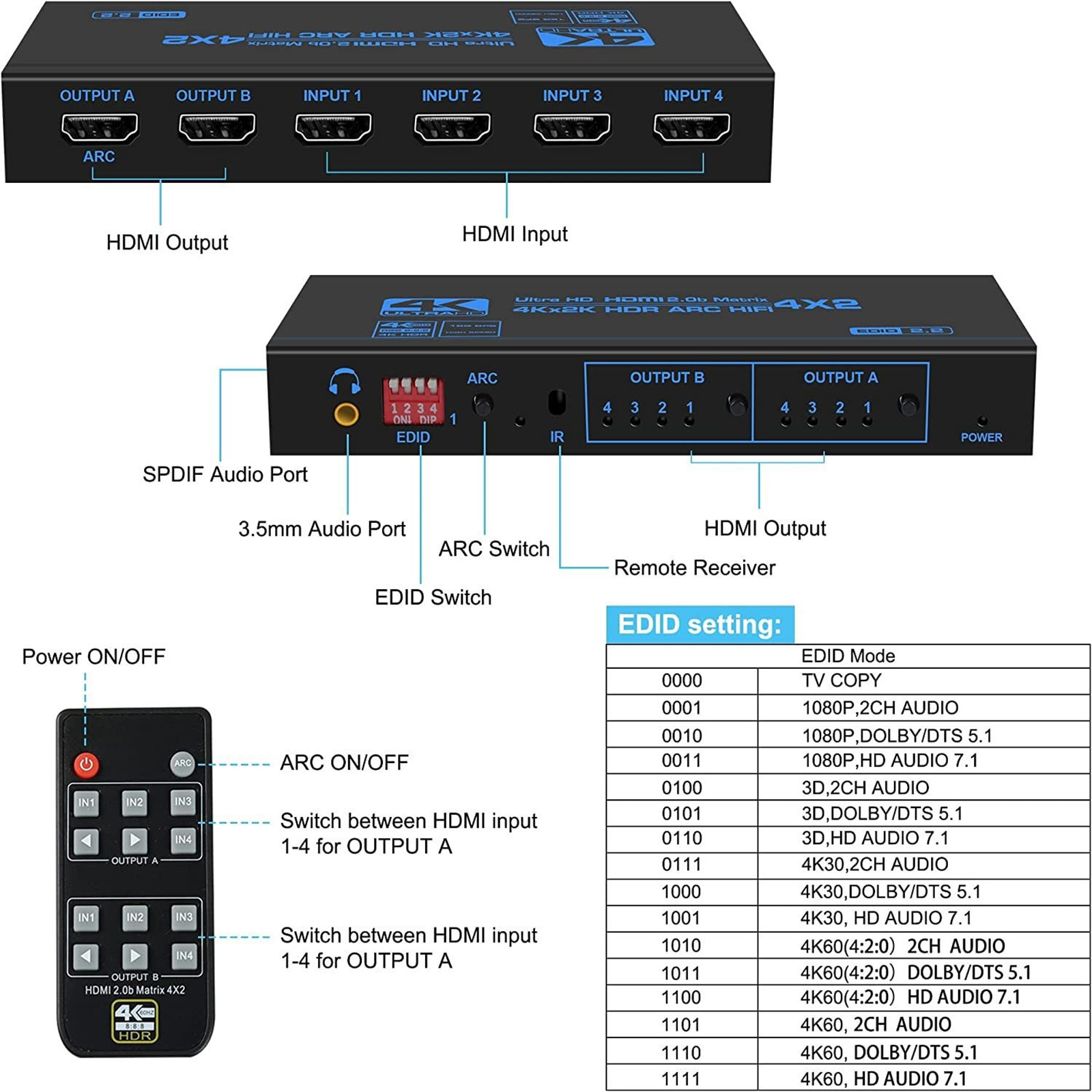

2. Scaler EDID 4K 1080P Synch: Our this 4x2 HDMI matrix switcher support automatic resolution downgrade (only 4K resolution can be automatically reduced to 1080P, other resolutions are not supported), The monitor with 4K and the monitor with 1080P can be displayed at the same time through scaler EDID. NOTE: At the same time, please set the EDID to "0000"

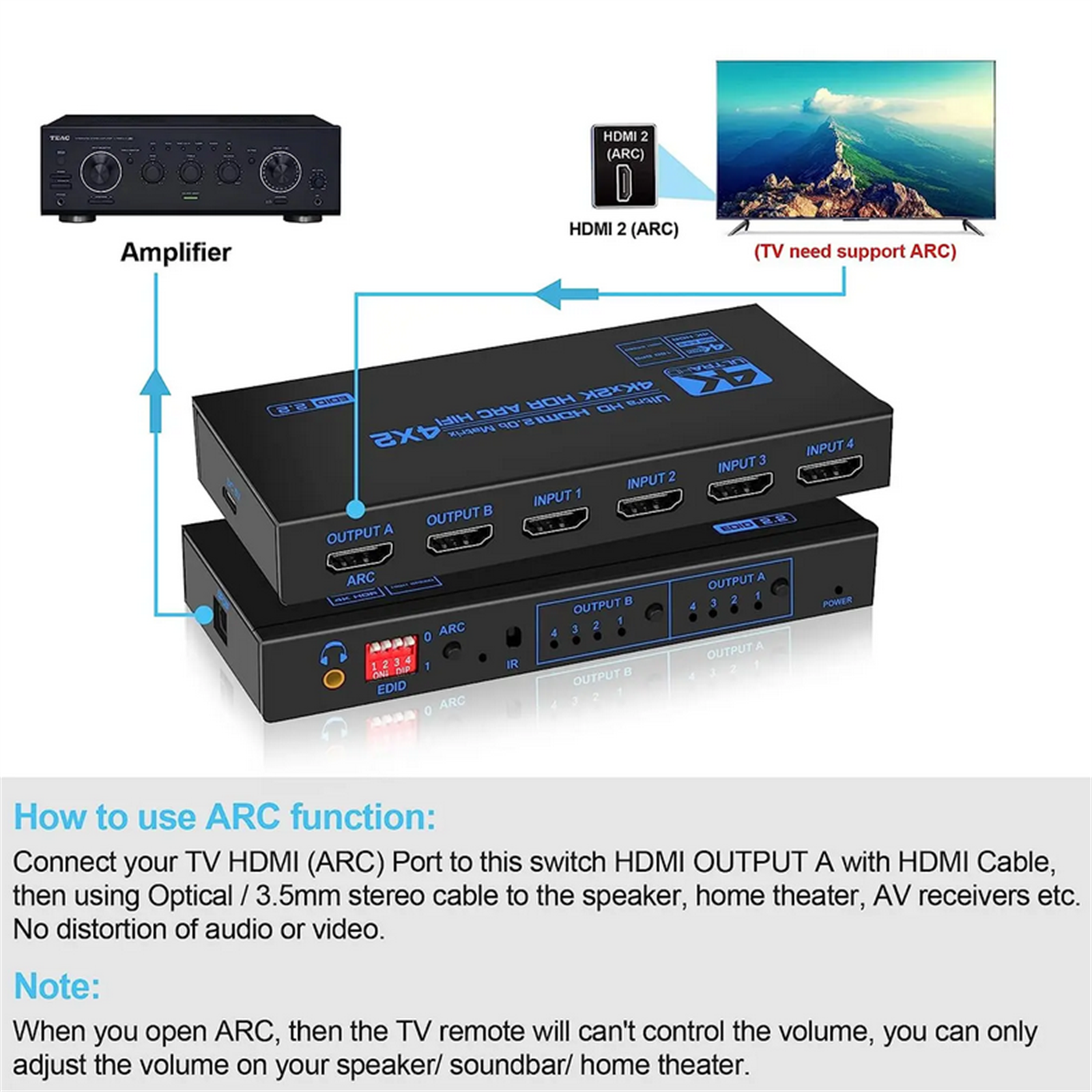

3. Audio Extractor and ARC Function: 4K HDMI matrix switcher 4 in 2 out can extract the audio to Toslinks SPDIF optical audio output or 3.5mm stereo analog audio output separately at the same time, Also support LPCM 2.0/ 5.1, DTS, Dobly Digital and 16 smart EDID managements. Built-in automatic equalization and amplification to ensure optimum transmission without loss in video audio quality. (Only HDMI OUTPUT A port support ARC audio return channel function.)

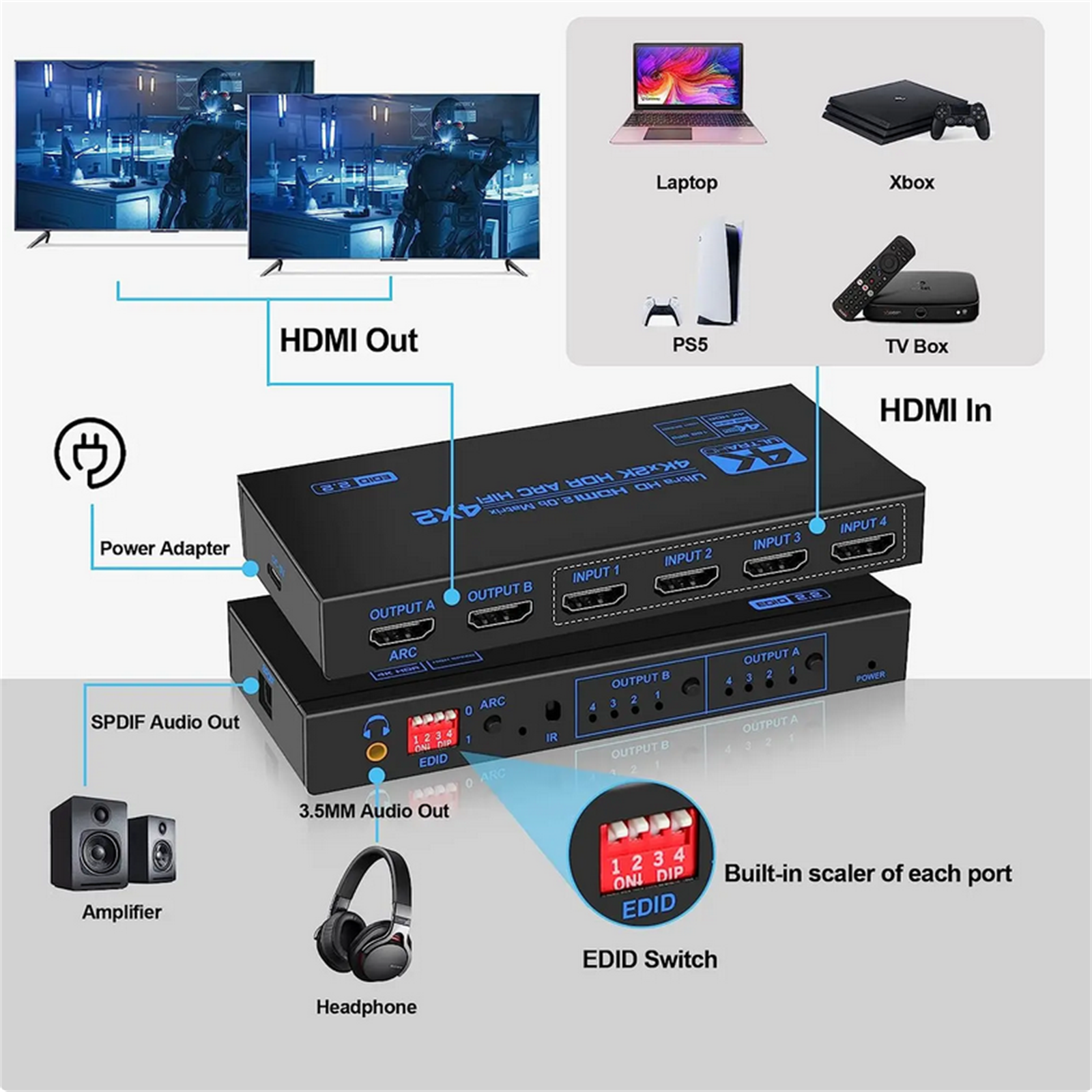

4. Upgrade 4 In 2 Out HDMI Matrix: This 4K 60Hz HDMI matrix 4x2 allows easy switching 4 HDMI input sources to 2 HDMI display or monitor via optical fiber or 3.5mm stereo audio output. HDMI input support: for DVD, for Blu-ray players, for PS4, for PS5, for X box, for HD players, for TV box, for PC, Laptop, for Apple TV, for Fire Stick, for Roku, etc. HDMI output support: Monitor, Projector, Full HD TV. Audio output: Amplifier, Soundbar, Speaker, etc. Can be widely used in office, school, home theater, museum, hotel or shopping mall

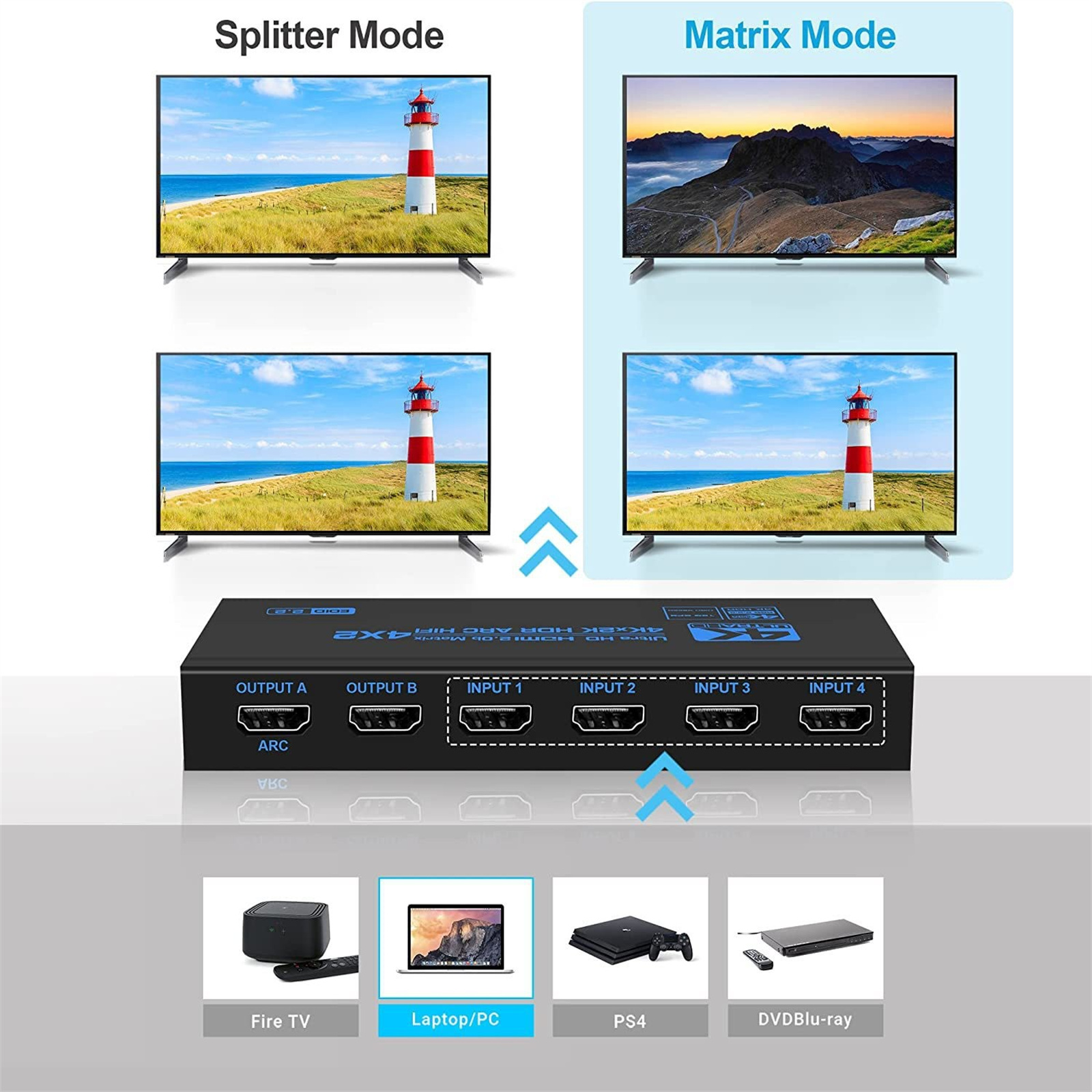

Note: This is HDMI matrix switch, which is just a bypass switch. Different picture outputs come from different signal sources. This product does not support expansion mode.

Warning: Button/coin batteries can cause severe injuries when swallowed. Keep batteries out of reach of children. If you suspect a child has swallowed or inserted a button/coin battery, seek medical attention immediately.

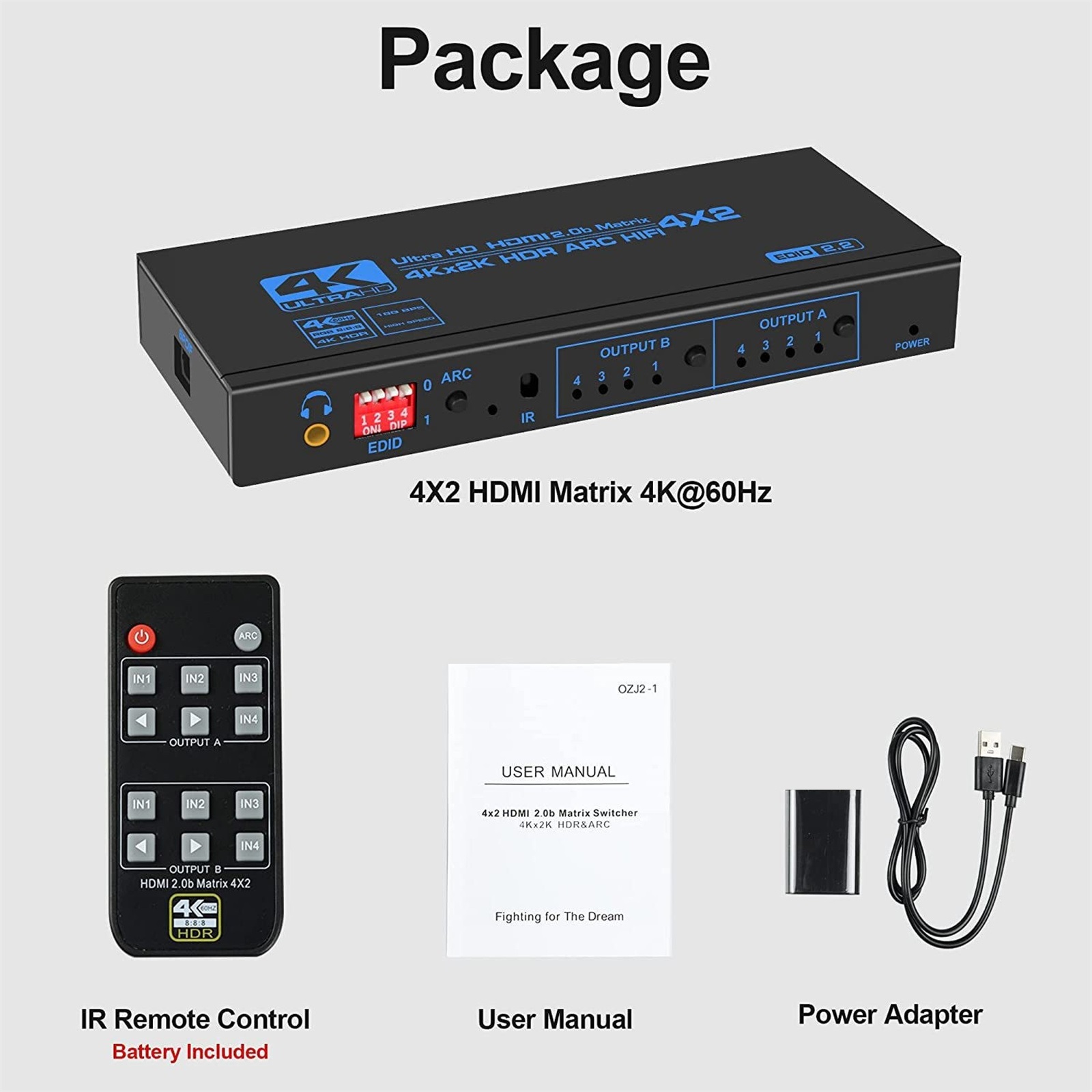

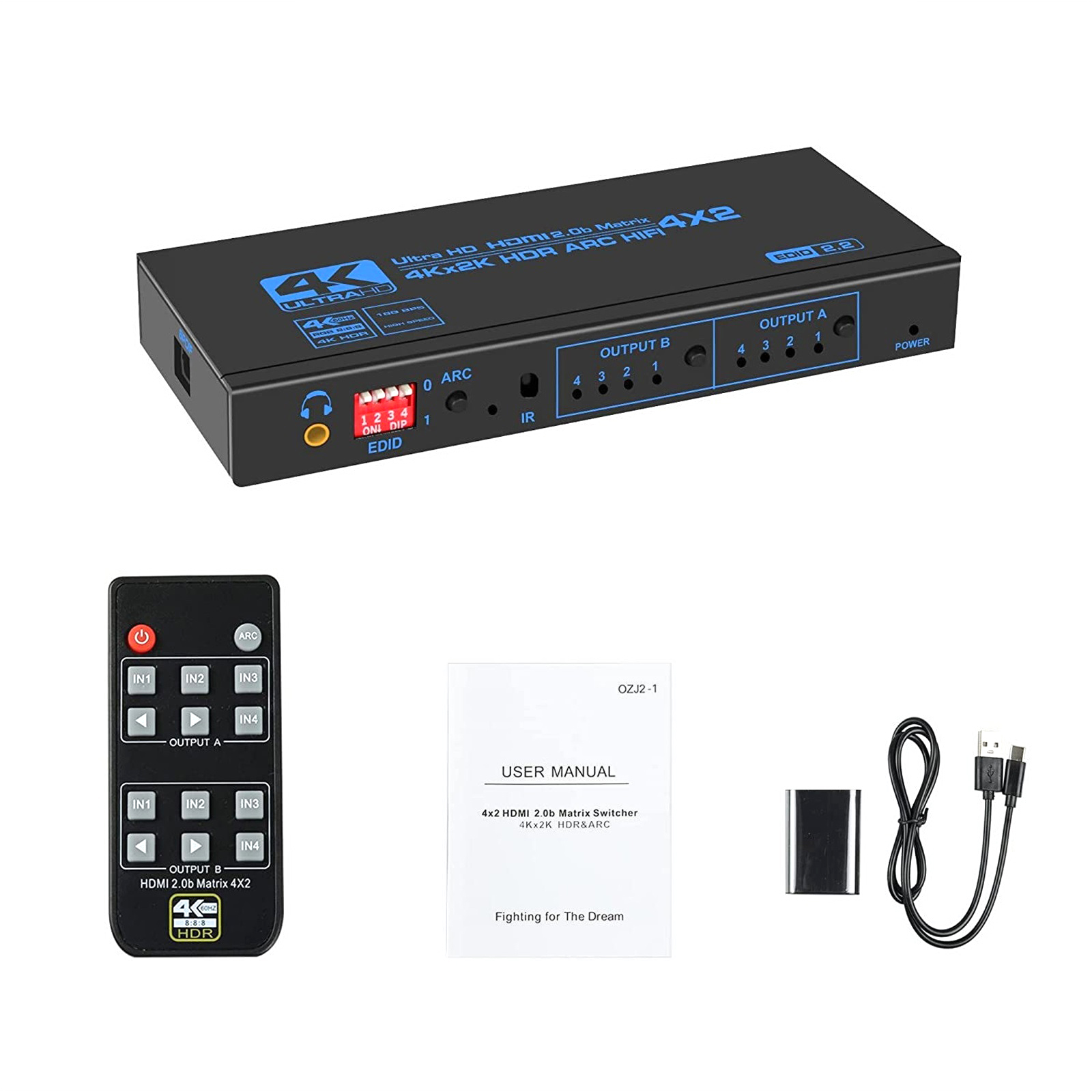

Product List:
1* HDMI matrix switch
1* Remote control (including 1* CR2025 battery)
1* 5V Power adapter
1* Power cable
1* User's manual
