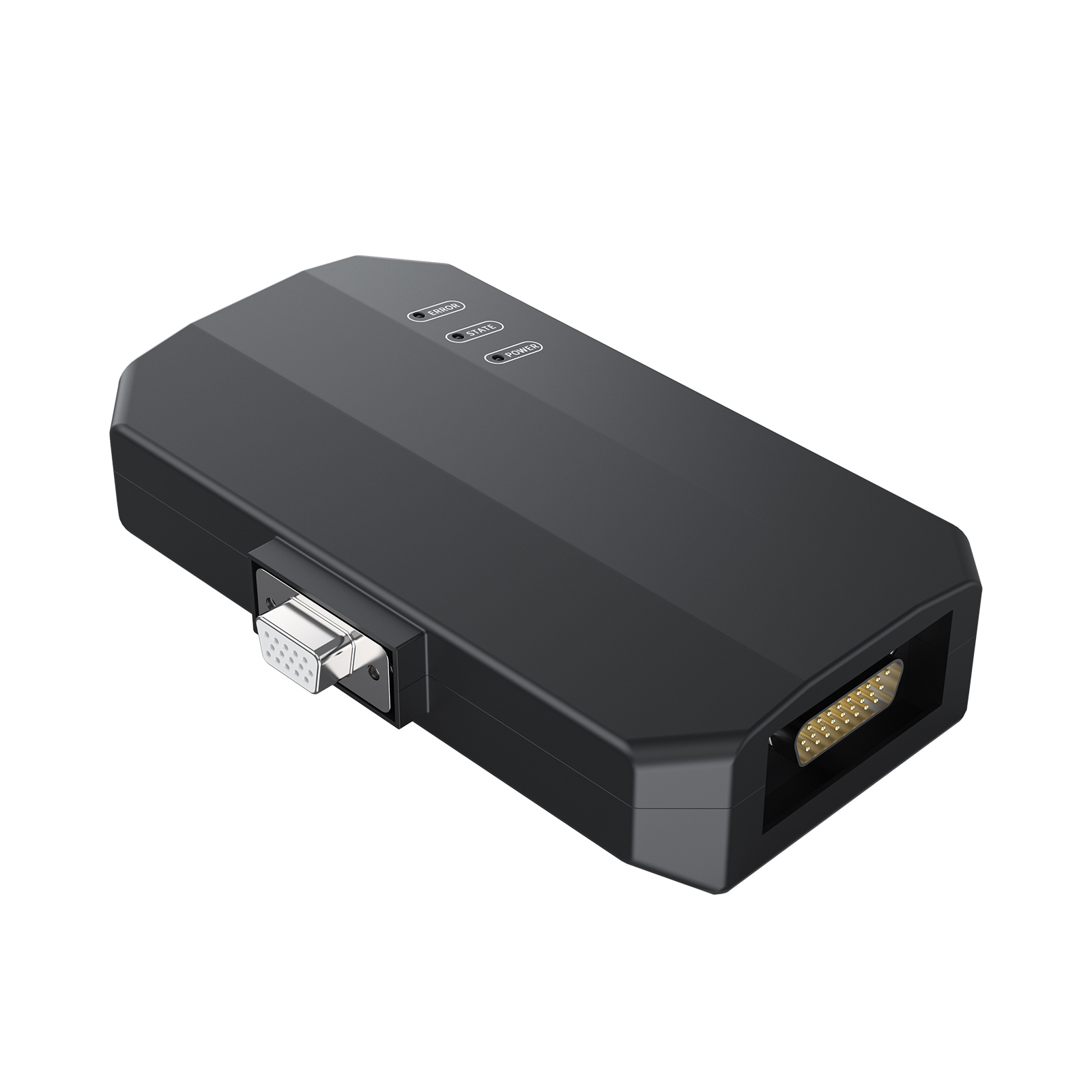

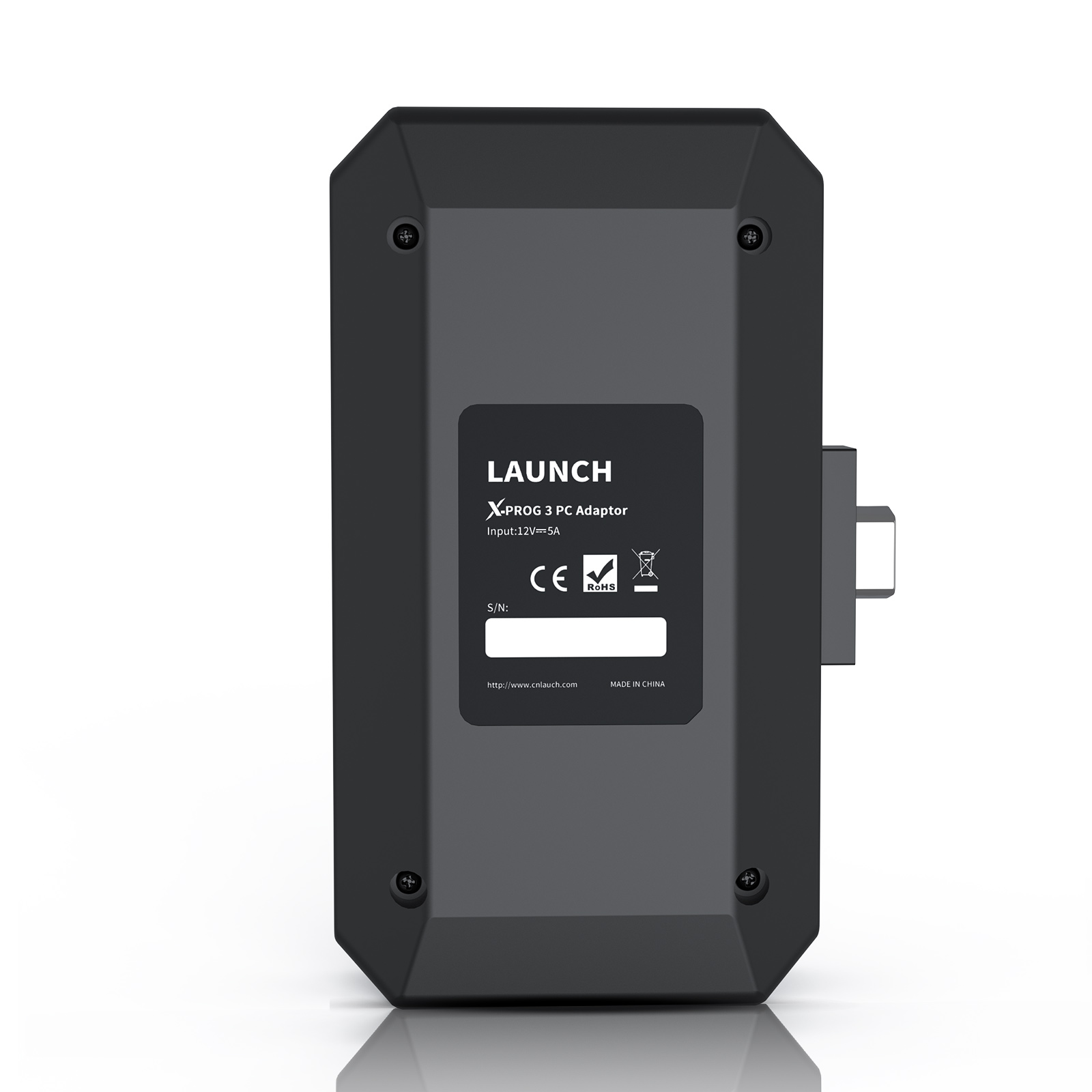

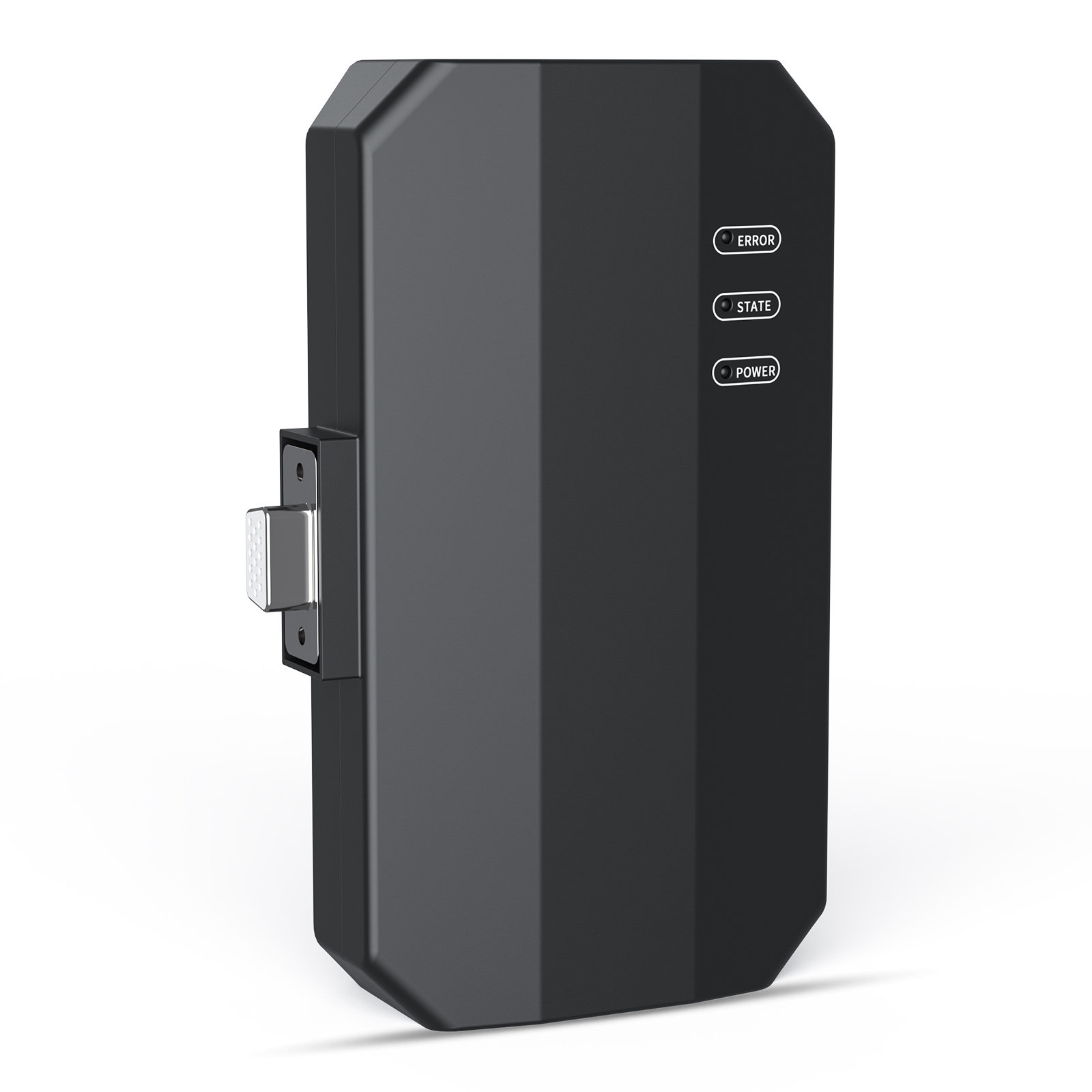

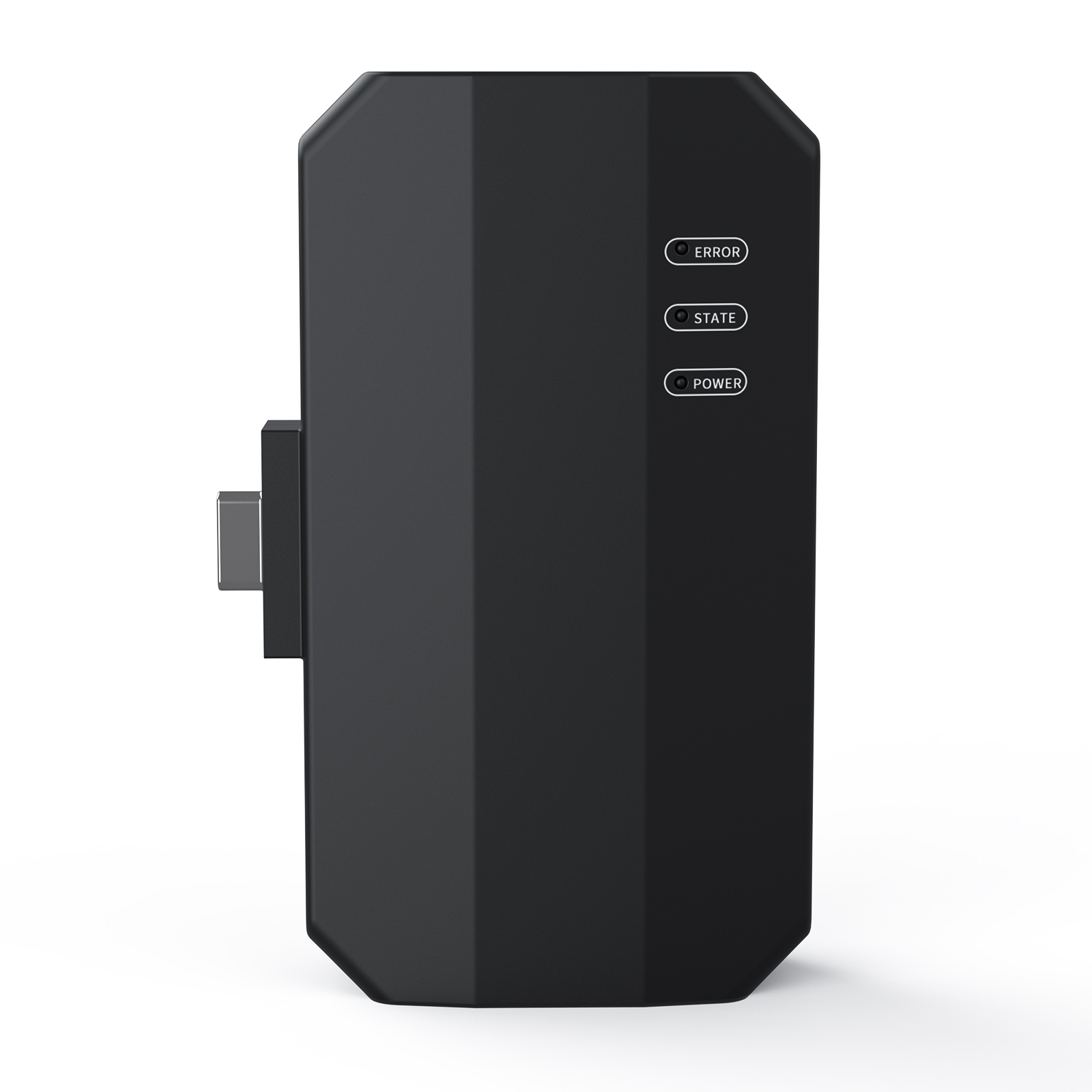

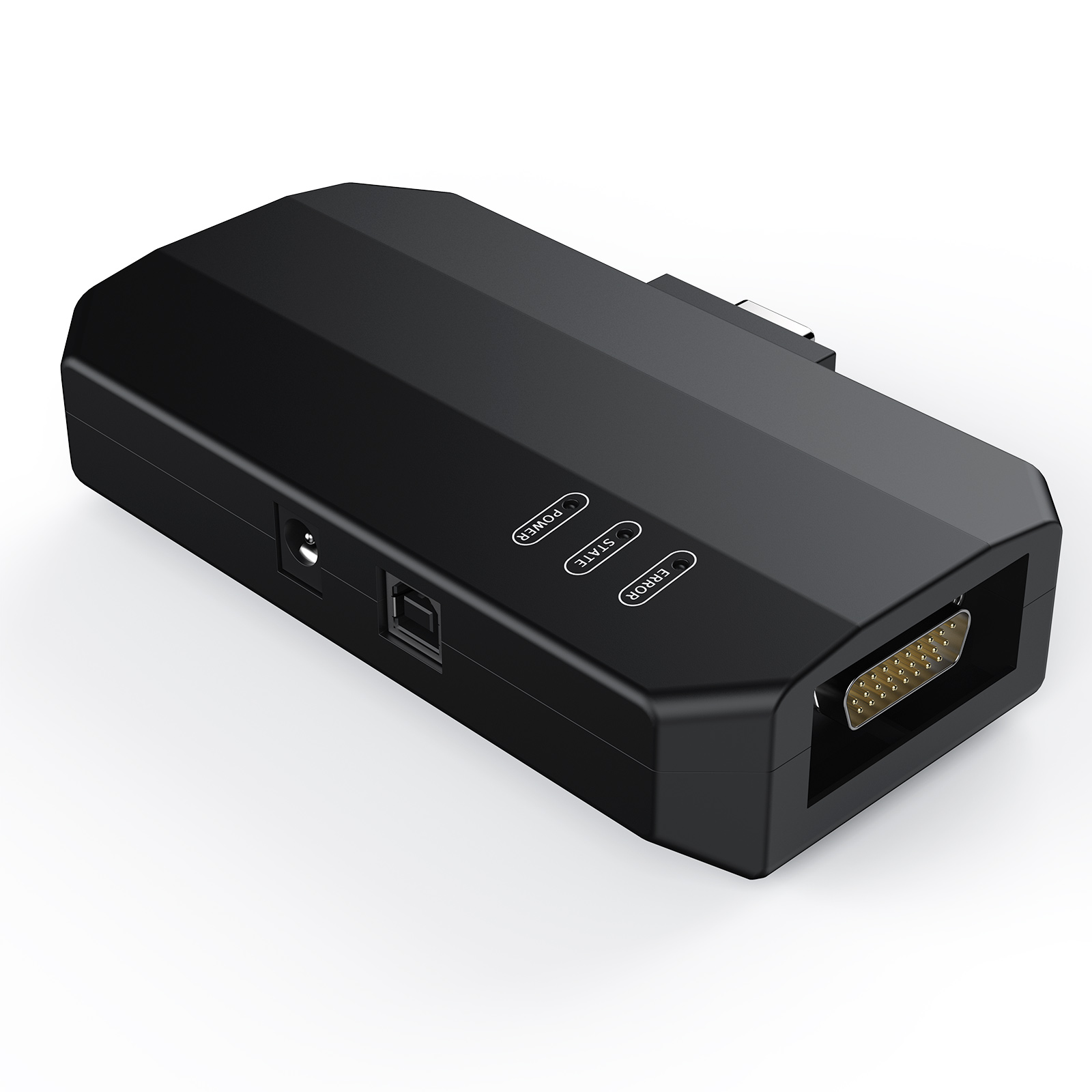

Launch X431 I-MMO Prog-rammer X-PRO G3 PC Adaptor Overseas Online Configuration


Product Features:

1. Used in conjunction with X-PROG3 anti lift matching Progarmmer

2. 2D menu, clear and easy to choose

3. Powerful search function

4. Convenient modification of E-C-U data

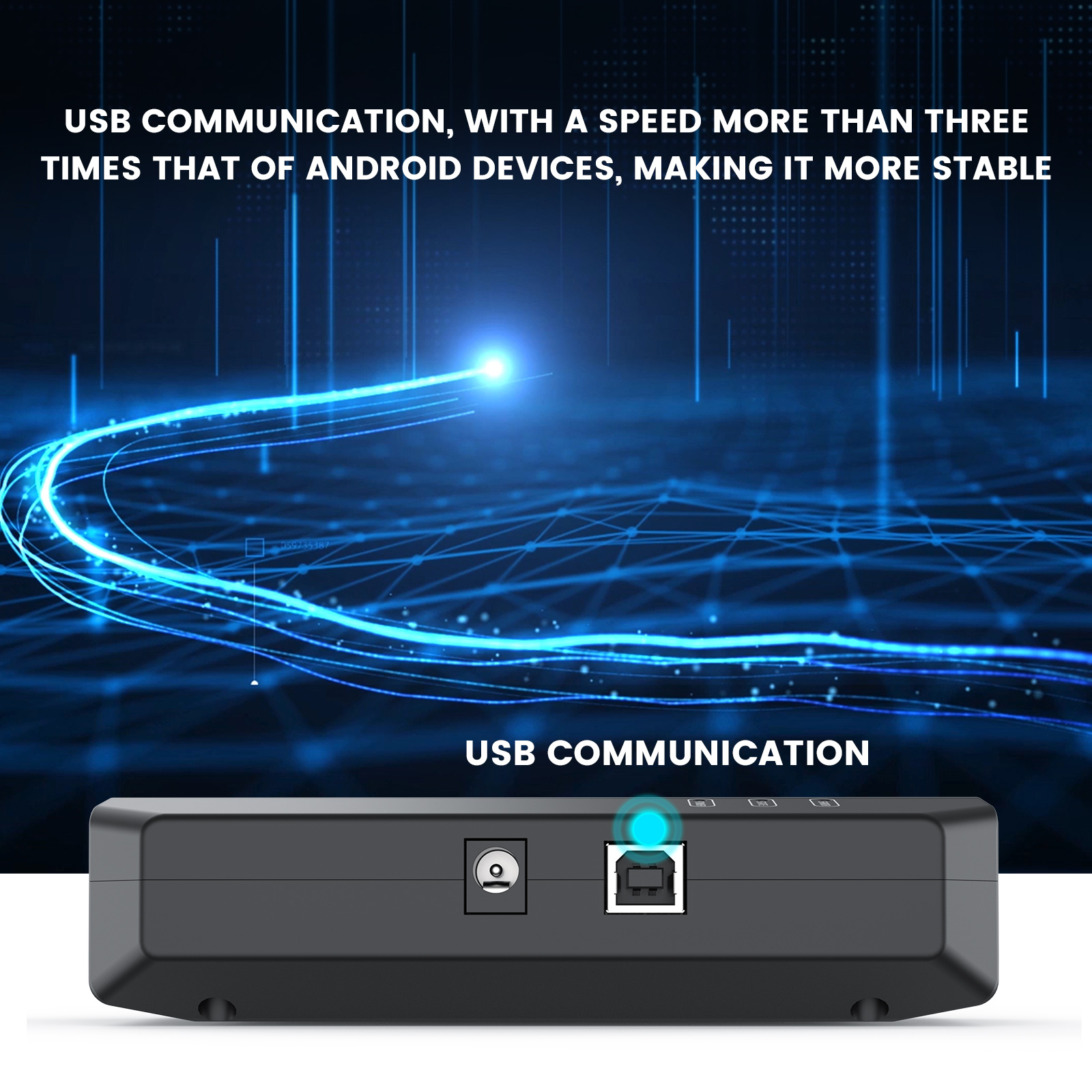

5. USB communication, with a speed more than three times that of Android devices, making it more stable

6. Easy to copy data

7. Support engine data validation function

8. 1 year of free update online, after that, the renewal fee is 249USD/year.

9. Global version, No IP limitation.

*Make sure you buy the GL version of PC adapter, otherwise it has IP limitation.

NOTE: A X-prog3 can only bind with one PC adapter only !!!


Software download link: Download on the official website


Software language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese

Select the corresponding language setup to install.

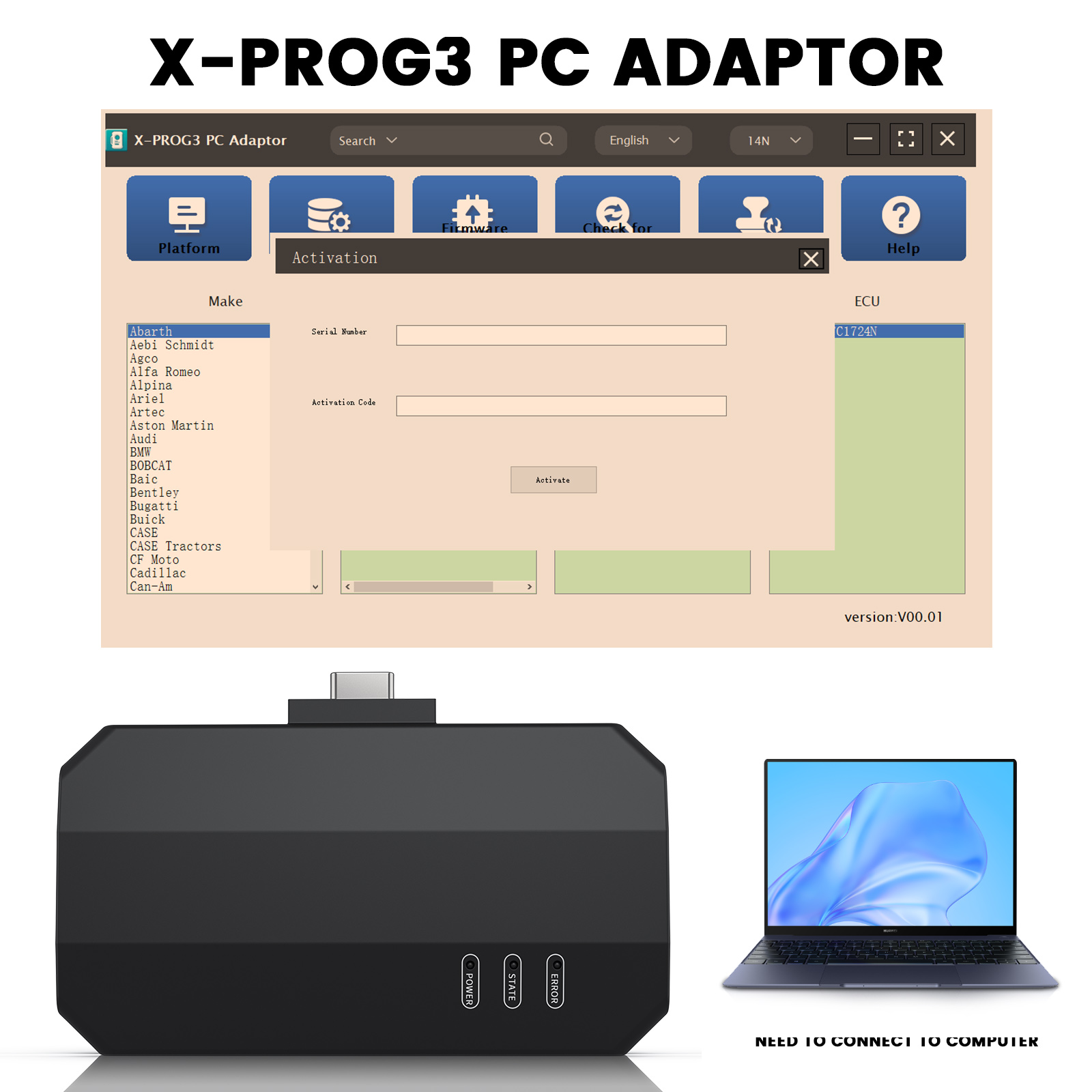

PC Software Interface Description:

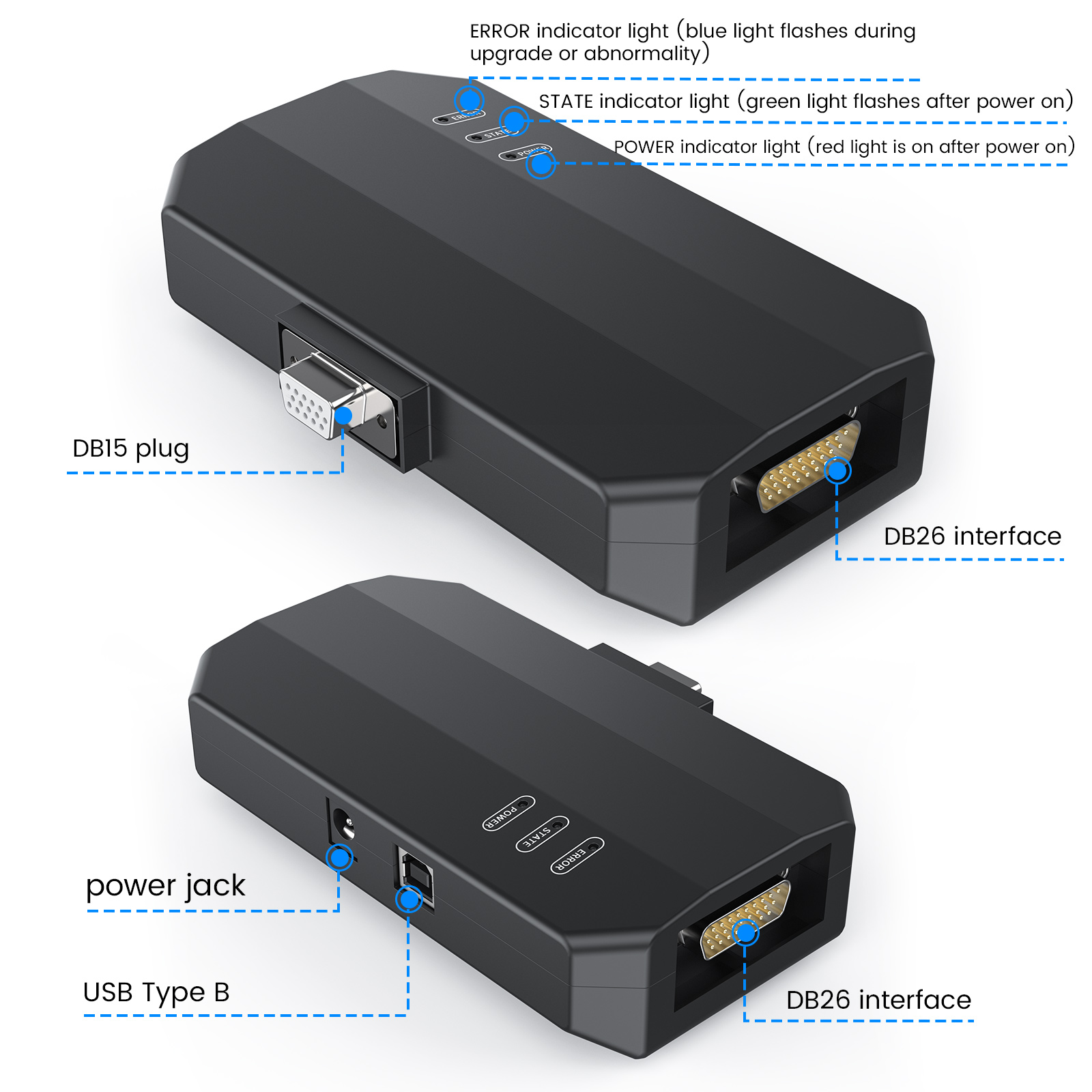

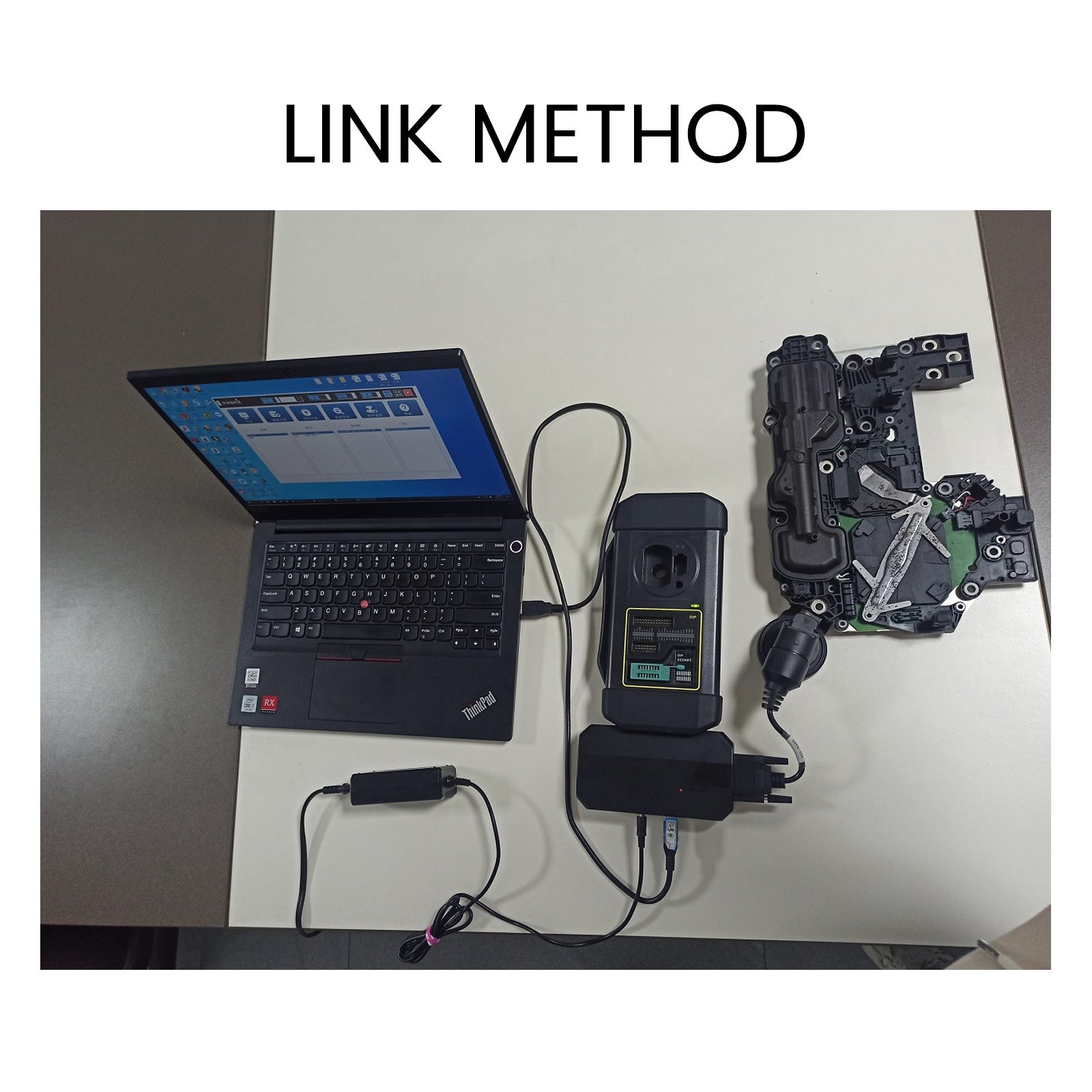

Firstly, connect the X-PRO G3 PC ADAPTOR to the computer using a cable, and then connect the X-PROG3 PC ADAPTOR to G3. Secondly, click to enter the software (without connecting the X-PROG3 PC ADAPTOR and G3, the software cannot be accessed). The serial number will be automatically recognized from the X-PROG3 PC ADAPTOR. The activation code needs to be obtained from the envelope of the X-PROG3 PC ADAPTOR. Thirdly, click [Activation] (only once,    no need to activate it again later), as shown in Figure 1




I.E-C-U Data Reading/Writing


1. Obtain the related E-C-U.

(1) Method 1: Obtain the desired E-C-U type through brand > model > engine > E-C-U in turn, as shown in Figure 2.




(2) Method 2: Query the desired E-C-U by entering a value in the search box. The search categories include brand, Bo-sch number and E-C-U type. For example, search for the MED17.5.25 engine by E-C-U type, as shown in Figure 3.


2. Click [Straight Connection Line Diagram] to obtain the E-C-U connection diagram, as shown in Figure 4.



3. Connection: Connect the E-C-U and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 5, and the physical connection diagram using the gearbox adapter is shown in Figure 6.





4. Read the chip ID, as shown in Figure 7.



5. Back up the EEPROM data and save it, as shown in Figure 8 (the figure shows the save page of the read data).





6. Back up the FLASH data and save it, as shown in Figure 9 (the figure shows the process of reading FLASH data).



7. Restore EEPROM/FLASH data, as shown in Figure 10 (the figure shows the file selection page).





II. Data Processing

1. Click the [Data Processing] button on the main page, as shown in Figure 11, and select [Imm0bilizer Shutoff and File Checkout] [Data Cloning] process for Vol/kswa/gen series and Porsche engine data, as shown in Figure 12.




2. File verification and anti-theft shutdown (process: select file > connect network to obtain > save file), as shown in Figure 13.





Support list June 2023:

E-C-U Name

E-C-U Type

E-C-U Brand

G3

FLEX

EDC16XX

ECM

Bo-sch

Support

Support

EDC17XX

ECM

Bo-sch

Support

Support

MD1CSXXX

ECM

Bo-sch

Support

Support

MD1CPXXX

ECM

Bo-sch

Support

Support

ME17.X.X

ECM

Bo-sch

Support

Support

MED17.X.X

ECM

Bo-sch

Support

Support

MED9.X.X

ECM

Bo-sch

Support

Support

MEV17.X.X

ECM

Bo-sch

Support

Support

MEVD17.X.X

ECM

Bo-sch

Support

Support

MG1CSXXX

ECM

Bo-sch

Support

Support

MG1CPXXX

ECM

Bo-sch

Support

Support

MSDXX

ECM

CONTINENTAL/SIEMENS

Support

Support

MSVXX

ECM

CONTINENTAL/SIEMENS

Support

Support

SDIX

ECM

Continental

Support

Support

GM EXX/TXX

ECM

DELCO

Support

Support

SIM271XX

ECM

Continental

Support

Support

SIMOS12.X

ECM

Continental

Not support

Support

SIMOS8.X

ECM

Continental

Support

Support

SIMOS-PCR2.X

ECM

Continental

Not support

Support

6HPXX

TCM

ZF

Support

Support

8HPXX

TCM

ZF

Support

Support

7DCT300

TCM

ZF

Support

Support

9G Tronic

TCM

Bo-sch

Support

Support

ALXXX

TCM

ZF

Support

Support

TCXX

TCM

Bo-sch

Support

Support

DPS6/DC4

TCM

GETRAG

Support

Support

DKG

TCM

GETRAG

Support

Support

DLXXX

TCM

Temic

Support

Support

DQXXX

TCM

Temic

Support

Support

MPS6

TCM

GETRAG

Support

Support

SPS6

TCM

GETRAG

Support

Support

VGSX

TCM

GETRAG

Support

Support

VL381

TCM

Temic

Support

Support

GM 6TXX/6LXX

TCM

DELCO

Support

Support

MEDG17.9.8

TCM

Bo-sch

Support

Support

MEG17.9.2

TCM

Bo-sch

Support

Support


Optional adapter accessories(Not included in the package):


Accessory
Name

Material
code

function


1

X-PROG3 Adapter Cable 1 (DQ200XX)

307110077

Used to connect the DQ200XX gearbox, and available models include For V-W, For Audi, etc.



2

X-PROG3 Adapter Cable 2 (VL381)

307110078

Used to connect the VL381 gearbox, and available models include For V-W, For Audi, etc.

3

X-PROG3 Adapter Cable 3 (DQ380)

307110079

Used to connect the DQ380/DQ381/DQ500 gearbox, and available models include For V-W,For  Audi, etc.

4

X-PROG3 Adapter Cable 4 (DQ250)

307110080

Used to connect the DQ250 gearbox, and available models include For V-W, For Audi, etc.

5

X-PROG3 Adapter Cable 5 (DL501)

307110081

Used to connect the DL501XX gearbox, and available models include For V-W,For Audi, For Porsche, etc.

6

X-PROG3 Adapter Cable 6 (DL382)

307110082

Used to connect the DL382 gearbox, and available models include For V-W,For  Audi, etc.

7

X-PROG3 Adapter Cable 7 (VGS-NAG3)

307110083

Used to connect the VGS-NAG3 gearbox, and available models include For Benz, For Nissan, etc.

8

X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)

307110084

Used to connect the VGS-FDCT/VGS2-FDCT gearbox, and available models include For Benz, For Infiniti, etc.

9

X-PROG3 Adapter Cable 9 (VGS3-NAG2)

307110085

Used to connect the VGS3-NAG2 gearbox, and available models include For Benz, etc.

10

X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)

307110086

Used to connect the 8HPXX/AL450/AL551/AL552 gearbox, and available models include For BMW, For Land Rover, For Jaguar, For Dodge, For Alpina, For Chrysler, For Rolls Royce, For Alfa Romeo, For Aston Martin, For Great Wall, For Jeep, For Lamborghini, For Maserati, For Iveco, etc.

11

X-PROG3 Adapter Cable 11 (MPS6)

307110087

Used to connect the MPS6/MPS6_GEN3 gearbox, and available models include For Ford, For Renault, For Chrysler, For Dodge, For Land Rover, For Volvo, etc.

12

X-PROG3 Adapter Cable 12 (DPS6)

307110088

Used to connect the DPS6 gearbox, and available models include For Ford, etc.

13

X-PROG3 Adapter Cable Main Line (ML)

307110089

The extension wire of the gearbox harness, with one end connected to the IMM0bilizer Pr0grammer and the other end connected to the gearbox harness

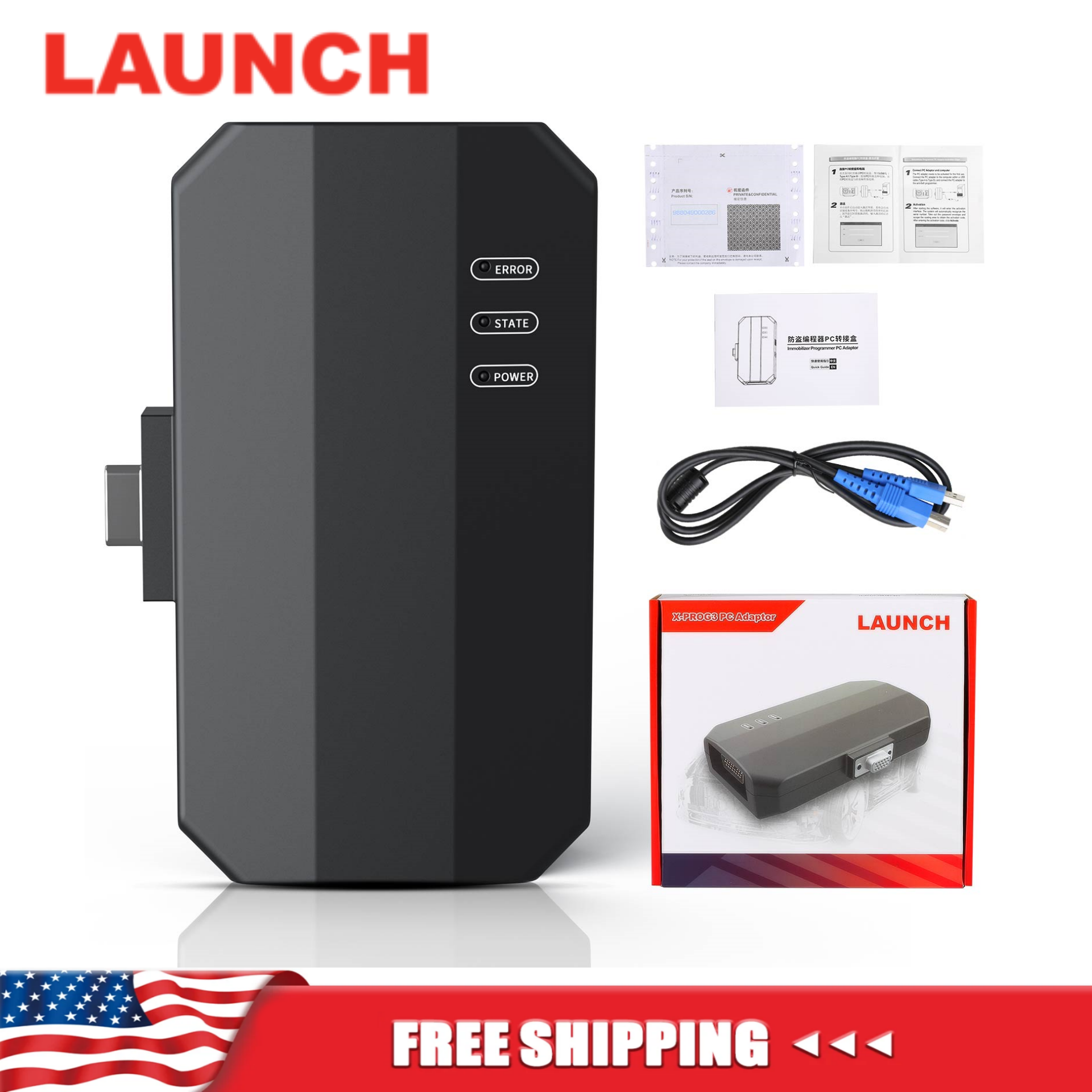

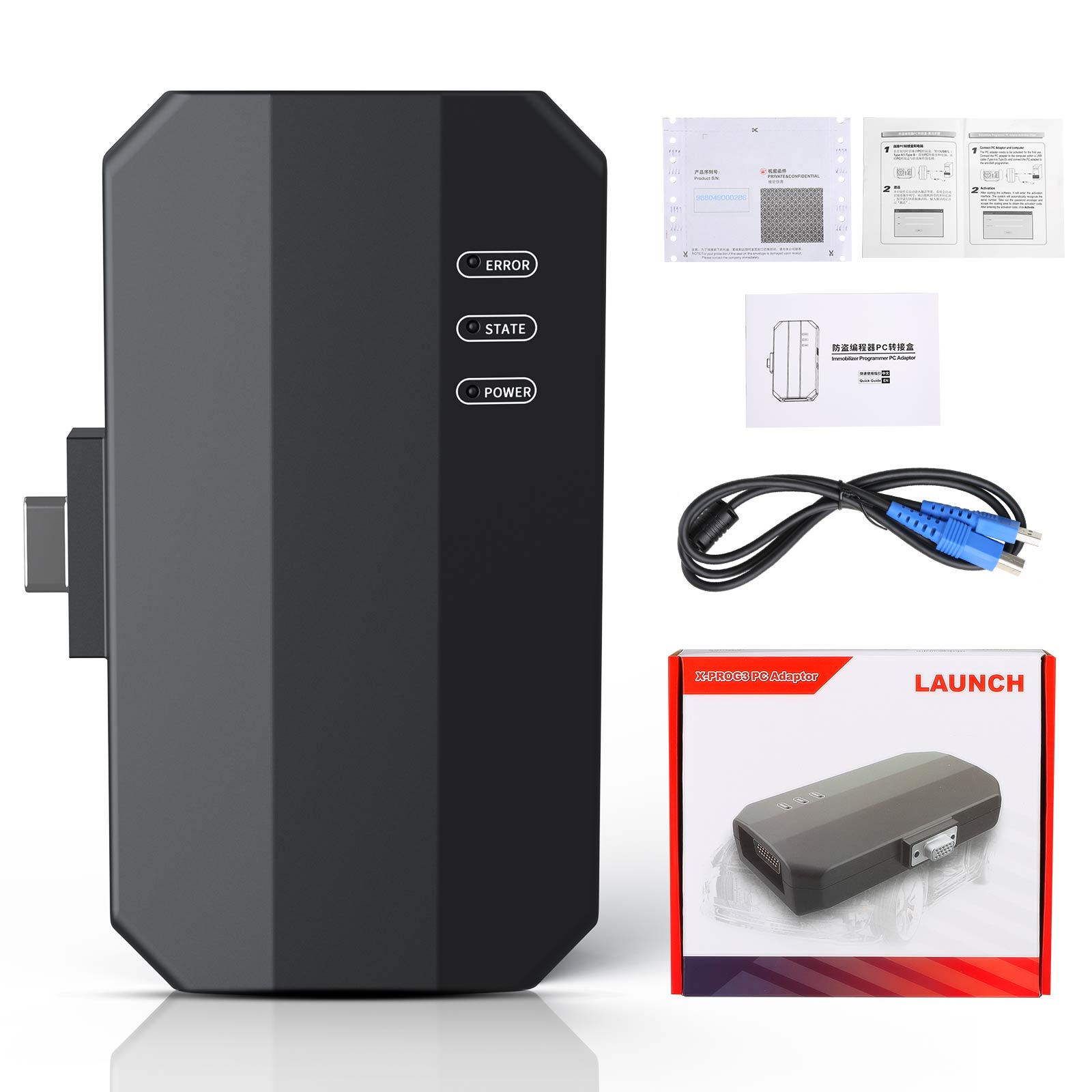

Package Includes:

1pc x Launch X431 IMMO Progarmmer  X-PROG3 PC Adaptor

1pc x USB Type-B Cable

1pc x quick start guide
