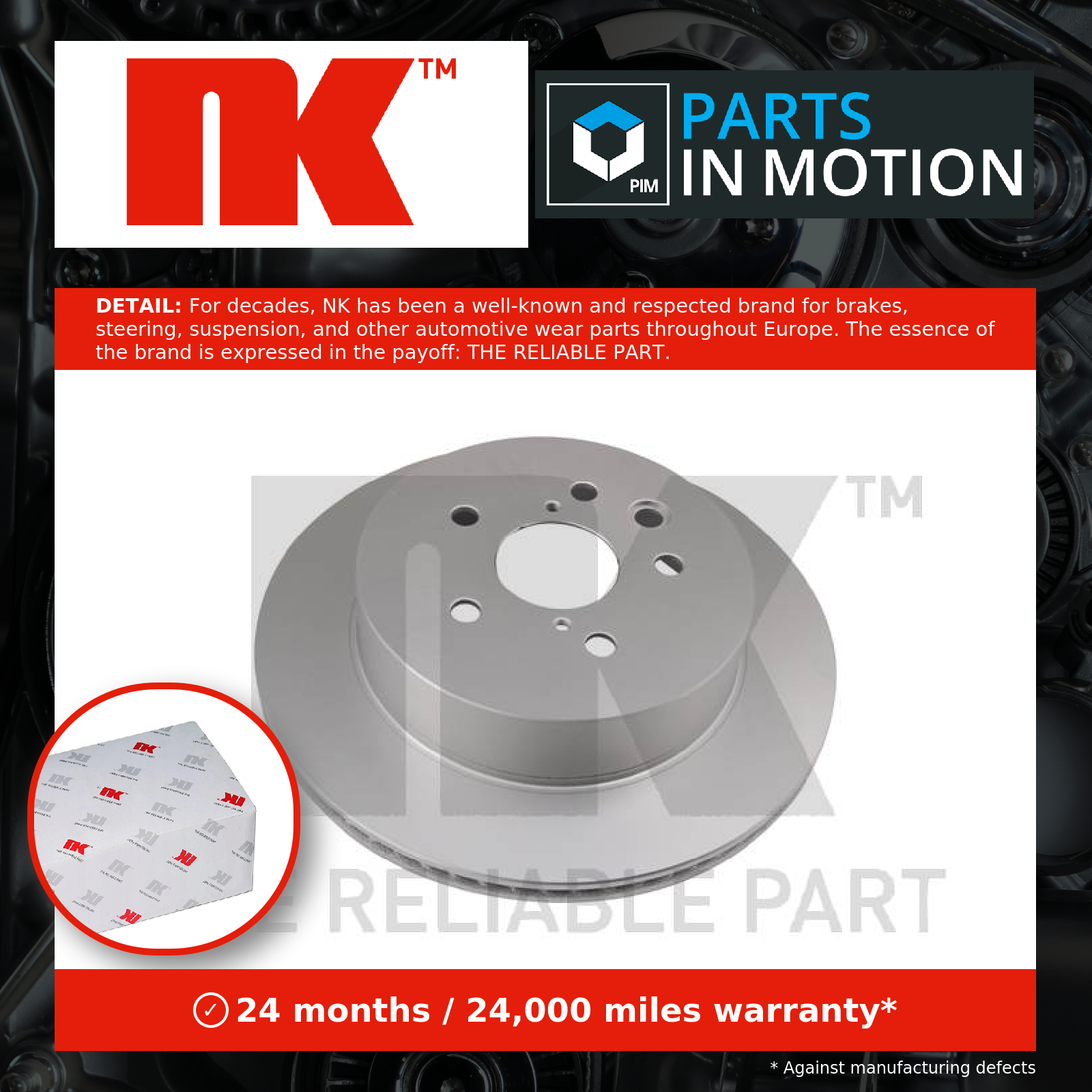

2x Brake Discs Pair Vented Rear 310mm 3145106 NK


PartsInMotion benefits

For any queries please contact using the contact seller link provided.
Description

2x Brake Discs Pair Vented Rear 310mm 3145106 NK

BrandNK
Part Number3145106
Placement on VehicleRear Axle
Height67.8 mm
Outer diameter310 mm
Brake Disc Thickness18 mm
Brake Disc TypeVented
Minimum thickness16.5 mm
Centering Diameter61.9 mm
SurfaceCoated
Rim Hole Number5 -Hole
Net weight6.28 kg
Rotor StyleVented
TypeBrake Disc Rotor
FunctionBrake Disc

Documents / Graphics


Cross references

A.B.S.09.C930.11, 17682
AKEBONOBN-0923, BN-0923E
APECDSK2558, SDK6525
ASHIKA61-02-246, 61-02-246C
ASHUKI by Palidium0993-3602
ATE24.0118-0147.1
BENDIX521399
BLUE PRINTADT343203
BORG & BECKBBD4535
BOSCH0 986 479 615, 0 986 AB5 254, 0 986 AB5 582
Brake ENGINEERINGDI956638
BRAKEWORLDRS0198C
BREMBO09.C930.11
CAR142.1549
CIFAM800-1541C
COMLINEADC01123V, AND6367
DELPHIBG4024
EUROBRAKE58152045106, 58153145106
EUROREPAR1667870680
FEBI BILSTEIN108546
FERODODDF1878C, DDF1878C-1-D
FIRST LINEFBD 1589
FREMAXBD-2615
FTEBS7615
GIRLING6060632
HELLA8DD 355 112-881, 8DD 355 121-961
HELLA PAGID8DD 355 112-881, 8DD 355 121-961
HERTH+BUSS JAKOPARTSJ3312010
JAPANPARTSDP-246C
JP GROUP5863200100
JURATEKLEX107
JURID562823JC, 562823JC-1
KAVO PARTSBR-9486-C
KAWE61255 10
LPRT2044V
METELLI23-1541C
MEYLE30-15 523 0036, 30-15 523 0036/PD
MINTEXMDC2250
MOTAQUIPLVBD1615
NationalNBD1695
NIPPARTSN3312063
NK2045106, 3145106
OPEN PARTSBDR2461.20
OPTIMALBS-8818, BS-8818C
PAGID54480
PILENGAV394
QUINTON HAZELLBDC5657
RAICAMRD01086
REMSA61255.10
REMYRAD2008C
STELLOX6020-1435-SX, 6020-1435K-SX
TEXTAR92148000, 92148003
TRISCAN8120 131025C, 8120131025
TRUSTINGDF1124
TRWDF6063
WINHERE BRAKEWH20384, YH20384
ZIMMERMANN590.2824.20, 590.2824.52

Compatible with the following OEM references

LEXUS4243130290
TOYOTA4243130290

Passenger/LCV Vehicles

VehicleBodyFuelFromToDriveValvesBHPKW
LEXUS GS (_S19_) 300 (GRS190_, GRS190R)SaloonPetrol04/200511/2011RWD24249183
Fitting Position: Rear Axle
LEXUS GS (_S19_) 430 (UZS190_, UZS190R)SaloonPetrol04/200511/2011RWD32283208
Fitting Position: Rear Axle
LEXUS GS (_S19_) 450h (GRS191_, GWS191_, GRS191R, GWS191R)SaloonPetrol/Electric02/200611/2011RWD24345254
Fitting Position: Rear Axle
LEXUS GS (_S19_) 460 (URS190_, URS190R)SaloonPetrol09/200711/2011RWD32347255
Fitting Position: Rear Axle
LEXUS IS C (GSE2_) 250 (GSE20)ConvertiblePetrol04/200906/2015RWD24208153
Fitting Position: Rear Axle
LEXUS IS II (_E2_) 200d (ALE20_, ALE20R)SaloonDiesel07/201007/2012RWD16150110
Fitting Position: Rear Axle
LEXUS IS II (_E2_) 220d (ALE20)SaloonDiesel08/200607/2012RWD16177130
Fitting Position: Rear Axle; Construction Year from: 08/2006
LEXUS IS II (_E2_) 250 (GSE20)SaloonPetrol08/200603/2013RWD24208153
Fitting Position: Rear Axle; Construction Year from: 08/2006
TOYOTA CROWN (CRS_, JZS_, GRS18_, UZS_) 3.0 (GRS182)SaloonPetrol09/200308/2005RWD24256188
Fitting Position: Rear Axle; Construction Year to: 08/2005; Vehicle Equipment Line/Variant: ATHLY
