✅ KEY FEATURES
Main functions: Avoiding scaling, protecting safety, and constant temperature control

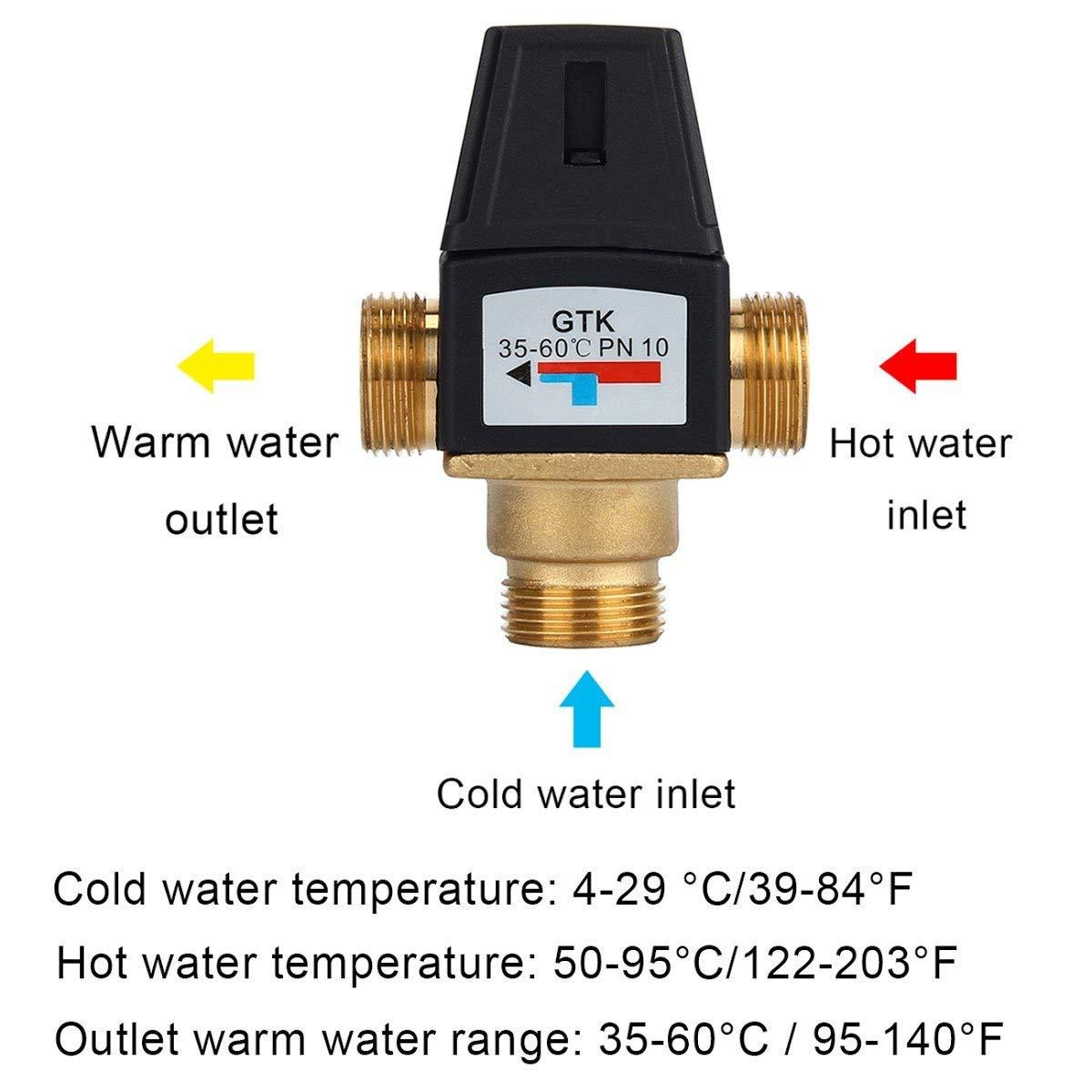

Heat source application: Small geothermal air conditioning and solar energy. These heat sources have high temperatures and cannot be applied directly to domestic hot water. Through the water mixing valve, the high-temperature hot water can be converted into directly applicable hot water (constant temperature range: 35~60°C), which provides a safety function compared to the hot water system of modern living environment.
Suitable for the control valve with constant temperature protection and setting before bath faucet. It has the function of a one-time setting and permanent application.
Suitable for household hot water appliances equipped or underfloor heating to meet the requirements of constant temperature range and flow.
No matter how the temperature and water pressure change, it can ensure stable water extraction.
📋 PARAMETERS

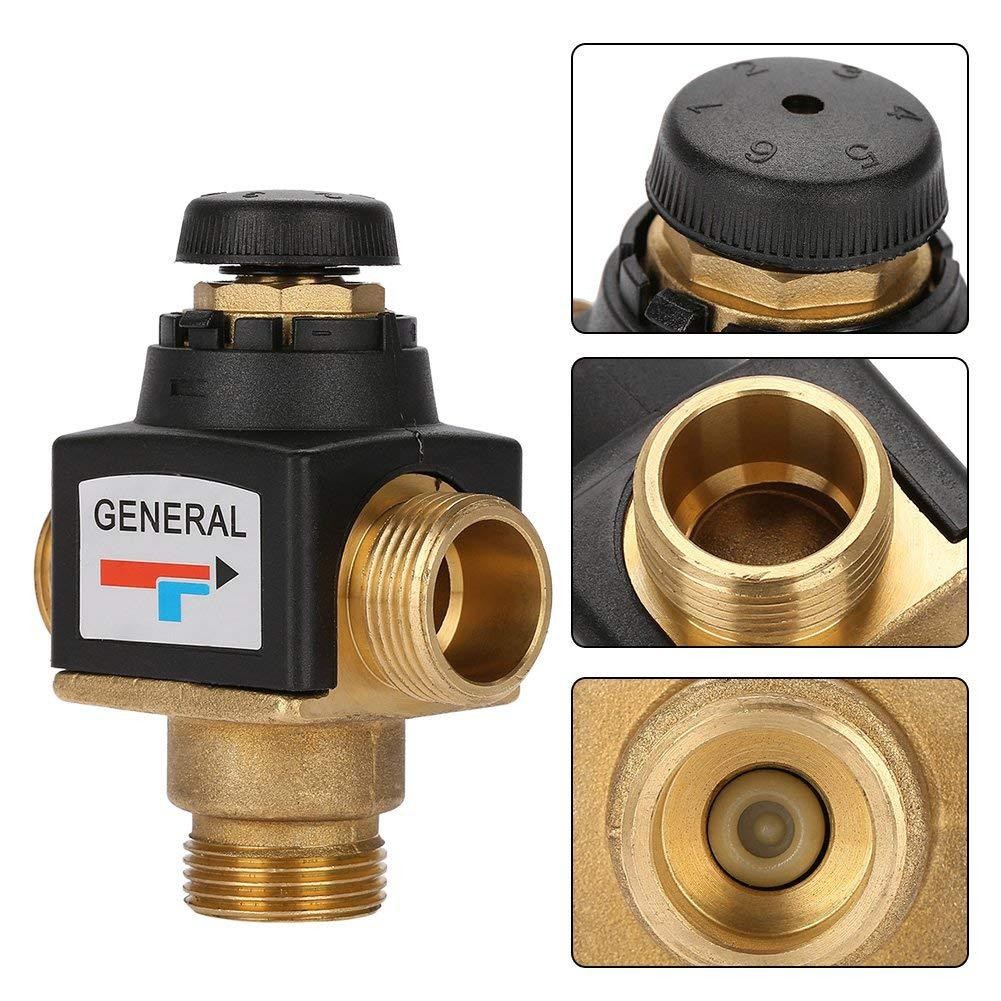

Valve Body Material: Brass 57-3
Diameter of Valve: DN20
Type of Threads: External Teeth
Maximum Working Pressure: 10 kgf /c㎡
Kvs: 1.9 m³/h

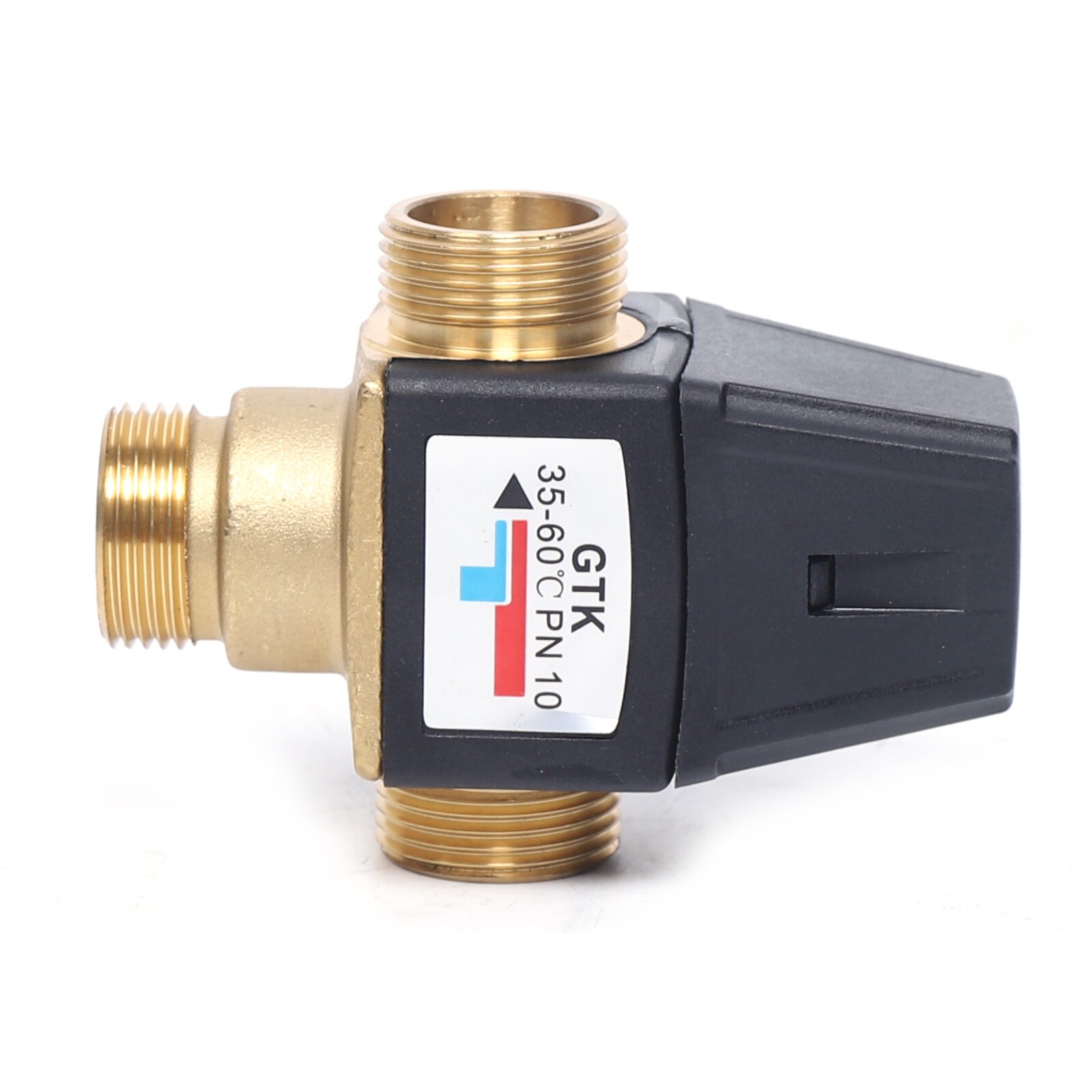

Temperature Control Range: 35~60°C
Spring Material: Stainless Steel
Threaded Connection: G Standard Thread
