Description
Specification:
- Onboard chip model: XCKU5P-1FFVB676
- Board size: 65 x 69mm
- Power supply method: 12V/2A, Pin/DC5.5 socket
- PCB lamination: 8 layers
- Download method: JTAG, USB Cable
- Development environment: for vivado
Development Board Circuit:
- The complete power system only requires an external input of 12V power to operate, and the 20A core high current DCDC chip ensures stable chip operation.
- 5070 package 100MHz active differential crystal oscillator, can set the main frequency by PLL on its own.
- 3 user LEDs for convenient program debugging and use.
- Onboard 8Gbit DDR4
- Onboard 128Mbit FLASH
Development Board External Interface:
- DC5.5 power socket
- Anti reverse insertion 14P/2.0mm standard JATG socket
- Three rows of 100 x 1.27mm standard spacing pins lead out all IO ports of the chip, including:
a. 1067 x 3.3V level IOs (level cannot be modified, can only be used for single ended IO)
b. 84 x 1.8V level IOs (level cannot be modified, can be used for single ended IO or LVD differential)
c. 1028 x 1.2V level IOs (levels cannot be modified, can be used for single ended IO or LVDS differential)
Package Included:
- 1 x Development Board
- 1 x 12V/2A Power Adapter
The differences between XCKU5P and XC7K325T are as follows:
- Onboard chip model: XCKU5P-1FFVB676
- Board size: 65 x 69mm
- Power supply method: 12V/2A, Pin/DC5.5 socket
- PCB lamination: 8 layers
- Download method: JTAG, USB Cable
- Development environment: for vivado
Development Board Circuit:
- The complete power system only requires an external input of 12V power to operate, and the 20A core high current DCDC chip ensures stable chip operation.
- 5070 package 100MHz active differential crystal oscillator, can set the main frequency by PLL on its own.
- 3 user LEDs for convenient program debugging and use.
- Onboard 8Gbit DDR4
- Onboard 128Mbit FLASH
Development Board External Interface:
- DC5.5 power socket
- Anti reverse insertion 14P/2.0mm standard JATG socket
- Three rows of 100 x 1.27mm standard spacing pins lead out all IO ports of the chip, including:
a. 1067 x 3.3V level IOs (level cannot be modified, can only be used for single ended IO)
b. 84 x 1.8V level IOs (level cannot be modified, can be used for single ended IO or LVD differential)
c. 1028 x 1.2V level IOs (levels cannot be modified, can be used for single ended IO or LVDS differential)
Package Included:
- 1 x Development Board
- 1 x 12V/2A Power Adapter

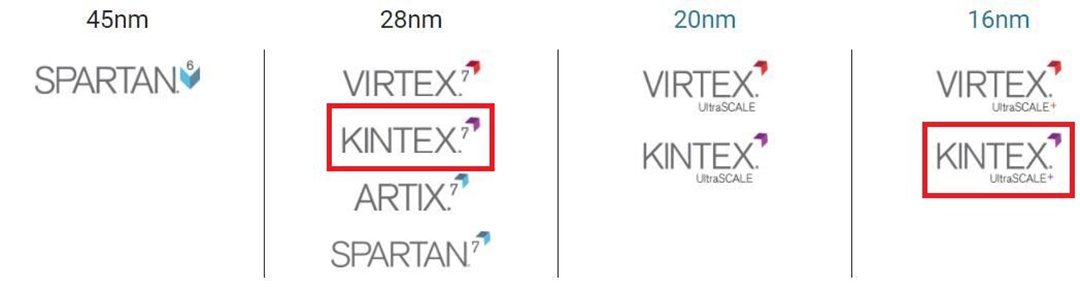

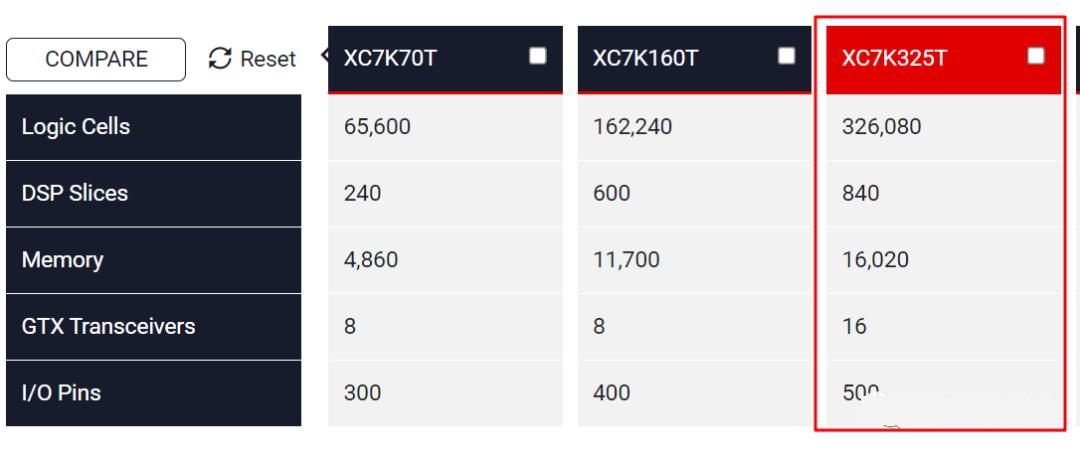

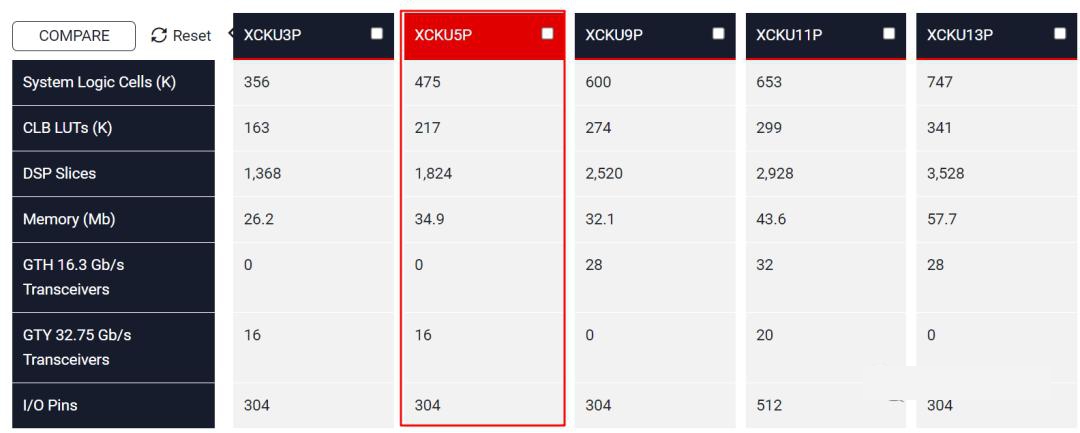

The differences between XCKU5P and XC7K325T are as follows:
The number of Logic Cells in XCKU5P is 1.5 times that of XC7K325T, and both DSP and Memory are more than twice. Moreover, XKUC5P adopts 16nm technology, which has higher performance, lower power consumption, and higher frequency compared to XC7K325T.
