The clamps of tire changer have been adjusted to the central position before leave factory, the clamp rim from outside size is from 12 "to 24".inside size is from 14 "to 26"
A set of accessories is provided: for assisting in disassembly and assembly as well as daily maintenance, including some wear-prone parts after machine using.
Product Installation Link https://youtu.be/ynf-Xyg-Rfs
Specification
- Clamp rim size outside：12-24”/304-609mm
- Clamp rim size inside：14-26”/355-660mm
- Max. tire width：15”/381mm
- Max. wheel diameter：43inch/1100mm
- Working pressure：8-10 bar (117-145Psi)
- Max. inflation pressure：3.5bar
- Voltage：110V60hz single phase
- Electrical switch：40A
- power：1.1kw
- Rotation speed of turntable：6.5r/min
- Max. shaft torque：1200Nm
- Pressure of bead breaker：2500kg / 5511lbs
- Machine packing size：1020 x 770 x 1020mm / 40” x 31”x 41”
- Net weight：Machine 238kg/525lbs, Helper arm 66kg/146lbs
- Level of noise：<75dB

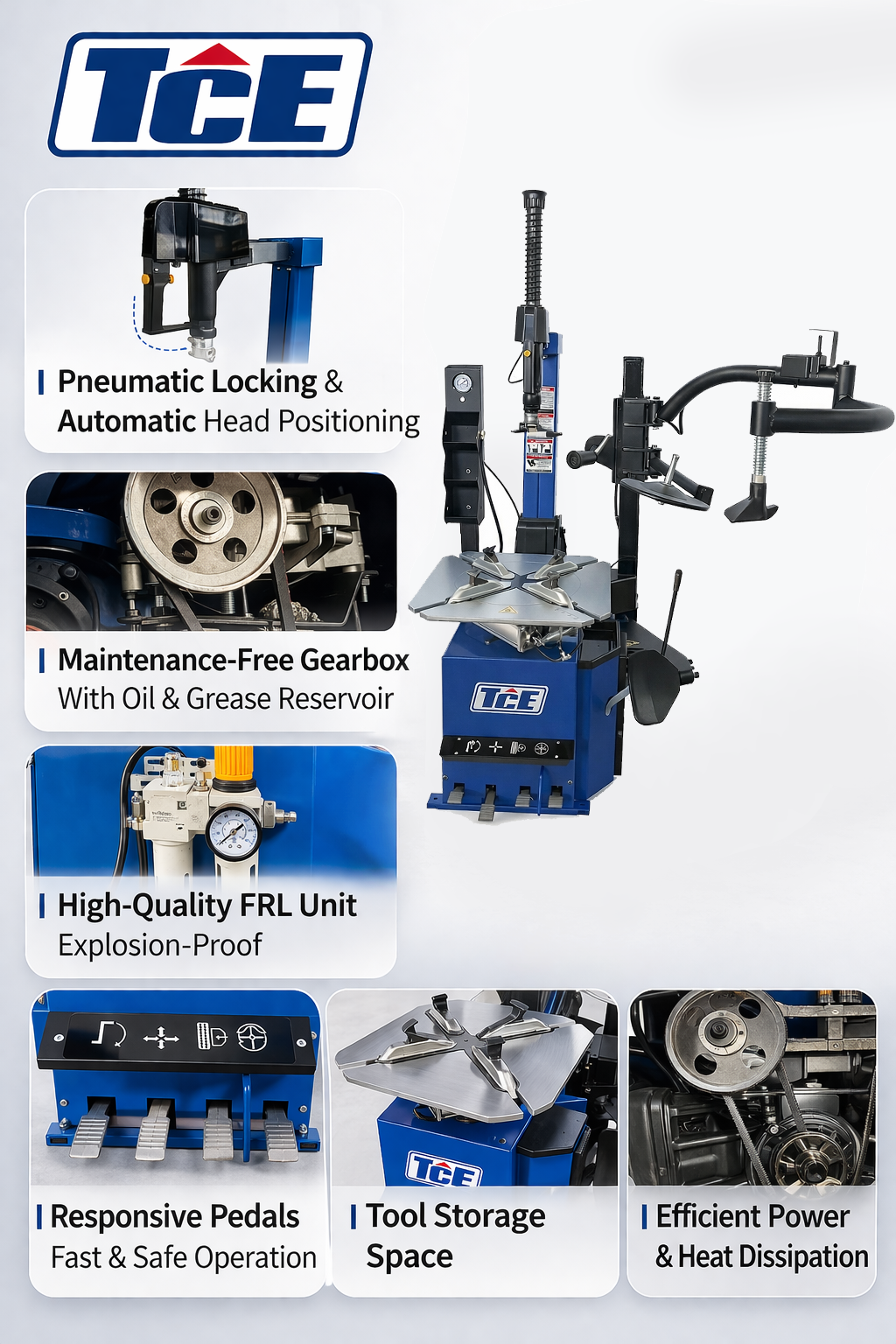

Tilt-Back Assist Arm Tire Changer
Ideal for effortlessly and safely mounting/dismounting run‑flat tires and large low‑profile tires.- 💪 Heavy-Duty for Tough TiresPerfect for stiff sidewall run‑flat and ultra low‑profile tires. Reinforced square column ensures stable, shake-free operation. Solid steel assist arm resists deformation and extends service life.
- 🧑🔧 Effortless & User-Friendly DesignColumn tilts back 110°–120° for unobstructed access to large tires. Foot and pneumatic controls free your hands. 360° rotating pressing wheel enables smooth, flexible operation at any angle.
- 📌Advanced Rim ProtectionAnti-collision self-locking valve secures the tilt arm automatically to avoid rim damage. Stainless steel mount head and anti-scratch jaw protectors keep wheels safe from scratches.
- 💌Built to LastPrecision-marked turntable for fast centering. Integrated air lubrication filter removes moisture, reduces wear, and greatly improves overall durability.
- 🔸Safety Locking System
- Automatic locking function prevents accidents caused by unsecured columns, adding safety and extra protection for high-value wheels.
SHIPPING POLICY:
- Freight shipping ONLY within the lower 48 states.
Free shipping to commerial addresses. Remote areas maybe charge extra for shipping. Need confirm before delivery.
Shipping carrier could charge extra to residential delivery or limited access.
THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
- Customer should consider Forklift and unloading dock service.
The buyer should be also responsible for any re-delivery charges.
Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.
Safety operation rule
- The tire changer must be operated by trained personnel.
- The manufacturer shall not be liable for any damage caused by modification of the machine without the manufacturer's approval.
- Manufacturers will immediately discontinue their safety commitments if the user breaches safety rules and causes damage of the machine's safety devices.
- If there is any damage to the safety warning sign during the whole process, the customer can contact the manufacturer according to the icon to replace the damaging icon as soon as possible.
Note: the power plug of the tire changer shall be prepared by the customer. The rated current of the power plug shall not be lower than 14.5A, at the same time meet the voltage of the machine.
