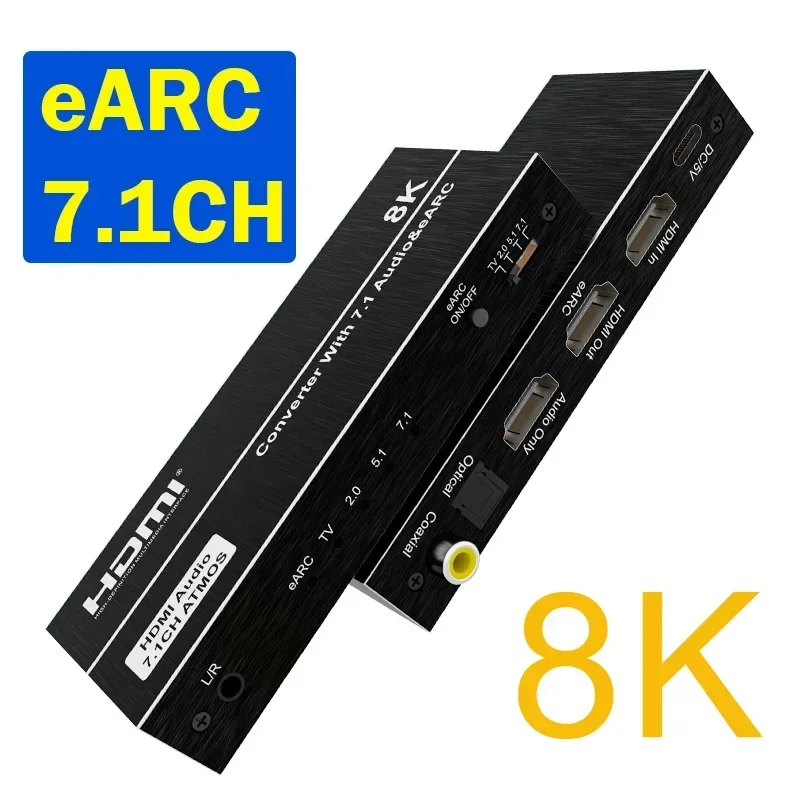

Support eARC or not - optional,pls buy it correctly
Noted:the link has two models,one is NO eARC Function ,another is with eARC function,
The description is only for eARC Model,please correctly select the model as you need .
Product Introduction:
Brand new and high quality,buy with confidence!

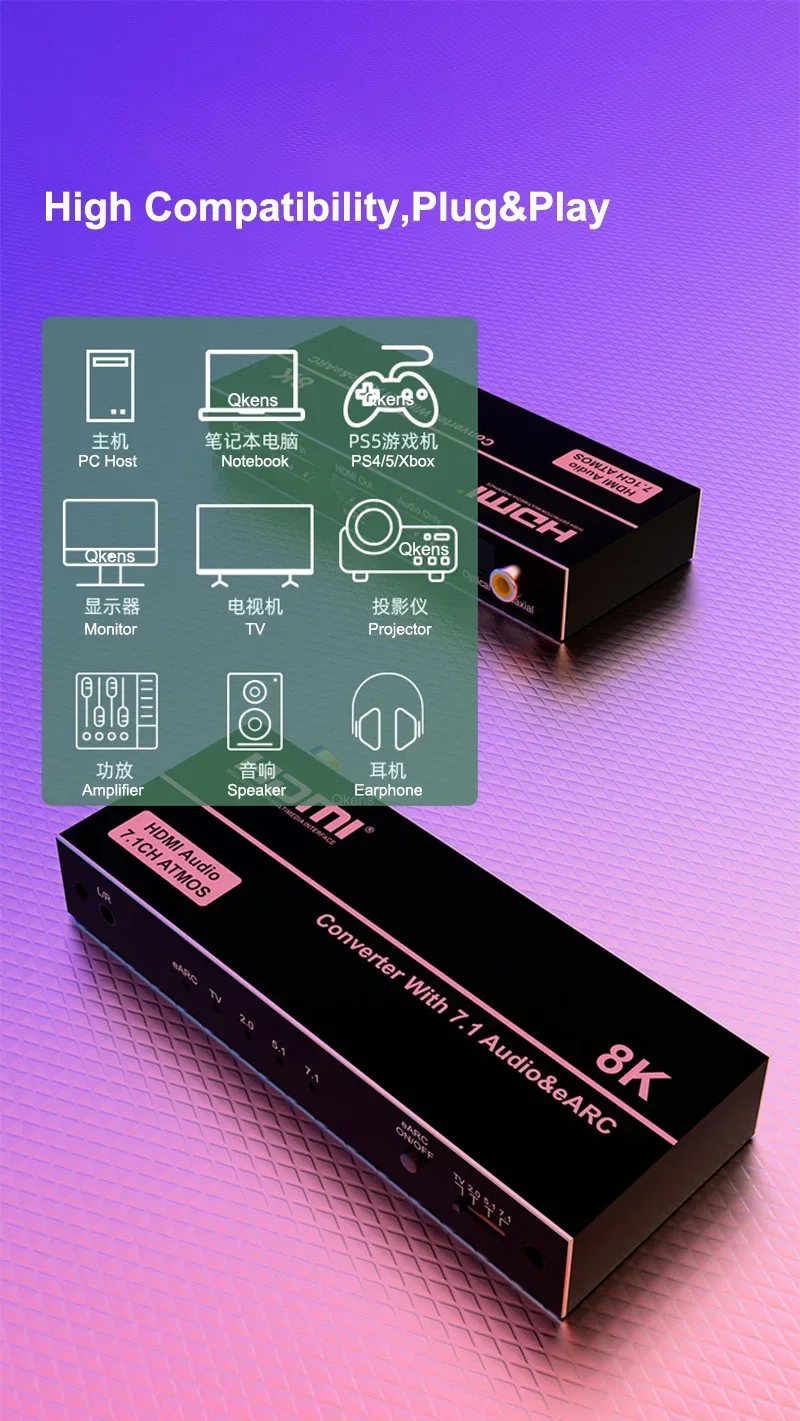

This audio converter is compatible with the HDMI2.1 input of any other device (suchas PS5, PS4, DVD, XBOX,
TV box, Blu-ray player, laptop, HDTV, etc.) and converts the8K HDMI signal to the monitor or projector.
The separated Audio digital signal (HDMI orfiber and coaxial) is output to the bar speaker or power amplifier,
the Audio Only outputsupports 7.1 channel output, and the separated audio analog signal is output to theheadset
to realize the separation of audio and video. The resolution of this audio convertercan be up to 8K/60Hz
Features:
* Support max up to HDCP 2.3 (downward compatible);
* Support HDR10; VRR; ALLM;
* Support max resolution up to 7680x4320/60Hz;
* HDMI Audio Only port supports 7.1CH audio output and can be connected to a bar
speaker or power amplifier;
* Support fiber coaxial digital audio output;
* Support 3.5mm headset analog audio output.
Specifications:
HDMI resolution ..... Max up to 7680x4320/60Hz, 4K@144Hz
Support video format ....... 8/10/12 bit deep color
Support Audio format .. DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/Dolby Atmos/pcm etc
Max baud rate ...... 40Gbps
Max working current ..... 0.65A
Power adapter format ..... input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
Operating Temperature range ...... (-15 to +45℃)
Dimension (L x W x H) ..... 121x50x19 (mm)
Note: eARC audio return does not support DTS-HD/Dolby-trueHD audio format.

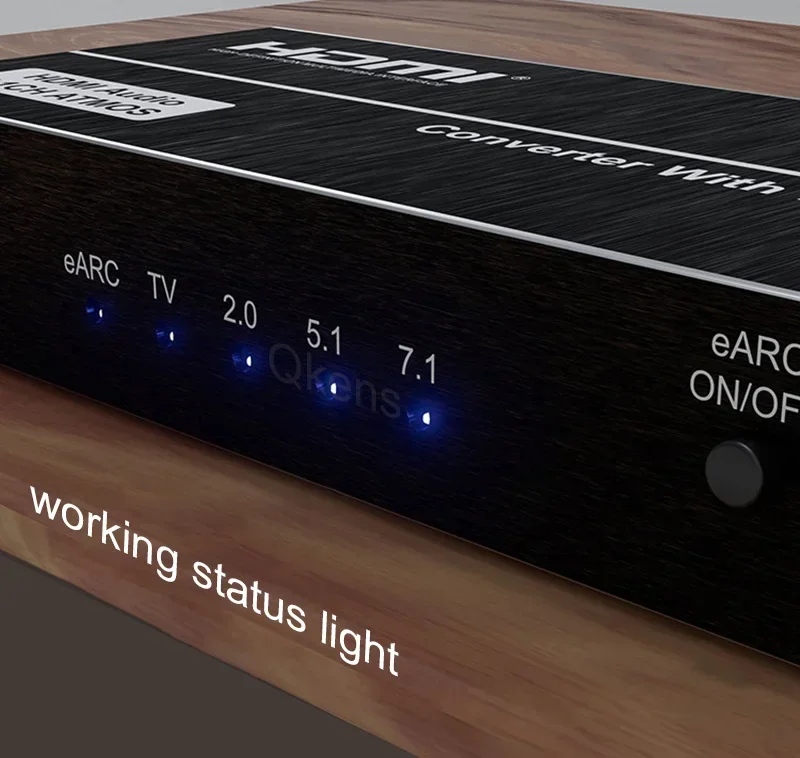

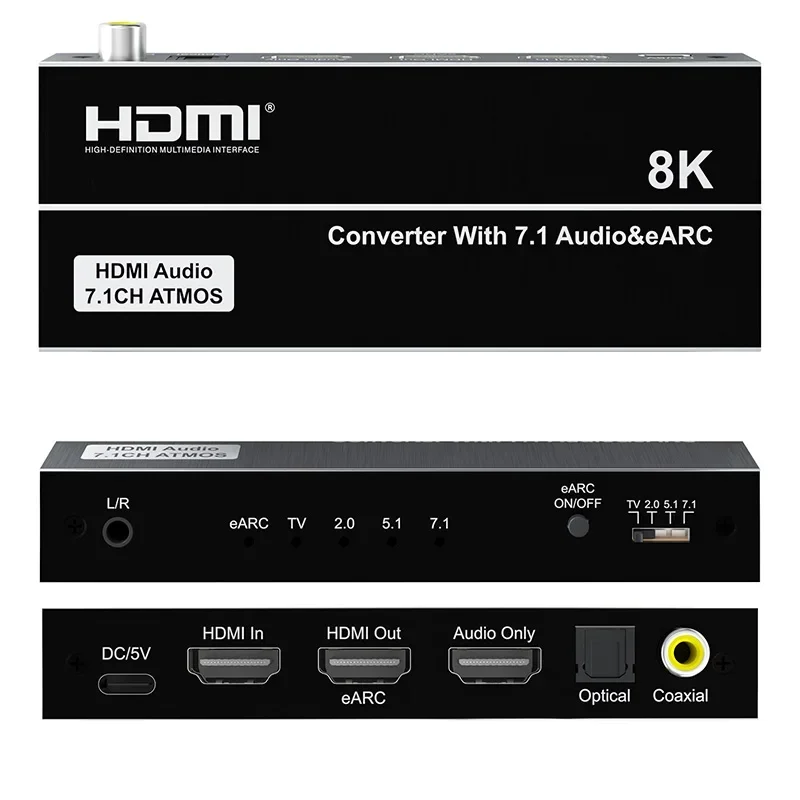

Audio dial switch
TV: In TV mode, the output resolution will be based on the EDID displayed on the TV, HDMI audio extraction
separation, 2.0 CH audio signal output from 3.5mm, 5.1 CH audio output from fiber coaxial, 7.1 CH
audio will be output from HDMI Audio only.
2.0 CH: HDMI converter extract audio will be output from 3.5mm interface, HDMI interface and fiber coaxial
interface, audio format is 2.0 channel.
5.1 CH: HDMI converter extract audio will be output from the HDMI interface and optical fiber coaxial
interface. (Note: 3.5mm audio port does not support 5.1 audio channel, 5.1 channel audio, please
disconnect 3.5mm audio line).
7.1 CH: HDMI converter extract audio will be output from the HDMI Audio only interface.
(Note: If the TV or monitor does not support the audio format, the TV or monitor will have no sound)

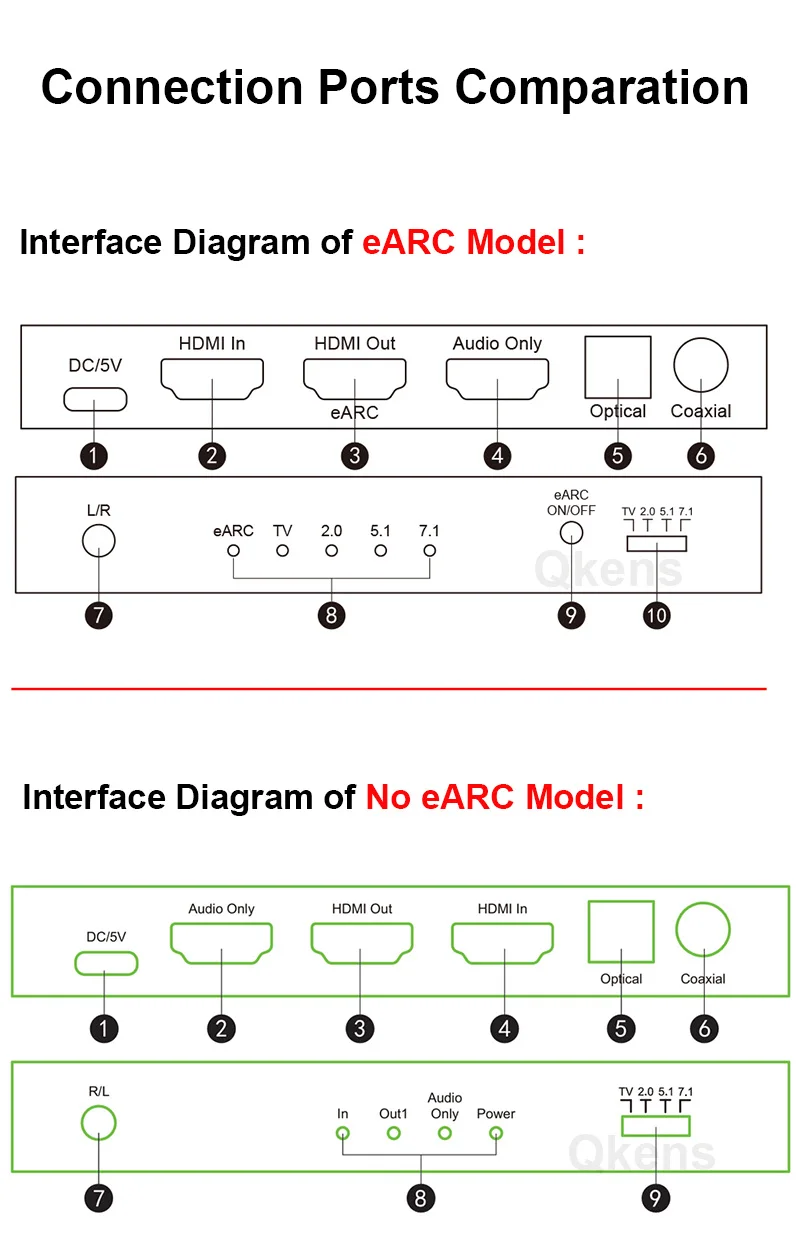

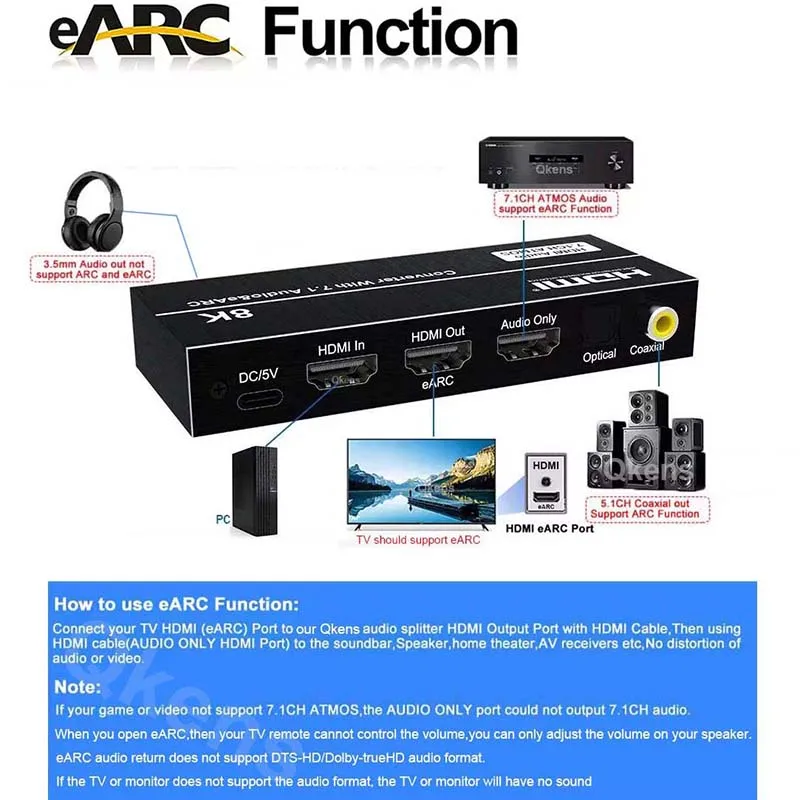

Connection and Operation:
1: Connect the HDMI signal source to this converter with one HDMI cable.
2: Connect this converter to the display with one HDMI cable.
3: Connect the 'Audio Only' HDMI or optical and coaxial cable to the amplifier;
4: Connect 5V/1A power adapter to the converter.

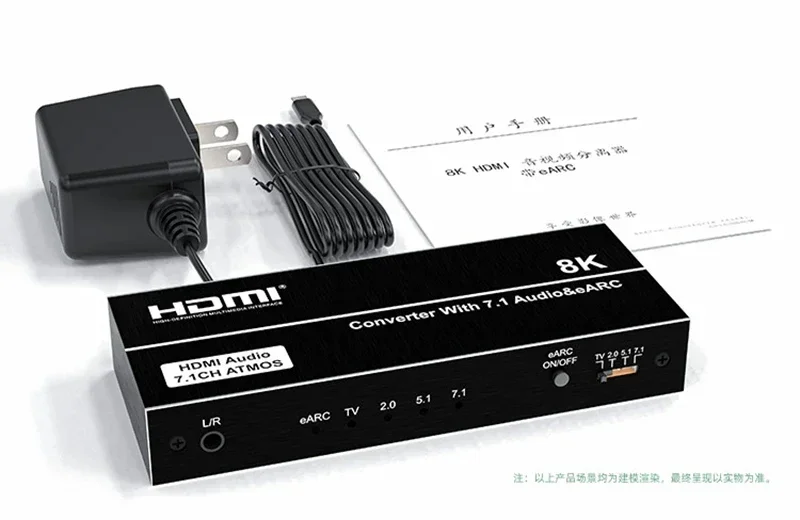

Package include:
1 x 8K HDMI Video Converter with Audio Extract
1 x Power adapter 5V/1A
1 x User manual
Without retail box and other accessories,if any need,pls contact us before purchase.
