Product Overview：

This AC hipot tester is composed with oil-immersed testing transformer and control box, it is a basic testing devices for power stations, power supply / distribution system and technological institutions. It is used for dielectric strength test (withstand voltage test) under designated voltage to assess the insulation status and defect as well as the over-voltage withstanding ability of electric appliances, electrical equipment and insulated materials.

Main Features:

1. Oil-immersed test transformer selected reliable quality, and good stability materials.

2. The voltage margin is high, corona sound is small, partial discharge is small.

3. Adopting modern insulating materials, small in size, light in weight

Technical parameters:

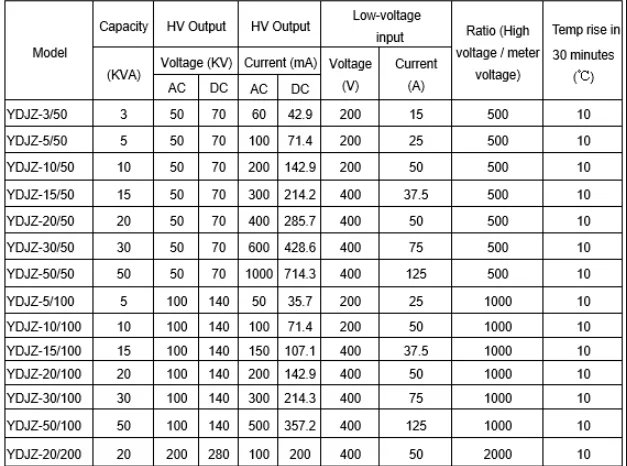

2.1 Technical parameters of YDJZ Test Transformer

2.2 Technical parameters of NRCX controller

Model	Capacity (KVA)	Input Voltage (V)	Mode of operation
NRCX-1.5kVA	1.5	220	Manual
NRCX -2	2	220
NRCX -3	3	220
NRCX -5	5	220
NRCX -10	10	220
NRCX -15	15	380
NRCX -20	20	380
NRCX -30	30	380
NRCX -50	50	380
NRCX -100	100	380
NRCX -150	150	380

2.3 Operating conditions:
Ambient temperature: 0 ~ 40℃
Relative humidity : < 85%
Altitude: < 2000M

Remark:
Voltage: AC 100V /110V /115V /120V /200V /220V /230V /240V optional
Input frequency: 50Hz/60Hz optional
Note: The users can select the corresponding power supply which based on their local voltage and frequency, and we will confirm it before the delivery. Or inform us the instrument will be used in which country in advance.
