24V 10Ah 7S4P Electric Vehicle Battery Scooter Battery Pack With US / EU Charge


ITEMS DESCRIPTION
Tips: Before ordering, make sure that the battery size and the connector used for the battery are the same. Thank you!
If you need a customized battery or battery connector, please contact me. Thank you!

Shipping list:
1x battery
1 x charger

Feature:
1. A-grade cell-cells to ensure the batteries are of high and full capacity
2. Protection - two IC chips, which can anti-short circuit, anti-overload,Anti-overcurrent, anti-overload
3. Composition type: injection technology to make the battery more stable.
4. Certifications: CE, UL, FCC, RoHS, ISO9001
5. Long life, no memory, environmentally friendly.

Battery specifications:
Battery model: 24V 10ah
Rated capacity (ah): 10ah
Nominal voltage (V): 24 V/29.4v
Output voltage range: 19.5v-29.4v
Nominal power: 350Wh
Battery resistance (MΩ): about 30 PTO)
Technical description: 3.7V 2.6ah / I865O battery
Life cycles: more than 1000 times
Battery combination: 4 series and 7 parallel (built-in BMS protection, with overcharge, overdischarge, short circuit protection)

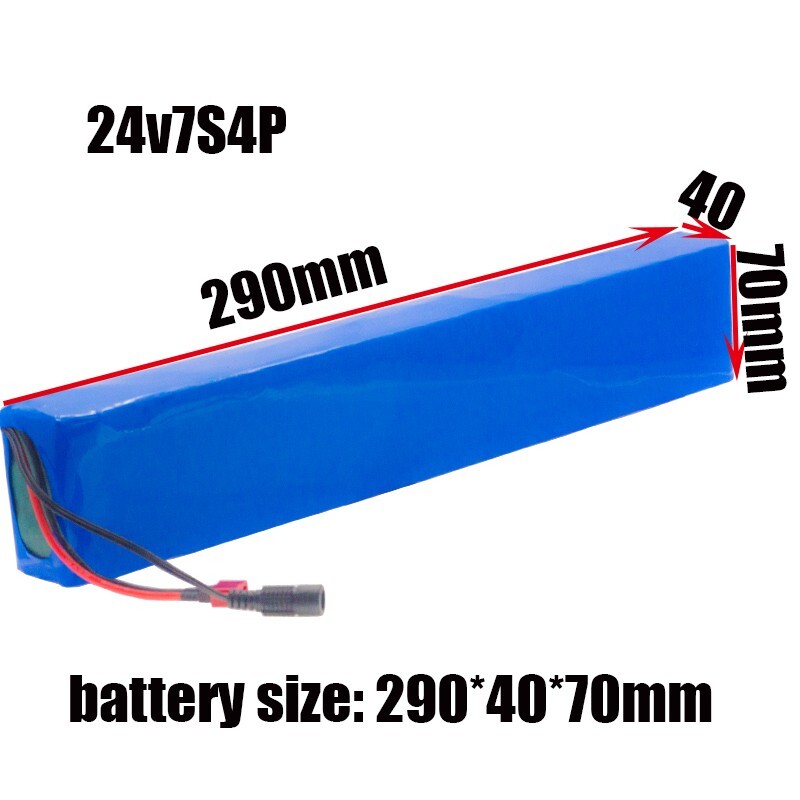

Battery size：290*40*70mm
Battery Width: 40mm
Battery Height: 70 mm
Battery Length: 290mm

*There will be deviations in manual measurement.
Discharge connector: default red and black 16# wire and T-shaped plug
Length of discharge pipe (package at the connector end): 120mm
Charging interface: 5.5 * 2.1mm DC plug
Charging plug cord length (packaged at the connector end): 120mm

*There will be deviations in manual measurement.
Number of batteries (parallel series*) 28.
Discharge voltage (V): 21 +/- 1 V.
Charging voltage (V): 29.4V.
Rated discharge current (a): 15°
Maximum instantaneous discharge current (A): 30A
Maximum continuous discharge current (A): 15a
Charging interface: 5.5 * 2.1mm DC plug
Charging method: CC / CV
Standard charging current (A): 2A
Charging time under standard charging current: 4 hours
Maximum continuous current load (A): 5A
Fast charging time: 2 hours
Charging temperature range: 0-45°C
Exhaust temperature range: -20-60°C
Weight: about 1.6kg
