10 Inserts box
P
M
S

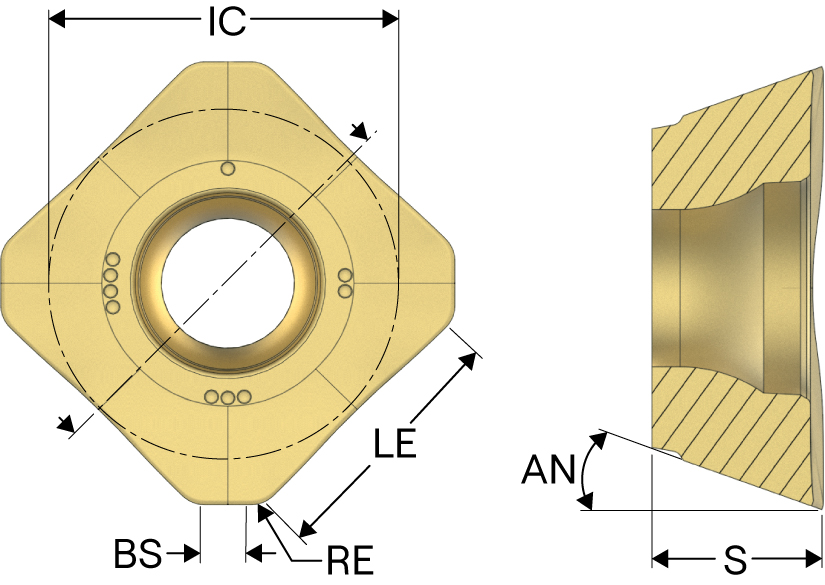

| Name | Description | Value |
|---|---|---|
| AN | Clearance angle major | 20.0 deg |
| BS | Wiper edge length | 1.5 mm |
| Barcode | Product barcode | 00662885297205 |
| CEDC | Cutting edge count | 4 |
| CGTT | Cutting geometry type technical | M10 |
| CUTINT_SIZESHAPE | Insert size and shape | SEEX1204 |
| GTIN | Global trade item number | 00662885297205 |
| Grade | Grade | MS2050 |
| Gradetype | Gradetype | Carbide PVD |
| IC | Inscribed circle diameter | 12.70 mm |
| IH | Insert hand | N |
| L | Cutting edge length | 12.70 mm |
| LE | Cutting edge effective length | 8.70 mm |
| RE | Corner radius | 1.12 mm |
| S | Insert thickness | 4.76 mm |
| WEP | Wiper edge property | 0 |
| Weight | Net weight | 0.006 kg |
