✅ PRECISION MOTOR SPEED CONTROL
✅ Wide Input Voltage Range: Accepts DC 6-60V input – versatile for various brush motor applications.
✅ High Current Capacity: Output current up to 30A (continuous current within 20A) for demanding motor loads.
✅ Linear Output: Output voltage adjusts linearly under load for smooth motor performance.
✅ Digital Speed Display: Clear 0-100% digital readout shows current speed setting at a glance.
✅ Jog Speed Control: Easy Jog + and - buttons for precise speed adjustment.
✅ High-Frequency Control: Operates at 21kHz control frequency (controller supported but not included).

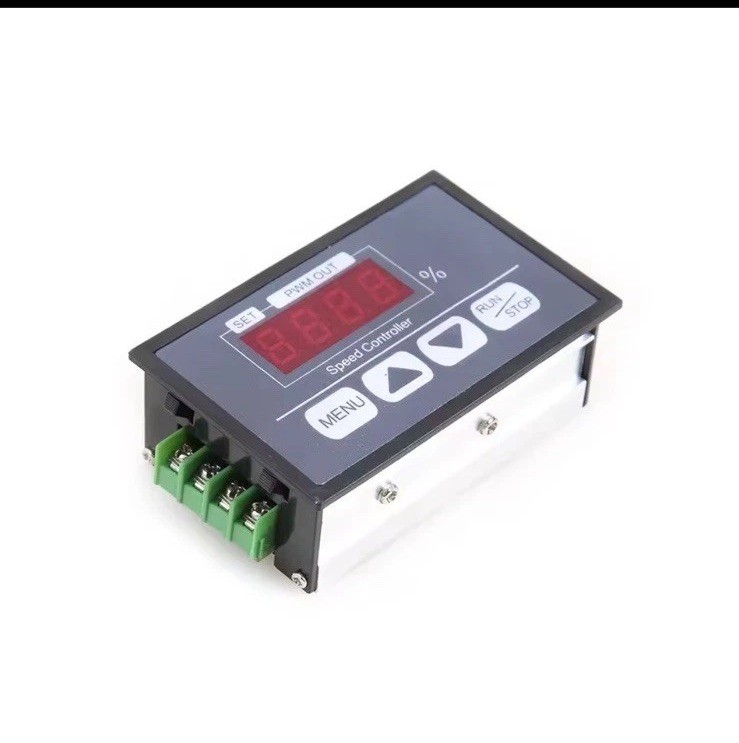

✅ Panel Mount Design: Compact size with panel cutout dimensions 92 x 56mm for professional installation.
✅ Barrier Terminal Block: Secure screw terminal wiring for reliable connections.
📋 SPECIFICATIONS
| Specification | Details |
|---|---|
| Product | Brush Motor Speed Controller PWM |
| Input Voltage | DC 6-60V |
| Output Voltage | Linear under load |
| Output Current | 0-30A |
| Continuous Current | Within 20A |
| Speed Regulation Type | Flow regulation |
| Speed Control Mode | Jog + and - buttons |
| Speed Adjustment Range | 0-100% |
| Control Frequency | 21kHz (controller supported but NOT INCLUDED) |
| Wiring Type | Barrier terminal block (screw terminals) |
| Supported Motor | Brush DC Motor |

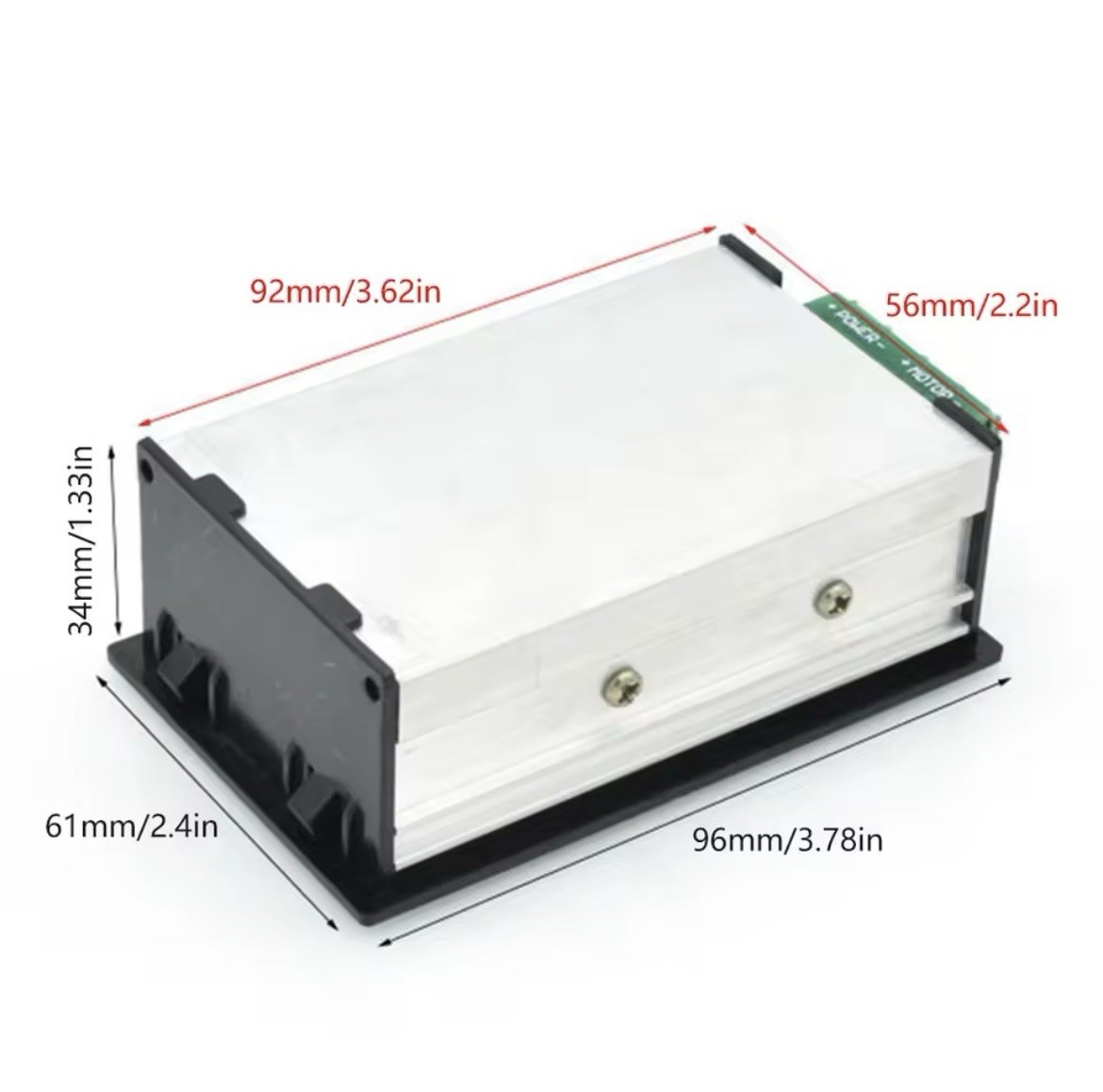

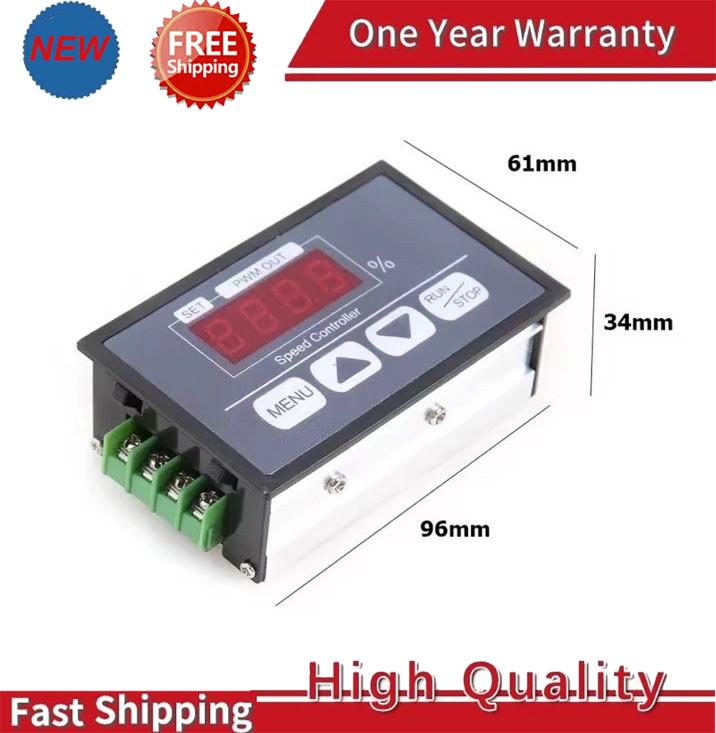

| Module Size | 96 x 61 x 34 mm (3.78 x 2.40 x 1.34 inches) |
| Panel Opening | 92 x 56 mm (3.62 x 2.20 inches) |
| Display | Digital 0-100% |
⚠️ IMPORTANT WARNINGS
❌ DO NOT reverse positive and negative input – this will render the panel useless.
❌ Not for AC 240V – DC input only (6-60V DC).
✅ Input voltage should equal the rated voltage of your motor (within DC 6-60V range).
📏 APPLICATIONS
✅ Perfect for controlling speed of brush motors in:
Conveyor systems
Industrial machinery
DIY projects and automation
Electric vehicles and scooters
Pumps and fans
Workshop tools
Robotics and hobby projects
📦 PACKAGE INCLUDES
✅ Package Contains:
1 x Brush Motor Speed Controller PWM with Digital Display
