Dovetail Base for Finder Scope Ideal for Installation of Finder Scope Fully Metal Bracket Base 42Mm Dovetail for Optical Telescope
Description
| Optical Tube Length | 1.25 Inches |
| Optical-Tube Length | 1.25 Inches |
| Eye Piece Lens Description | NO |
| Additional Features | Dovetail Base for Finder Scope |
| Focus Type | Manual Focus |
| Compatible Devices | Finderscope |
| Focal Length Description | 32 millimeters |
| Item Weight | 0.07 Kilograms |
| Product Dimensions | 1.96"D x 0.78"W x 1.96"H |
| Field Of View | 3.5 Degrees |
| Finderscope | Reflex |
| Objective Lens Diameter | 42 Millimeters |
| Mount | Equatorial Mount |
| Item Dimensions D x W x H | 1.96"D x 0.78"W x 1.96"H |
| Telescope Mount Description | Equatorial Mount |
- Compliable with finder scope;reflex sight bracket on telescopes;great for adding a second or third aiming device to your telescope
- dovetail base fit for most bracket designs from Celestron;Orion;Sky-watcher;Vixen etc; compliable with finder scope;laser Pointer bracket on telescopes
- SVBONY finderscope bracket base;Dovetail board set solid all metal construction
- All metal finderscope bracket base for your optical finderscope that comes with the standard quick release dovetail board
- It is cambered on the bottom of base;so it can fit and protect the tube very well
Product description

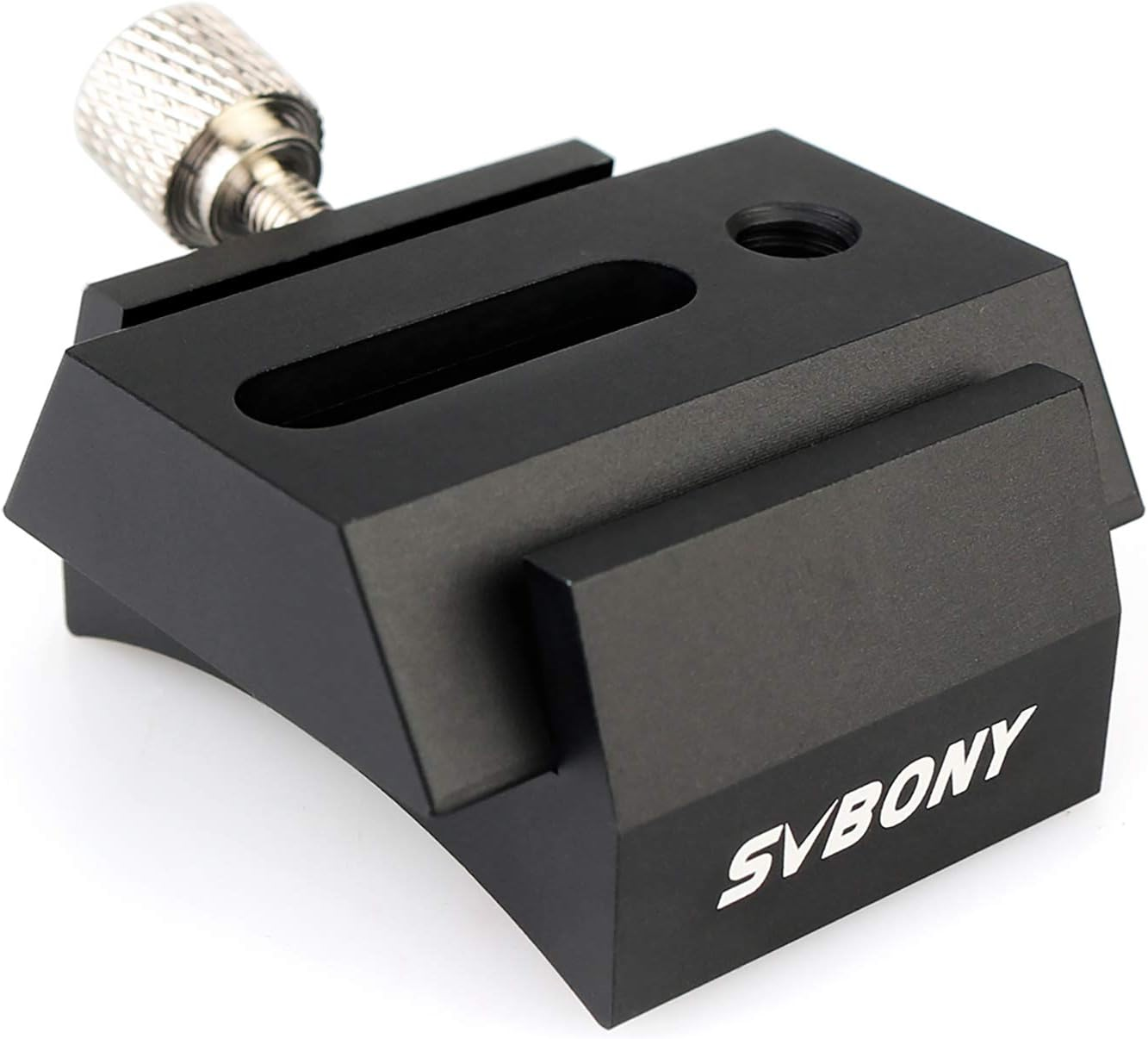

SVBONY Fully Metal Bracket Base Shoe + 42mm Dovetail UNC 1/4-20 Mounting for Optical Telescope Finderscope
An all metal finderscope bracket base for your optical finderscope that comes with the standard quick release dovetail board. It is cambered on the bottom of base. So it can fit and protect the tube very well.
Package Includes:
- 1 x Dovetail Board
- 1 x Bracket Base
- 1 x M4 Screw
UNC 1/4-20
UNC 1/4-20 , 24mm for maximum M6 screw,Strong applicability.
Big M4 Screw
Large screws are included, which can be adjusted with one hand. It can be used even when wearing gloves.
SVBONY Finderscope Bracket Base + Dovetail Board Set Solid all metal construction
The body is constructed of high quality materials; sturdy and not easy to damage.
For more details
| Base Width: | 42mm |
| Base Length: | 29.5mm |
| Base Width | of internal trapezoid (bottom):33.4mm |
| Base Width | of internal trapezoid (top): 28.7mm |
| Base Height of inner part: | appr. 9mm |
| Distance | of the two holes (center to center): 12mm |
| Holes internal diameter: | 4.4mm |
| Curve diameter: | 100mm |
| Dovetail Board Length: | 42mm |
| Dovetail Board Width (bottom): | 32mm |
| Dovetail Board Width (top): | 20mm |
| Dovetail Board Height: | 11mm |
| Net Weight: | 63.4g / 2.24oz |
