Product Specifications

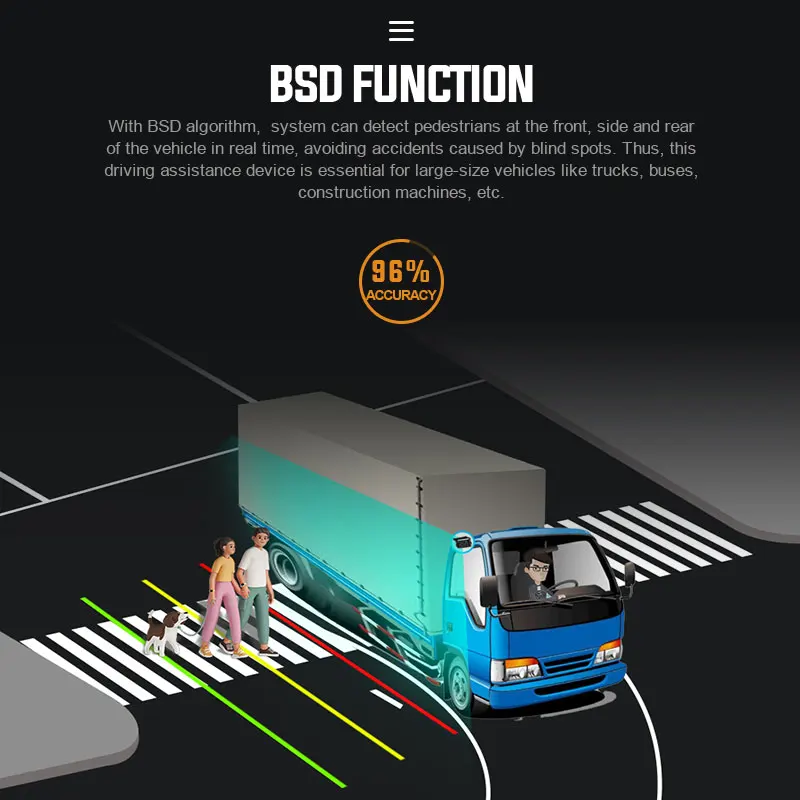

Blind Spot Detection System

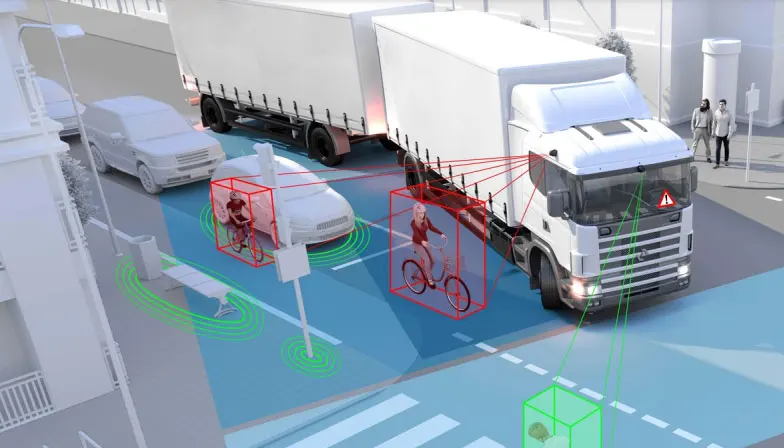

Ultravision BSD can accurately identify pedestrians and non -motorized vehicles within the range of the vehicle's blind spots, Promptly remind drivers and pedestrians to prevent accidents caused by blind spots.

● Front BSD,Right Front BSD,Right BSD
● Left Front BSD,Left BSD
● Remind drivers to pay attention to pedestrians
● Remind pedestrians to stay away from vehicles

Product

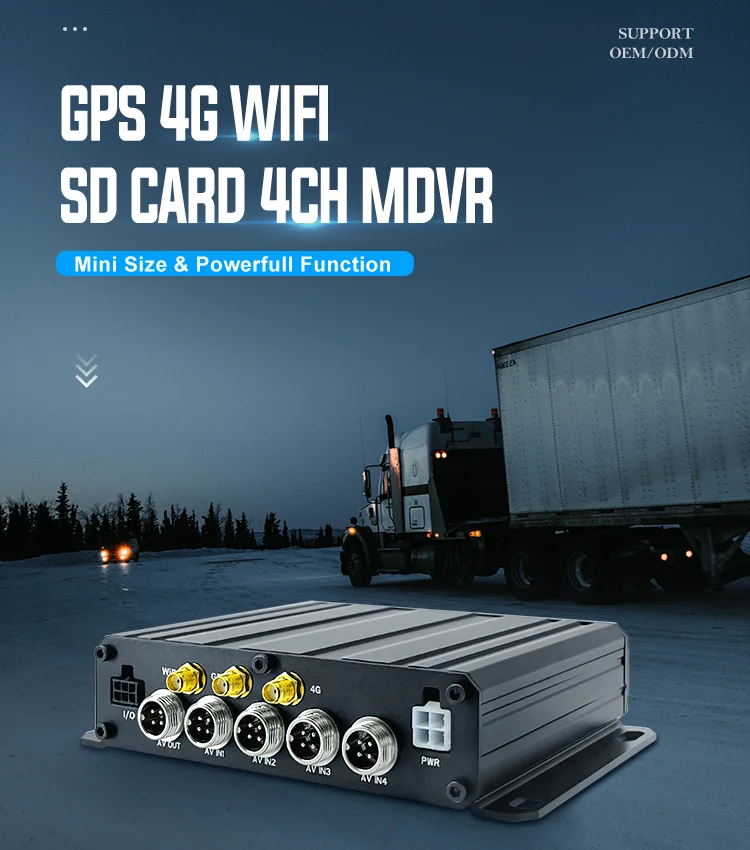

4CH SD Card 4G MDVR
Model
PV90
System language
English, Russian, Portuguese, Spanish, Vietnamese, other (Free customization)
Video format
H.265/H.264. H.265 save 50% space
Video input
4CH 720P/1080P, HD without noise
Video output
1CH mixed video output (Can be changed to VGA output)
Video encryption
Support AES256 encryption
Audio input
4CH G711a audio input，Clear sound without noise
Audio output
1CH，Can be connected to speakers
Alarm input
4 I/O input. The I/O input can be connected to reverse, left turn, and right turn
Alarm Output
1CH I/O output, Power off the vehicle or connect the buzzer
Positioning
Support built-in GPS/BD/GLONASS module
G-sensor
Support built-in acceleration sensor, Vehicle Collision Alert

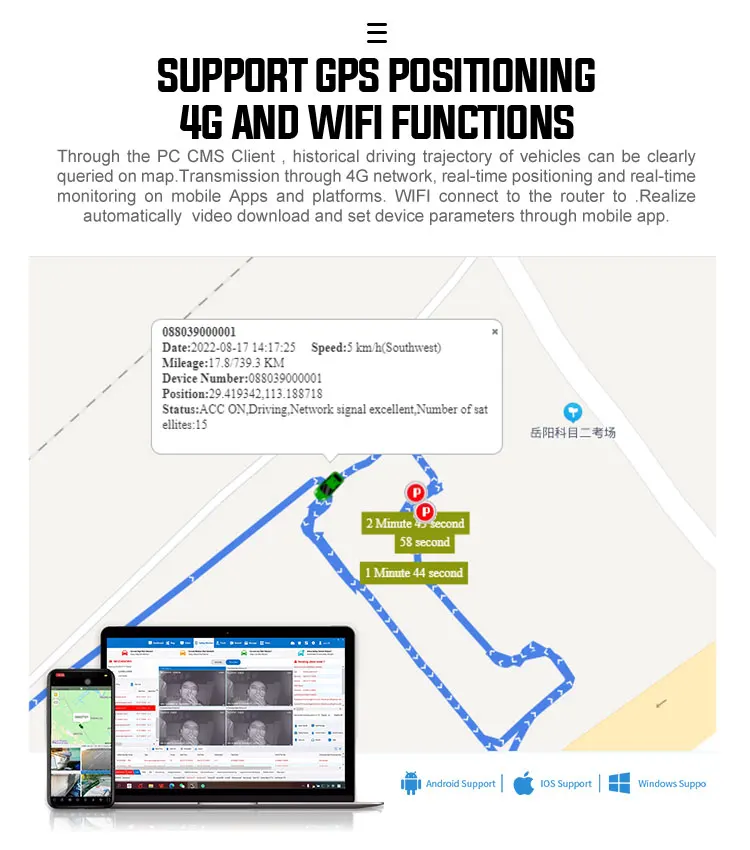

Network
Upload video and GPS track to CMS platform via 4G
CMS Server
CMSV6, JT808-2013/2019 Protocol Platform, Customer supply platform(ULV provides network communication protocol)
Storage
Maximum support 1x64G SD card, loop recording (64GB free offer)
Firmware upgrade
Support SD Card/U disk Upgrade, Support Network upgrade
Input voltage
Adaptive 8~36V wide power supply voltage, with protection functions such as overvoltage, undervoltage, short circuit, and reverse connection
Consumption
Normal work maximum：5W，standby：0.5W
Temperature
-20℃ to +70℃
Humidity
20% to 80%
Size

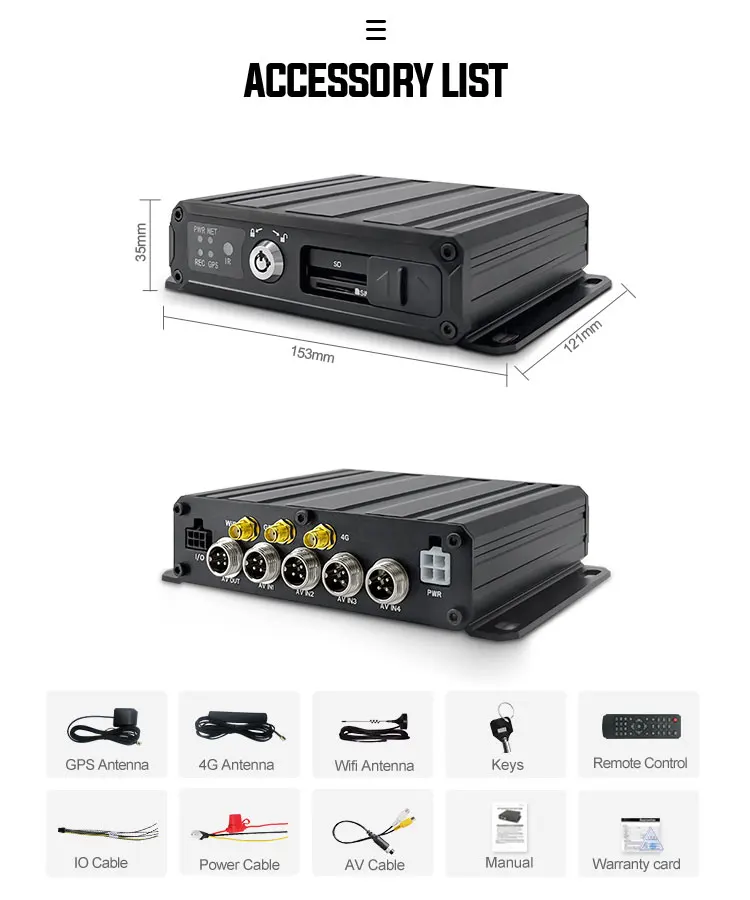

153(W) x35(H) x121(L) mm

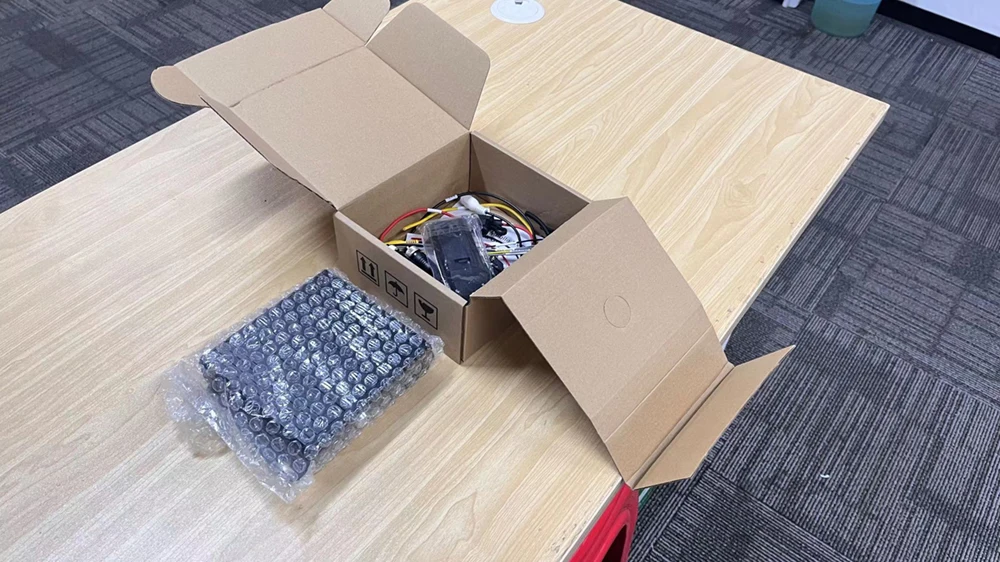

Product packaging ( Main unit, wires, GPS/4G antennas, key, 4 cameras, manual)
