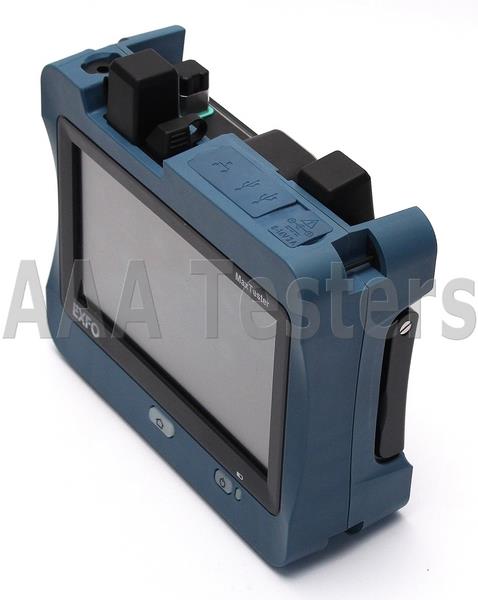

EXFO MaxTester MAX-945-SM1 SingleMode 1310 / 1550 nm Fiber Optic Loss Test Set

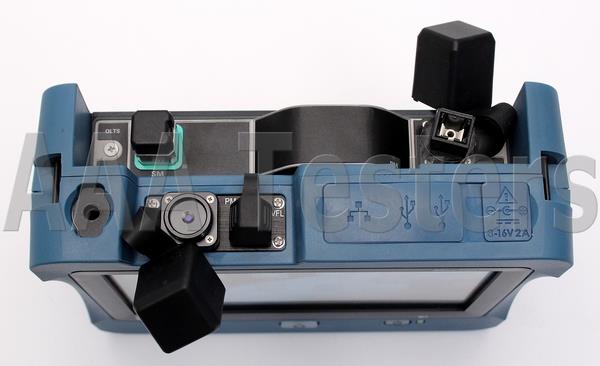

SM Source:
- 1310nm
- 1550nm
Power Meter
Visual Fault Locator

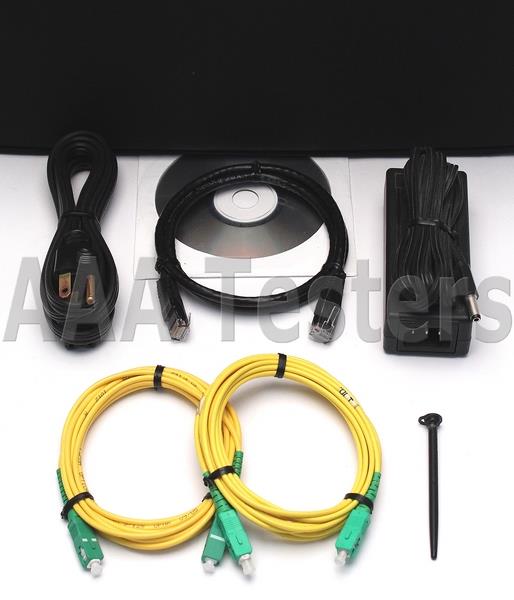

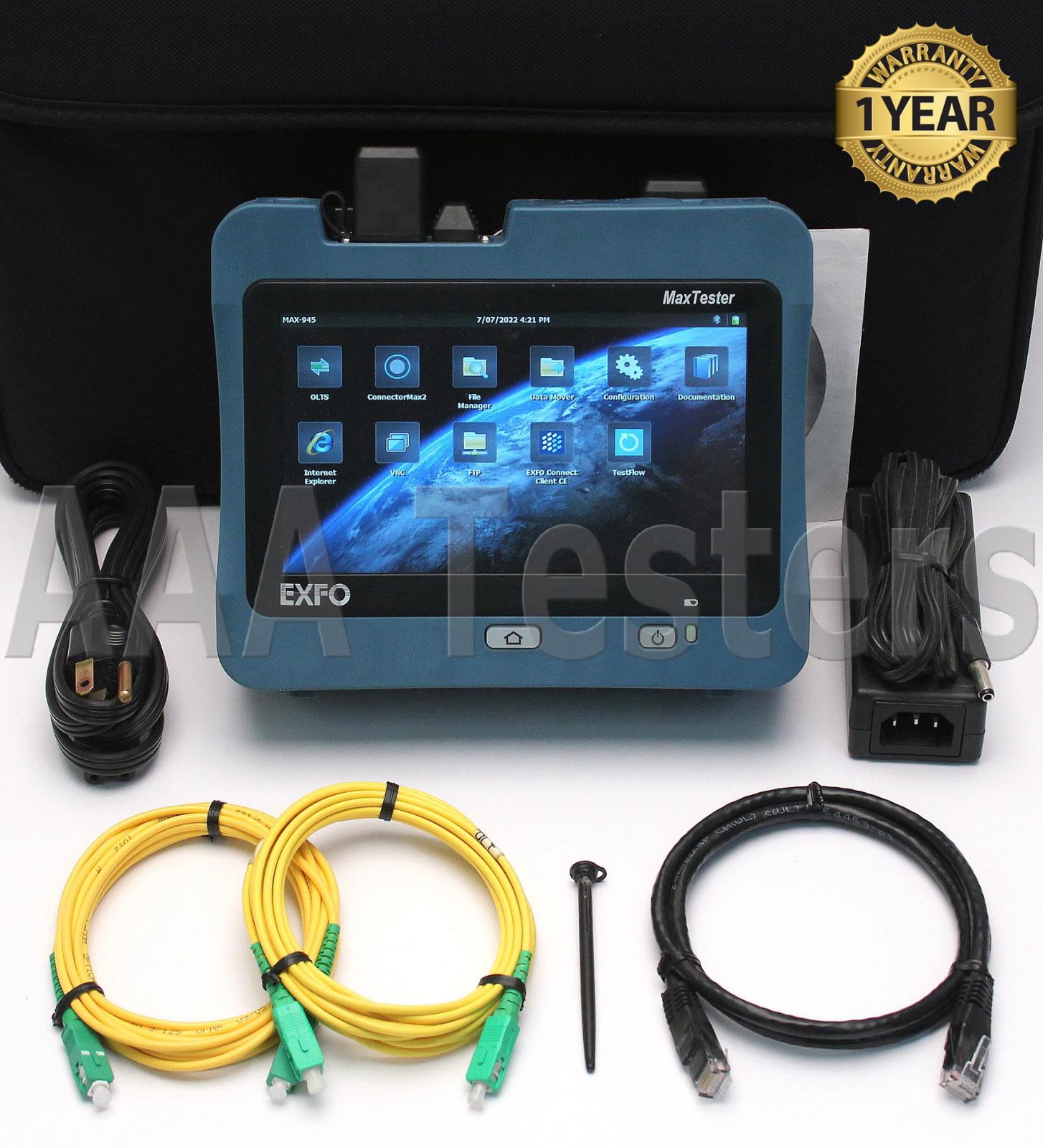

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
EXFO MAX-945 Fiber Certifier OLTS
FULLY AUTOMATED FASTEST BIDIRECTIONAL INSERTION LOSS, ORL AND LENGTH MEASUREMENT
First tablet-inspired multifunction optical loss test set (OLTS) delivering insertion loss (IL), optical return loss (ORL) and fi ber-length at two wavelengths in 5 seconds via fully automated bidirectional FasTesT™ analysis.
THE NEXT GENERATION OF AUTOMATED OLTS: MORE FEATURES, GREATER PERFORMANCE

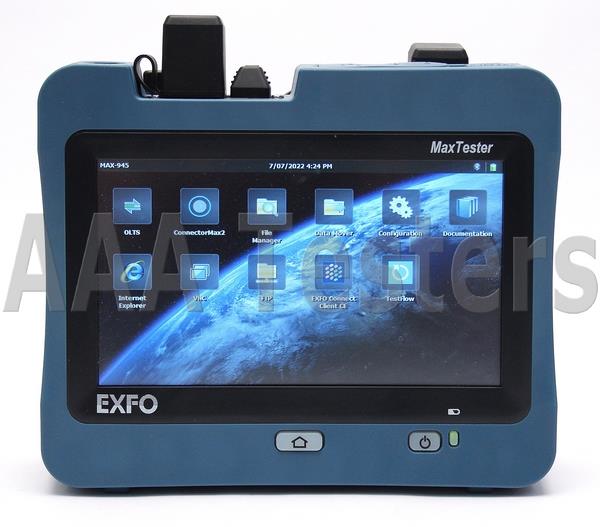

The MAX-945 boasts a 7-inch touchscreen, the largest and most user-friendly display in the industry to make life easier for the technician. The MAX-945 also allows for 100 % automated fiber inspection at both ends of the fiber link. Paired with the FIP-400B automated fiber inspection probes and powered by FasTesT™, this OLTS brings the latest and the best in innovation and automation at your fingertips.
THE BENEFITS
On-board step-by-step animated reference assistant
Accurate and repeatable test results starts with proper test cord referencing. Good referencing greatly reduces common mistakes often encountered in the field. Thanks to the reference assistant’s animated and interactive interface this step of the testing sequence is now as simple and easy as it can be.
Test shorter links than ever before
Thanks to highly accurate optics, this OLTS can test with extreme precision short links with very low loss.
EXFO’s patent-pending one-cord reference method
Greatly reduces test uncertainty for greater test accuracy which is a key factor when testing short fiber links such as drop fibers in FTTH networks.
Specifications:
| POWER METER SPECIFICATIONS |
| Input connector |
Interchangeable adapter |
| Detector type |
InGaAs |
| Measurement range (dBm) |
5 to -75 |
| Uncertanity (pW) |
±(5 % + 32) |
| Wavelengths range (nm) |
800 to 1650 |
| FASTTEST™ LOSS/LENGTH SPECIFICATIONS |
| Testing Speed |
FasTesT™ Duplex: 2.6 seconds (two wavelengths, one direction, automated, IL + length)
FasTesT™ Simplex: 5.0 seconds (two wavelengths, bidirectional, automated, IL + ORL + length) |
| Input/Output connectors |
Interchangeable adapter
iCERT model: LC, SC or FC EUI
SM1, SM3 and SM4 models: All EUI |
| Wavelengths (nm) |
Singlemode (Laser)
1310 ± 20
1550 ± 20 |
| Launch condition |
EF compliancy guaranteed at multimode source port Within TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 Encircled Flux template limits at the end of an EXFO reference-grade 50/125 µm test cord |
| Loss range (dB) |
Multimode: 20 Singlemode: 45 |
| Length measurement range (km) |
Multimode: 20
Singlemode: 160 |
| Length measurement uncertainty |
±(0.5 m + 0.5 % x length |
| Output power (dBm) |
Multimode : –25 (850 nm and 1300 nm)
SM1 : 2.5 (1310 nm and 1550 nm) |
| Output power stability (dB) |
±0.05 over 8 hours |
| Spectral width (FWHM) (nm) |
850 nm: 30 to 60
1300 nm: 100 to 150 |
|
