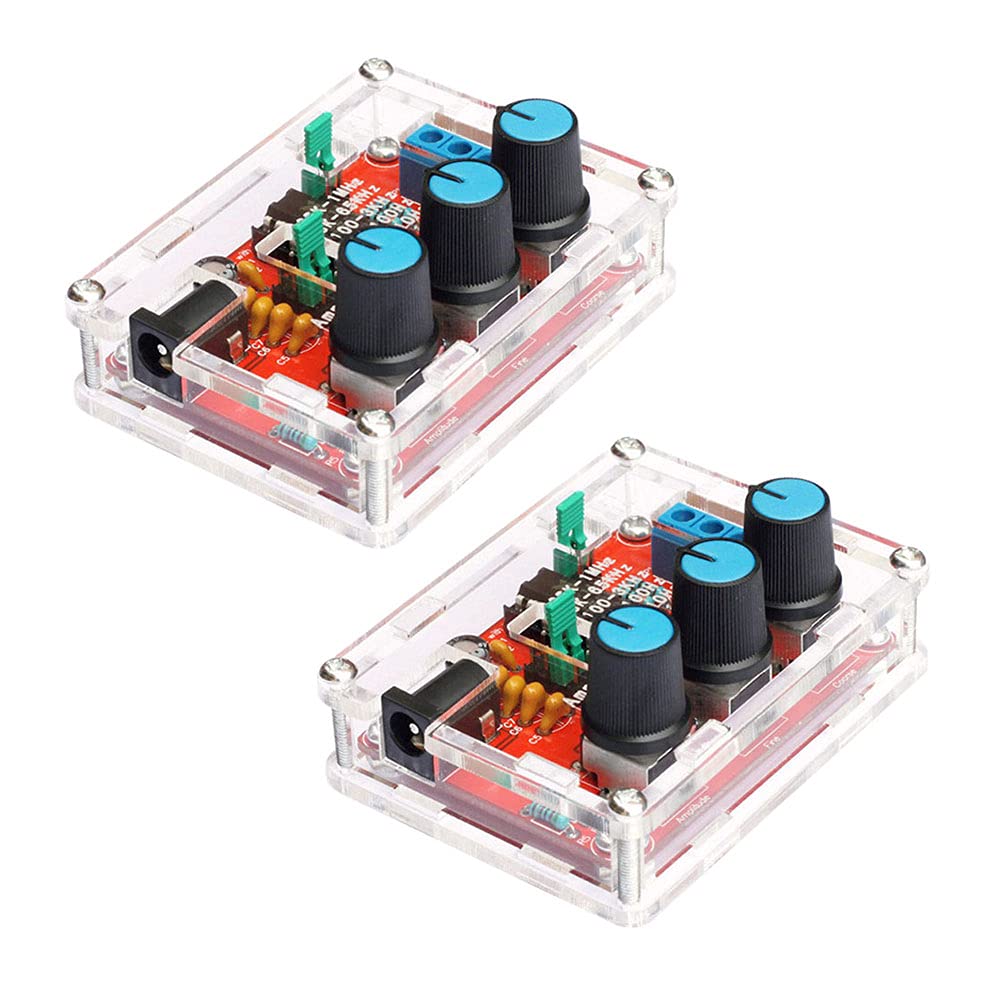

Ferwooh Precise Function Signal Generator Kit XR2206 Frequency Module Sine Triangle Square Output Adjustable 1Hz-1MHz DC 9-12V


Product Details

  • 【Specifications】Voltage Supply: 9-12V DC Input; Wave forms: Square, Sine, Triangle; Impedance: 600 Ohm + 10%; Frequency: 1Hz-1MHz; Amplitude: 0-3V at 9V DC; Input Distortion: less than 1% (at 1KHz); Flatness: +0.05dB 1Hz - 100kaHz
  • 【welding steps】The welding installation considerations, follow these steps: First,the components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.Then welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.
  • 【Debugging steps】After completion of welding on IC, XR2206, you need to pay attention to the direction of IC, or insert the might damage the chip! Check IC for errors, if any, please correct in time.
  • 【Power】 Insert the power supply, power supply for 5.5 x 2.1 port, inside and outside is negative polarity; Fitting for 9-12 v power supply voltage, and the waveform may not be stable for more than 12V.
  • 【Please note】these are DIY kits, you need to follow the welding steps in our description and complete the final installation.

Specifications:Voltage Supply: 9-12V DC InputWaveforms: Square, Sine & TriangleImpedance: 600 Ohm + 10%Frequency: 1Hz-1MHzSINE WAVEAmplitude: 0-3V at 9V DC InputDistortion: Less than 1% (at 1KHz)Flatness: +0.05dB 1Hz - 100kHzSQUARE WAVEAmplitude: 8V (no load) at 9V DC InputRise Time: Less than 50ns (at 1KHz)Fall Time: Less than 30ns (at 1KHz)Symmetry: Less than 5% (at 1KHz)TRIANGLE WAVEAmplitude: 0-3V at 9V DC InputLinearity: Less than 1% (up to 100KHz) 10mAThe welding installation considerations, follow these steps:1. The components are welding the front board, from low to high principles, namely the first low welding components, such as, capacitor, resistor, diode, etc.2.Welding IC socket, terminal blocks, finally power socket, adjustable potentiometer.3.The back with a diagonal cutting pliers to cut short the pins as far as possible.Debugging steps:1.After completion of welding on IC, XR2206, pay attention to the direction of IC, insert the might damage the chip!2. check the IC whether against, such as anti please timely correction.3. Insert the power supply, power supply for 5.5 * 2.1 port, inside outside is negative polarity. For 9-12 v power supply voltage. The waveform may not be stable for more than 12V.Using the step:1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)3. SQU blue terminals output pulse4. AMP : Sine wave, triangle wave amplitude adjustment5. FINE : Frequency fine adjustment6. Coarse : Frequency of coarse adjustmentPackage include:2 X Signal Generator Kit, XR2206 Precise Function Signal Generator Frequency Module
