Features:

1. Applicable syringe size: 5, 10, 20, 30, 50/60 ml.

2. Automatic syringe size detection.

3. Automatic anti-bolus.

4. Drug library.

5. Wireless management.

6. Stackable up to 4 Syringe Pumps (4-in-1 Docking Station) or 6 Syringe Pumps (6-in-1 Docking

Station) with single power cord.

7. On-site checking of history log up to 50000 events.

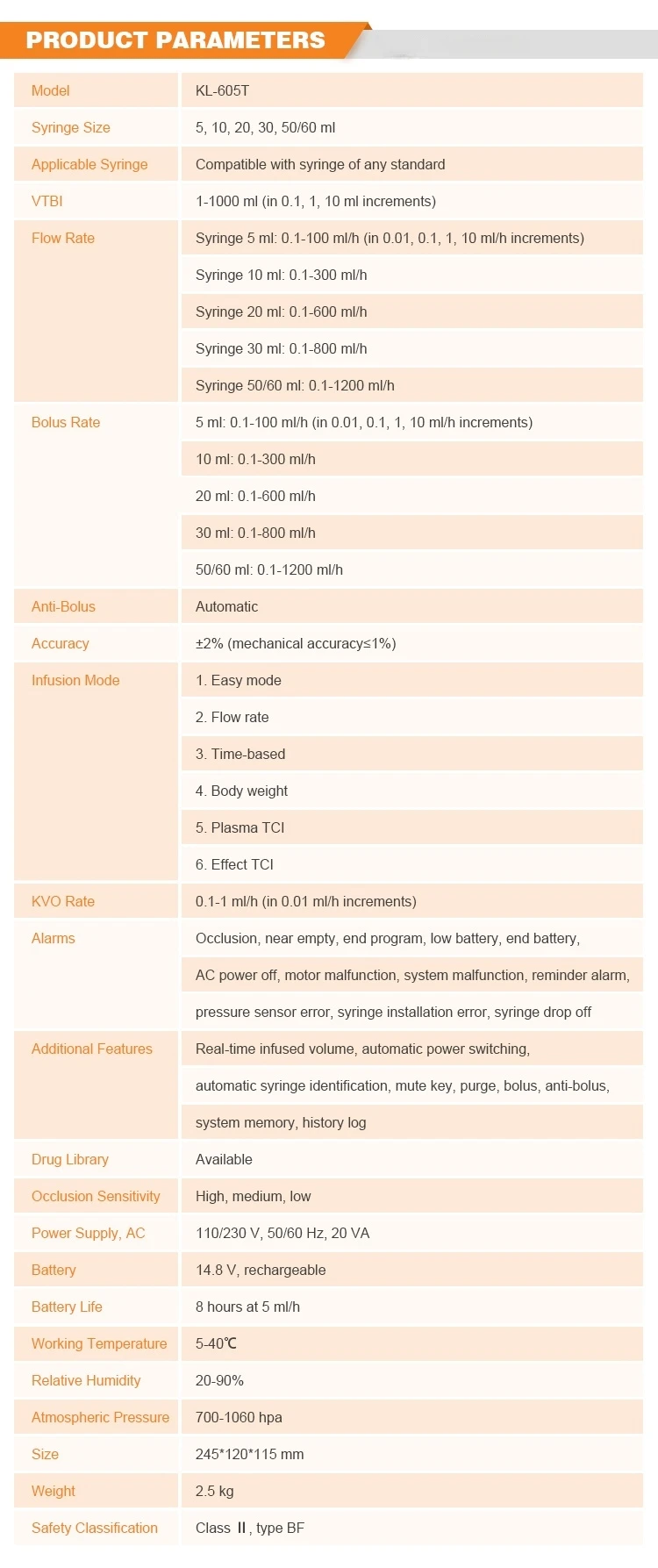

Specifications:

Syringe Size :5, 10, 20, 30, 50/60 ml

Applicable Syringe : Compatible with syringe of any standard

VTBI :1-1000 ml (in 0.1, 1, 10 ml increments)

Flow Rate: Syringe 5 ml: 0.1-100 ml/h (in 0.01, 0.1, 1, 10 ml/h increments)

Syringe 10 ml: 0.1-300 ml/h

Syringe 20 ml: 0.1-600 ml/h

Syringe 30 ml: 0.1-800 ml/h

Syringe 50/60 ml: 0.1-1200 ml/h

Bolus Rate : 5 ml: 0.1-100 ml/h (in 0.01, 0.1, 1, 10 ml/h increments)

10 ml: 0.1-300 ml/h

20 ml: 0.1-600 ml/h

30 ml: 0.1-800 ml/h

50/60 ml: 0.1-1200 ml/h

Anti-Bolus: Automatic

Accuracy : ±2% (mechanical accuracy≤1%)

Infusion Mode : Memory mode

Flow rate: ml/min, ml/h

Time-based

Body weight

KVO Rate : 0.1-1 ml/h (in 0.01 ml/h increments)

Alarms : Occlusion, near empty, end program, low battery, end battery,

AC power off, motor malfunction, system malfunction, reminder

alarm,

pressure sensor error, syringe installation error, syringe drop off

Additional Features : Real-time infused volume, automatic power switching,

automatic syringe identification, mute key, purge, bolus, anti-bolus,

system memory, history log

Drug Library : Available

Occlusion Sensitivity : High, medium, low

History Log: 50000 events

Power Supply, AC : 110/230 V, 50/60 Hz, 20 VA

Battery : 14.8 V, rechargeable

Battery Life: 8 hours at 5 ml/h

Working Temperature: 5-40℃

Relative Humidity: 20-90%

Atmospheric Pressure: 700-1060 hpa

Size: 245*120*115 mm

Weight: 2.5 kg
